Product Overview

Description

Brand: Etross or OEM brand
Model no.: ETS-6688 4G

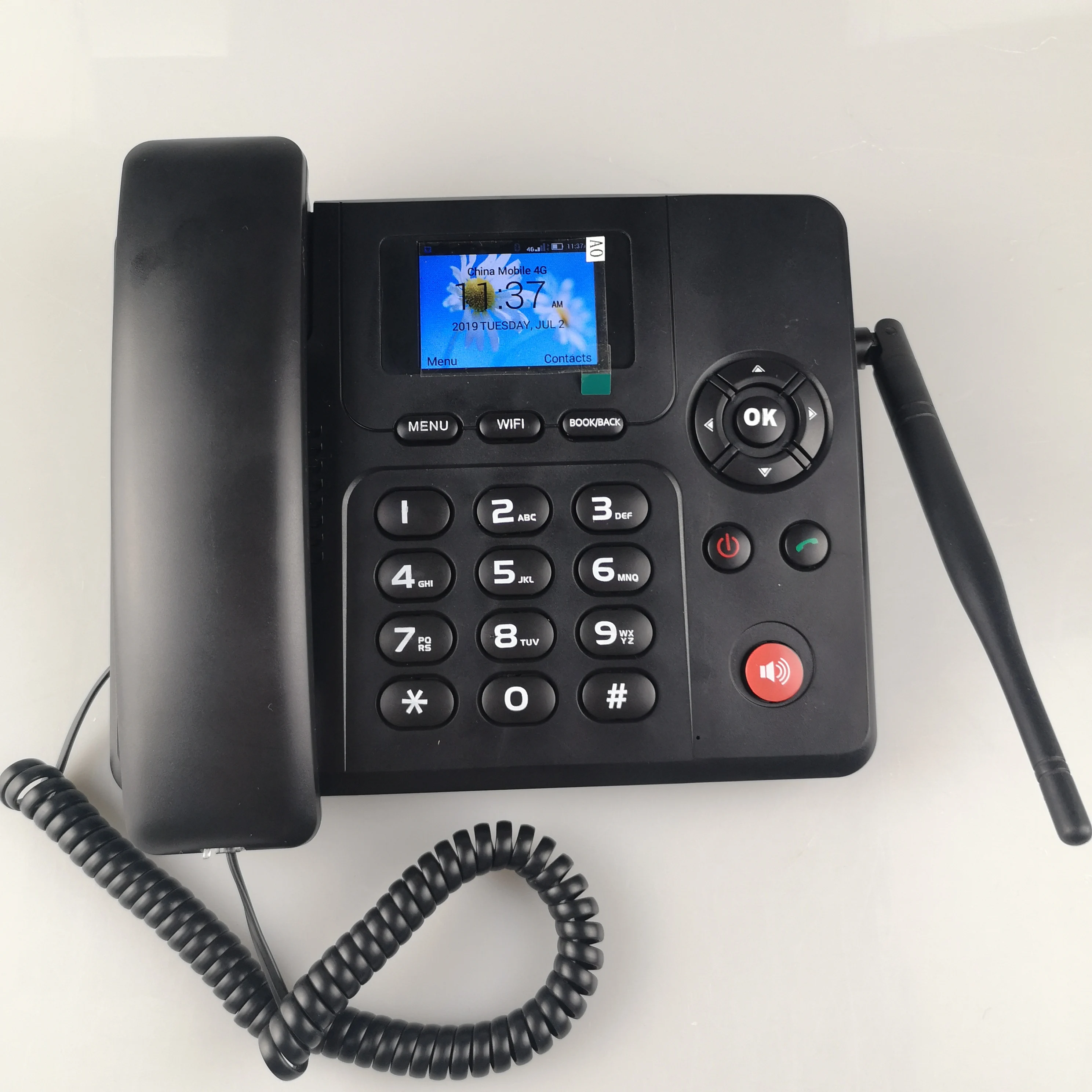

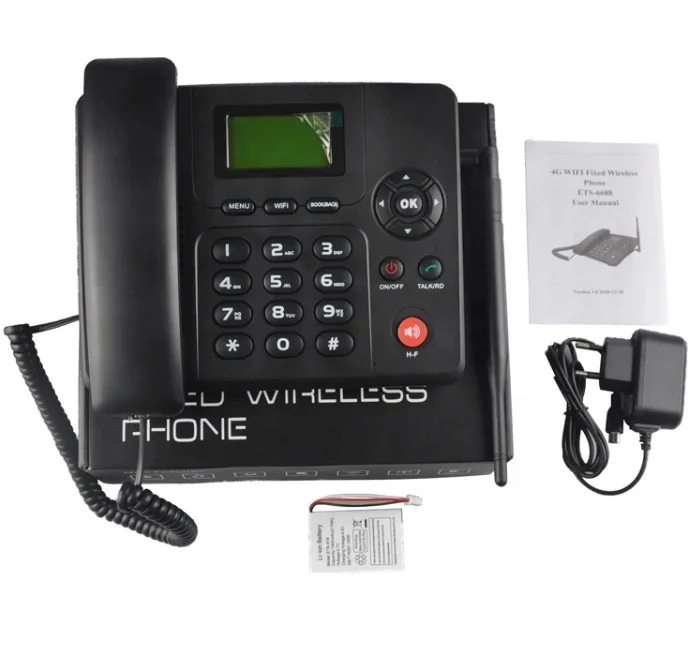

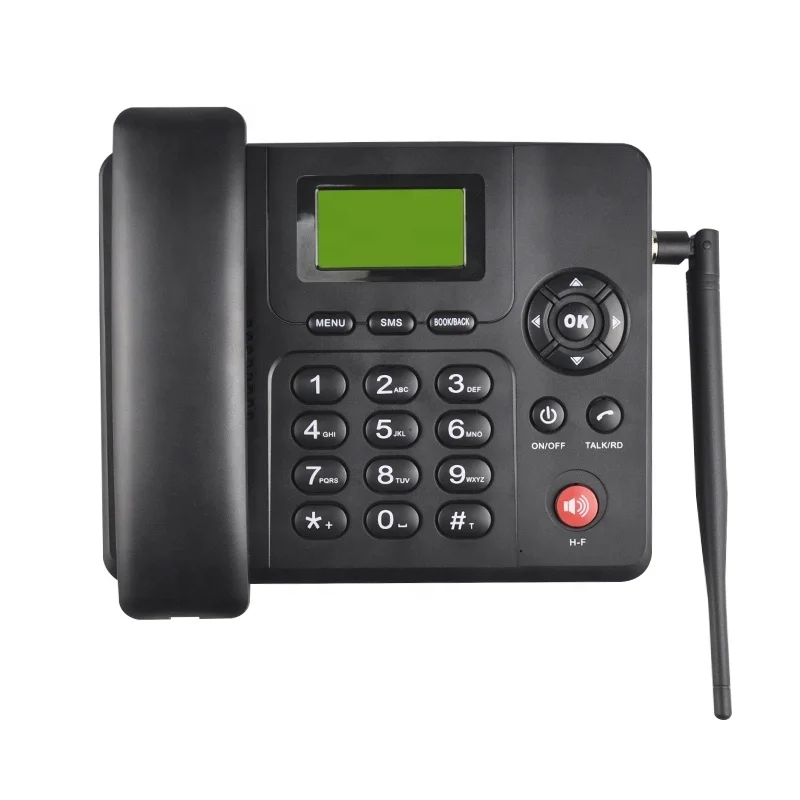

Product name:  ETS-6688 4G GSM FWP, 4G Fixed Wireless Phone



Default Frequency :

2G Band:B2,B3,B5,B8  3G Band:B1,B2,B5B,B8

4G Band FDD:B1,B2,B3,B5,B8, 4G Band TDD:B38,B39,B40,B41



Please check the frequency you need before place an order , if you need other frequency, please contact with supplier but not place the order directly .







The Phone has advanced features as follows:



1. WIFI Standard:IEEE 802.11b/g/n

2. VoLTE Voice

3. FM Radio,SMS,MP3

4. Android 4.4

5. Dot-matrix LCD with back light

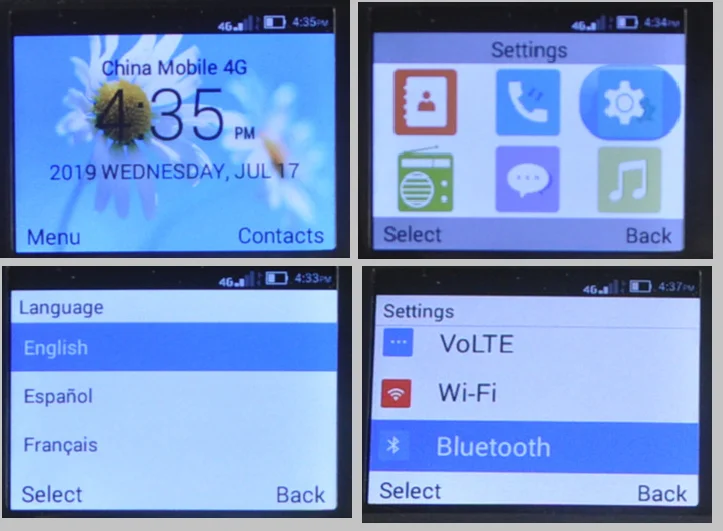

6. LCD display contents include signal strength, battery charging status,missed phone call,

   new SMS, WIFI Hotspot, signal strength,power status,time, date, operator information

7. Phone book

8. Caller ID

9. Memory store 20 incoming, 20 outgoing and 20 missed calls

10. Different ringing tone for incoming call and SMS

11. Speed dial,hands free, redial, call divert, call waiting, call barred.

12. Keypad tone volume adjustable

13. Calendar, alarm clock, calculator

14. Rechargeable backup battery, Standby:120hrs  talking time<5hrs

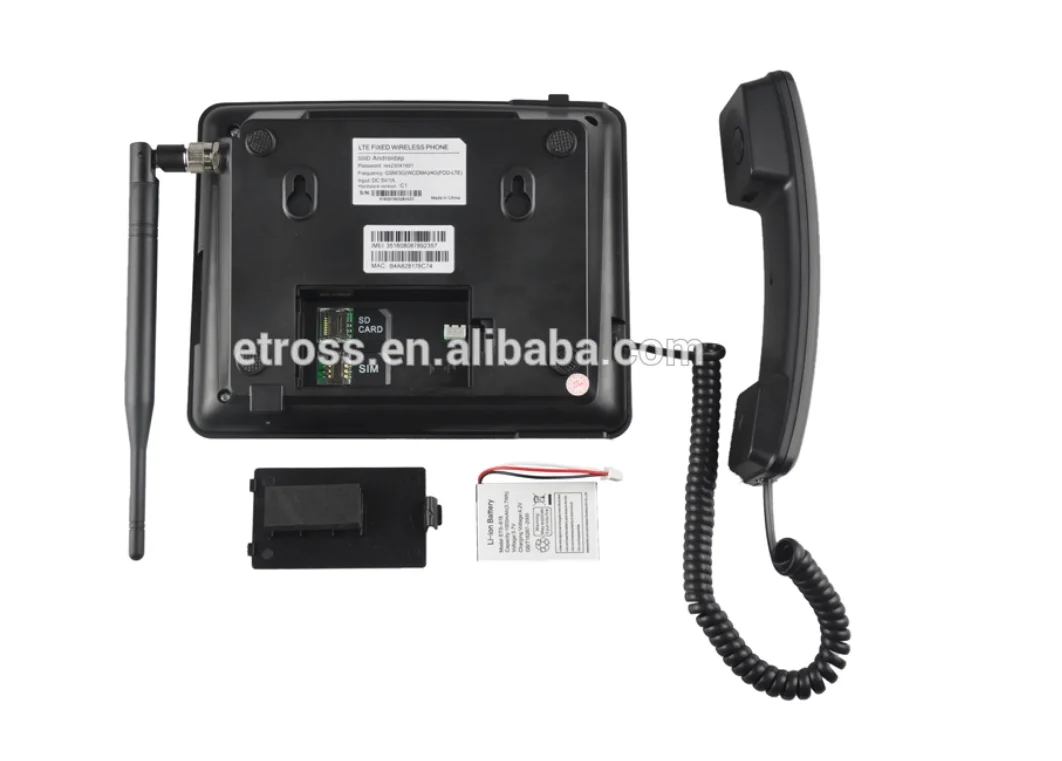

15. TNC antenna or integrated antenna optional

17. Dual SIM or single SIM optional

Technical Parameters

Module Chipset	Spreadtrum SC9820E ,Cortex A53  Dual-core, Clock: up to 1.3GHz Support DVFS
SIM	Support 3V & 1.8 V SIM card
Memory	MCP(4GB+2GB)
Max. power consumption	≤2W
LCD	128x64
Working current	The peak current is less than or equal to 2A The maximum current for GSM calls is no more than 260mA WCDMA communication maximum current is no more than 500mA LTE peak call current is less than 750mA Standby current is less than or equal to 5mA
GSM Band	GPRS/GSM:1900/1800/900/850MHz
WCDMA Band	850MHz/1900MHz or 900MHz/2100MHz (optional)
Max. emission power	FDD/TDD: Power Class 3( 23±2.7dBm)   WCDMA : Power Class 3 (+24dBm +1/-3dBm) GSM/GPRS 850MHz/900MHz: Power Class 5 (+33dBm ±2dBm) GSM/GPRS 1800MHz/1900MHz: Power Class 0 (+30dBm ±2dBm)
Reception sensitivity	FDD/TDD LTE:≤-97.3 dBm(QPSK PREFSENS,throughput≥95%)(An antenna has 10M broadband) WCDMA850/WCDMA900/WCDMA1900/WCDMA2100 : ≤-108dBm GSM850/EGSM900/DCS1800/PCS1900 : ≤-108dBm
Data rate	GSM CS:UL 9.6kbps/DL 9.6kbps GPRS:171.2kbps WCDMA:UL 11.5Mbps/DL 42.2Mbps FDD:UL 50Mbps/DL 150Mbps
GPRS Type	Class 12
3GPP protocol	R7.R8
LTE FDD rf technical indicators	3GPP R9 CAT4 FDD,TDD/FDD receiving sensitivity more than 1 times higher than the standard of 3GPP.
SMS	Support
Network Lock	Support
Upgrade	Support (through USB port)
SIM reader	Support
Working temperature	-20℃~ +70℃
Working Humidity	5%~ 95%
Atmospheric Pressure:	86 ~ 106KPa
Environment Noise	≤60dB(A)

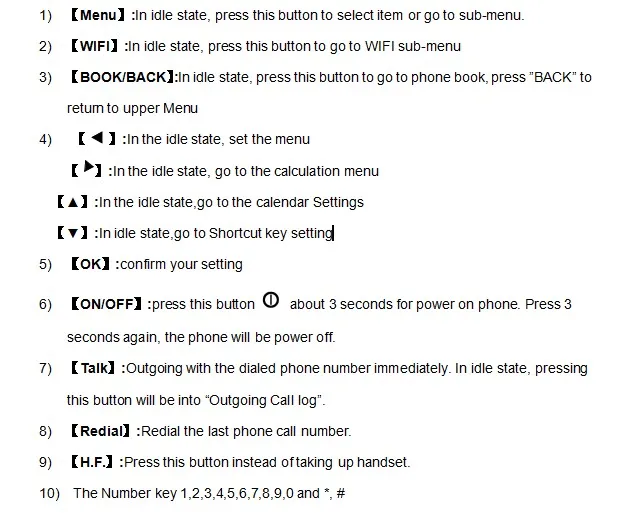

3 Key board Introduction
