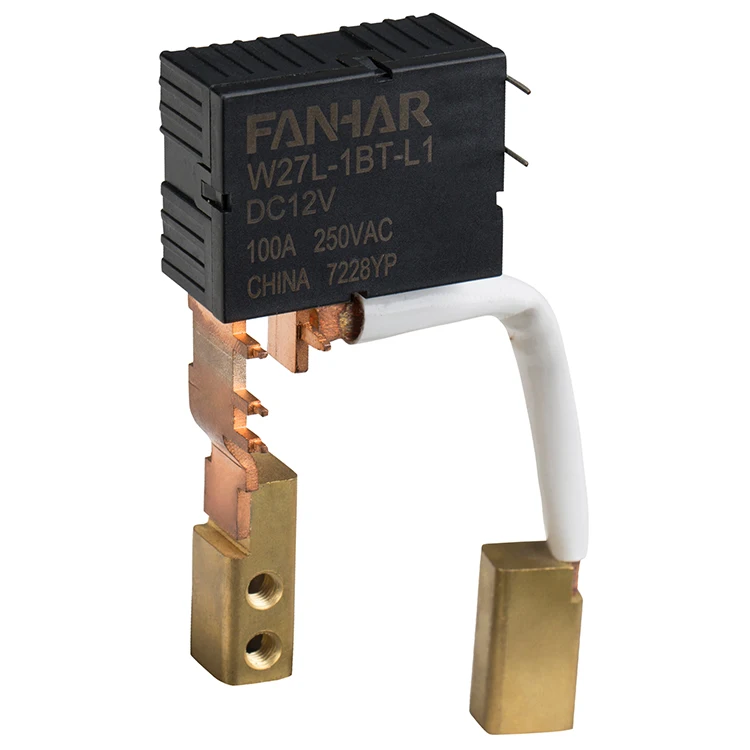

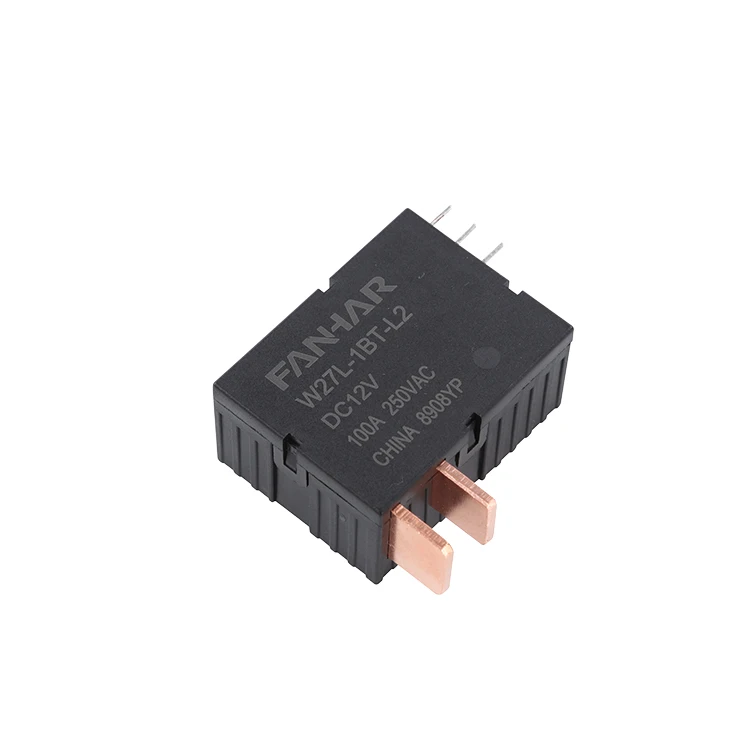

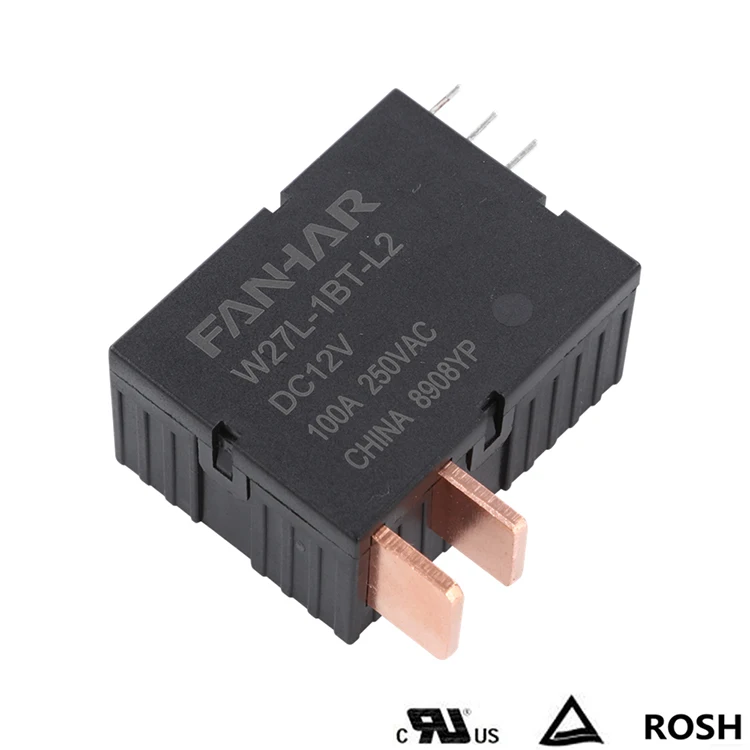

Customized with the manganese copper shunt,transformer and other external accessories latching relay
- Category: >>>
- Supplier: Zhejiang Fanhar Electronics Co. Ltd.
Share on (62485166935):
Product Overview
Description
Product Description
Features:
- 120A switching capability
- Single coil and double coils are all available
- Double contacts structure
- Can be customized the manganese copper shunt, transformer and other external accessories according to customer demand.
- Breakdown voltage (between contact and coil):4KV
- Meet the standard of IEC62055-31:2005 UC3
- Environment-friendly product(RoHS compliant)

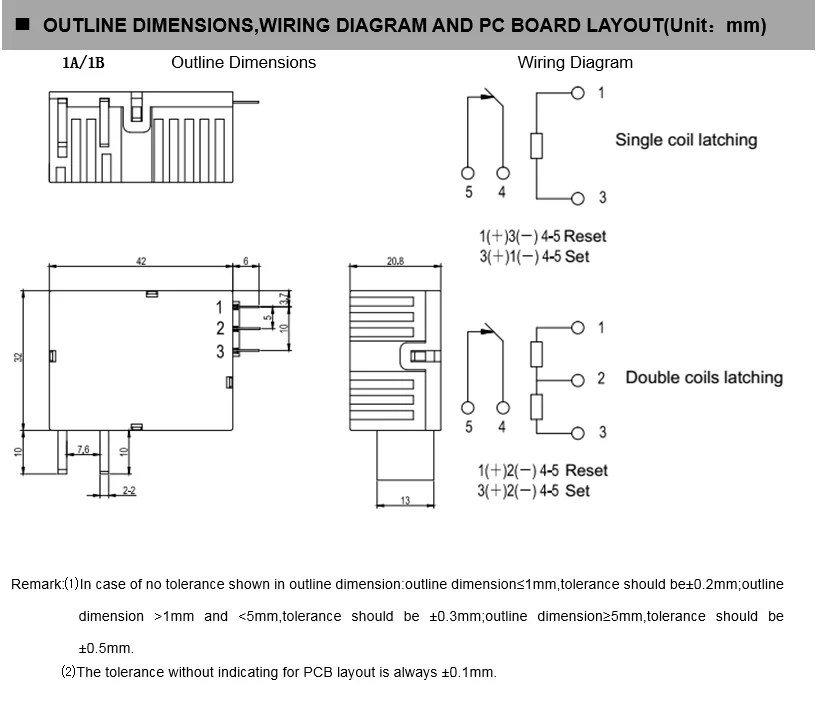

- Outline Dimensions:(42.0×32.0×20.8)mm
- Main application:Smart meter
