box L sealer with shrink tunnel automatic L bar shrink wrapping machine

Share on (62485202885):


Price:$3,980.00

Quantity:


Product Overview

Description



Related Products




Product Description


Description :

L550 It is a fully automatic L sealer, it auto wrapping ,sealing product into bags, and with a heating tunnel , the film will be shrink and wrapping product surface tightly,to form a smooth package according to the shape of product, similar to skin of the package, thus to provide better protection for product and improve product quality as well.

It is widely used for shrinking packing of any solid object like paper box, books,stationery,tools and etc.
adjustable film feeding system and adjustable conveying table, meets different requirements for different products .

Main features:

1.Adopts heat resistant alloy cutter plated Teflon, results in good sealing, without melting the film and any smoke pollution.
2.Full automatic include auto wrapping,sealing & cutting,shrinking,finished product.
3.protection sensors available to detect mis-cutting to shut down machine ,thus to protect both product and cutting knife.
4.Free adjustment left& right, up & down to fit for product in different size.
5. Adopts digital temperature controller , sealing temperature is extremely sensitive and accurate, can set temperature optionally to fit for different material thickness.
6.Equipped with safety glass cover, with alarm function to ensure safety.
7.The machine can be connected with the production line, which is no need additional operator.

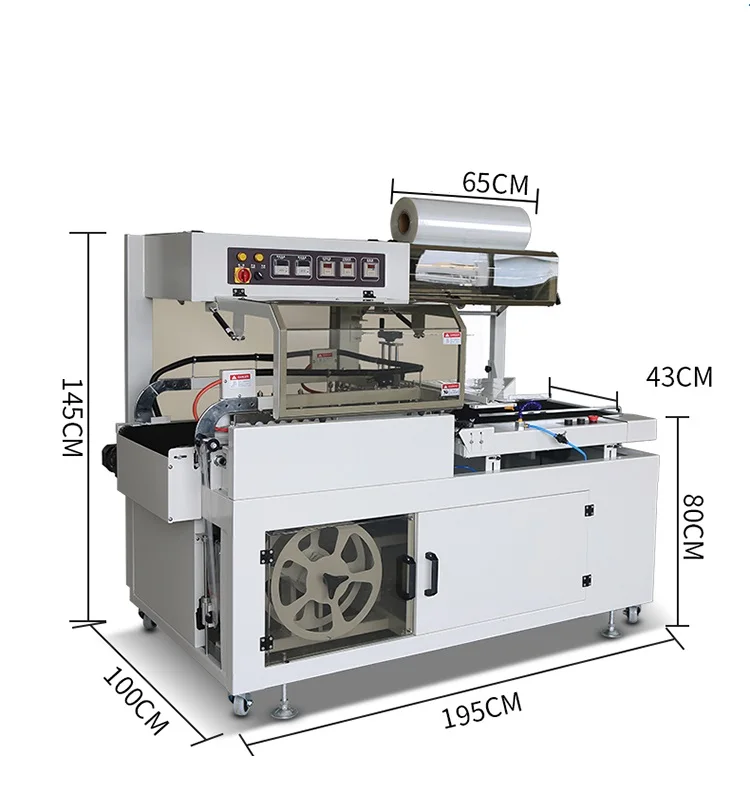

Model
L550
Voltage
220V /50Hz
Power
1.5 KW
Air source
5 KG /CM 2
Max packing size
65 X43X15cm
Packing speed
15-25 bgs / min
Dimension
195X100X145 cm
Weight
350 KG

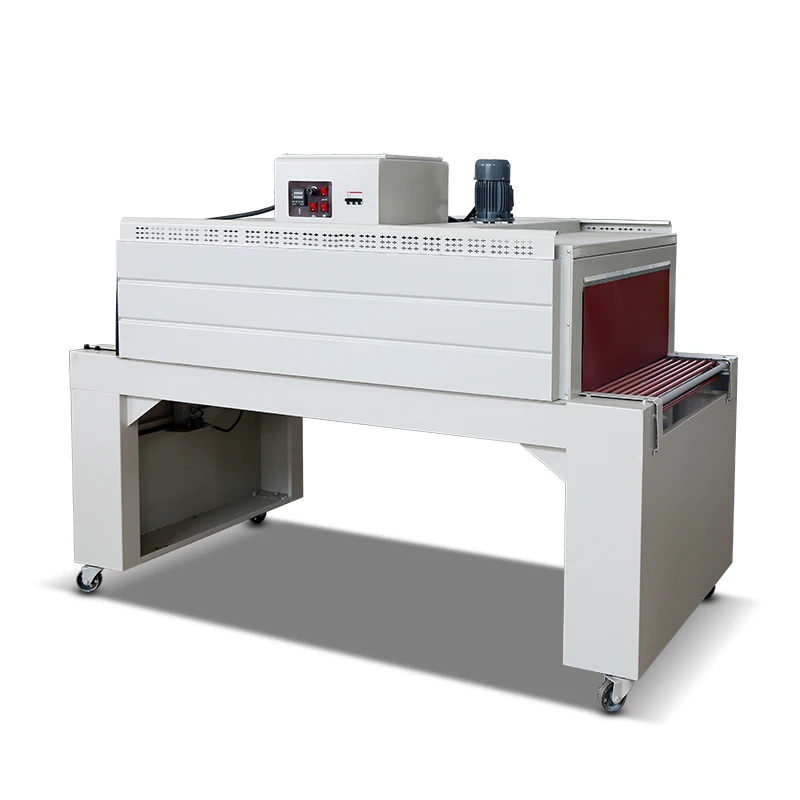

Model

  5530
Voltage

 380V
Power

12 KW
Max load weight

30kg
Shrink tunnel size

150X55X 30cm
Machine size

190 X 80X  138cm




Main features & details












Packing samples
