Place of Origin:Guangdong, China Brand Name:WAYPOTAT Model Number:DS84C PLATEN SCANNING WINDOW:3.3' x 3.2' (86mm x 81mm) FLAT FINGERS SCANNING AREA:3.2' x 3.0' IMAGE SIZE:1600 x 1500 pixels (SLAP) 800 x 750 pixels (ROLLED) IMAGE QUALITY:FBI IAFIS IQS App. F ANS IMAGE RESOLUTION:500 dpi, 256 gray ACQUISITION SPEED:> 28 fps for slap (Preview mode) > 25 fps for rolled DIMENSIONS:148mm x 152mm x 148mm WEIGHT:1.4 kg INTERFACE:USB 2.0 (Data & Power supply)
Supply Ability
Supply Ability:5000 Unit/Units per Month
Packaging & Delivery
Packaging Details: Retail box
Port: Shenzhen
Lead Time :Quantity(Units)1 - 100>100Est. Time(days)20To be negotiated
specification
Product Application

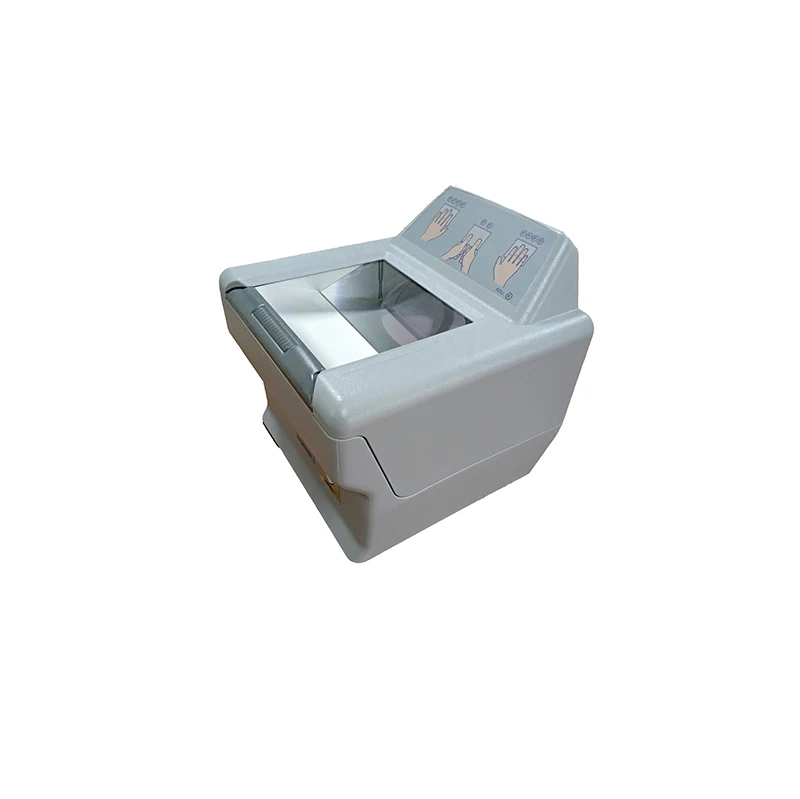

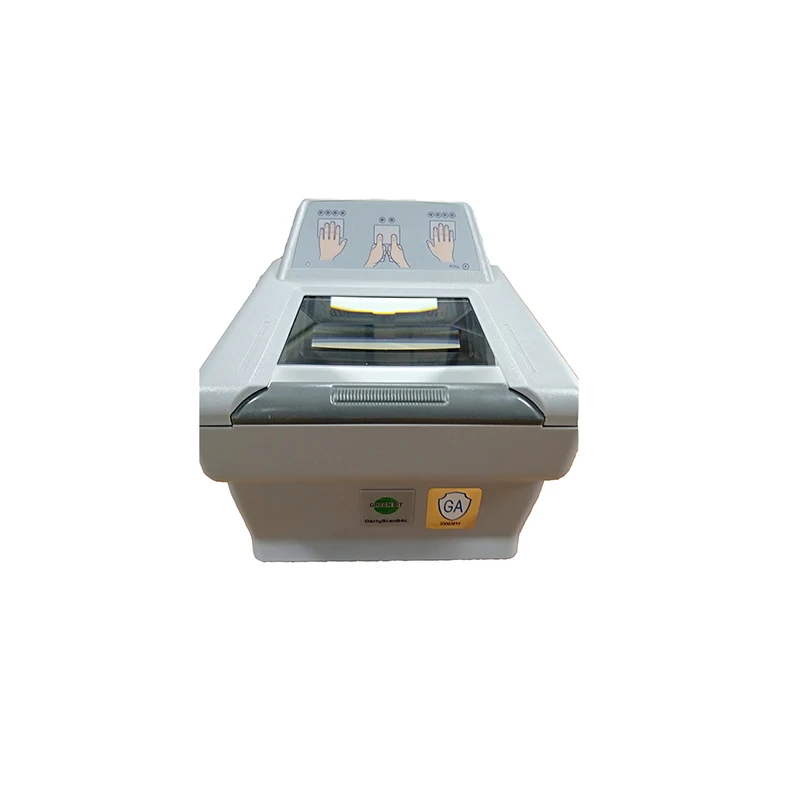

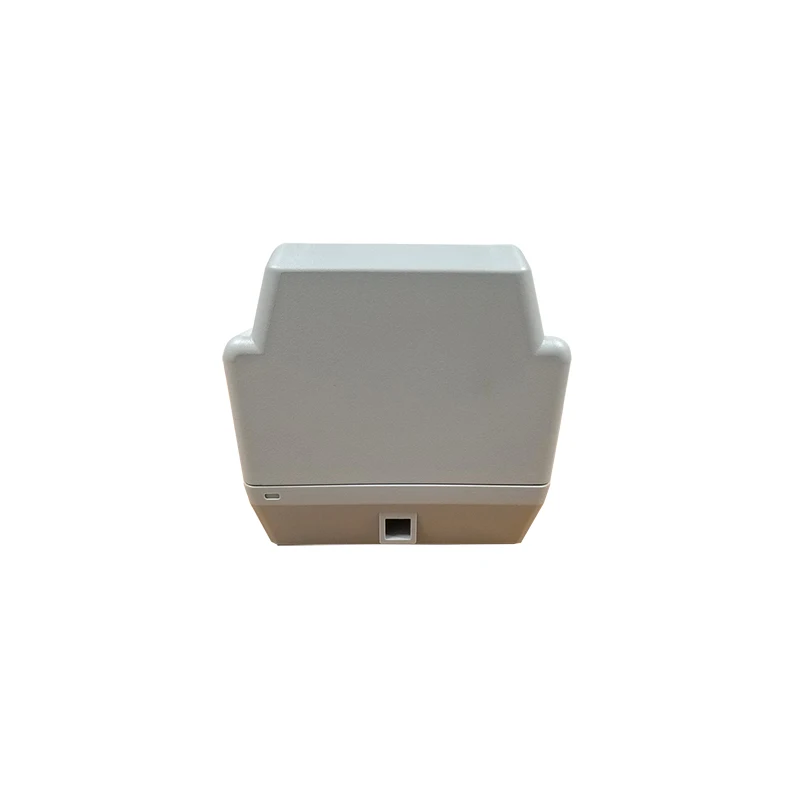

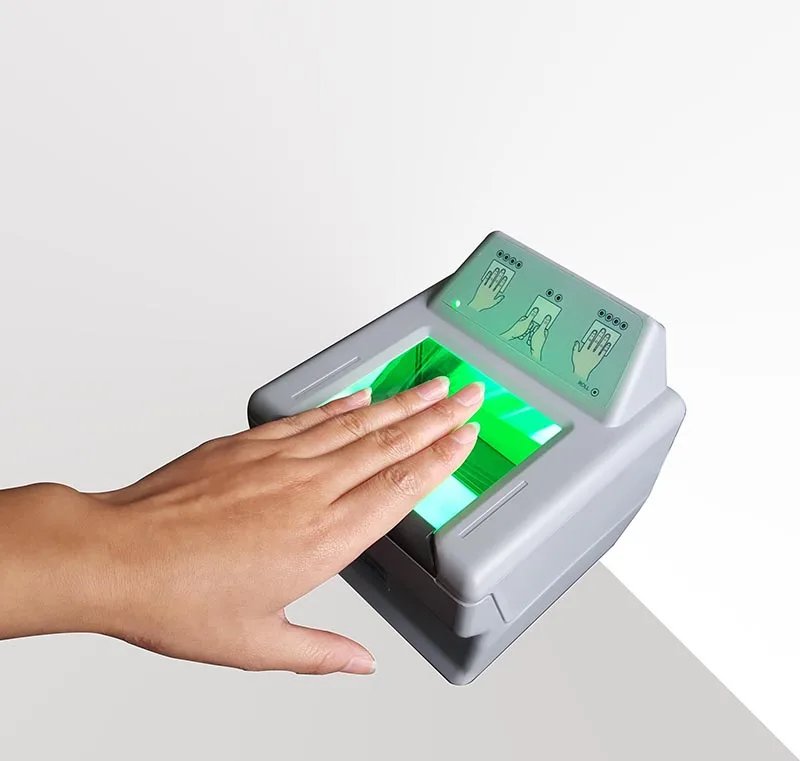

The DS84c is a 3.2" x 3.0" 10-prints and rolls Livescan at 500 dpi certified by the FBI according to FBI IAFIS IQS App. F. as Livescan System as well as for Identification Flats * FBI APP. F CERTIFIED
With up to 27 frames per second for 4-slaps and up to 25 frames per second for rolled prints acquisition the DS84c is unique in terms of acquisition speed. An ergonomic design combined with an easy-to-integrate SDK architecture makes the DactyScan84c the perfect choice for system integrators and solution providers. *10-PRINTS AND ROLLED ACQUISITION

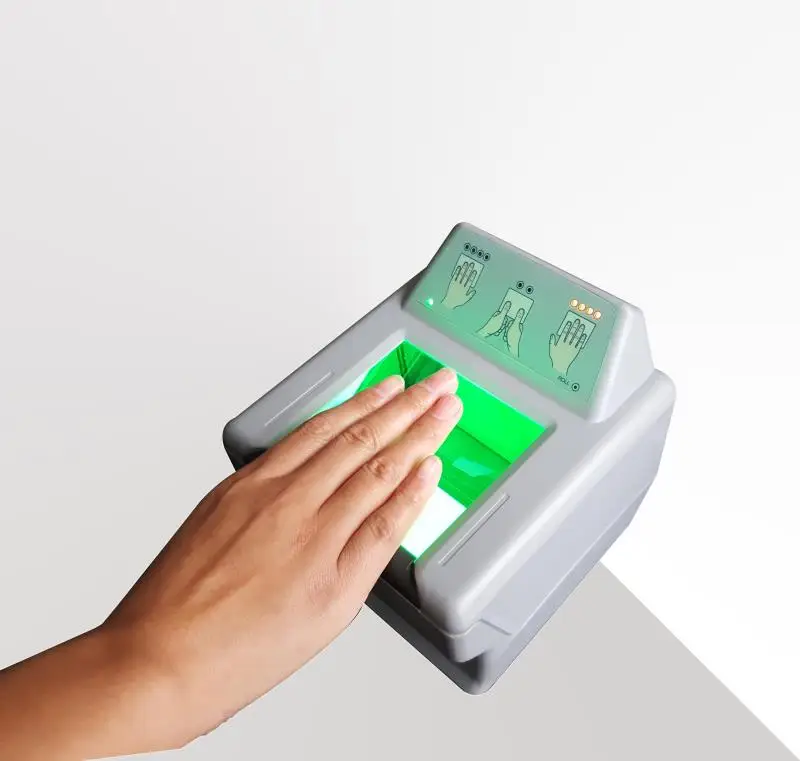

A user interface based on 12 three color leds facilitates the acquisition procedure by indicating the fingerprint(s) to be acquired and providing quality feedback thus eliminating the necessity for skilled operators and therefore increasing workflow efficiency.
The DS84c is available as OEM module for all system integrators looking for a compact 10-print Livescan to be physically integrated in embedded solutions.
*SPOOFING AND LIVENESS DETECTION
As optional module, DS84c can be upgraded with a leading edge SW solution detecting fake fingers made with various different materials. GB_FFD add-on can be used on existing DS84c as well as on new installations.
PLATEN SCANNING WINDOW
3.3' x 3.2' (86mm x 81mm)
FLAT FINGERS SCANNING AREA
3.2' x 3.0'
ROLLED FINGERS SCANNING AREA
1.6' x 1.5'
IMAGE SIZE
1600 x 1500 pixels (SLAP) 800 x 750 pixels (ROLLED)
> 28 fps for slap (Preview mode) > 25 fps for rolled
DIMENSIONS
148mm x 152mm x 148mm
certitifications
After-sale Services
After-sale Policy:
If you want us to repair the fault terminals, please contact with WAYPOTAT guy to confirm it first. And then you can send them to our HK's address:(before shipment, kindly contact your sales
Note: 1) All returns must be sent carriage-paid.
2) Please send the original wrapping with in other parcel in order to avoid that it gets damage.
3) Do not sent accessories together with your repair (cables, battery, etc.)
After-sale Service
Phone support
Technicists provide project inquiry, failure diagnosis and instructive technology service through service hot line.
Remote support
When problem can not be solved by phone or there is a complex bug, we will use our remote monitoring center to monitor and diagnose.
On-site support
When phone support and remote support can not solve the problem, or customer requests something, after-sale service department will send out professional after-sale technicist and serve our customer on site.
WAYPOTAT Service Promises
Promise 1. After-sale staff gives the quickest reply to customer's feedback to shorten customer's waiting time.
Promise 2. Promise to use our best service attitude, and to provide customers standardized service.
Promise 3. During the warranty period, in normal circumstances, provide free parts warranty. Outside the warranty period, only cost a small amount of maintenance fee.(state: physical damage and natural disaster not included)
Company Information
WAYPOTAT Industry Inc. was established in Dec. 2012 by Hongkong Way Po Tat Technology Limited with a registered capital of one million RMB. Our focus is on research and development ("R&D"), manufacturing, sales and after sales support of industrial mobile devices. Our products and solutions are widely used in the logistics, retail, manufacturing, medical, and government sectors.
With over 15% of our annual revenue reinvested into R&D, WAYPOTAT has a professional technical team. Our products and solutions have been successfully deployed in mega projects such as logistic ,parking and warehousing system.
When we first introduced our locally designed i9000s and the VPOS3385 series of wireless mobile intelligent client, we gained recognition as the pioneer and leader in the mobile solutions for the logistics industry in China. Today, we have added over 10 models of mobile devices to our portfolio, which include the mobile payment client, the handheld data terminal integrated with RFID reader/writer, 1D/2D barcode scanner & wireless communications, the industrial tablet computer and various handheld barcode scanners. We also complement our hardware devices with our complete client-server software systems to offer a comprehensive solution to our clients.

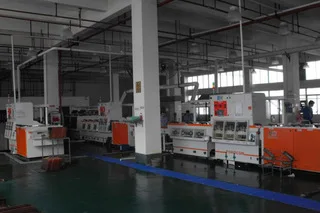

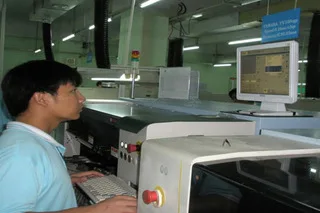

Our manufacturing facility is in ShenZhen, and we have sales and support centers in Singapore, Newzealand, and Brazil. Using WAYPOTAT as our global marketing gateway, we have over 150 distributors, system integrators, and business partners working closely with us to deliver our products and solutions in over 40 countries in the world.
