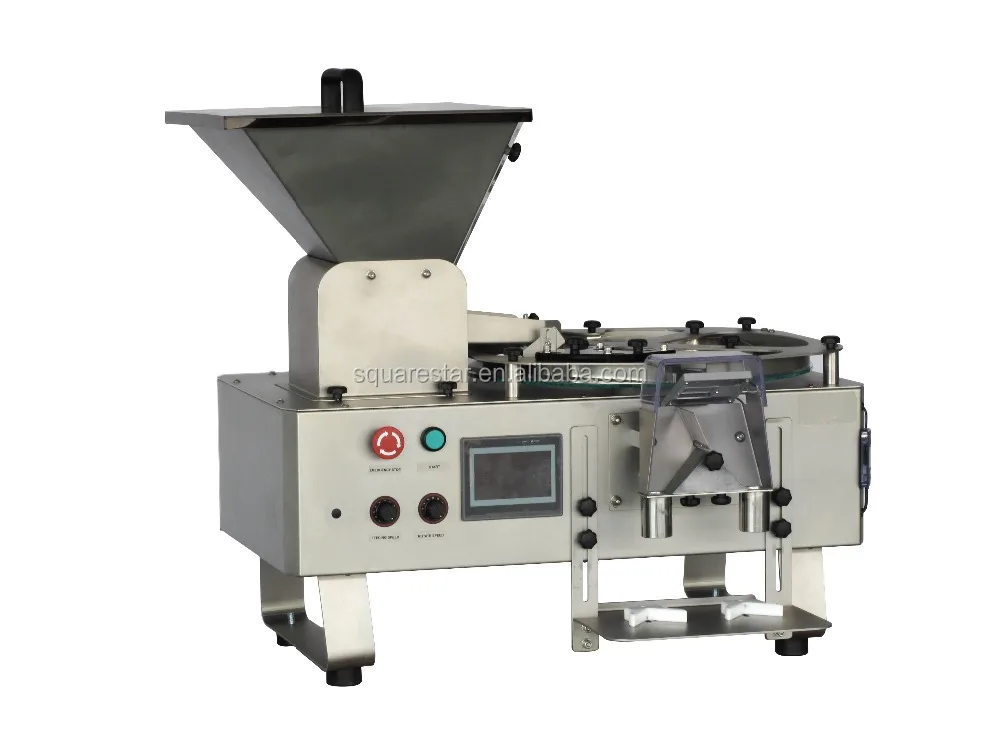

Desktop semi-automatic mini counting tablets machine
Technical parameters
Counting Speed
600-1000 pieces/minute
Hopper capacity
Approx. 10 liters
Bottle height
40mm-100mm
Bottle opening
Φ25- 40 mm
Bottle diameter
Φ45 mm – 60 mm
Size of capsule
00# – 5#
Power source & consumption
150W, 220v, single phase, 50-60HZ
Dimensions (L*W*H)
700mm×550mm×700 mm
Weight
70kg
Key features
MIC120
¨Dual chutes for feeding continually.
¨Dust gathering devices for counting accuracy.
¨Power spacer separates bottles into fixed space.
¨Counting speed can reach 600 to 1000 pcs per minute.
¨PLC control system with HMI interface for easy setting and operation.
¨Adopt high class sensor to precisely position tablets/capsules and bottles.
¨No need to change module when the capsules/tablets are in different size and shape.
¨Made of stainless steel and aluminum alloy for easy maintenance and longevity, meets GMP standard. mini counting tablets machine
Detail description
We adopt electronic scaning counting device on this semi-automatic capsule counting machine which is more pricise than last generation, because this generation could not only count the normal candy but also the transparent candy, that's why we call it candy filling machine. mini counting tablets machine
