Product Overview
Description

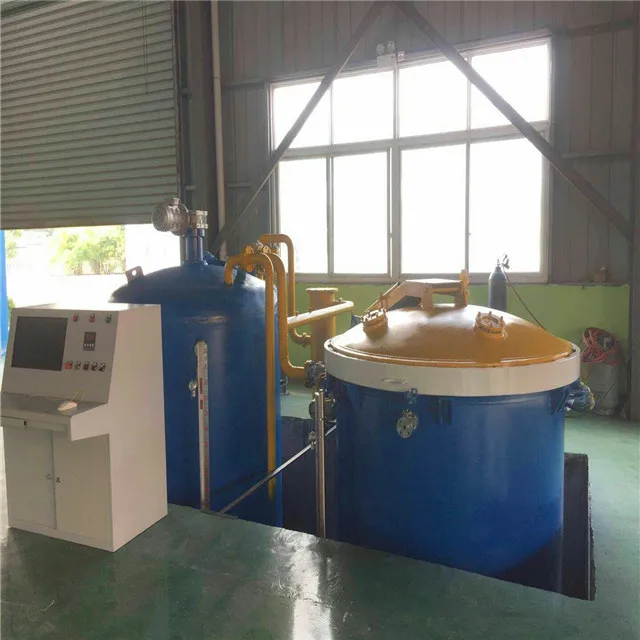

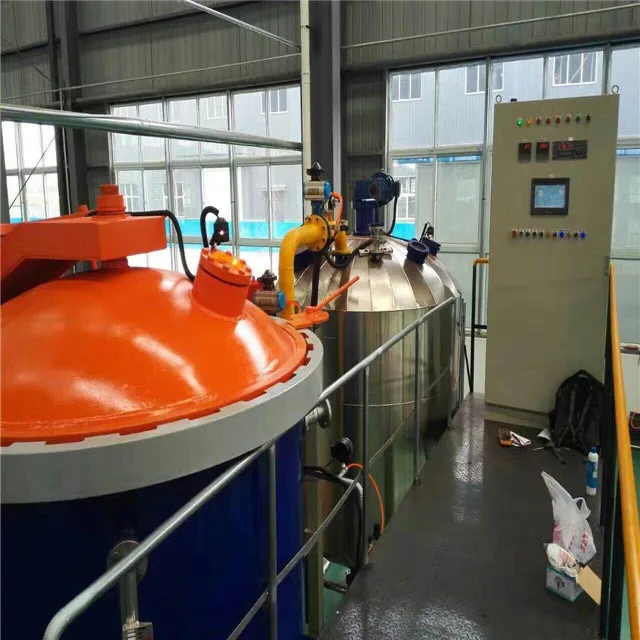

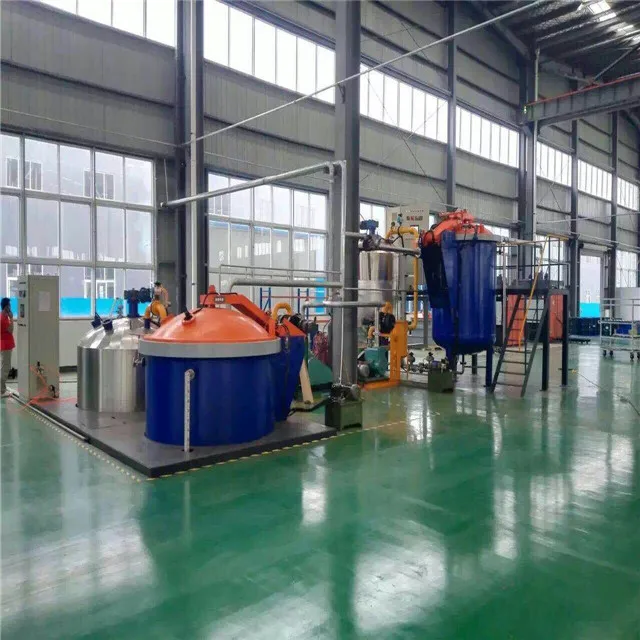

Vacuum Pressure Impregnation Machine for Motor Coil Insulating Treatment
Product Description
Main components
2.1 Vacuum pressure impregnating tank system, one
2.2 Paint storage tank system, one
2.3 Vacuum system, one
2.4 Hydraulic system, one
2.5 Water cooling system, one
2.6 Pressurized air drying system, one
2.7 Pneumatic valve system for repainting, one
2.8 Electric control system, one
2.9 Ventilating system, one
III illustrations and parameters

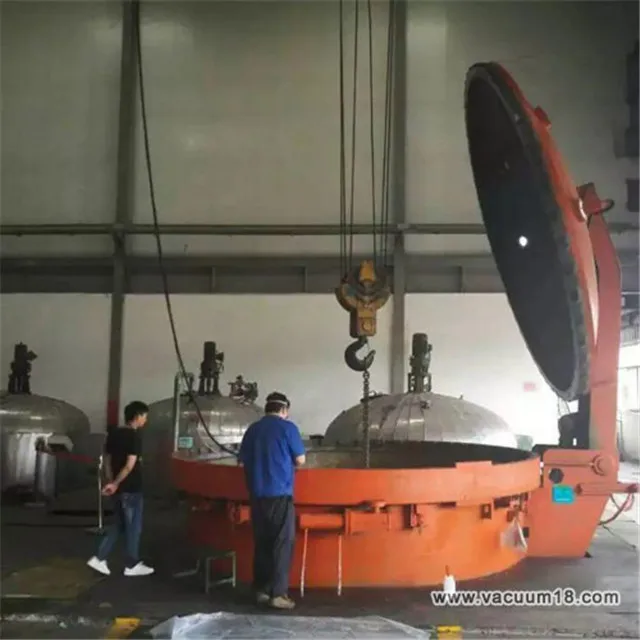

3.1 Vacuum-pressure impregnating tank system (2500 x 2500mm) vertical
3.1.1 Main parameters
Effective dimension | Φ2500 x 2200mm (H) |
Ultimate pressure | |
Working pressure | 0.5MPa |
Ultimate vacuity | 50 Pa |
Working vacuity | 80~10000Pa |
0.6Pa·m3/s | |
Tank body material | Q345R |
3.1.2 Tank structure:
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l Air inlet and safety valve.
l Temperature: Room temperature 80℃
l DN108 unloading mouth on the bottom
l Safety interlocking system, one set
l overpressure alarm and automatic decompression valve device, one set
3.2 Paint storage tank system
Tank structure
l Vertical type with inspection hole lamp and inspection window.
l Liquid level display
l DN20 stainless steel ball valve on the sample outlet and inlet parts,
l Magnetism paint filter 200 mesh.

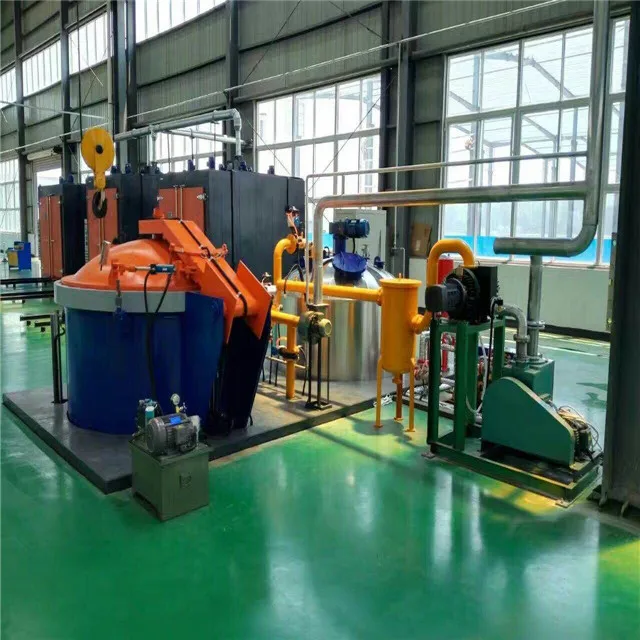

Application
Company Information
Clients Reference
YIBO after-sale service system:
Field installation, commissioning and training
Online support, spare parts, Video technical support
