3G Concox jimi tracksolid vehicle gps tracker GT06E with relay kit
- Category: Navigation & GPS >>>
- Supplier: Shenzhen Innosio Technology Co. Ltd.
Share on (62485536177):
Product Overview
Description
3G Concox jimi tracksolid vehicle gps tracker GT06E with relay kit
Model:GT06E

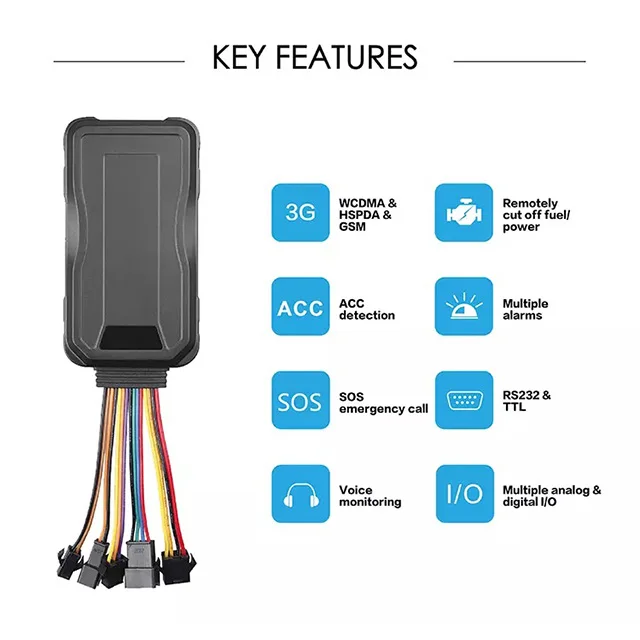

Feature:
GSM 850 / 900 / 1800 / 1900 MHz Quad-band
WCDMA 850/900/1900/2100 MHz
WCDMA+EDGE+GPRS wireless network
Real time position & tracking
SOS alarm
Geo-fence alarm
Mileage calculator
Air update
Analogue/ Digital input
Output control
Remote Tele-cut off (petrol / electricity) function
Support ACC detection, real-time reporting car status
Built-in acceleration sensor for vibration/displacement/low battery/power off alert alarm

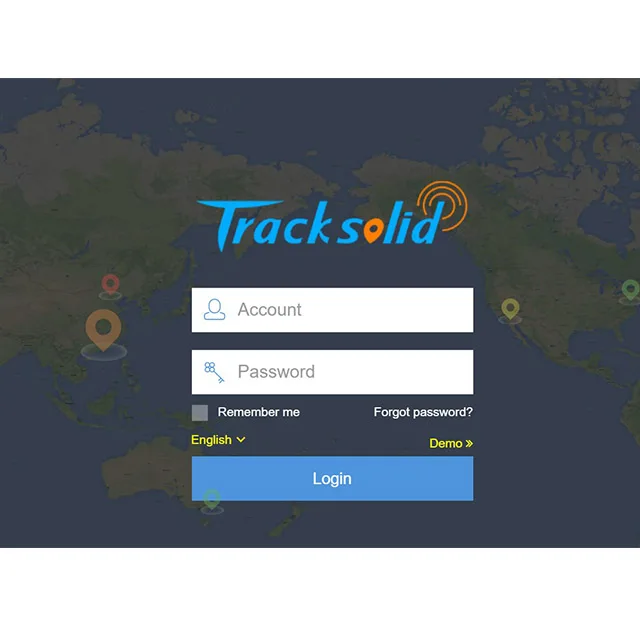

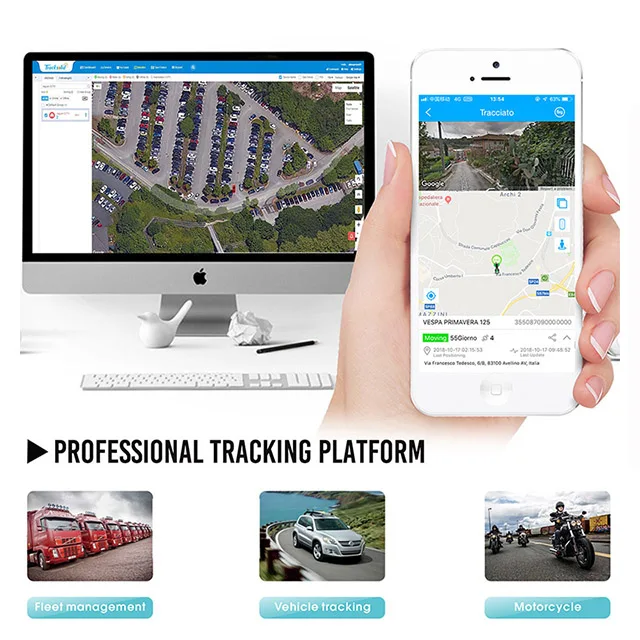

Multi ways to query position: SMS,APP,web browser
Technicial Parameter:
| Specification | |
| Communication System | WCDMA/GSM |
| Frequency | WCDMA 850/900/1900/2100MHz |
| GSM 850/900/1800/1900MHz | |
| Networks | WCDMA /EDGE/GPRS |
| Output Power | Class 3 (24dBm +1/-3dB) for UMTS bands |
| Class 4 (33dBm ±2dB) for GSM 850/900MHz | |
| Class 1 (30dBm ±2dB) for GSM 1800/1900MHz | |
| Receive Sensitivity | -110dBm/UMTS Bands |
| -106dBm/GSM 900MHz,GSM 1800MHz | |
| GPS Chip | MTK high sensitivity GPS chip |
| Frequency | L1,1575.42MHz C/A code |
| Channels | 66 |
| Location Accuracy | <10 meters |
| Tracking Sensitivity | - 165dBm |
| Acquisition Sensitivity | - 148dBm |
| GPS starting time | Hot start:≤2sec(open sky) |
| Cold start:≤35sec(open sky) | |
| Voice Monitor Scope | ≤ 5M |
| Antenna | Built-in GPS ceramic antenna; GSM quad-ban antenna |
| LED Indicator | GPS(blue), GSM(green), Power(red) |
| Operating Voltage | 9-36VDC |
| Operating Temperature | -20℃-70℃ |
| Operating Humidity | 5%~95%,non-dense |
| Built-in Battery | 450mAh/3.7Vindustrial lithium polymer battery |
| Standby | 4 hours |

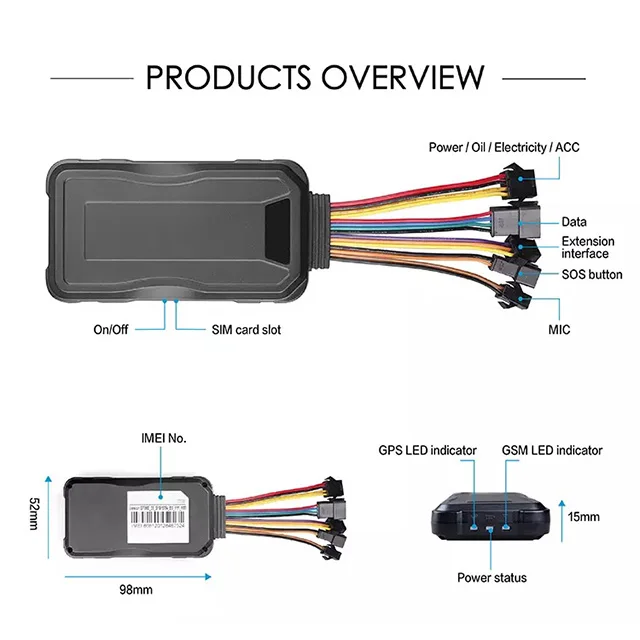

| Dimension | 98(L) ×52.0 (W) ×15.0 (H) mm |
| Weight | 80g |
| Data Transmit | TCP, SMS |
| Geo-fence Alarm | support |
| Over speed Alarm | support |
| Low Power Alarm | support |
| Movement Detection | support |
| Mileage Report | support |
| SOS alarm | support |
| voice monitor | support |
| Remote Control petrol/electricity | support |
| Vibration alarm | support |
| History playback | support 3 months |
| APP System support | Ios and Android |
