4/6/7/8/10/12/14/16' High Speed Industrial Iron Exhaust Fan Ventilation Extractor Wall mounted Exhaust exhaust fan industrial
- Category: Ventilation Fans >>>
- Supplier: Hangzhou Jacony Technology Co. Ltd.
Share on (62485579879):
Product Overview
Description
4/6/7/8/10/12/14/16'' High Speed Industrial Iron Exhaust Fan Ventilation Extractor Kitchen Bathroom Wall mounted Exhaust Fan
Features:
* Made of iron material, hard to deformation and with long service life.
* Surface baking varnish technology, more attractive, and not rusty.
* Seven blades, stronger suction, enhance ventilation pressure.
* Ultra-quiet copper motor,powerful,effective cooling,fast speed and ultra-quiet.
* With anti-backflow vent,windproof and rainproof.
* Suitable for office, living room, toilet, kitchen, room.
Features:
* Made of iron material, hard to deformation and with long service life.
* Surface baking varnish technology, more attractive, and not rusty.
* Seven blades, stronger suction, enhance ventilation pressure.
* Ultra-quiet copper motor,powerful,effective cooling,fast speed and ultra-quiet.
* With anti-backflow vent,windproof and rainproof.
* Suitable for office, living room, toilet, kitchen, room.
Specifications
Model No. | Hole Size (mm) | Panel Size (mm) | Voltage & Frequency | Power (watt) | Speed (RPM) | Air Flow (M3/H) | Noise (dB)A | KG |
FD100 (4inch) | 100 | 133x133 | 220V/50Hz | 25 | 2800 | 140 | 35 | 0.5 |
FD150 (6inch) | 150 | 192x192 | 220V/50Hz | 40 | 2800 | 500 | 55 | 1.1 |
FD180 (7inch) | 180 | 230x230 | 220V/50Hz | 50 | 2800 | 600 | 58 | 1.5 |
FD200 (8inch) | 200 | 250x250 | 220V/50Hz | 60 | 2800 | 850 | 60 | 1.8 |
FD250 (10inch) | 250 | 300x300 | 220V/50Hz | 100 | 2800 | 1200 | 65 | 2.3 |
FD300 (12inch) | 300 | 350x350 | 220V/50Hz | 125 | 1400/2800 | 2000 | 70 | 3 |
FD350 (14inch) | 350 | 400x400 | 220V/50Hz | 280 | 1400/2800 | 3800 | 80 | 4 |
FD400 (16inch) | 400 | 480x480 | 220V/50Hz | 550 | 1400/2800 | 5500 | 93 | 5 |
Metal Finished
-The exhaust fan is made of high-quality metal material, is not easy to be deformed, has excellent workmanship, durable frame
and long service life.
and long service life.
Copper & Ball Bearing Motor
-It is durable and has a built-in copper motor with thermal protection for continuous operation.
-Dual ball bearing Motor provide high ventilation efficiency and very low noise during operation.(except 4 inch)
-Dual ball bearing Motor provide high ventilation efficiency and very low noise during operation.(except 4 inch)

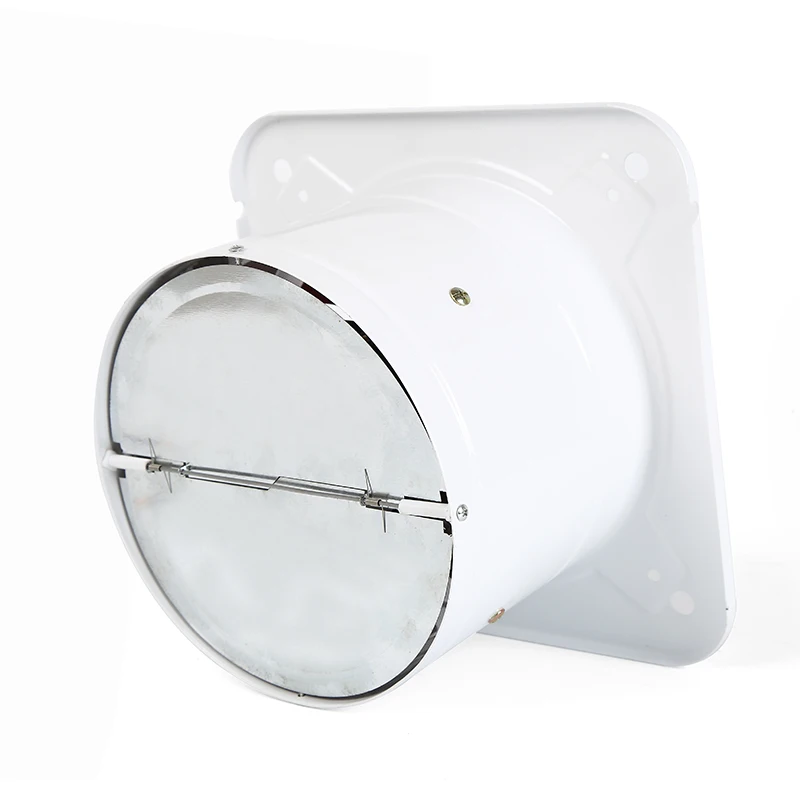

Anti-backflow vent
-With anti-backflow vent,windproof and rainproof.
Stainless steel blade
-With anti-backflow vent,windproof and rainproof.
Stainless steel blade
-7 stainless steel blade used in our fans, it has high ventilation efficiency and very low noise during operation
Cable Connecting
-Our standard fans have no plugs,use the live wire(Brown color), null wire (Blue color),and earth wire(Yellow color).
We also provide plug connecting service.we have different kinds of plug for option
Installation
-Wall mounted quick installing. Easy to use and maintain.
Application
- Perfect for exhaust ventilation from home, bathroom, toilet, kitchen, Garage,workshops,basements, attics etc.
- Perfect for exhaust ventilation from home, bathroom, toilet, kitchen, Garage,workshops,basements, attics etc.
Detailed Images
4 inch
6 inch
7 inch
8 inch
10 inch
12 inch
14 inch
16 inch
