Hot Sale Automatic CNC CMM Coordinate Measuring Machine

Share on (62485598644):


Price:

Quantity:


Product Overview

Description

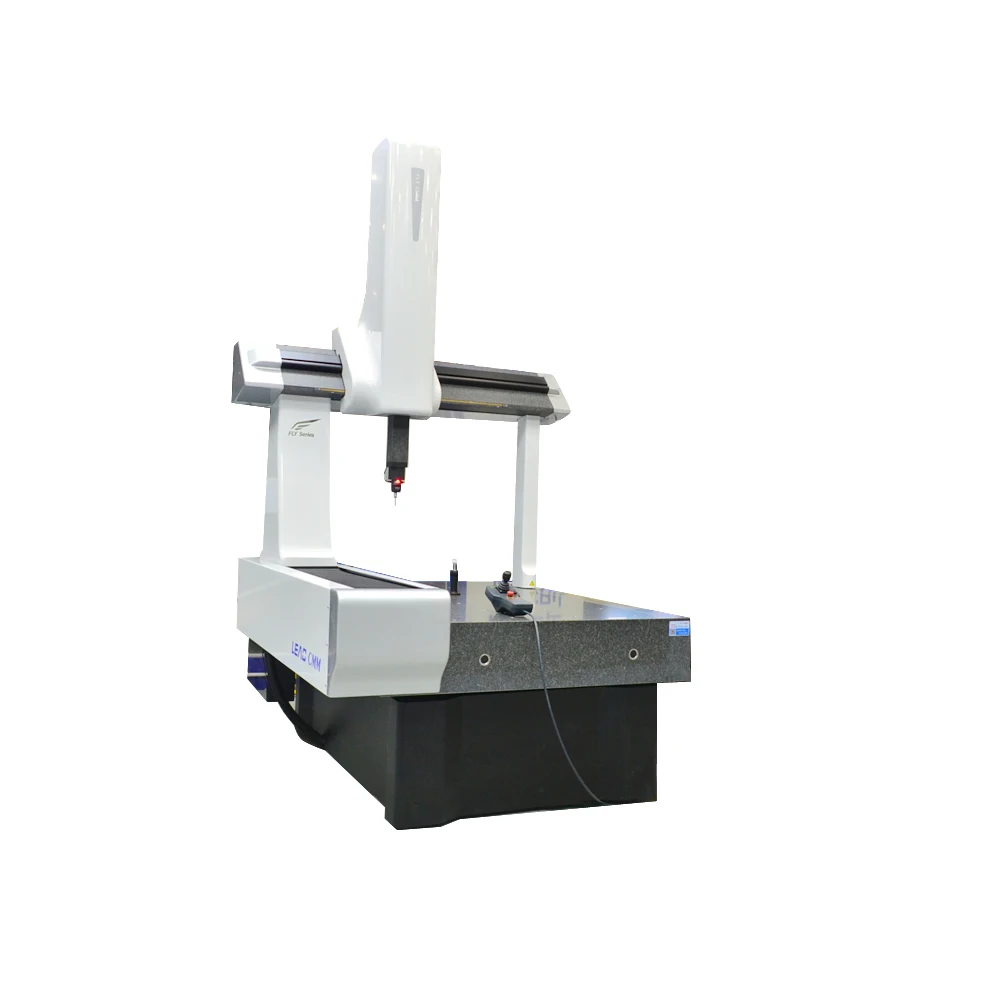

FLY Type Technical Scheme
UCC+ Visual DMIS CNC CAD+ PH10T+TP20
FLY series is a gantry mobile full-automatic coordinate measuring machine produced by our company. It has the characteristics of powerful function, stable performance, high precision, simple operation, fast and efficient, convenient maintenance and so on.
Especially its control system and software functions, it has the advanced level in the world. Comparing with other product series, this series has the characteristics of simple structure, strong bearing capacity, open space for workpiece placement and convenient loading and unloading.

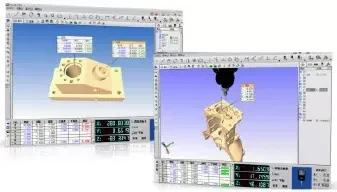

● Visual DMIS CNC CAD+A set of measurement software.
Visual DMIS CNC CAD + software is a software certified by the German Institute of Physical Technology (PTB). It has the ability of
Chinese and English language expression. It provides users with advanced technology, perfect function, stable performance, simple
and convenient operation measurement guarantee.
● Host
Main materials and components: grade 00 special high-quality granite platform and three-axis guide rail, precision casting
processing aviation aluminum alloy column, RENISHAW high-precision grating, reading head length measuring system, SMC precision air filter and automatic detection control device, imported international well-known brand DC servo motor, German FESTO tracheal pipe joint, high-quality air bearing, non-linear of German imported accessories Spring system, Gates (GATES) high-performance synchronous belt, precision ball bearings imported from the United States, advanced automotive grade imported industrial finish, etc.

● Control System

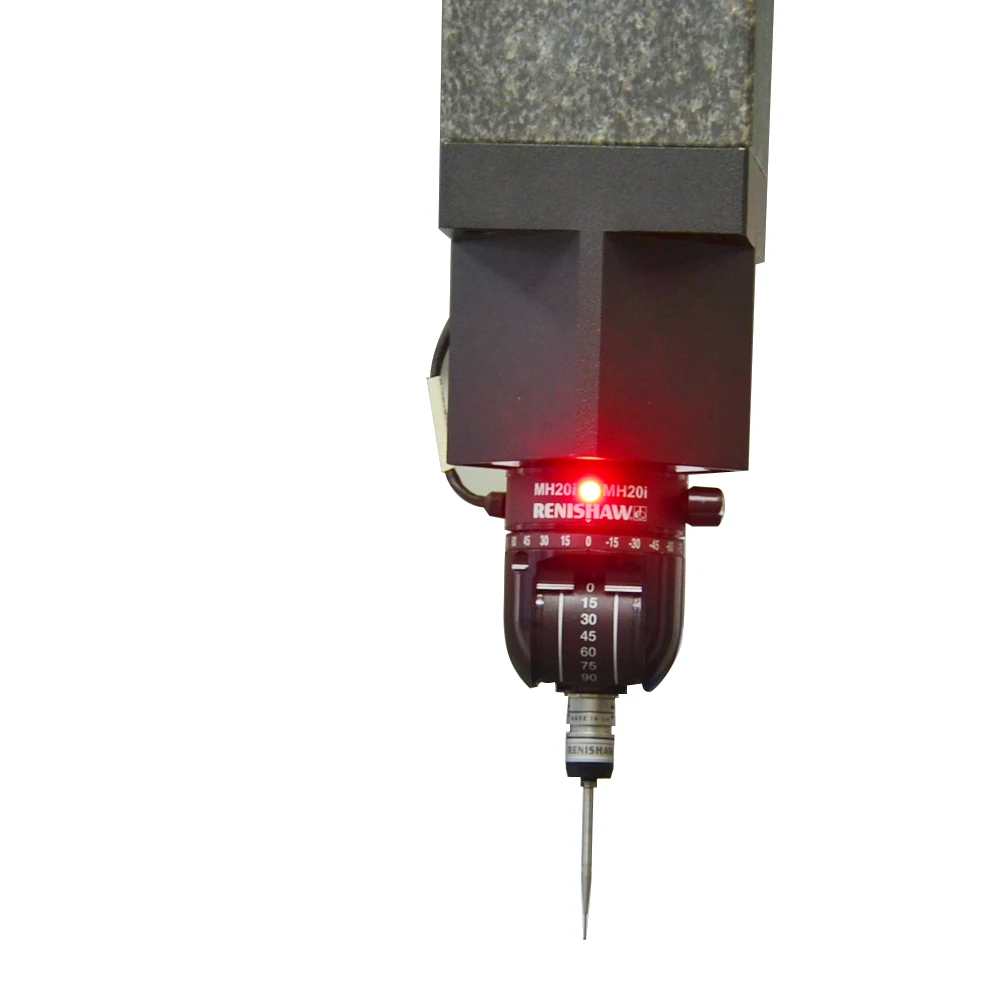

RENISHAW UCC control system (Fig. 4) is a CNC system specially designed and manufactured for CNC CMM. The control system adopts the principle of separation of control layer and application layer, which provides a solid foundation for the high accuracy, accuracy and efficiency of CMM. The control system uses Ethernet interface and computer communication, does not need to expand any computer communication interface, also reduces unnecessary external connections, and ensures the high reliability of the system.
MODEL
FLY
654
866
1086
1286
Measuring Range (mm)
X-AXIS
500
600
800
800
Y-AXIS
600
800
1000
1200
Z-AXIS
400
600
600
600
Dimensions (mm)
L
1420
1740
1940
2140
W
1135
1420
1620
1620
H
2310
2760
2760
2760
Air Supply
(MPa)
0.6~0.8
MPEe
(µm)
L:mm
1.5+L/3002.3+L/300
1.7+L/3002.6+L/250
1.7+L/3002.7+L/250
1.7+L/3002.7+L/250
Max. Loading
kg
500
800
1000
1000
Weight
kg
900
1300
1700
1900
Industrial production Detection of industry Test process industry Electronics industry
Connector industry Robot industry Shipping industry Health care industry
UNIMETRO helps you to build your own business! UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.


10 Years Experience

UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We focus on midium high level of metrology
products, offers complete high accuracy measuring solutions for customers.

Our Production Line
Except the instruments for accurate measuring as vision measurement machine, coordinates measurement machine and profile
projectors, Our production line are also including core components for optical metrology, such as VMM one basket controllers, lens, camera system, linear scales, VMM and CMM fixtures, illumination system etc...


Customer Service
We have specialists team in the metrology industry and capability of offering flexible measuring solutions to our customers and
dealers.Most of the Unimetro products are independent development, and our concept of design is stable and modularization, which
minimize the after sales service. This will help our partners to manage the products details and sales with minimize labor cost
and staff training cost.


Engineering Design

1.Latest Systems : Solidwords with FE analysis.
2.Auto CAD/CAM; Pore
3.Industry 3D print machines.
4.Fast Prototype from your Ideas.
5.Talented Engineering team Support within 24 hours feedback.
Shipment: sinotrans,COSCO,OOCL,EMC and so on.
Packaging: Container
