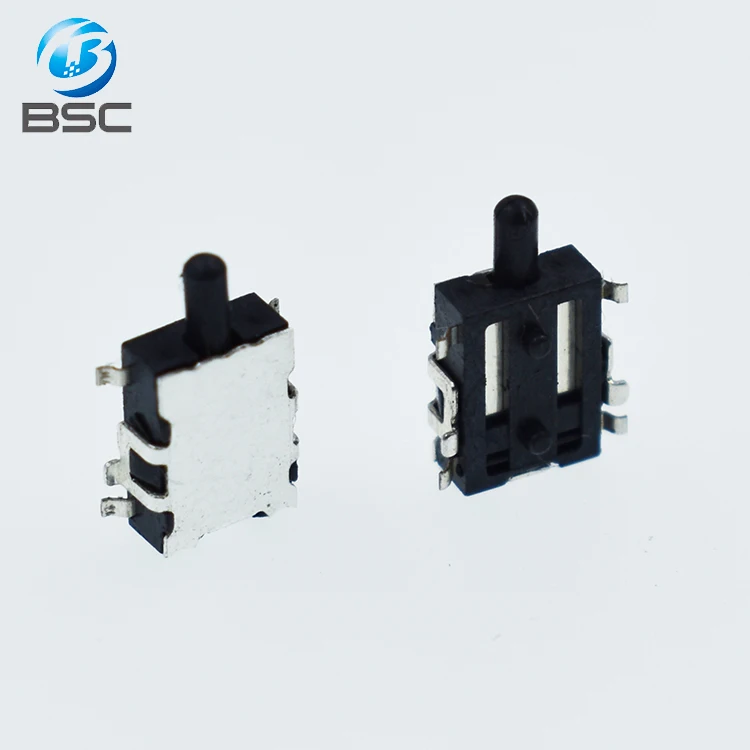

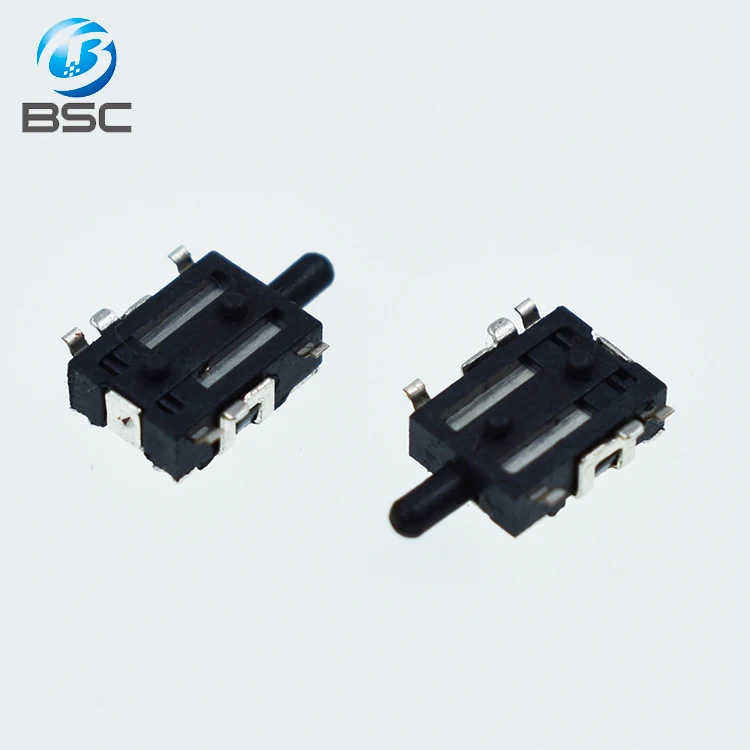

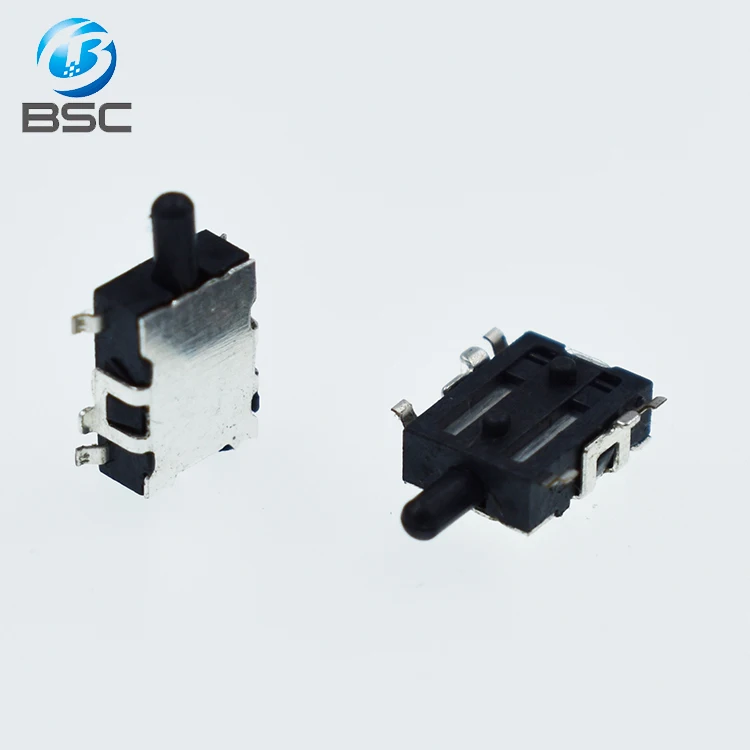

High quality Right angle 6pin SMT SMD detector switch side actuated normal open
High quality Right angle 6pin SMT SMD detector switch side actuated normal open
High quality Right angle 6pin SMT SMD detector switch side actuated normal open
High quality Right angle 6pin SMT SMD detector switch side actuated normal open
High quality Right angle 6pin SMT SMD detector switch side actuated normal open
High quality Right angle 6pin SMT SMD detector switch side actuated normal open

High quality Right angle 6pin SMT SMD detector switch side actuated normal open

Share on (62485740569):


Price:

Quantity:


Product Overview

Description


High quality Right angle 6pin SMT SMD detector switch side actuated normal open
Housing
LCP
Contact Resistance
200MΩ max.
Insulation Resistance
100 MΩ min. 100V DC
Compressive strength
AC100V(50/60HZ foy 1 minute)
Operating temperature range
-30°c to + 85℃
Operating force
100±20gf
Total Travel
0.45-2.0mm
Contact Travel
0.45 ± 0.15mm
Rating
0.1A 12V DC
Lifetime
50,000 Cycles min.
Specification

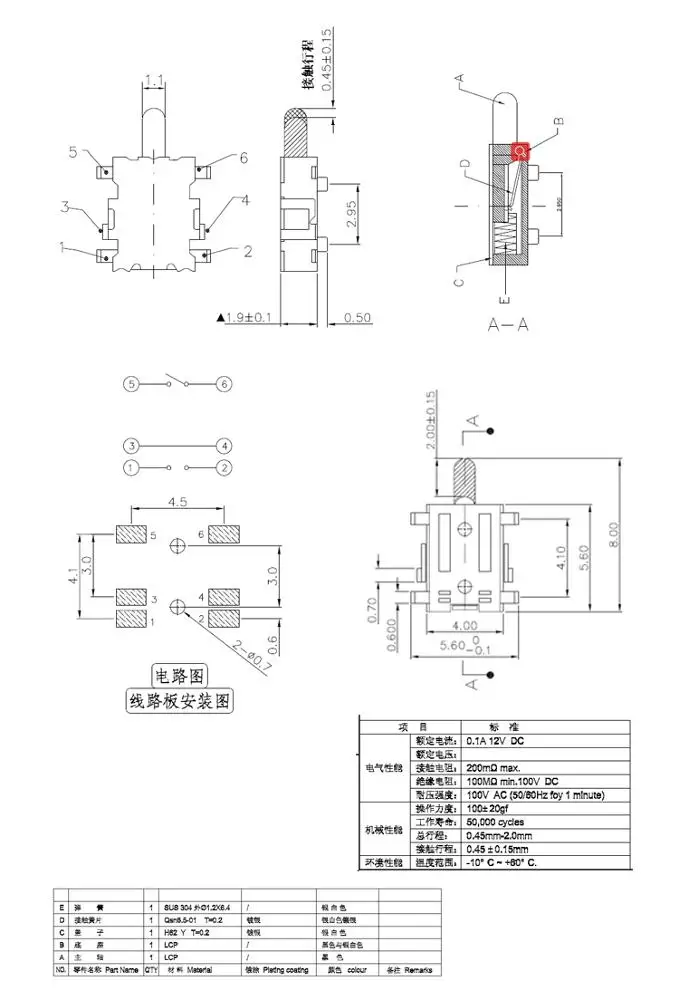

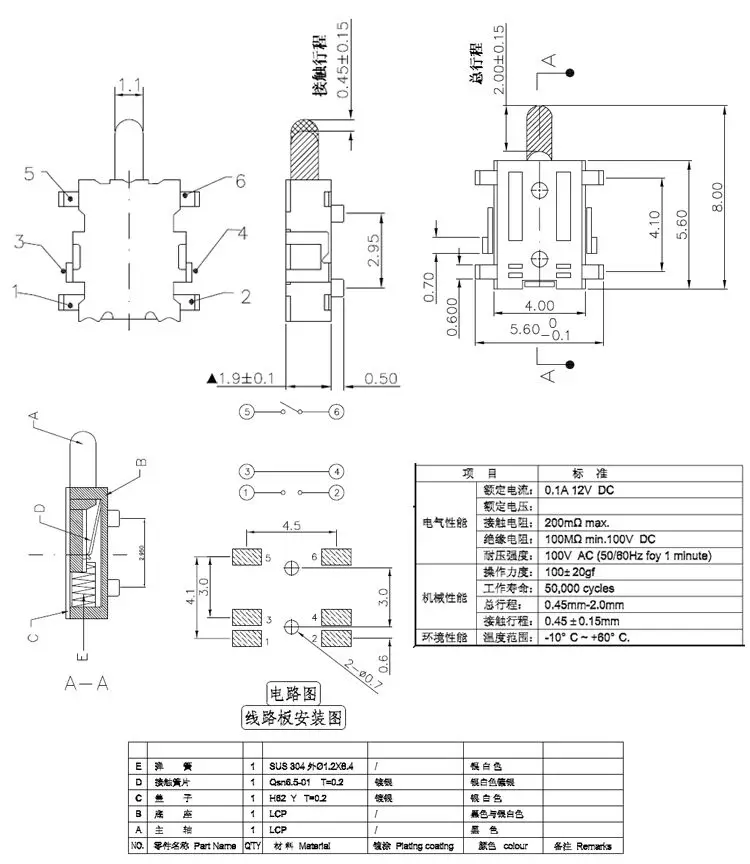

Drawing for reference:
Contact me to get PDF and 3D Drawing.
Email: bella@bsc-elec.com
Our Service
1. More than 7 years experience in Connector industry, pls provide drawing or send sample to us, then we will send you our drawing
or sample for you approval;
2. 100% tested before shipping out to guarantee the best quality;
3. OEM available
5. Fast delivery time, Best production capacity, Best price;
6. All your needed certificates we can provide;
7. ROHS compliant;
8. Small order are available.
