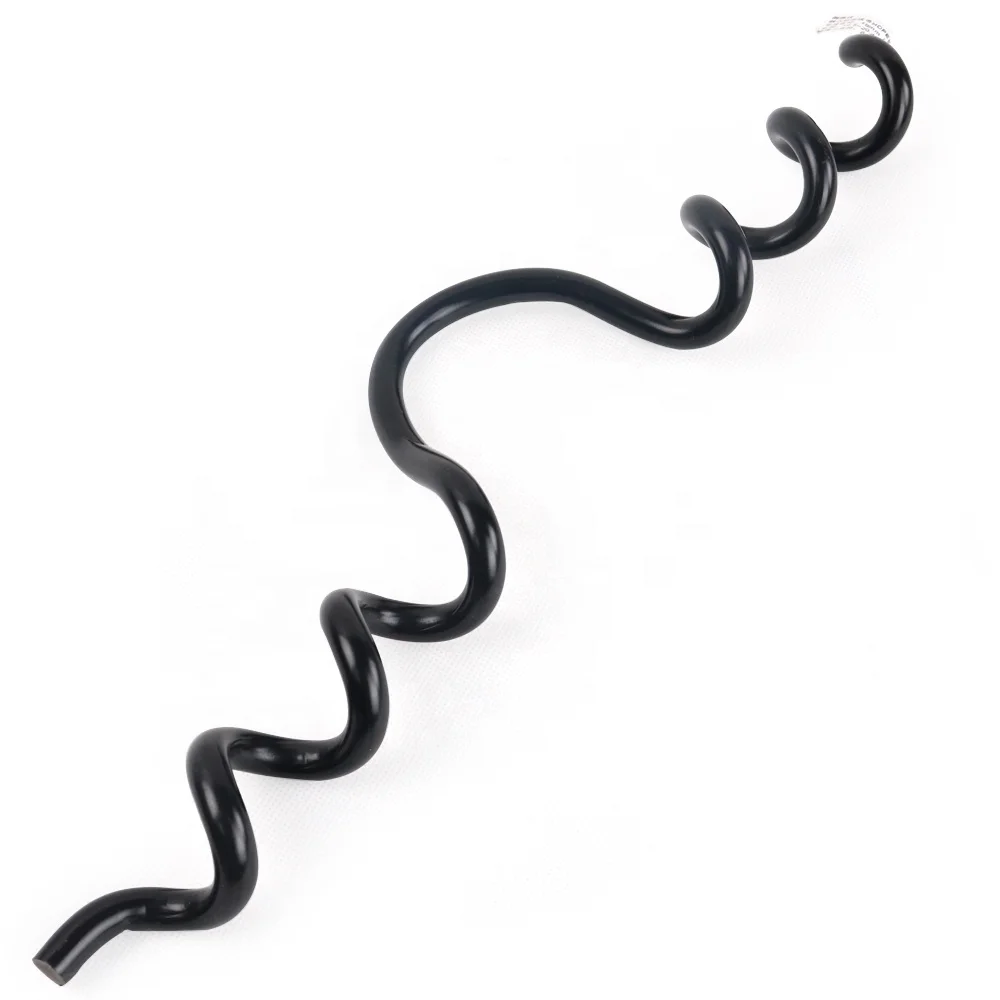

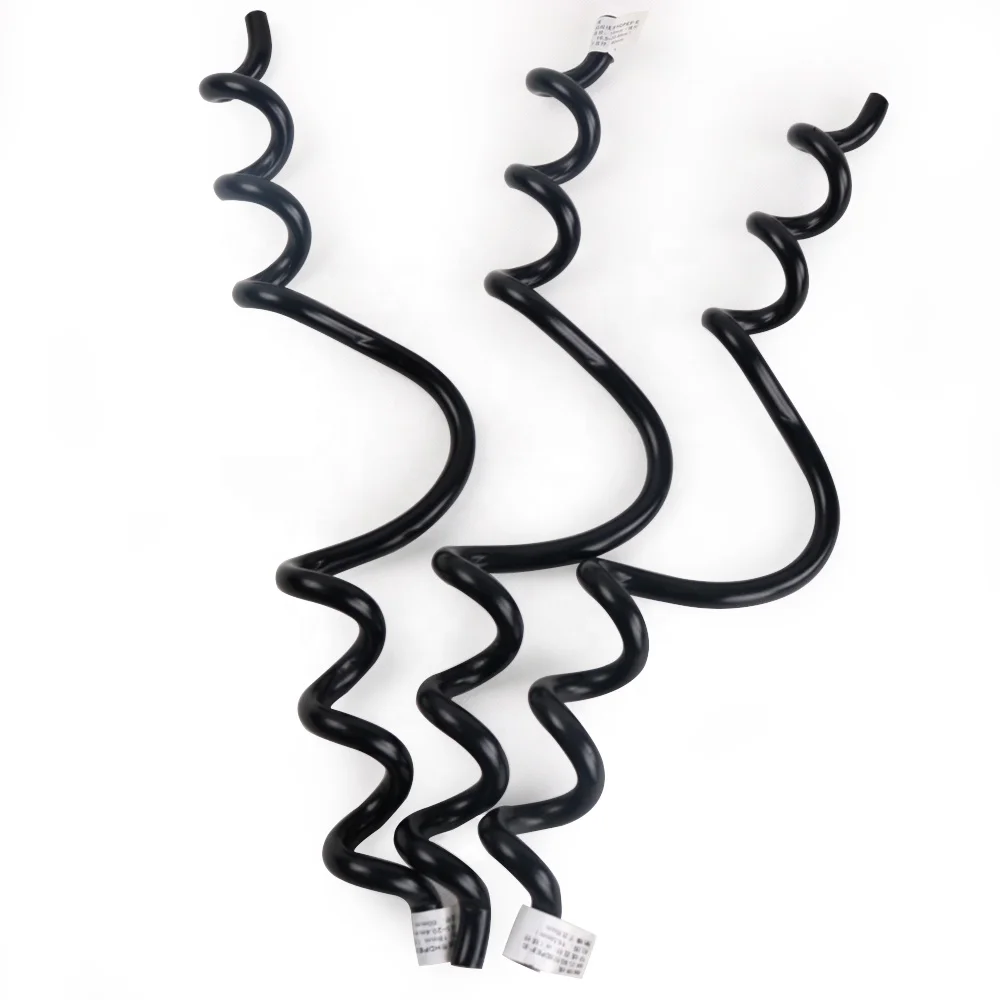

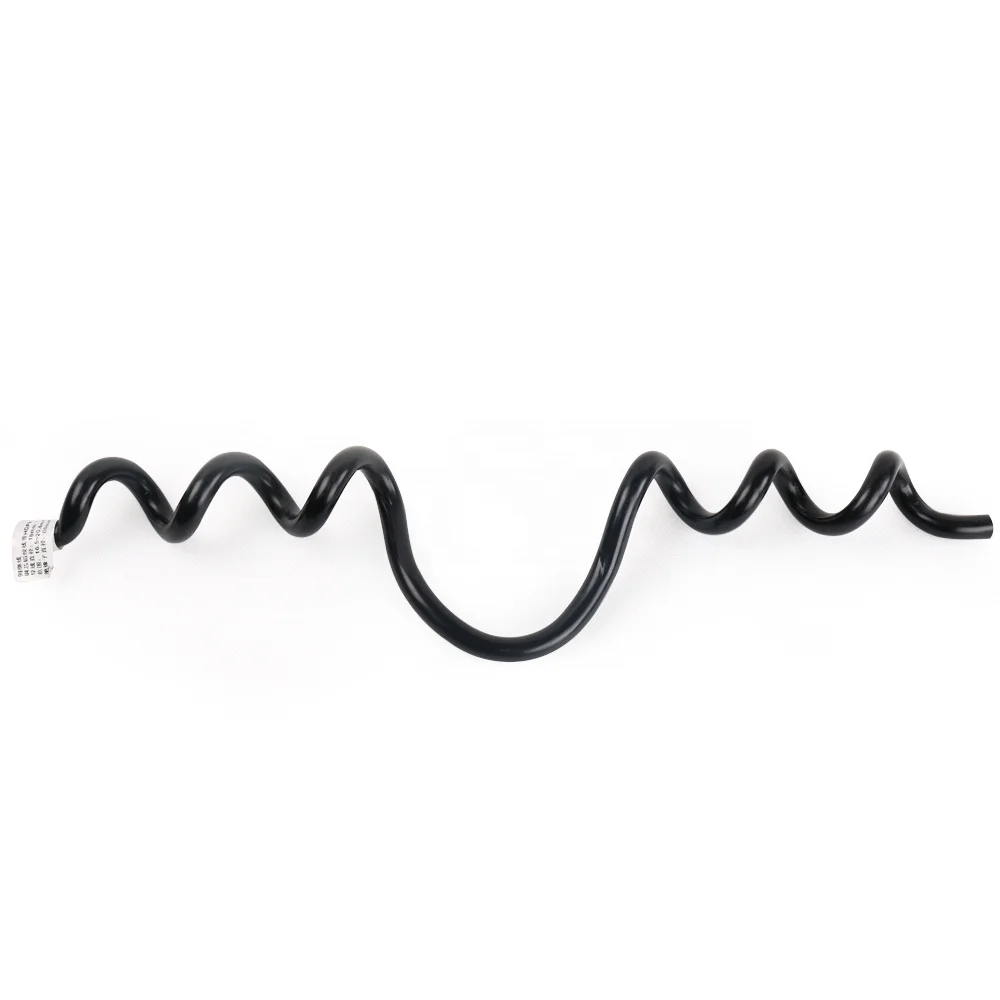

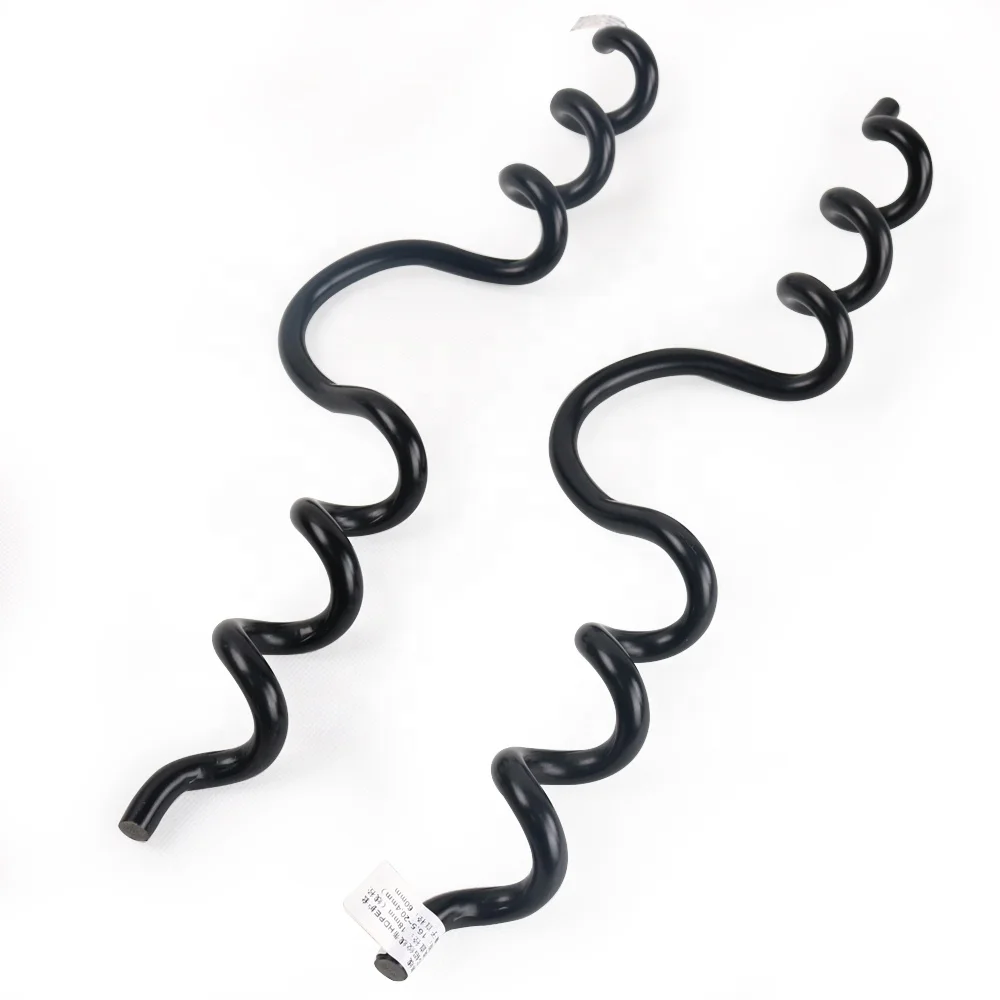

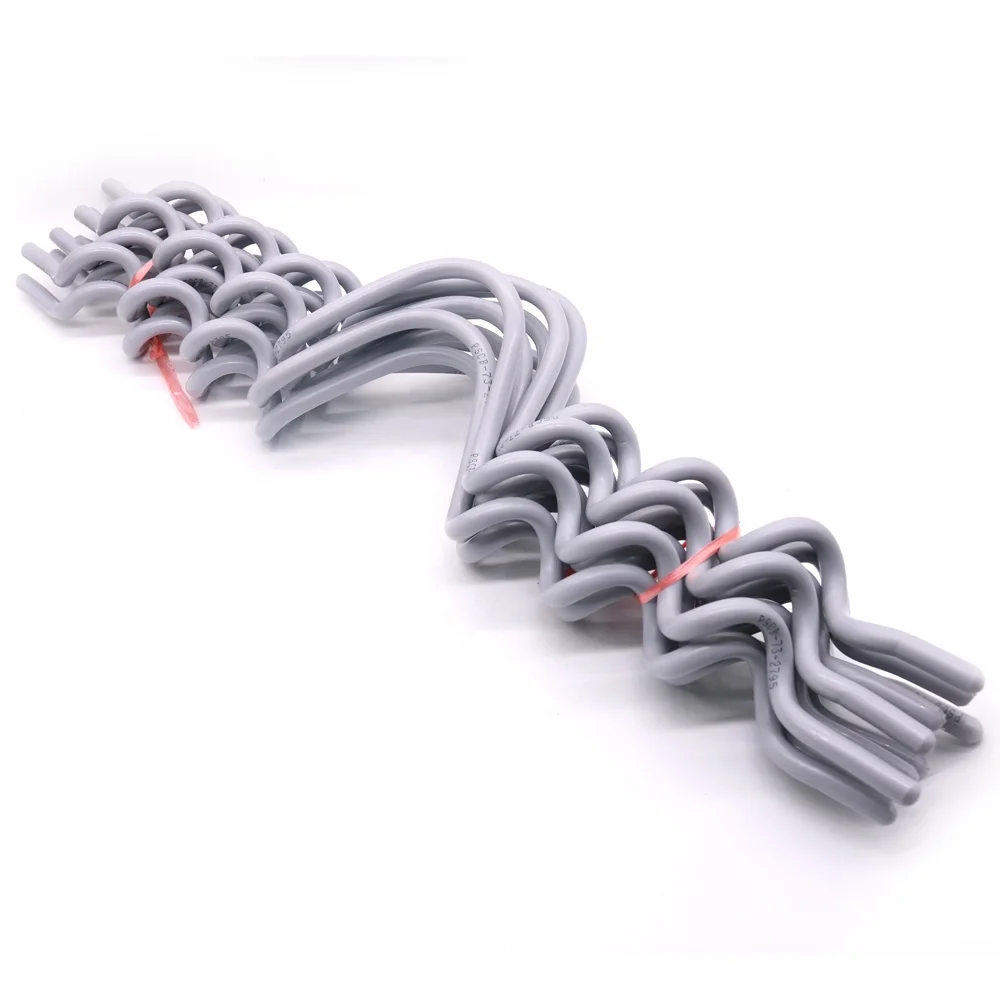

Gray color spiral single side tie insulator tie
- Category: >>>
- Supplier: Qingdao Powtech Electronics Co. Ltd.
Share on (62485759579):
Product Overview
Description

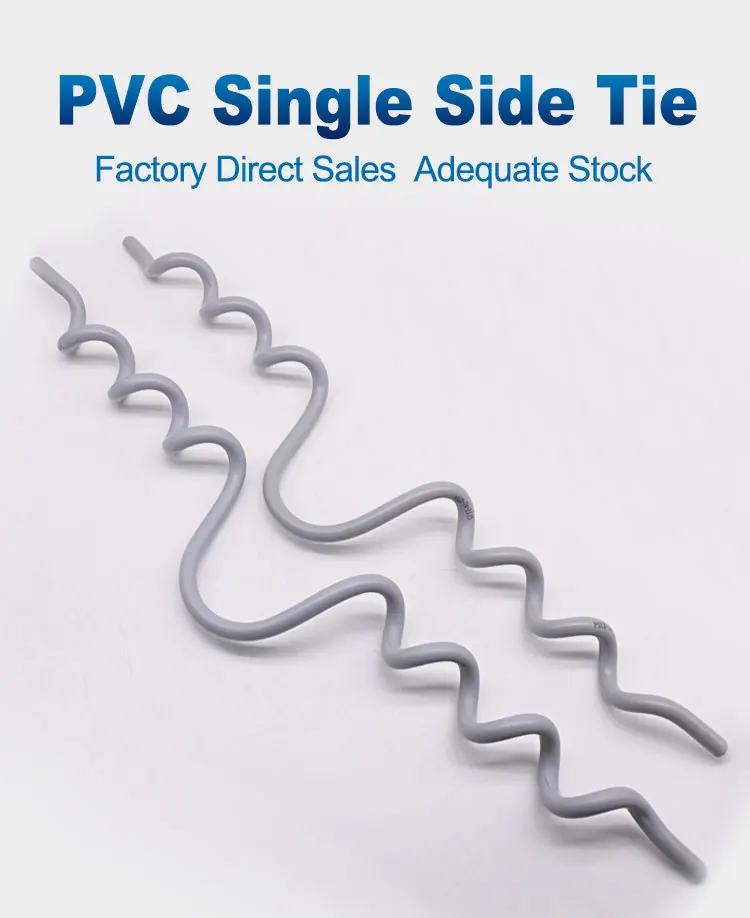

PVC single side tie for conductor

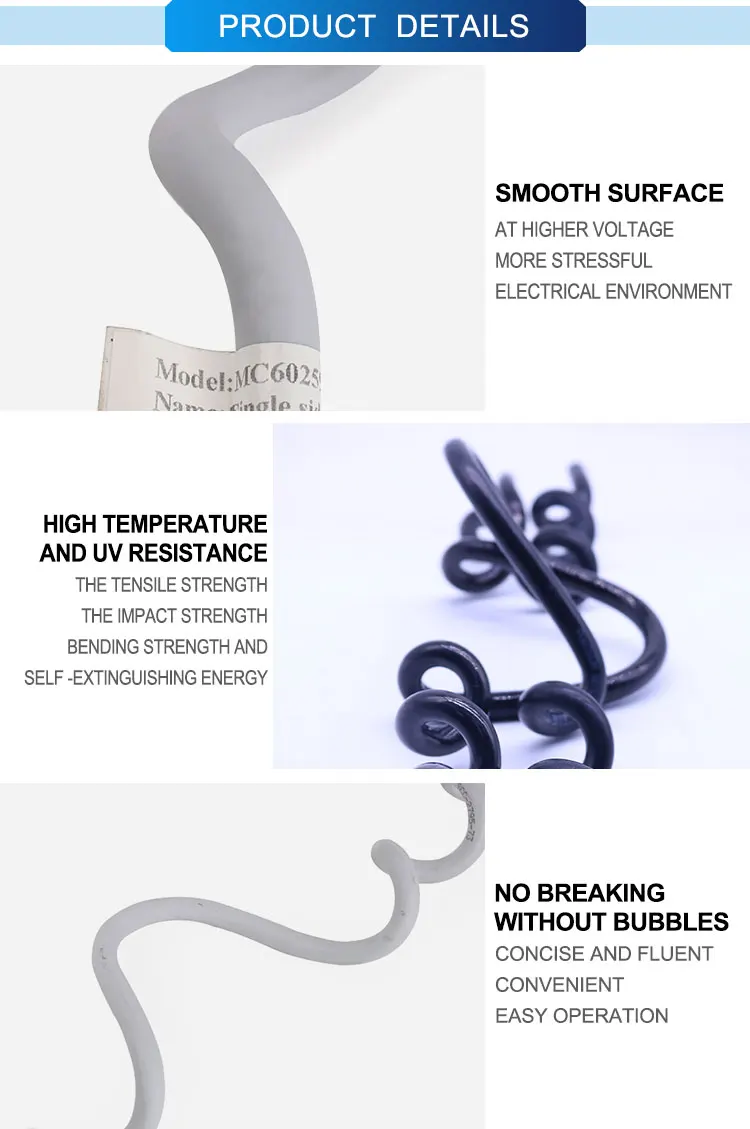

Product Description
PVC single side ties are intended for use with covered conductors and side-mounted tie top insulators on arm less construction.Line angles of up to 15°can be accommodated when used with any plastic covered conductors.
Material:

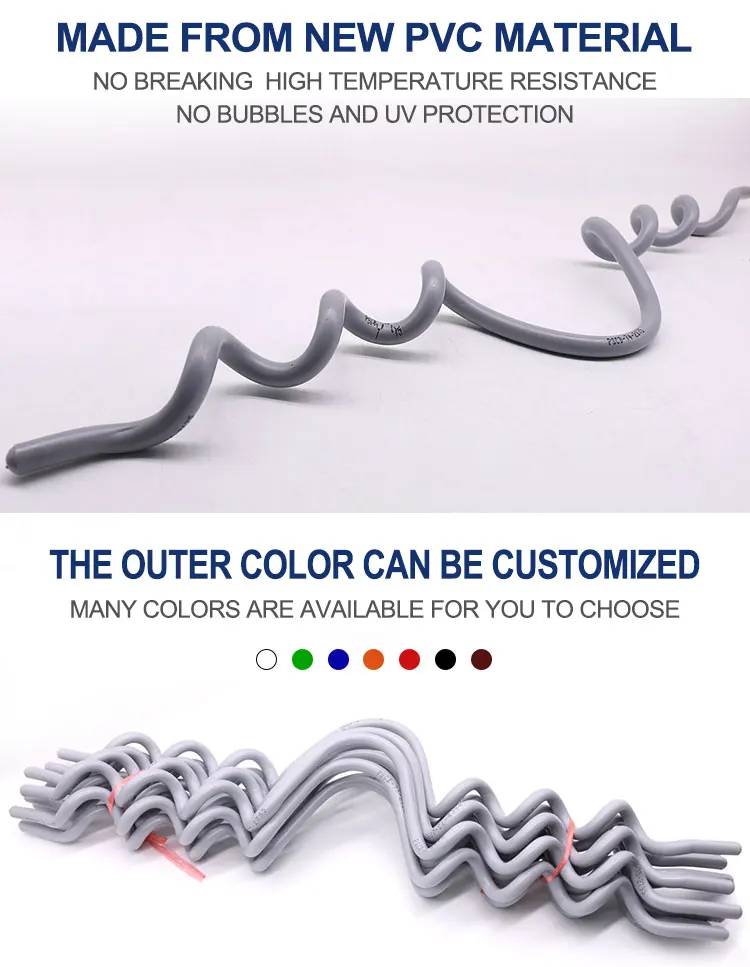

PVC single side ties are made from white PVC.This material was selected for UV resistance,tensile strength,impact strength, flexural strength and self-extinguishing properties.
Application: voltage to 15kV
Mechanical:PVC single side ties will develop unbalanced and lift-off loads equivalent to,or in excess of, a hand tie over covered conductor.
Insulator:57mm(C neck),73mm(F neck). PVC single side ties are used with either ANSI compliant polymer or porcelain insulators.
Technical Data
| Model | Conductor diameter range (mm) | Length (mm) | Color code | |||
| C Neck (Φ57mm) | F Neck (Φ73mm) | Minimum | Maximum | C Neck | F Neck | |
| PSCB-57-1016 | PSCB-73-1016 | 7.52 | 10.16 | 560 | 560 | White |
| PSCB-57-1372 | PSCB-73-1372 | 10.19 | 13.72 | 535 | 610 | Green |
| PSCB-57-1854 | PSCB-73-1854 | 13.74 | 18.54 | 585 | 610 | Blue |
| PSCB-57-2337 | PSCB-73-2337 | 18.57 | 23.37 | 610 | 455 | Orange |
| PSCB-57-2794 | PSCB-73-2794 | 23.39 | 27.94 | 685 | 485 | Red |
| PSCB-57-3302 | PSCB-73-3302 | 27.97 | 33.02 | 760 | 535 | Black |
| PSCB-57-3810 | PSCB-73-3810 | 33.05 | 38.10 | 760 | 585 | Brown |
