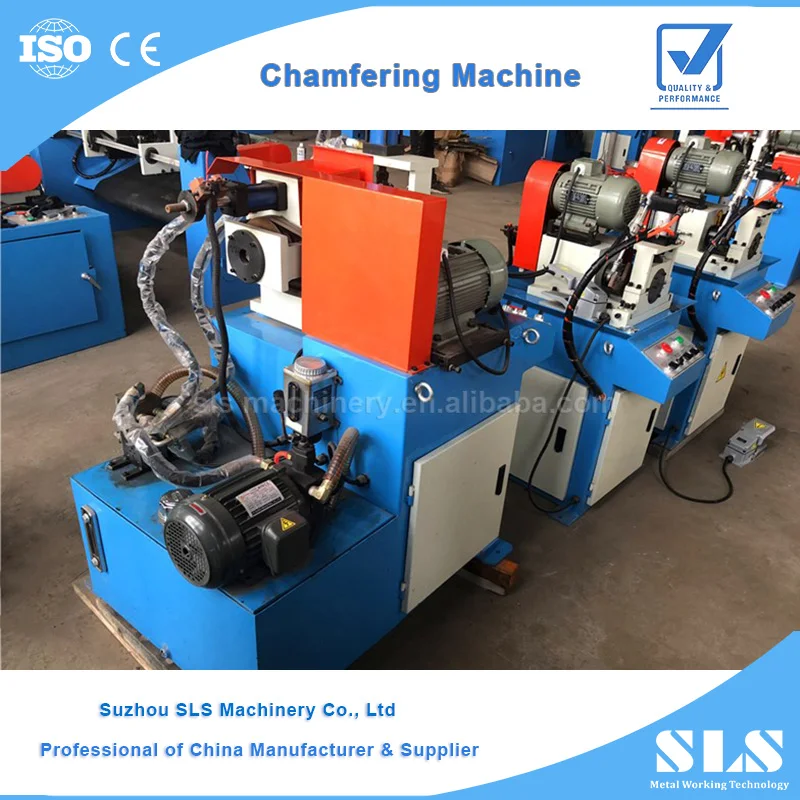

Metal Steel Tube Edge Deburring and Smoothing Chamfer Tool / Pneumatic Hydraulic Round Bar Rod Pipe End Chamfering Machine Price
- Category: Chamfering Machines >>>
- Supplier: Suzhou SLS Machinery Co. Ltd.
Share on (62485867681):
Product Overview
Description
Metal Steel Tube Edge Deburring and Smoothing Chamfer Tool / Pneumatic Hydraulic Round Bar Rod Pipe End Chamfering Machine Price
The Machine Video Introduction
For More Exciting Videos, Please Visit Our Website: www.slsmachinery.com

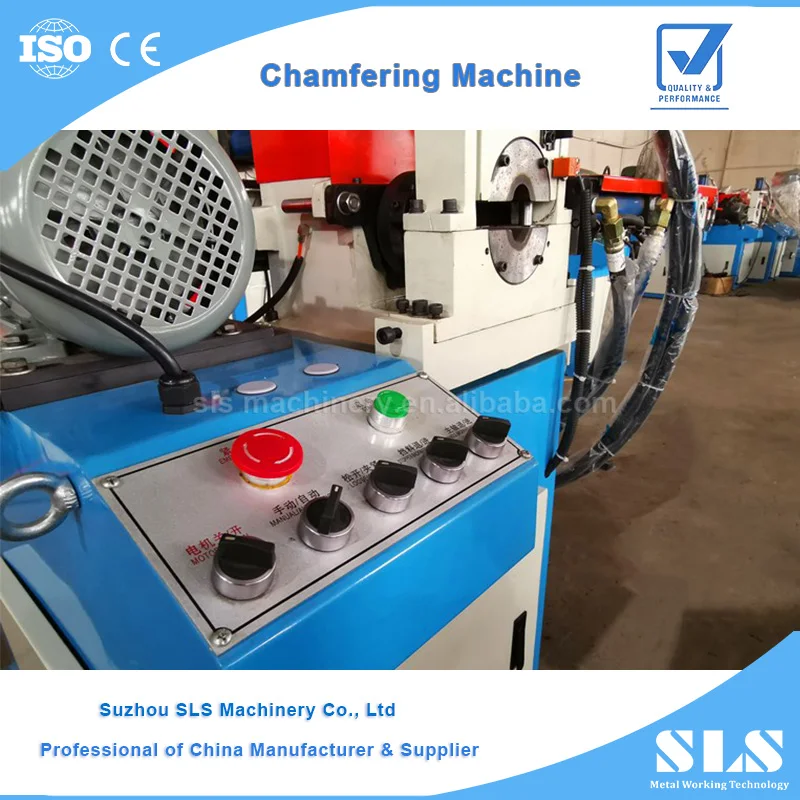

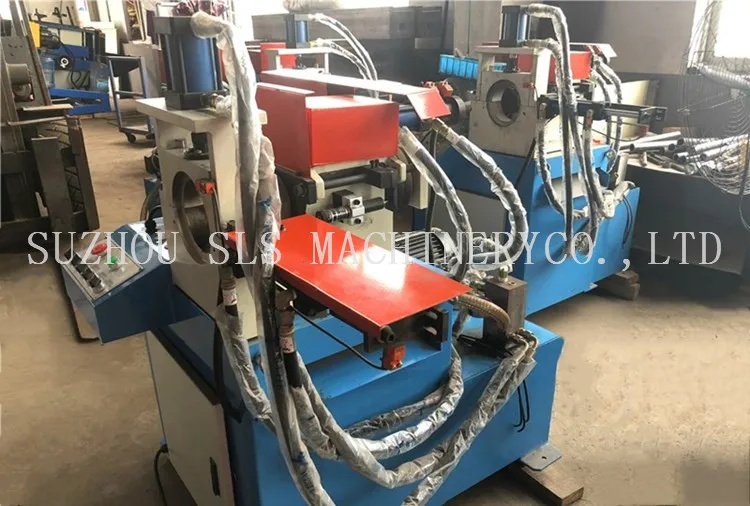

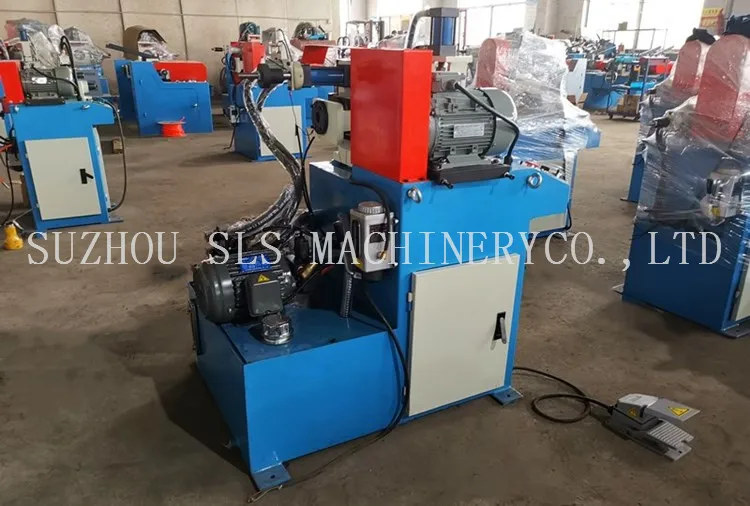

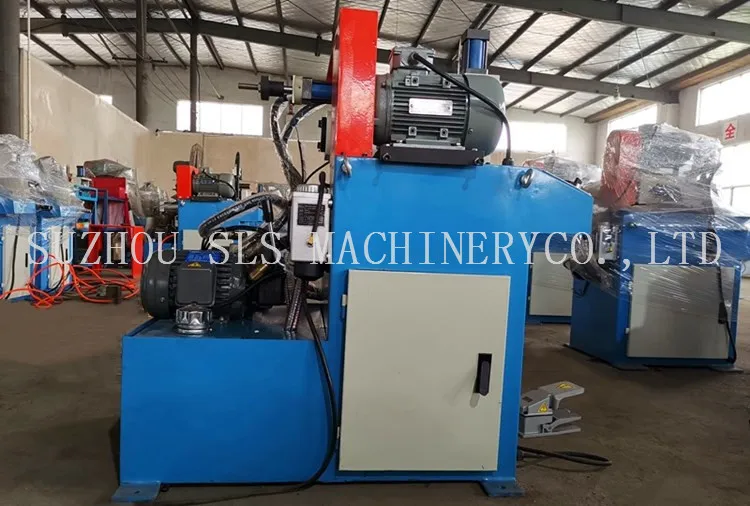

Brief Introduction on Metal Tube Rod/Bar Pipe Edge Chamfering Machine
SZ-SLS Machinery Manufacturing and Sales Single Head Hydraulic Metal Pipe Rod/Bar Chamfering Machine also know as pipe deburring machine is a special kind of pipe end smooth machine. It is a kind of semi-automatic machine with manual feeding,automatic chamfering and automatic clamping driven by hydraulic.Chamfering process can be finished at one time in fast speed and accurate chamfering requirement.Clamp device and knife holder are precisely designed for ensure the center line between work-piece and knife holder at the same level.We keep many chamfering machines in stock for quick shipments.
Features on Metal Tube Rod/Bar Pipe Edge Chamfering Machine

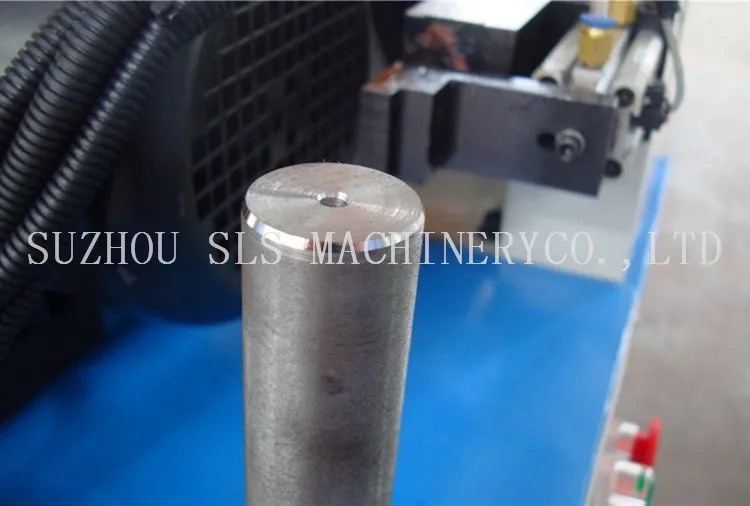

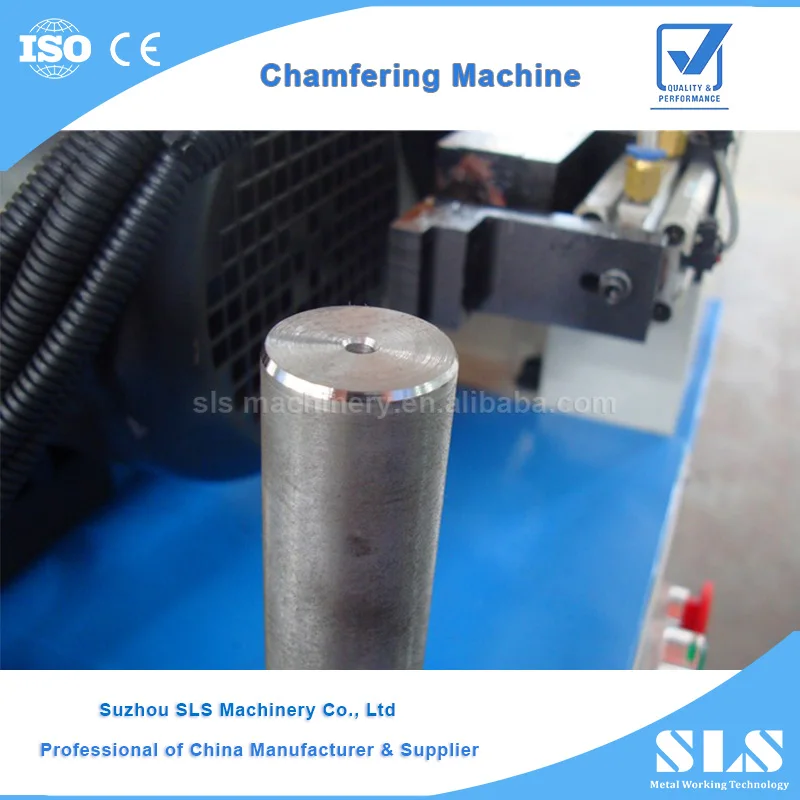

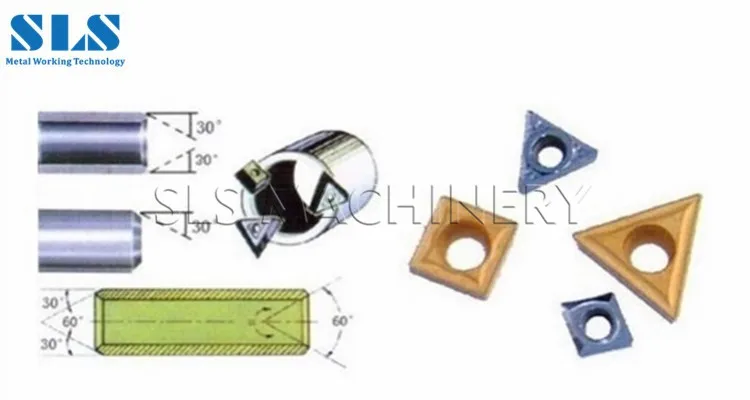

* A circular tube modifies an interior angle,an external angle and flat plane at one time with fastness and
precision.

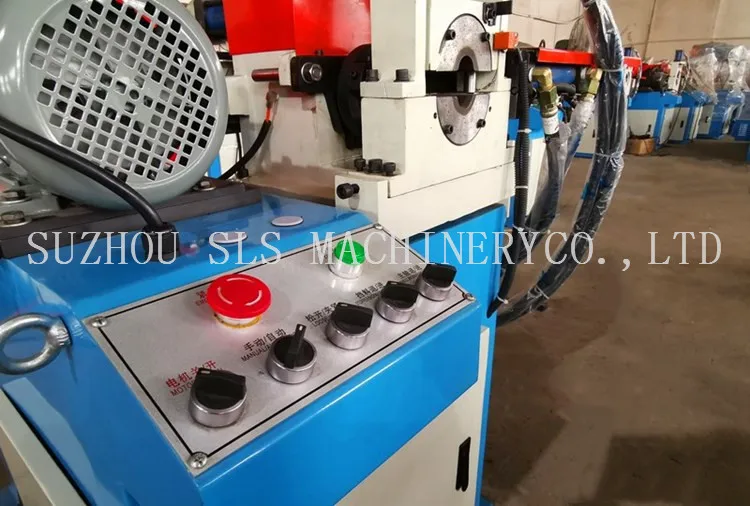

* Automatic and manual working mode which are convenient for adjusting the machine,mold and
* Automatic and manual working mode which are convenient for adjusting the machine,mold and
chamfering knife.
* Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum...
* Each process of chamfering work is driven by hydraulic.

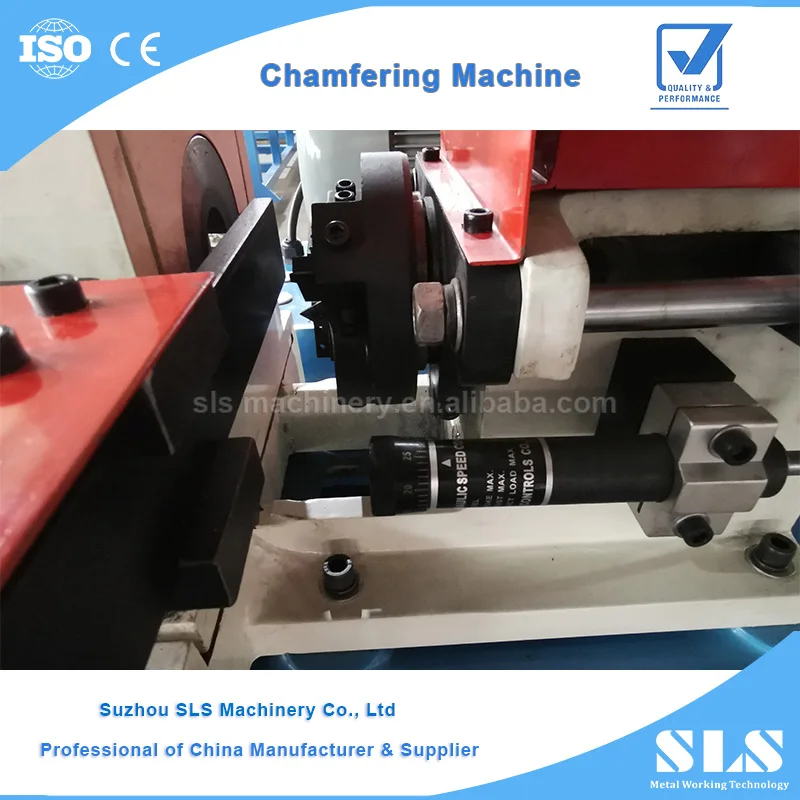

* Clamp device and knife holder are precisely designed for ensure the center line between workpiece
* Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum...
* Each process of chamfering work is driven by hydraulic.
* Clamp device and knife holder are precisely designed for ensure the center line between workpiece
and knife holder at the same level.
* Dual Feed Chamfer system:
First speed------Fast forward movement nearly to tube end to save the time.
Second speed---Infinitely variable forward adjustable Chamfering speed to get smooth finish.
* Good mechanical parts ensure machine runs in high stability.
First speed------Fast forward movement nearly to tube end to save the time.
Second speed---Infinitely variable forward adjustable Chamfering speed to get smooth finish.
* Good mechanical parts ensure machine runs in high stability.
Model | EF-80Y | EF-120Y | - |
Main Motor Power | 1.5 KW | 2.2 KW | - |
Chamfering Capacity | Pipe :￠10—￠80mm Solid:￠10—￠50mm | Pipe :￠35—￠120mm Solid:￠35—￠80mm | - |
Chamfering Speed one time | 3-5 s/piece Based on Chamfering length | 4-5 s/piece Based on Chamfering length | - |
Chamfering Accuracy | ± 0.1mm | ± 0.1mm | - |

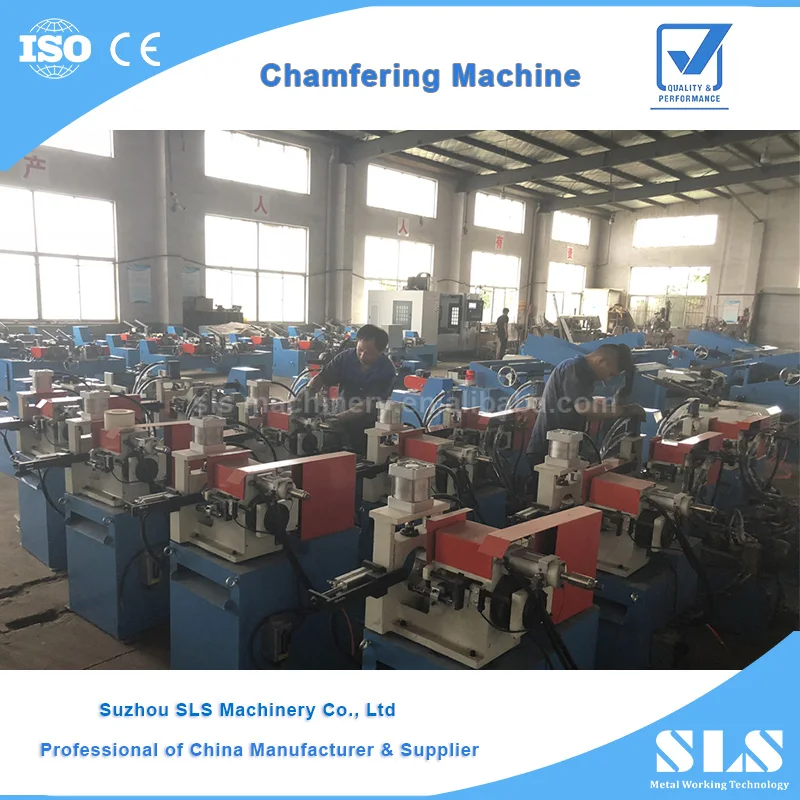

SLS Machinery Co.,Ltd specialized in manufacturing cost-effective pipe processing machines as pipe bending machine,cold saw machine, pipe end forming machine,pipe swaging/tapering machine,pipe embossing machine,pipe notching machine and other automated pipe processing machines range from simple to complex CNC powered ones.
1.Q: Are you a manufacturer or trading company? | A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production. |
2.Q:Where is the nearest airport to your company? | A: Wuxi Airport or Shanghai Airport. |
3.Q: How to choose the pipe/tube chamfering machines? | A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Chamfering Length - Chamfering Angle - Pipe/Tube Original Length - Single or double head chamfering? - The drawings if possible |
4. Q: Do you have CE certificate? | A: We have CE certificate. |
5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours. |
