Product Overview

Description



price of solar charge controller 12/24v 10A 30A intelligent solar energy charge controller regulator pwm 20a
solar charge controller price 12v 24v 10A 30A intelligent solar system charger regulator pwm controller 20a

Why Choose US ?

1. Factory Directly : Over 20 different kinds of controller for choose ,Price is good ,Quality can be controlled.
2. Certificate : Our charge controller got SGS testing certificate ,CE ,ROHS as well

3. OEM and cooperating with an famous brand in Europe. We have pass strict factory inspection Audit by third party institution and client auditor. During the cooperation with famous brand client, we know what customer want and we know how to make 100% quality control.
4. We can customize specification like current ,voltage ,max input voltage etc as client request ,to supply some certain function and place.

5. sample is available .
6. Fast Delivery , Below 5000 pieces controller delivery in 2 weeks.
7. Trade assurance supplier , quality and on time shipment guaranteed.

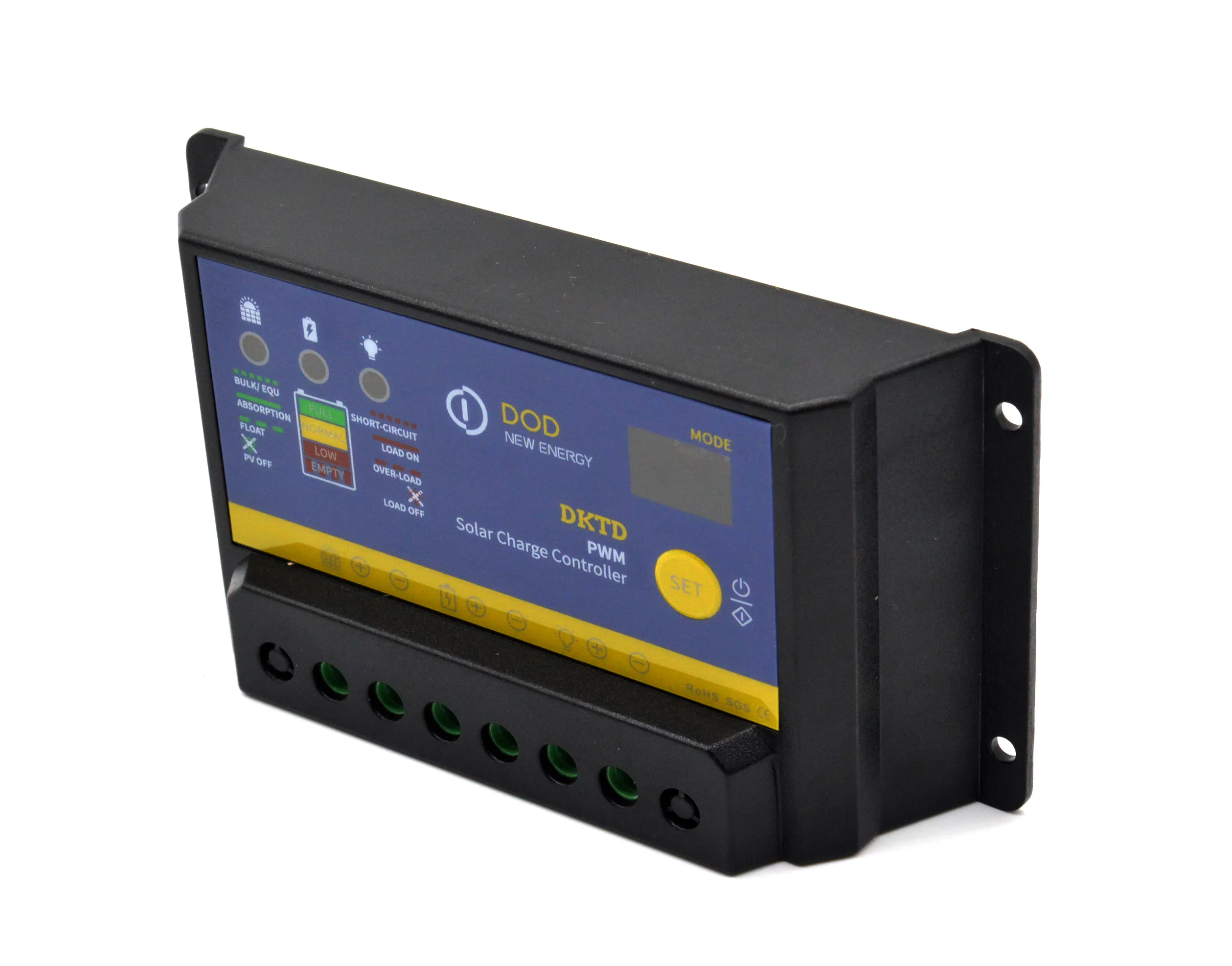

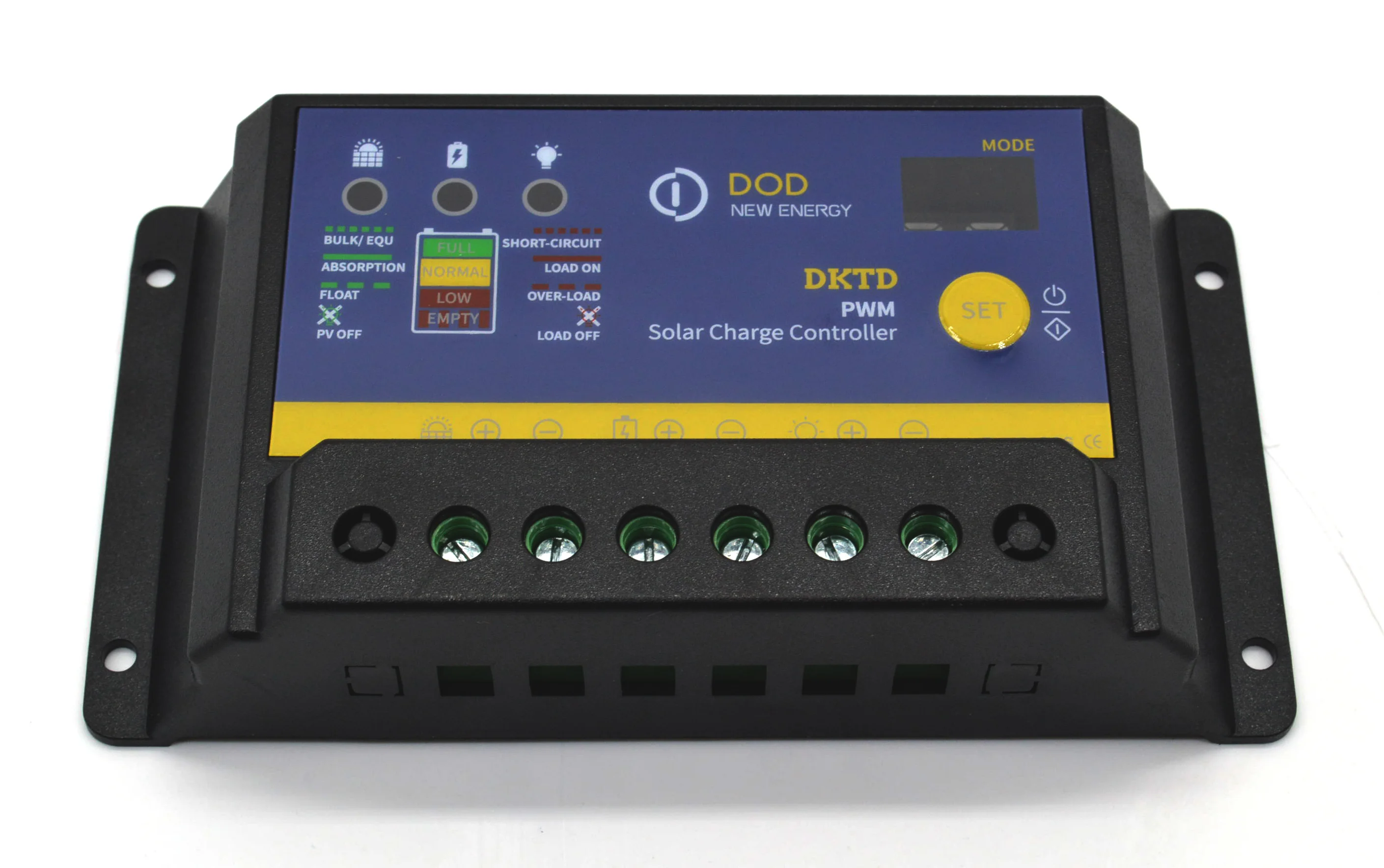

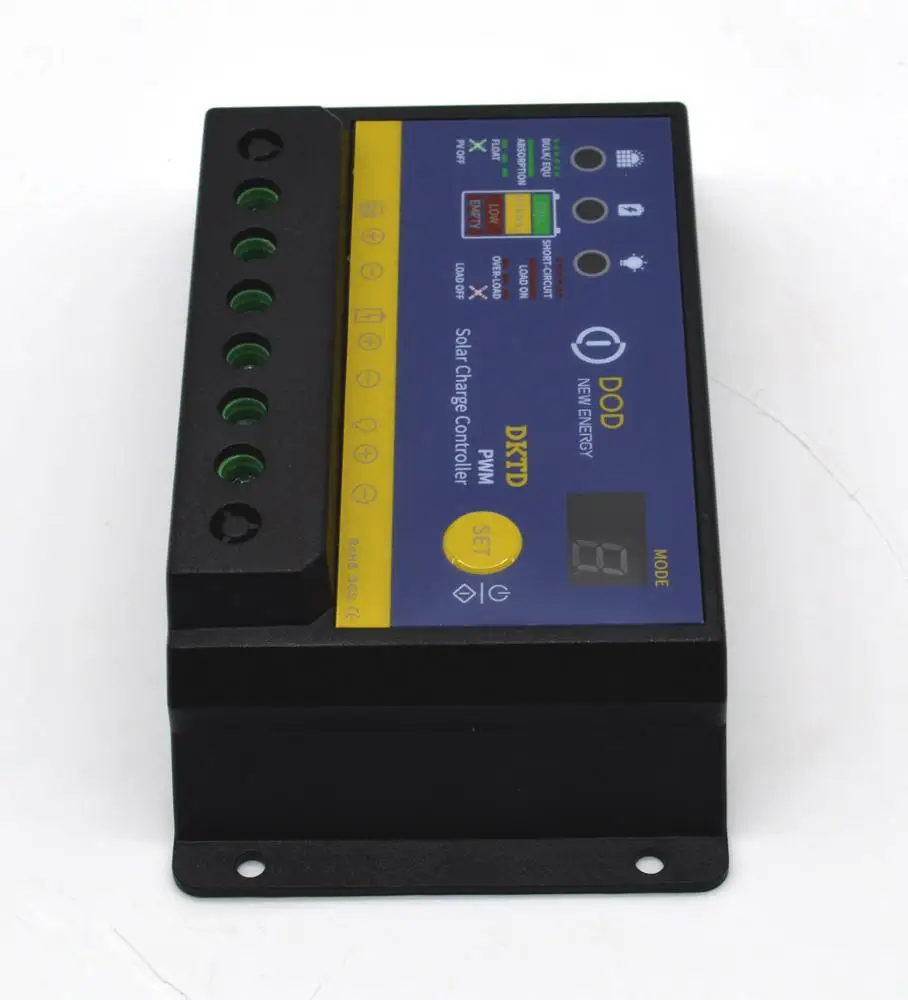

Details Images




Product Presentation


Hilight Functions :
 * Max solar input voltage : 55V
* Intelligent PWM charging : Bulk - Absorption -
Float .
* 6 load working mode : Light control , Light+time
control (1-13hours) , Manually , Load always
on , Load always off , Test mode .
 * LED indicators .
 * One button setting , simple for operation .
 * Standly loss less than 5mA .

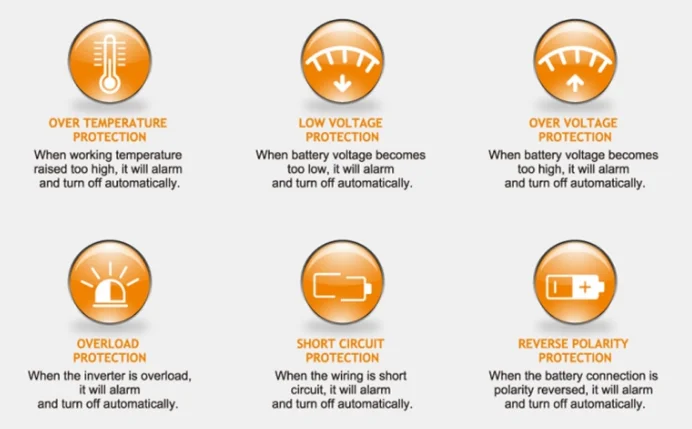

Full Protection:
* Over temperature protection
 * Over voltage protection
 * Low voltage protection
 * Over load protection
 * Short circuit protection
 * Reverse polarity connection protection



High Quality Material :
* using superior ABS material hull , with impact resistance, high flash point, Anti-Aging characters, which improved the controller using life and security .

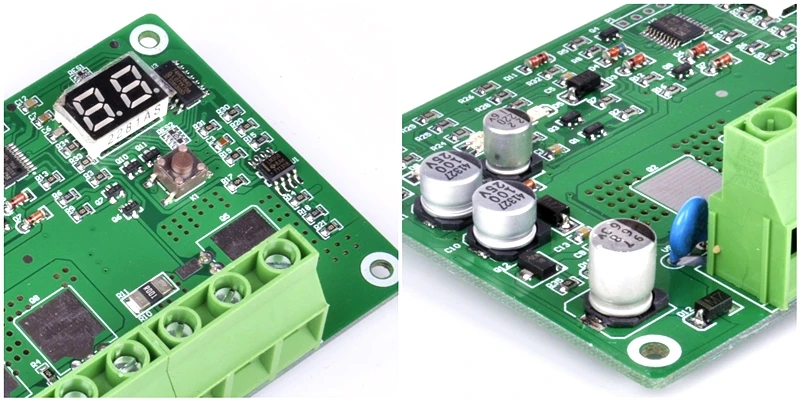

* Imported IC components , which makes the controller with very steady performance , no need any maintaince , and we can give customers 3 years guarantee .

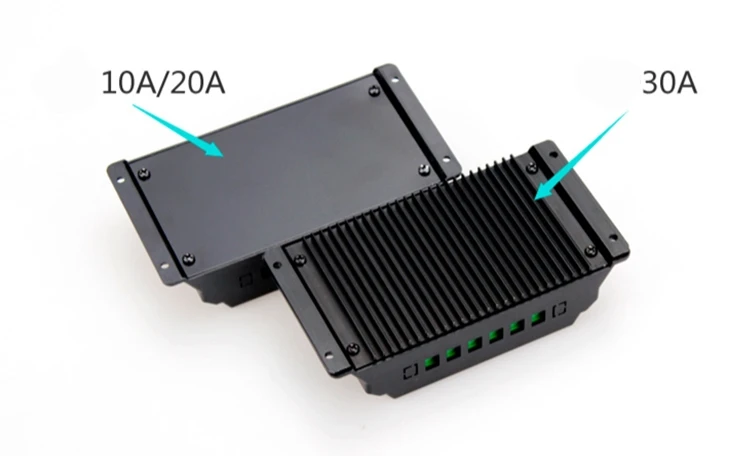

Large Terminal :
* using upgraded thick bottom plate , and perfect design of the mosfet , which makes the radiating improved 30% efficiency , ensure the controller working with its best performace

 * Large connection terminal ,to ensure stand enough current . very easy for cable connection .also can low down the voltage drop , decrease the wastage .

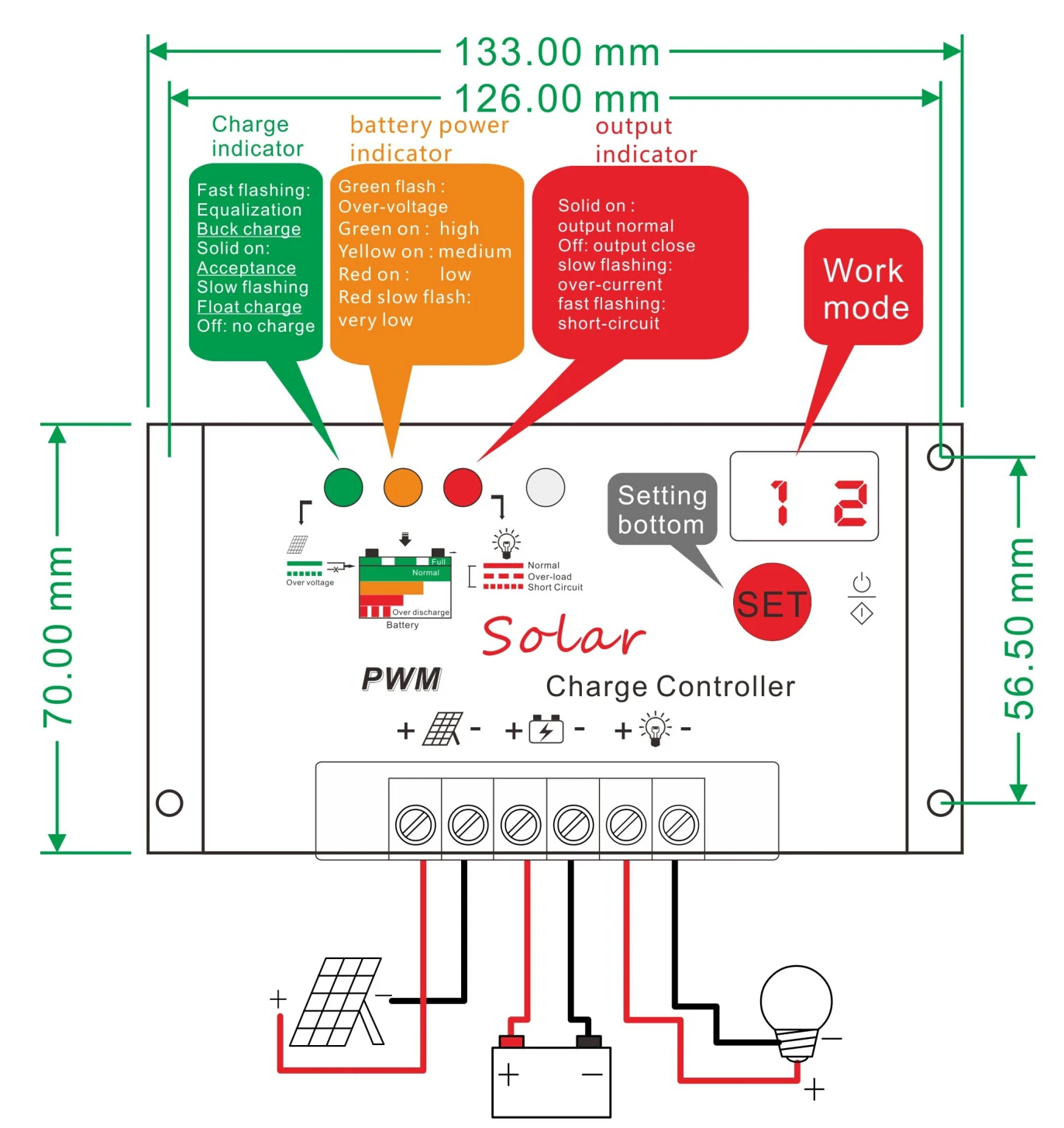

Size

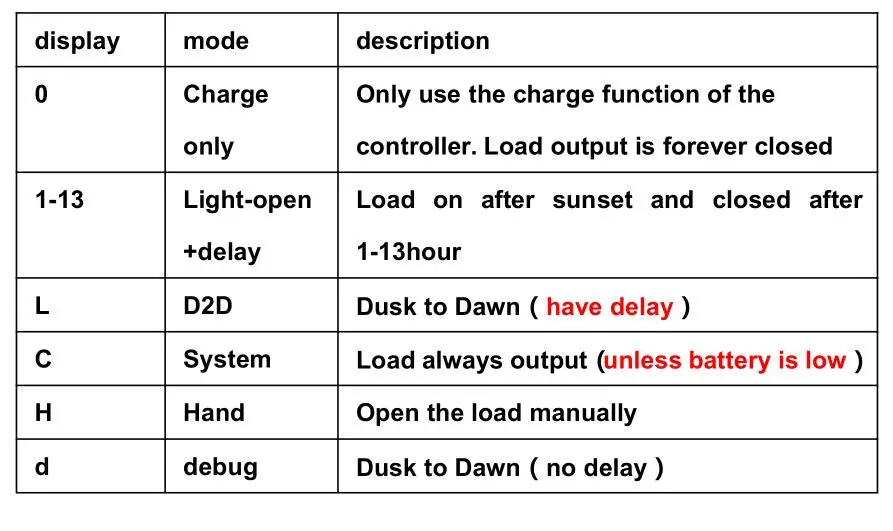

                6 Load working mode :


Product Paramenters


Model
DKTD1205
DKTD1210
DKTD1220
DKTD1230
DKTD4820
DKTD4830
DKTD6020
DKTD6030
Battery Voltage
12V/24V
48V
60V
Charge & Load Current
5A
10A
20A
30A
20A
30A
20A
30A
Charge mode
PWM, Time and Lighting Control
Maximum solar voltage
55V
100V
120V
Maximum output power
60/120W
120/240W
240/480W
360/720W
960W
1440W
1200W
1800W
Protections
Reverse polarity connection of the solar panels; Reverse polarity connection of the battery;
Over-charge ; Over-discharge; Over-load ; Over-temperature; Short-circuit
Overload Protection
shut down after 60s in case of 110%-130% load ,
shut down after 5s in case of 130%-160% load ,
Short circuit: immediate shut
Self-consump.
<5mA
<15mA
<30mA
Operating temperature
-20°C to +50°C (full load)
Humidity range
≤95% (N.C.)
Dimension
140×90.5×28.5mm
Weight
210g


Battery Charging Parameters
Battery Voltage
12V
24V
48V
60V
Over-Charge
17V
34V
68V
85V
Bulk-Recharge
13.2V
26.4V
52.8V
66V
Equalize
14.8V
29.6V
59.2V
74V
Bulk
13.6V
27.2V
54.4V
68V
Absorption
14.2V
28.4V
56.8V
71V
Float
13.8V
27.6V
55.2V
69V
Low-voltage Disconnect
11.2V
22.4V
44.8V
56V
Low-voltage Reconnect
12.6V
25.2V
50.4V
63V

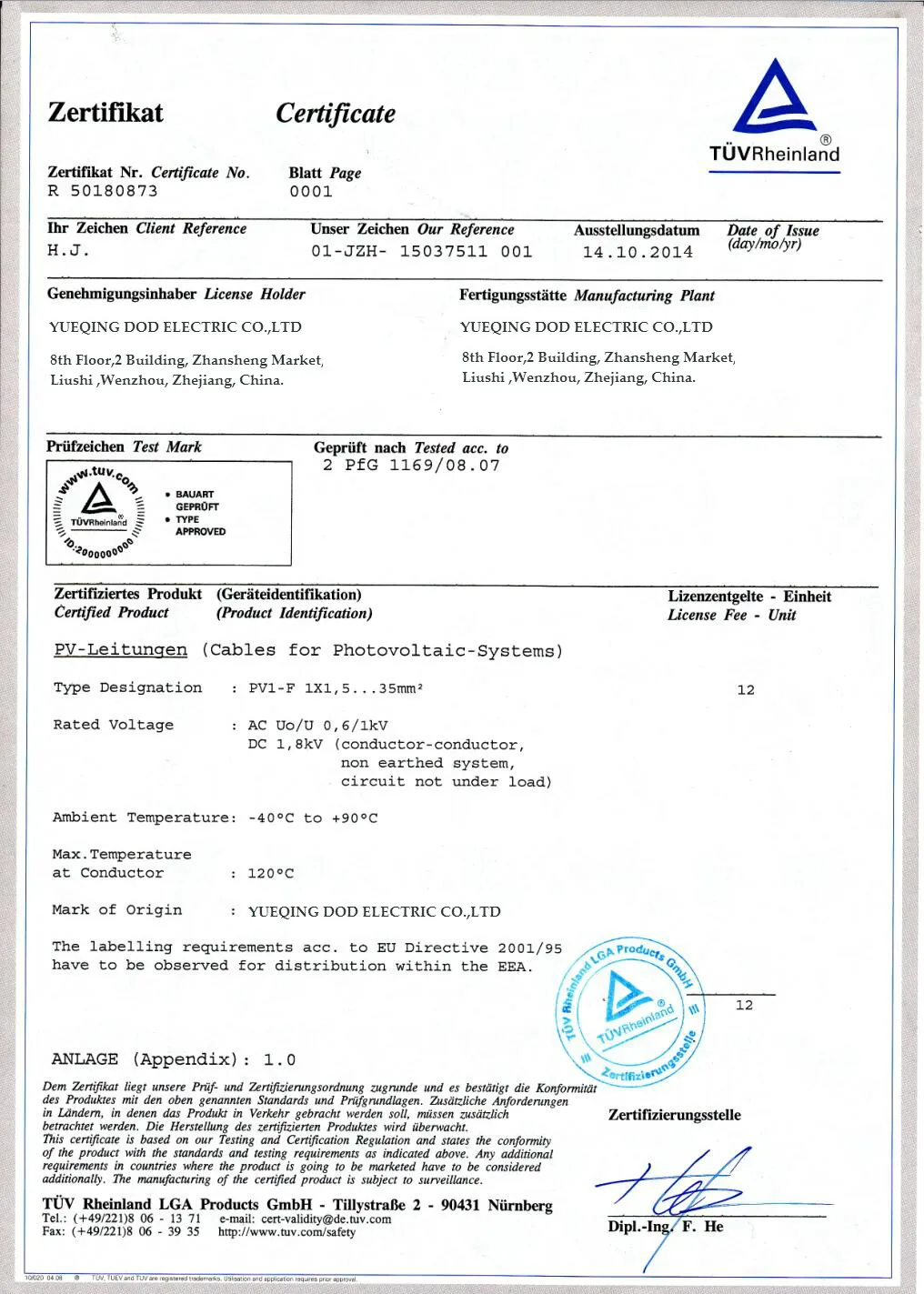

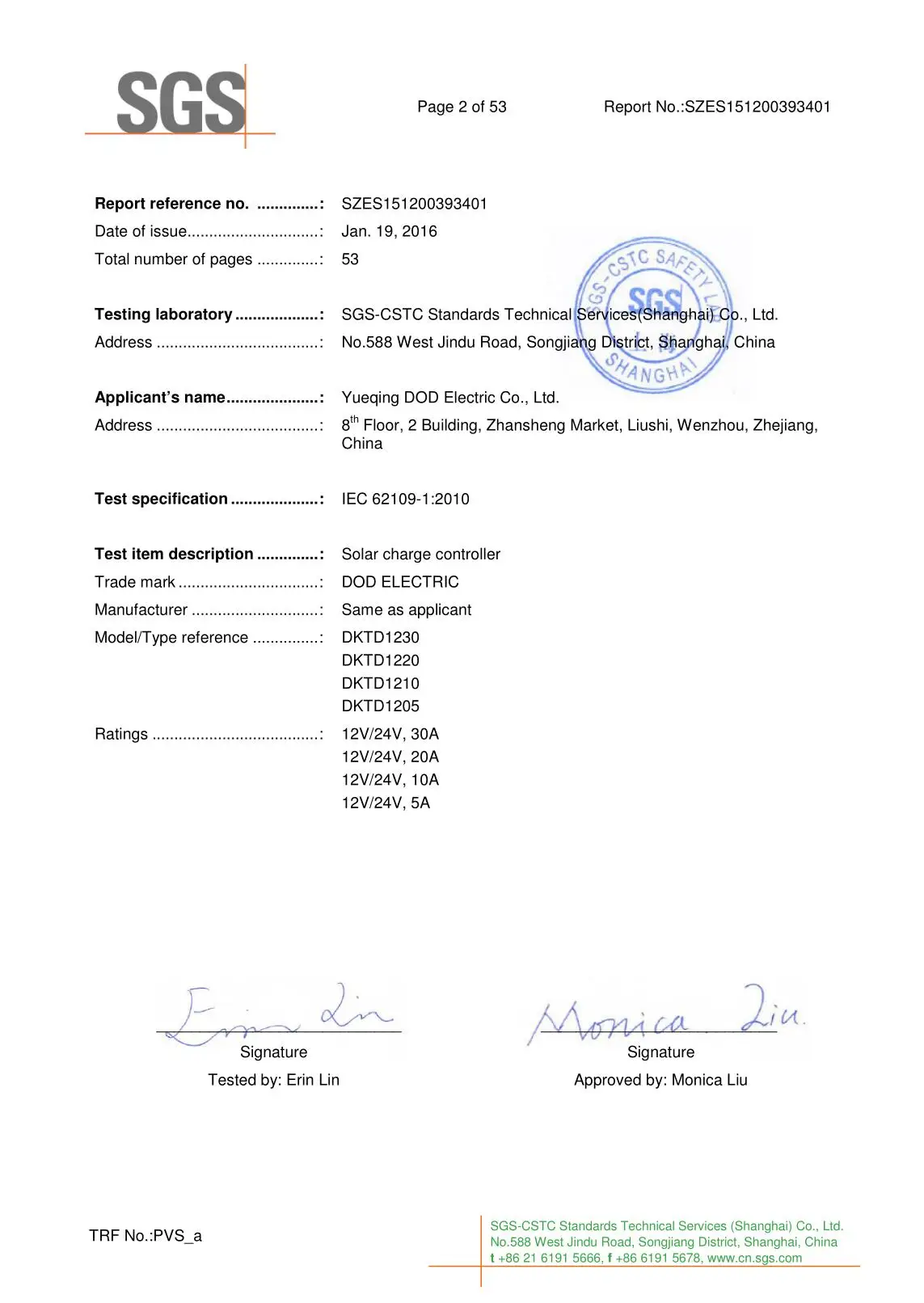

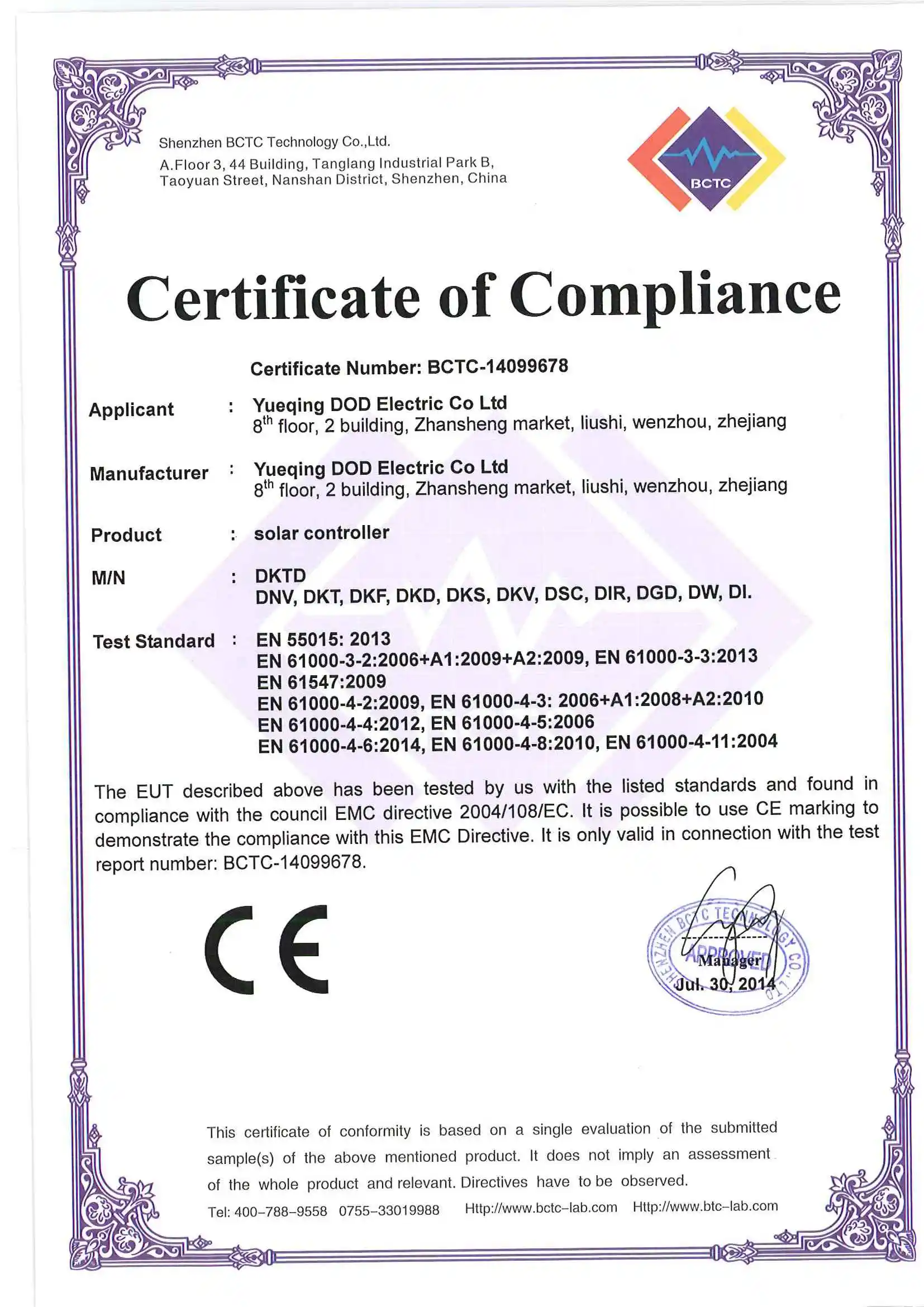

Certificate




Related Products




Packing&Shipping




FAQ


1.How to buy a sample ? pwm solar charge controller
Customer need to choose the controller model ,tell us your battery voltage and Ampere you need , then we will suggest you a suitable controller. Delivery time will be 5-10 days below 10 pieces sample. Samples will delivery be International express like FedEx ,UPS,DHL . Pls let us know your shipping address to confirm the shippingcosts.

2. What is the payment terms ? pwm solar charge controller
For below 1000 USD, we accept Paypal ,Bank T/T .
For Above 1000 USD, We Accept Bank T/T, Irrevocable L/C.
We welcome client to place order through Alibaba Trade Assurance . Trade Assurance can give customer 100% on-time shipment protection ,100% Product quality protection,100% Payment protection . Our Company Trade Assurance amount limit is over 50000 USD. Customer can place order without worried.

3. What is controller warranty ? pwm solar charge controller
All our controller are warranty is 12 months . Within 1 year if found defective, we offer free new controller for replacement.

for more products , you can also check our website : www.dodelectric.com
