USB outlet 4.8A 125V Intelligent identification chip smart wall socket plug outlet receptacles with ETL
- Category: >>>
- Supplier: Shenzhen Keygma Electrical Manufacturing Co. Ltd.
Share on (62486138453):
Product Overview
Description
Advantage
Product Description
Product Advantage: --Keygma® Duplex Receptacle --Meet UL498 (cETLus approved) --Takes up to 20% less space vs. other USB Outlets --100% One by One Test --Warranty:2 years --Operating Temperature from -35℃ to 66℃ --Max Output: 5V 4.8A for USB ports fast charging -- Tamper-Resistant Shutters --Side Wired & Back Wired --Short Circuit and Over Current protection --LED indicator, Indicating that the USB charging status | ||
Amperage | 15 Amp | Voltage | 110-240 Volt |
Pole | 2 | Wire | 3 |
Grounding | General Grounded | Dielectric Voltage | Withstands 2000V per UL498 |
USB Ports | 2 | Current Interrupting | 2 kA |
Flammability | Rated V-2 per UL498 | Operating Temperature | -35°C to +66°C |
Face Material | 100% pure PC | Terminal Screws | Plated Steel |
Terminal Clamp | Brass | Line Contacts | Brass |
Grounding Screws | Plated steel | Mounting Strap Material | Galvanized Steel |
NEMA | WD-1 & WD-6 | Applicable Standards | UL 498 |
Detailed Description
Wide Voltage
It can support110V to 240V which can be used widely all South America and North America as well as other American standard areas.
Inner copper Sheet.
0.8mm phosphor copper to keep the terminal low temperature and good conductivity.
Real materials ensure your safety.

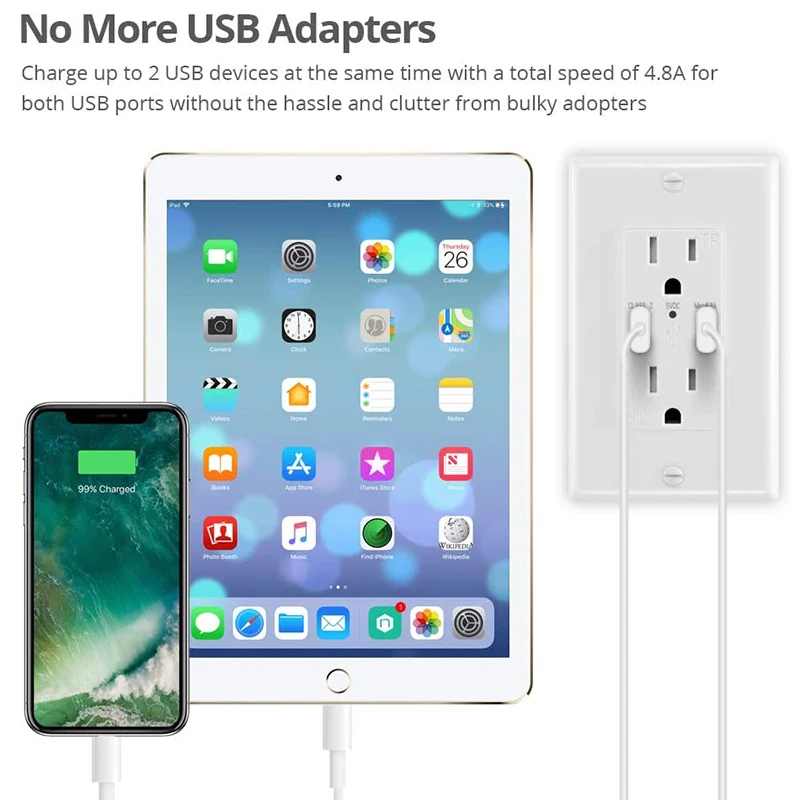

Fast Charging
5V 2.1A Per USB port, total output 5V 4.2A. It can charge the device faster than old versions such as 5V 2.1A and 5V 3.1A.

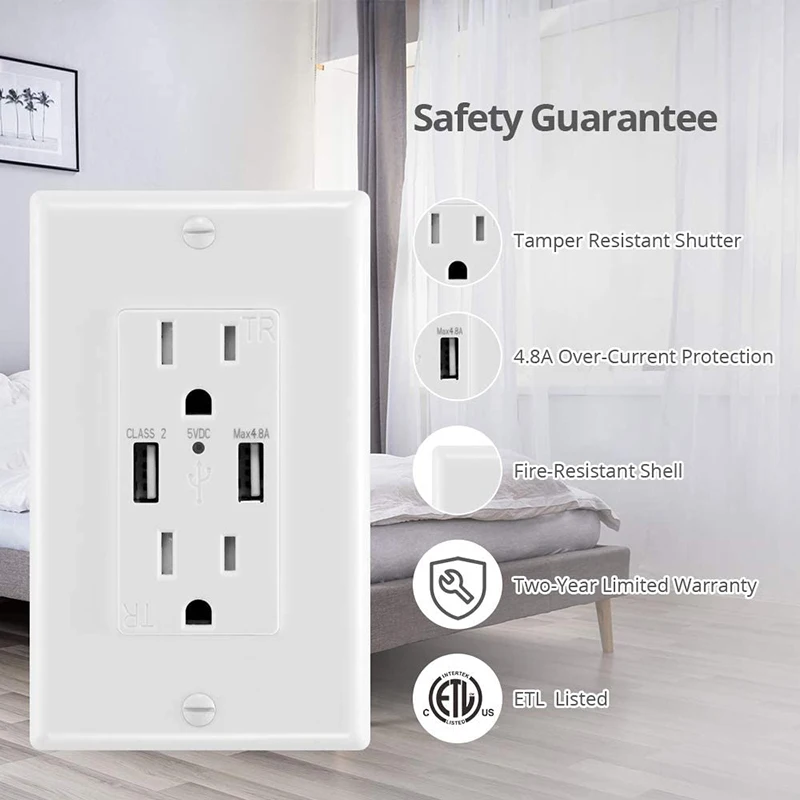

Tamper Resistant
a, Complies with NEC ® requirement, all 15A and 20A receptacles installed in dwelling units should be with tamper-resistant
b, Receptacles with Shutter mechanism block access to the contacts unless the plug is fully inserted
Residential and Commercial Applications:
Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas, Hotels, Meeting Rooms, Office Cubicles, College Dormitories,Cafes, Coffee Houses, Restaurants
Kitchens, Bedrooms, Home Offices, Airport Lounges, Salons and Spas, Hotels, Meeting Rooms, Office Cubicles, College Dormitories,Cafes, Coffee Houses, Restaurants
More Products
R&D Ability
We are the factory with R&D department,once you have the thoughts,we'll make it come true.
From Design to package,you give us the idea and we'll do the rest.
Some Famous Companies we cooperated as following:
Why Choose Us
1) Keygma established : 2009
2) Location: 1 Factories and R&D Center in Pingshan Shenzhen ,1 branch office in Longgang shenzhen, 1 agency in US
3) Main products: GFCI Outlet ;USB Outlet; Dimmer Switch and Smart Socket.
4) Workers: 80
5) Production capacity: 6000pcs /day
6) Serviced customers : 186 international brands+73 famous brands in domestic
7) Socket&switch one-stop purchase solution
Exhibition Picture
The main markets are the ones who use US standard outlets.
Customers visit us for projects, reselling, wholesale etc. You are warmly welcomed to visit us any time.
Customers visit us for projects, reselling, wholesale etc. You are warmly welcomed to visit us any time.
FAQ
Q：How dose the safe charging work? Dose it reduce output size or turn off when the phone
reaches 100%?
A：The USB outlet is equipped with smart chip,Which reads the power needs of devices connected to the USB ports to deliver optimal
power.Protect the devices from overcharging and overheating.
Q：Is it 4.8 amps total (which would be 2.4 per side), or is it 4.8 amps per side?
A:4.8A in total
If you use one port, 4.8A Max
If you use 2 ports, the output is not average, it will depends on your devices required power.
Q: Does this actually work with apple or Samsung products for fast charging?
A：This product is large current output fast charging type.
It requires the device support fast charging, and the USB cable allowed large current power go through. Samsung is QC3.0(5V 3A/9V 2A/12V 1.5A) fast charging, not this type.
Q：Do these come with a white wall plate?
A：Yes, usb outlets receptacles with white wall plate
Q: What is the function for the LED indicator?
A: LED indicates the USB charging status and If the outlet plug power on or not.
LED indicator on (green), means the USB ports and AC ports are normal operation. If LED indicator off, maybe power off or the LED indicator broken (USB ports still can use).
reaches 100%?
A：The USB outlet is equipped with smart chip,Which reads the power needs of devices connected to the USB ports to deliver optimal
power.Protect the devices from overcharging and overheating.
Q：Is it 4.8 amps total (which would be 2.4 per side), or is it 4.8 amps per side?
A:4.8A in total
If you use one port, 4.8A Max
If you use 2 ports, the output is not average, it will depends on your devices required power.
Q: Does this actually work with apple or Samsung products for fast charging?
A：This product is large current output fast charging type.
It requires the device support fast charging, and the USB cable allowed large current power go through. Samsung is QC3.0(5V 3A/9V 2A/12V 1.5A) fast charging, not this type.
Q：Do these come with a white wall plate?
A：Yes, usb outlets receptacles with white wall plate
Q: What is the function for the LED indicator?
A: LED indicates the USB charging status and If the outlet plug power on or not.
LED indicator on (green), means the USB ports and AC ports are normal operation. If LED indicator off, maybe power off or the LED indicator broken (USB ports still can use).
