Product Overview

Description



Product Description

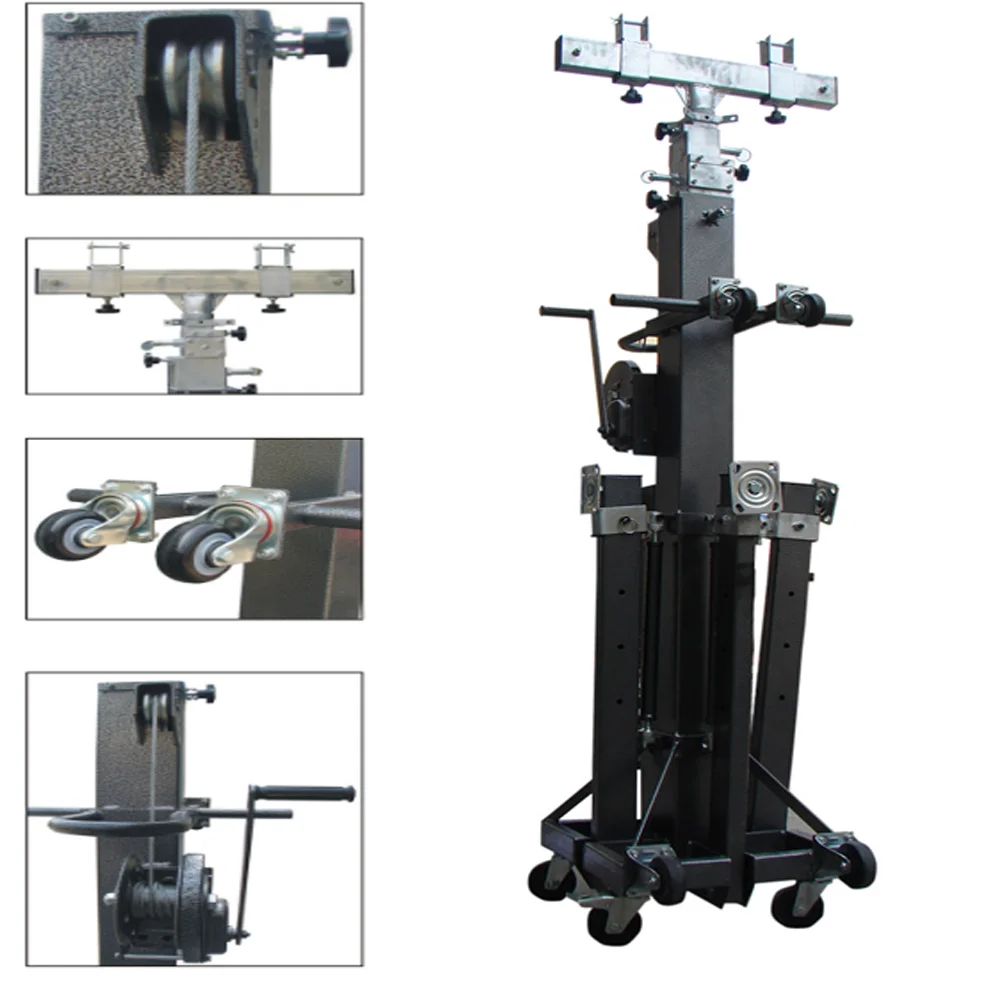

Heavy Duty Truss Lifting Tower steel crank Stand
Scope of application
 It is suitable for various light and small projects, and can be used instead of columns, and can also be used to hang lights and sound independently (requires use of aluminum alloy TRUSS rack), and can be adjusted accordingly according to the height of the scene.




Specification




Deatil


Heavy Duty Truss Lifting Tower steel crank Stand




Item
Heavy Duty Truss Lifting Tower
Model number
TAL-S6.0-2.33-500-A
Lift model
Manul lift model
Lift structure
Winch system
Material
iron
Surface treatment
painting
Color
black for fold part, extended part in silver color

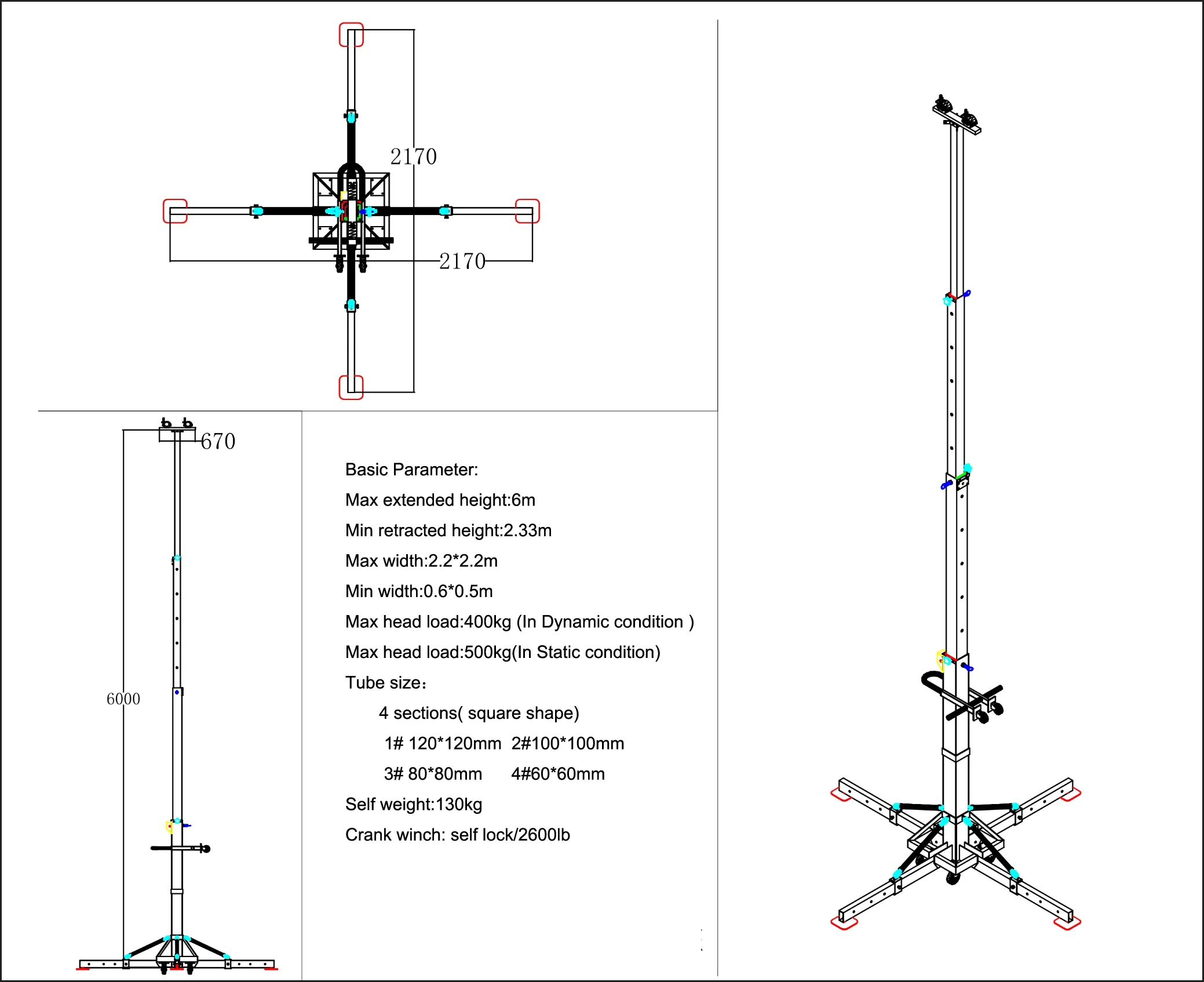

Specification
extended height
6m
Retracted height
2.33m
Max width when using
2.2*2.2m
Min width when fold
0.6*0.5m
In Dynamic condition
Max head load
400kg
In Static condition
Max head load
500kg
Sections number
4 sections( square shape)
1# 120*120mm 2#100*100mm
3# 80*80mm 4#60*60mm
Net weight
around 130kg
Accessories
top mounted bracket
stand wheels

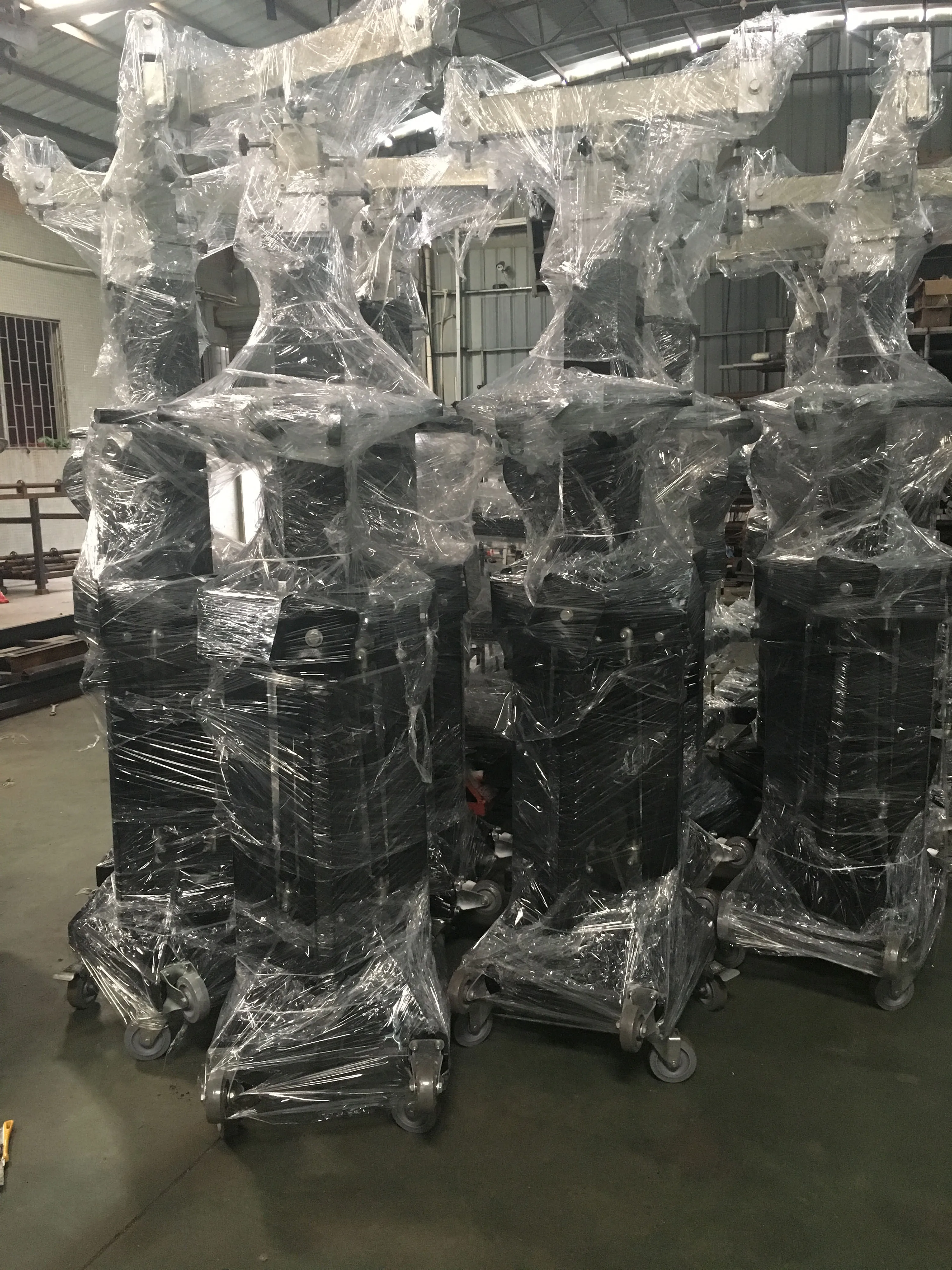

Packing


Packing
Usually packed by film,
if special request,
plywood case
the net weight is aroubnd 140kg,



Mast in use


Uasge
As the lifting tower, usually used with the aluminum frame.
if special application, adjust the mounting accessories, it will come true
so we accept the customized model.


Other Specification


Model No.
Extended height(m)
No. Of section
Retracted height(m)
Outer tube OD(mm)
Head-load
(KG)
TAL-M3-1-20
3
3
1.0
70-90
20
TAL-M4-1.5-30
4
3
1.5
50-80
30
TAL-M5-1.65-10
5
4
1.65
50-80
10
TAL-M5-1.2-15
5
5
1.2
40-90
15
TAL-M5-1.2-10
5
6
1.2
40-90
10
TAL-M5-1.7-100
5
6
1.7
60-130
100
TAL-M6-1.7-10
6
5
1.7
50-90
10
TAL-M6-1.5-100
6
6
1.5
60-130
100
TAL-M6-1.3-60
6
7
1.3
40-130
60
TAL-M7-1.8-30
7
7
1.8
40-105
30
TAL-M8-1.8-10
8
6
1.8
40-90
10
TAL-M8-1.5-20
8
8
1.5
40-130
20
TAL-M9-1.8-30
9
7
1.8
40-105
30
TAL-M9-1.8-100
9
7
1.8
60-160
100
TAL-M9-1.9-5
9
7
1.9
30-90
5
TAL-M10-1.95-10
10
7
1.95
30-90
10
TAL-M10-2-40
10
7
2
30-105
40
TAL-M12-2.1-15
12
7
2.1
30-90
15
TAL-M12-2-40
12
8
2.2
40-130
40
TAL-M15-2.45-10
15
8
2.45
30-105
10
TAL-M15-2.6-35
15
9
2.6
30-130
35
TAL-M15-2.5-200
15
7
2.5
70-200
70
TAL-M16-2.6-10
16
8
2.6
30-105
10
TAL-M18-2.7-10
18
9
2.7
30-130
10
TAL-M18-3.2-30
18
9
3.2
30-130
30
TAL-M18-3.7-100
18
7
3.7
50-130
100
TAL-M20-2.95-10
20
9
2.95
30-130
10
TAL-M22-3.15-10
22
9
3.15
30-130
10
TAL-M25-3.4-10
25
10
3.4
30-150
10
TAL-M25-3.5-250
25
10
3.5
80-280
250
TAL-25-3.6-20
25
9
3.6
40-150
20
TAL-M30-3.85-10
30
10
3.85
30-150
10
TAL-M35-4.5-25
35
10
4.5
40-180
25


Factory view


Alibaba verified factory
we have the mold for the tubes, all accessoreies are customized. Assemble by professional worer.
also we have professional technician






FAQ


Operation???
with winch system structure,
hand lifting bar to control it,
After-sale???
1 year after sale warranty.
Also Any problem, our professional technician could provide the best advice to solve iin using process of the mast.
Cutomized???
Welcome..
just let us know following points:
1.appliation
2.extended height
3.retracted height
4.your e-mail address
