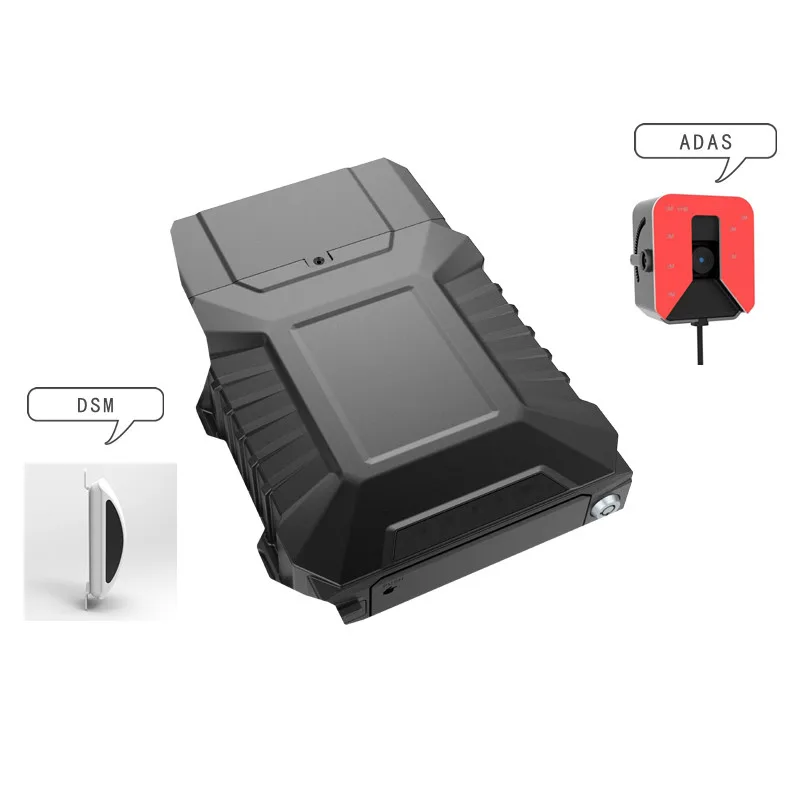

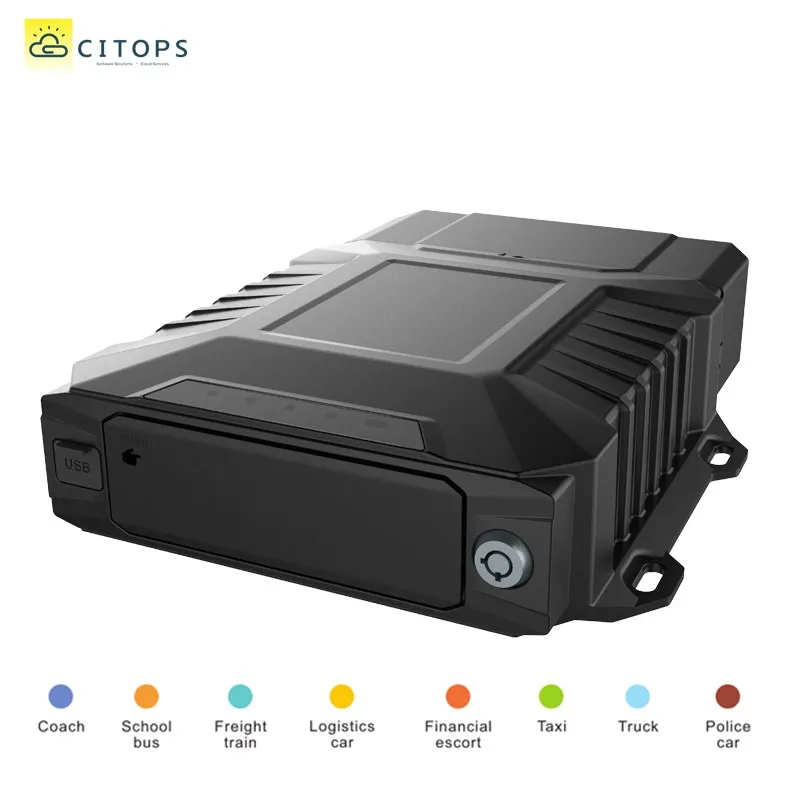

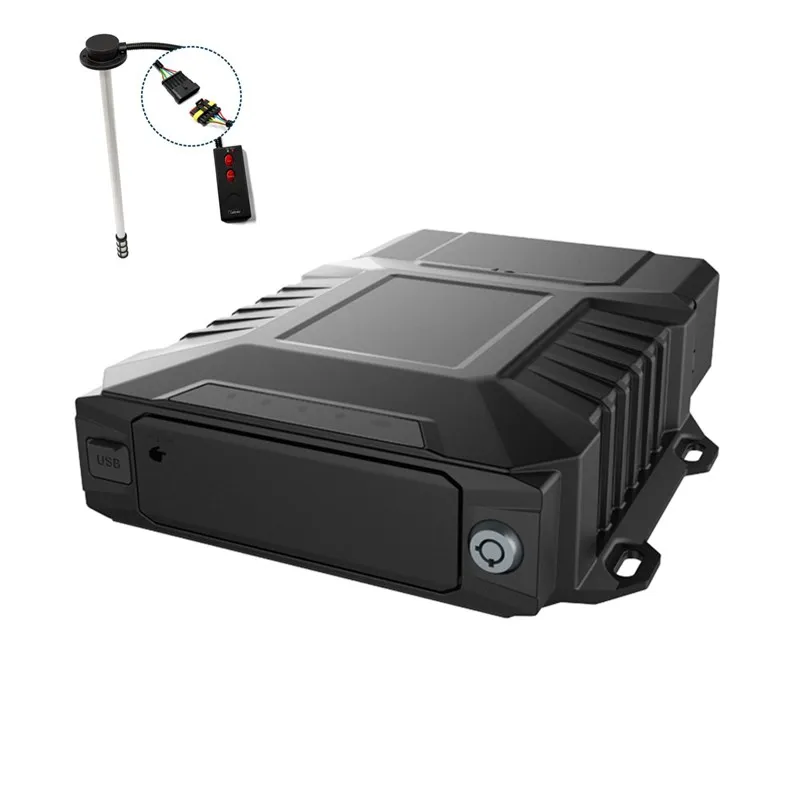

1080P 8CH Mobile DVR GPS Car ADAS DSM Monitoring H.265 Compression HDD 8ch 1080P AHD Video Recording
- Category: >>>
- Supplier: Shenzhen Citops Systems Co. Ltd.
Share on (62486577828):
Product Overview
Description
Main Features
1. Industrial-grade design with special vehicle port for reliable working on harsh environment.
2. Wide voltage support over-load ,short circuit ,reverse connect protection.
3. UPS power for continual work.
4. Support hard disk 2TB+ SD card 256G for record storage.
5. 4G/WIFI transmit; multiple grade image quality transmitting option.
6. GPS/BD/GLONASS global positioning.

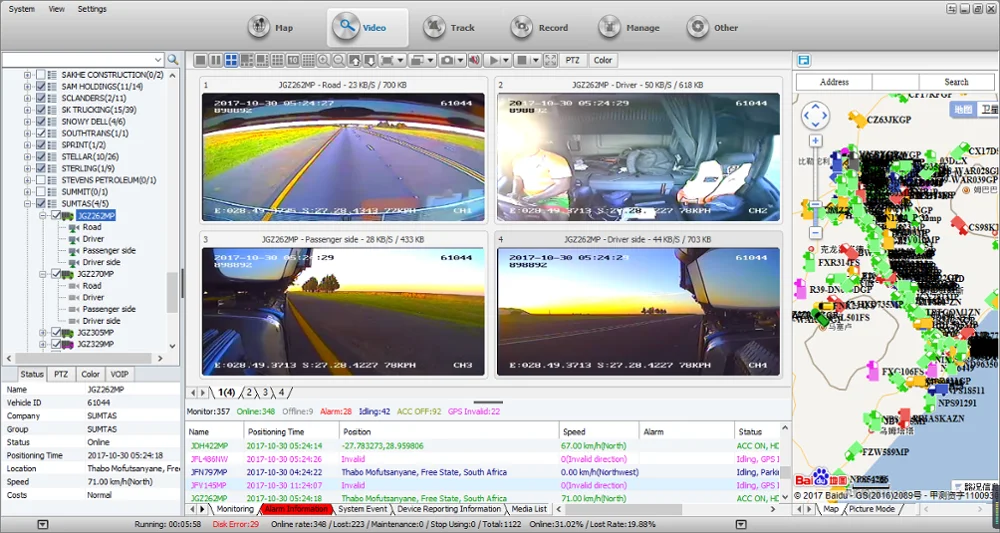

7. Powerful software platform including remote preview, playback, broadcast, talk and more.
8. IP communication.
9. PTT group talk function.
10. Support multiple serial port extension.
11. Could be built-in ADAS.
2. Wide voltage support over-load ,short circuit ,reverse connect protection.
3. UPS power for continual work.
4. Support hard disk 2TB+ SD card 256G for record storage.
5. 4G/WIFI transmit; multiple grade image quality transmitting option.
6. GPS/BD/GLONASS global positioning.
7. Powerful software platform including remote preview, playback, broadcast, talk and more.
8. IP communication.
9. PTT group talk function.
10. Support multiple serial port extension.
11. Could be built-in ADAS.
Detailed Images
Specifications
Item | Description | ||
Model | M52A | ||
OS | Linux3.18 | ||
Operating | Cell phone APP, PC client, Remote controller,UI | ||
Functions Summary | Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition. | ||
Video and Preview | Video Input, Output, Signal standard | AHD input:4ch ahd, 1ch ADAS, 1ch DSM and 1-2 IPC Output: 1ch CVBS/VGA Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional | |
Image Identification | 1ch ADAS, 1ch DSM | ||
OSD | Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc. | ||
Video Compression Format | Compression coding. Applying H.265 hi-performance processor(Hisilicon 3521D). | ||
Image quality | Code stream, frame rate optional | ||
Preview | 1/4/6 channel preview | ||
Frame rate | 1080p: max 120fps/s. 720p: 240fps/s, each channel max 30fps/s. NTSC: 240fps/s, each channel max 30fps/s. | ||
Resolution | 1080p,720p D1 optional. | ||
Audio | Audio Input, Output | 4ch audio input, 1ch audio output. Independent intercom | |
Compression Format | G.711, G.726 | ||
Recording | Storage Medium | Supporting one 2.5” SATA hard drive(max 2TB) and one SD card(max 256GB) | |
Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | ||
Alarm pre-recording | 0-60min | ||
Alarm recording delay | 0-30min | ||
Playback channel | Support local 1/4/6/8 channel playback | ||
Browse mode | Time, channel, event. | ||
Communication Ports | RS232, RS485 | ||
ADAS | Built-in | ||
Wireless Transmission | 3/4G/5G wireless transmission module, EVDO/TD-SCDMA/WCDMA/TDD-LTE/FDD-LTE ect. Wi-Fi module, 802.11b/g/n,2.4G/5.8G optional. Ethernet: Network aviation head(100M) | ||
Position | GPS/BD: Positioning, speed detection, time synchronization | ||
Power Supply and Power Consumption | Power Supply | ≤6V ,ACC on; ≥7.5V ,ACC off | |
Input Voltage | DC:+8V ~ +36V. If voltage is lower than 8V or is higher than 36V for a long time. The device automatically shuts down and enters the protection mode. | ||
Output Voltage | +12V@1A; +5V@1A | ||
Power Consumption | Max 30W consumption, about 10W in standby mode | ||
Built-in UPS | 5x7F*2.7V | Power on and charge, full for 3 minutes. External power loss, can keep the system working for 7 seconds, finish saving data. | |
Operating Environment | Temperature | preheating: -20℃ ~ +70℃ | |
Humidity | 8% to 90% | ||
Dimensions | 177 (L)x 186.8(W) x 54(H) | ||
Weight | Net: 1.25KG | ||
