Eco friendly industrial ultrasonic bottle automatic cleaning water washing machine
- Category: >>>
- Supplier: Nantong Bolang Machinery Technology Co. Ltd.
Share on (62486688690):
Product Overview
Description
Our Product Advantages
1.We have many high quality and reliable suppliers.
2.We have young and powerful sales team, and have enough exported experience.
3. Our products are of excellent quality and fast processing speed.
4.Rich experience, more than 1,500 global customers, more than 20 years of factory history.
5. Rich product categories, products support OEM and customer customization.
6. One-year warranty, can provide overseas installation and debugging services.
7.We all hope all of our clients will enjoy doing business with us. We look forward to be your reliable partner.
Product Description

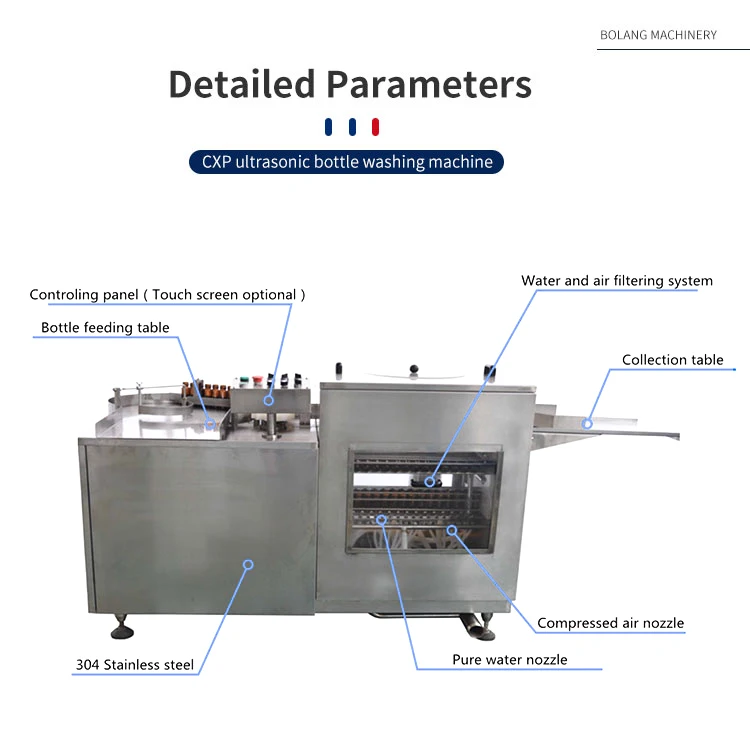

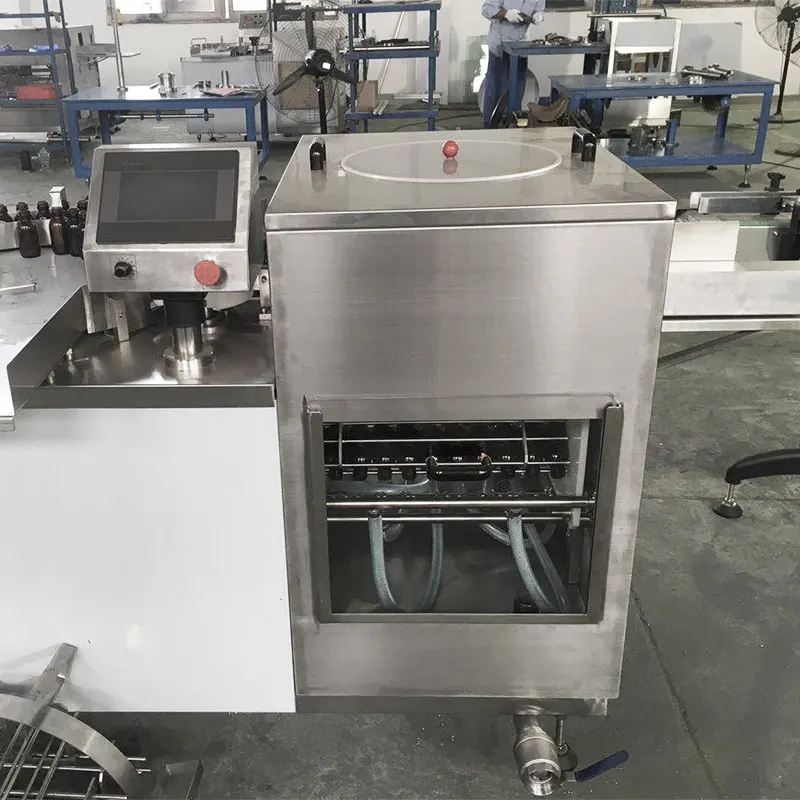

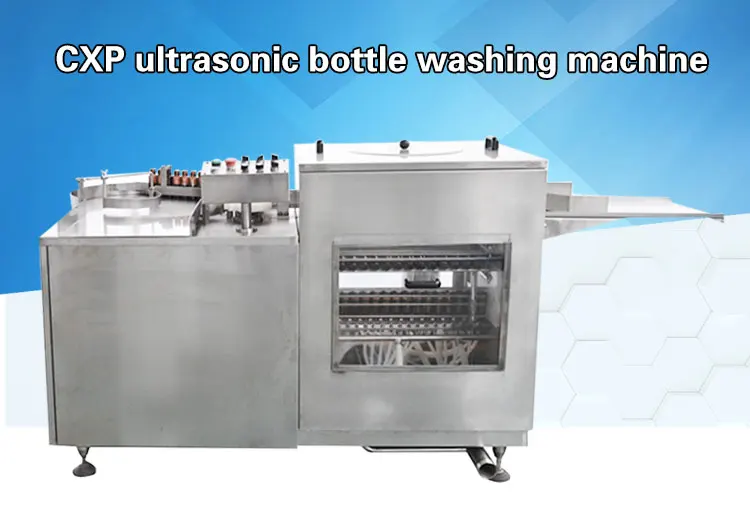

Eco-friendly industrial ultrasonic bottle automatic cleaning water washing machine
Product Function

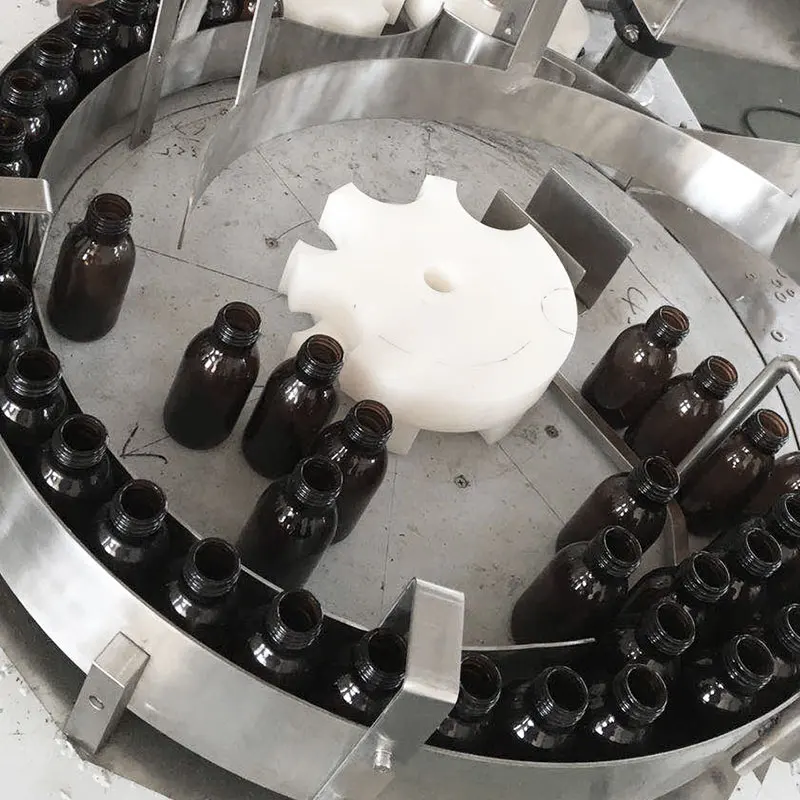

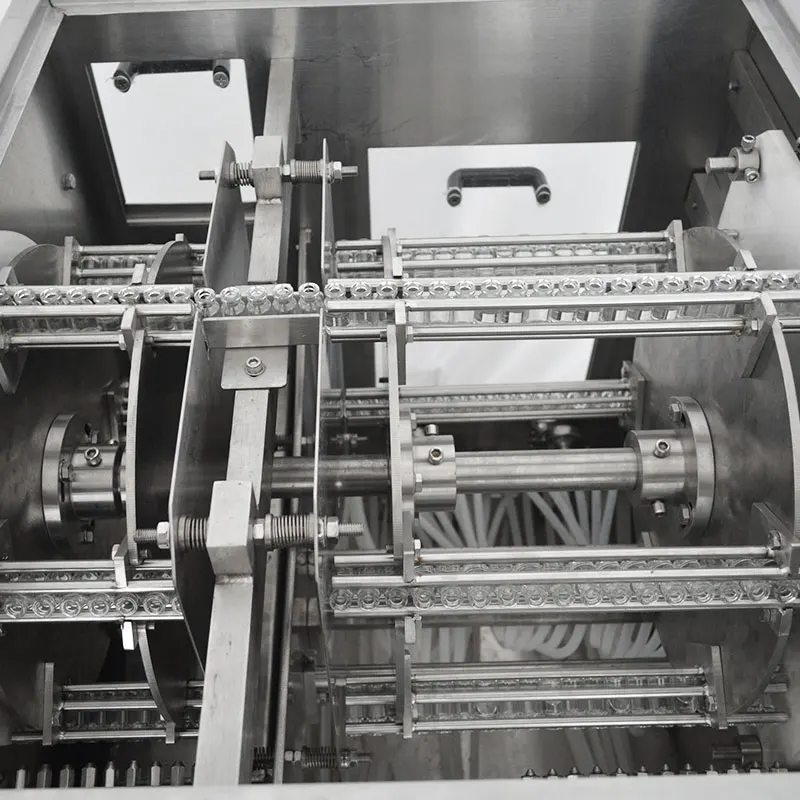

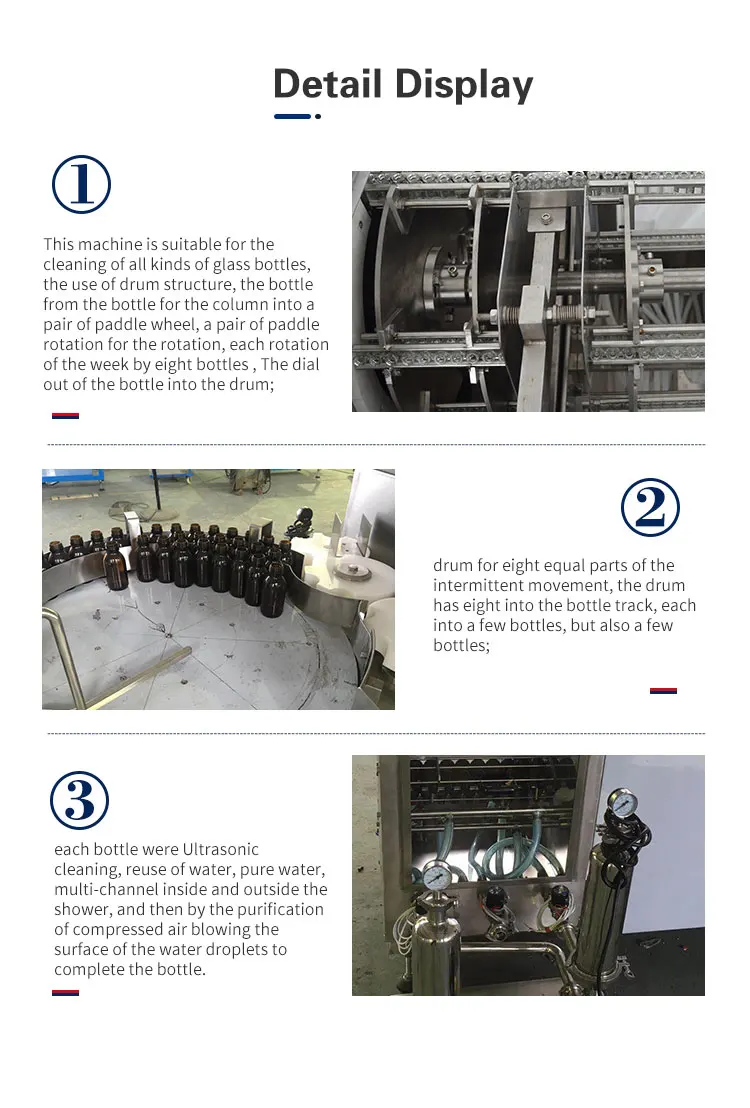

1. This machine is suitable for the cleaning of all kinds of glass bottles, the use of drum structure, the bottle from the bottle for the column into a pair of paddle wheel, a pair of paddle rotation for the rotation, each rotation of the week by eight bottles, The dial out of the bottle into the drum.2. Drum for eight equal parts of the intermittent movement, the drum has eight into the bottle track, each into a few bottles, but also a few bottles; each bottle were Ultrasonic cleaning, reuse of water, pure water, multi-channel inside and outside the shower, and then by the purification of compressed air blowing the surface of the water droplets to complete the bottle.
3. Finally, the bottle out of the cleaning tank into the tunnel oven.
Production capacity | 60~150 bottles / min |
Applicable bottles | vials and glass bottles |
Reuse water flow | 0.8m³ / h Pressure: 0.2 ~ 0.3MPa |
Purified water consumption | Length 10 ~ 80mm wide 10 ~ 80mm |
Purified compressed air consumption | 25m³ / h Pressure: 0.3 ~ 0.4MPa |
Ultrasonic power | 1.5kw |
Power | 4Kw |
Power | 380V 50Hz three-phase four-wire system |
Dimensions | 2150 × 1400 × 1500 |
Main device component configuration
No. | Name | Model or Material | Supplier |
1 | PLC | DVP30SS11T2 | Taiwan Delta |
2 | touch screen | DOP-B05S100 | Taiwan Delta |
3 | frequency converter | S310-201-H1BCD75 | Taiwan Delta |
4 | gear reducer motor | 6IK120GU-AF | JINWEIDA motor |
5 | sensor | BW200-DDT | Korea Autonics |
6 | stainless steel pump | CDXM120 / 20 | HANGZHOU South Pump |
7 | Ultrasonic generator | SDA32-10-B | ZHANGJIAGANG |
8 | high-precision sub-box | RTT80-10-2: 1 | ZHUCHENG MINGXIN machinery |
9 | Other electrical components | France Schneider | |
10 | Feed bottle turntable | components | NANTONG BOLANG |
11 | drum | 304 # | NANTONG BOLANG |
12 | water tank | 304 # | NANTONG BOLANG |
13 | drive mechanism | components | NANTONG BOLANG |
14 | cleaning system | 304 # | |
15 | side panels, panel | components (304 #) | NANTONG BOLANG |
16 | rack, table | assembly (A3) | NANTONG BOLANG |
Company Profile
Our company is one of the member units of China Pharmaceutical Equipment Industry Association. Its predecessor is Haimen Nantong Precision Machinery Co.,Ltd.It has a history of more than 20 years.It specializes in the design and manufacture of pharmaceutical,food and chemical machinery,and has a far-reaching impact on the national pharmaceutical and food industries.The company has strong design ability.The products are also exported to Southeast Asia,Central Asia and other countries and regions,and are favored by users.
Delivery&Certificate
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
