Automatic rotation Drying fruit in dehydrator dryer for fish dried machine
- Category: >>>
- Supplier: Foshan Topone Electrical Appliances Co. Ltd.
Share on (62486726600):
Product Overview
Description
Products Description
Contact us for more videos and details.

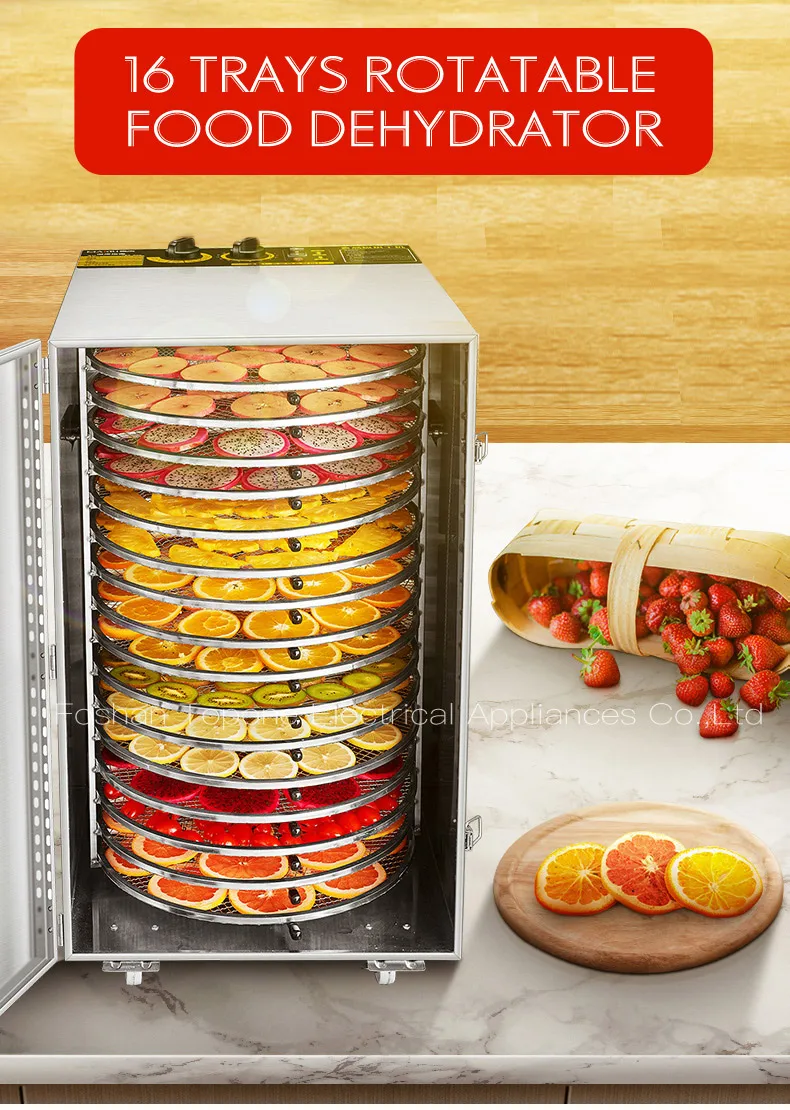

1. 16 trays large capacity, 20~25 kg at a time.
1. We are a manufacturers, and all product certifications are linked to our factory.
2. We know more about the products and can get more professional answers. Delivery is more guaranteed and
timely(Generally, we can ship within 48 hours after you pay). Can solve any problems for you instantly.
3.10 years of production experience makes our production capacity strong, and has a stable supply chain and production system.With better R & D capabilities, it can quickly manufacture various customized machines.Welcome large or small volume OEM / OEM.
4. Cooperate with big brands from many countries and have experience selling to Europe, North America, South America, Asia,Africa, Middle East and other regions, making the transaction smoother
MODEL:ST-02-H
1. 16 trays large capacity, 20~25 kg at a time.
2. Mechanical knob control, easy operation, low damage rate of parts.
3. Transparent tempered glass can be used to observe the drying inside.
4. 2 motor +2 fan blade drying system, better effect and higher efficiency
5. Thickened 0.8mm, brushed stainless steel shell. 304 food grade trays.
6. Timing range: 0~15 hours with normally open function, temperature setting range: 40~90℃（104~194℉）
7. The trays size is 367MM diameter., and the layer spacing of each trays is 35MM
8. You can bake fruits, vegetables, meat, grains, herbs, beans, snacks, etc
Product Paramenters
Item NO. | ST-02-H |

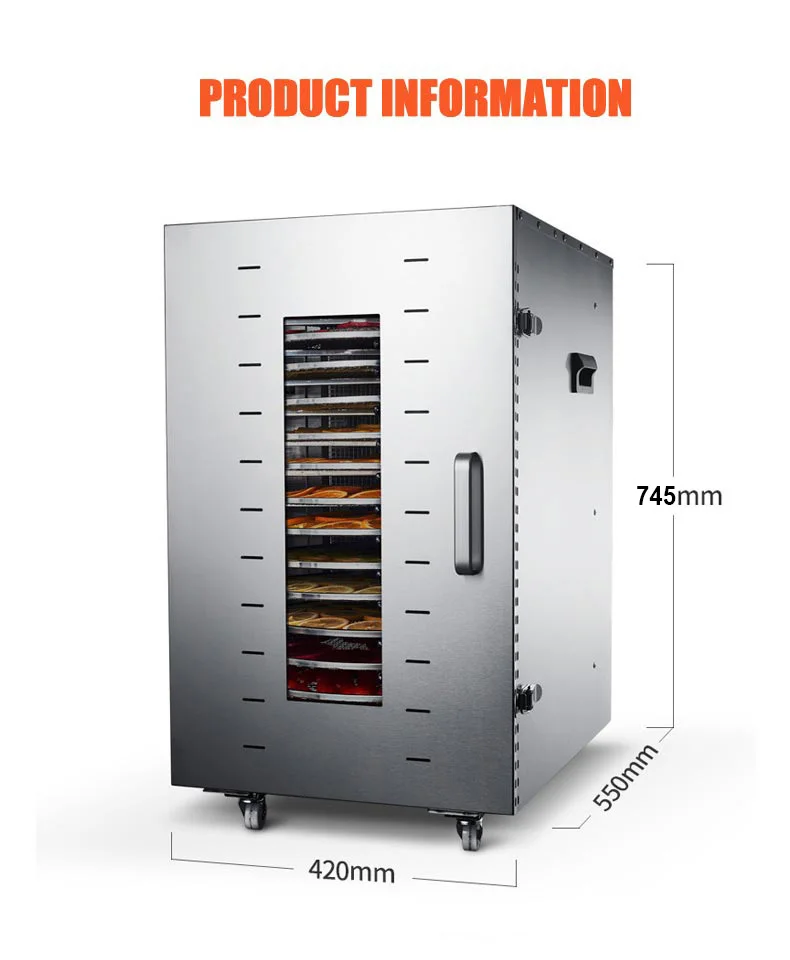

Product Dimension (W X D X H ) | 550*420*745mm |
wooden case Dimension (W X D X H ) | 610*485*805mm |
Rack Size(diameter) | 367mm |
Rack Grid Spacing | 6mm |
Rack Gap | 30mm |
Total Trays | 16trays |
N.W (KGS) | 25.5kgs |
G.W (KGS) | 29.5kgs |
Product Material | Food grade 304 stainless steel racks; 201 stainless steel housing, lifting handles, latches; Stainless steel with tempered glass window door;Aluminum alloy door handle; Control panel with PVC finish and PF knobs |
Power | 1800W |
Voltage / Frequency | 220V/50hz(Conventional standard), 110V/60hz(Special-make, MOQ:1X20GP, extra cost USD 14/unit) |
Temperature Ranges | 40~90℃ (104~194℉) |
Max. Timing | 15hrs |
Noise Level | 45-50dB |
Capacity | 110L |
Warranty | 1 year warranty / Provide techinicial support according to specific issues; / Provide FOC vulnerable parts |
Packages | EPE cushion High strength corrugated carton B/W printing manual |
Notes | 1. Other special requirement shall be added to related cost 2.MOQ: 20GP container, can mix models. Extra sample fee will pay back after a 20GP. 3. Lead Time: For first order 35 days, and the repeated order 30 days after all OEM artworks confirmed. 4. Payment Term: T/T 30% deposit, the balance shall be paid one week before shipment. 5. Certs: CCC, CE, ROHS, LVD, EMC |
Details Images
Product packaging
Materials | PE bag / EPE cushion / High strength corrugated carton | |
Export carton dimensions | (W)610 X (H)470 X (D)695mm (W)24.0 X (H)18.5 X (D)27.3" | |
Net weight | 25.5kgs/ 56.22lbs | |
Gross weight | 29.5kgs/ 65lbs | |
Case pak | 1/1CTN | |
Loading quantity | 20' container | 132pcs |
40'HQ container | 275pcs |
ODM project process
ODM project process
1.Communication Requirements: Customer provide sample or design paper with details requirements.
2.factory quoting: quotation is passed by customer and factory provide die design.
3.making prototype: within 5-7days, provide the 1:1 mock-up
4.confirmation of prototype: customer confirm the 1:1 mock-up after several adjustment
5.Opening mould. Produce the mould according to the confirmation of 1:1 mock-up,takes around 1-2months
6.testing mould. Try the mould repeatedly and make sure there is no flaws on finished products.
7.Trial production. Small mass production after passing the mould testing and do fully product test
8.Mass production. Start mass production after passing the trial production, and customer pay the deposit.
9.Inpection&delivery. Delivery within 4 weeks, customer arrange the balance payment.
Our company has perfect equipment and high-quality technical team, can customize products according to customer requirements.
2.factory quoting: quotation is passed by customer and factory provide die design.
3.making prototype: within 5-7days, provide the 1:1 mock-up
4.confirmation of prototype: customer confirm the 1:1 mock-up after several adjustment
5.Opening mould. Produce the mould according to the confirmation of 1:1 mock-up,takes around 1-2months
6.testing mould. Try the mould repeatedly and make sure there is no flaws on finished products.
7.Trial production. Small mass production after passing the mould testing and do fully product test
8.Mass production. Start mass production after passing the trial production, and customer pay the deposit.
9.Inpection&delivery. Delivery within 4 weeks, customer arrange the balance payment.
Our company has perfect equipment and high-quality technical team, can customize products according to customer requirements.
Company Profile
FAQ
Q1:Are you a factory or trading company?
We are a specialized manufacurer in food dehydrator machine more than 10 years. We have own brand dehyrator machine production line. We have our own mold and design patents.
Q2:How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and We will inspect each machine before packing and delivered out. Our products have different certifications for different regions, such as CE, CB, lfgb, etc
Q3:What is your Payment Terms?
Regular payment terms are T/T, Western Union, other payment terms can be negotiated. We suggest using Alibaba Trade Assurance to protect your orders from payment to delivery.
Q4:What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. You also can arrange to inspection before shipped out.
Q5:What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q6:What about the Warranty?
We are committed to every machine before delivery through professional commissioning debugging to ensure that the machine is best for you. And solemnly promise you can machine warranty for 1 years, Long-term to provide after-sale spare parts service cost price.when you order the whole cabinet,we canComplimentary spare parts in proportion
Contact Us Contact us for more Pictures and videos.We can accept whether you are one or one cabinet In order to choose a proper machine, please kindly tell us your exact requirements below. 1, what do you want to dry? 2, what is your expected production capacity? 3,Do you need to use it yourself or do you want to buy wholesale? Do you have your own brand? please leave your email box, in order to further links up!
We are a specialized manufacurer in food dehydrator machine more than 10 years. We have own brand dehyrator machine production line. We have our own mold and design patents.
Q2:How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and We will inspect each machine before packing and delivered out. Our products have different certifications for different regions, such as CE, CB, lfgb, etc
Q3:What is your Payment Terms?
Regular payment terms are T/T, Western Union, other payment terms can be negotiated. We suggest using Alibaba Trade Assurance to protect your orders from payment to delivery.
Q4:What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. You also can arrange to inspection before shipped out.
Q5:What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q6:What about the Warranty?
We are committed to every machine before delivery through professional commissioning debugging to ensure that the machine is best for you. And solemnly promise you can machine warranty for 1 years, Long-term to provide after-sale spare parts service cost price.when you order the whole cabinet,we canComplimentary spare parts in proportion
Contact Us Contact us for more Pictures and videos.We can accept whether you are one or one cabinet In order to choose a proper machine, please kindly tell us your exact requirements below. 1, what do you want to dry? 2, what is your expected production capacity? 3,Do you need to use it yourself or do you want to buy wholesale? Do you have your own brand? please leave your email box, in order to further links up!
