12V 17AH AGM lead acid battery UPS battery for Back up

Product Overview

Description

For more Hot Sell batteries, please contact:



CBB 12V 17AH AGM lead acid battery UPS battery for Back up



CBB Battery NP (General Models) Series Valve Regulated Lead Acid batteries(sealed lead acid battery) are designed with AGM technology,

high performance plates and electrolyte to gain extra power output for common power backup system applications widely

used in the fields of UPS, Emergency Lighting System.



Features

-Sealed and maintenance free operation
-Non-Spillable construction design.
-ABS Containers and Covers (U L94HB), U L94V-0 optional.
-Safety valve installation for explosion proof.
-High quality and high reliability.
- Exceptional deep discharge recovery performance.
- Low self discharge characteristic.
-Flexibility design for multiple install positions.



Applications

-Portable VTR/TV, tape recorders, radios, etc.

-Power tools, lawn mowers and vacuum cleaners

-Cameras and photographic equipment

-Computers etc.

-Portable measuring equipment

-Portable telephone sets

-Various power toys and recreational equipment

-Lighting equipment

-Uninterruptible Power Supply

-Communications and electric equipment

-Emergency lighting equipment

-Fire alarms and security systems

-Various telemeter equipment

-Office computers, processors and other office automation equipment

-Robots, control equipment and other factory automation equipment

-Emergency power supplies in power generation plants and substations

Specification



Model No	Rated Voltage(V)	Capacity (Ah)	Dimension				Weight	Terminal Type
			Length	Width	Height	Total Height	kg
			mm	mm	mm	mm



NP7-12	12	7	151	65	94	100	2.05	F1/F2
NP7.2-12	12	7.2	151	65	94	100	2.15	F1/F2
NP7.5-12	12	7.5	151	65	94	100	2.25	F1/F2
NP9-12	12	9	151	65	94	100	2.4	F1/F2
NP10-12	12	10	152	99	96	102	3.2	F1/F2
NP12-12	12	12	152	99	96	102	3.4	F1/F2
NP15-12	12	15	152	99	96	102	3.8	F1/F2

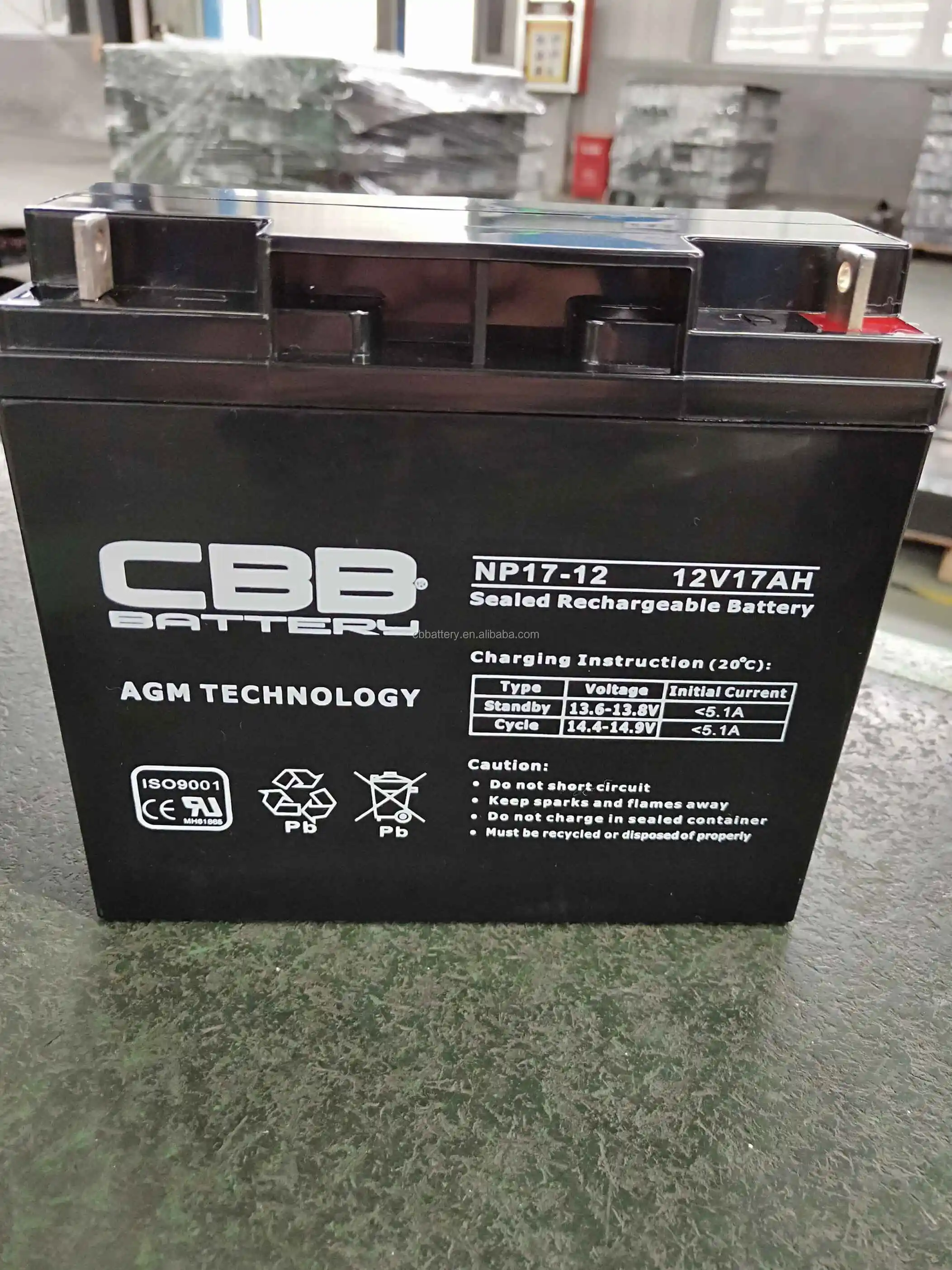

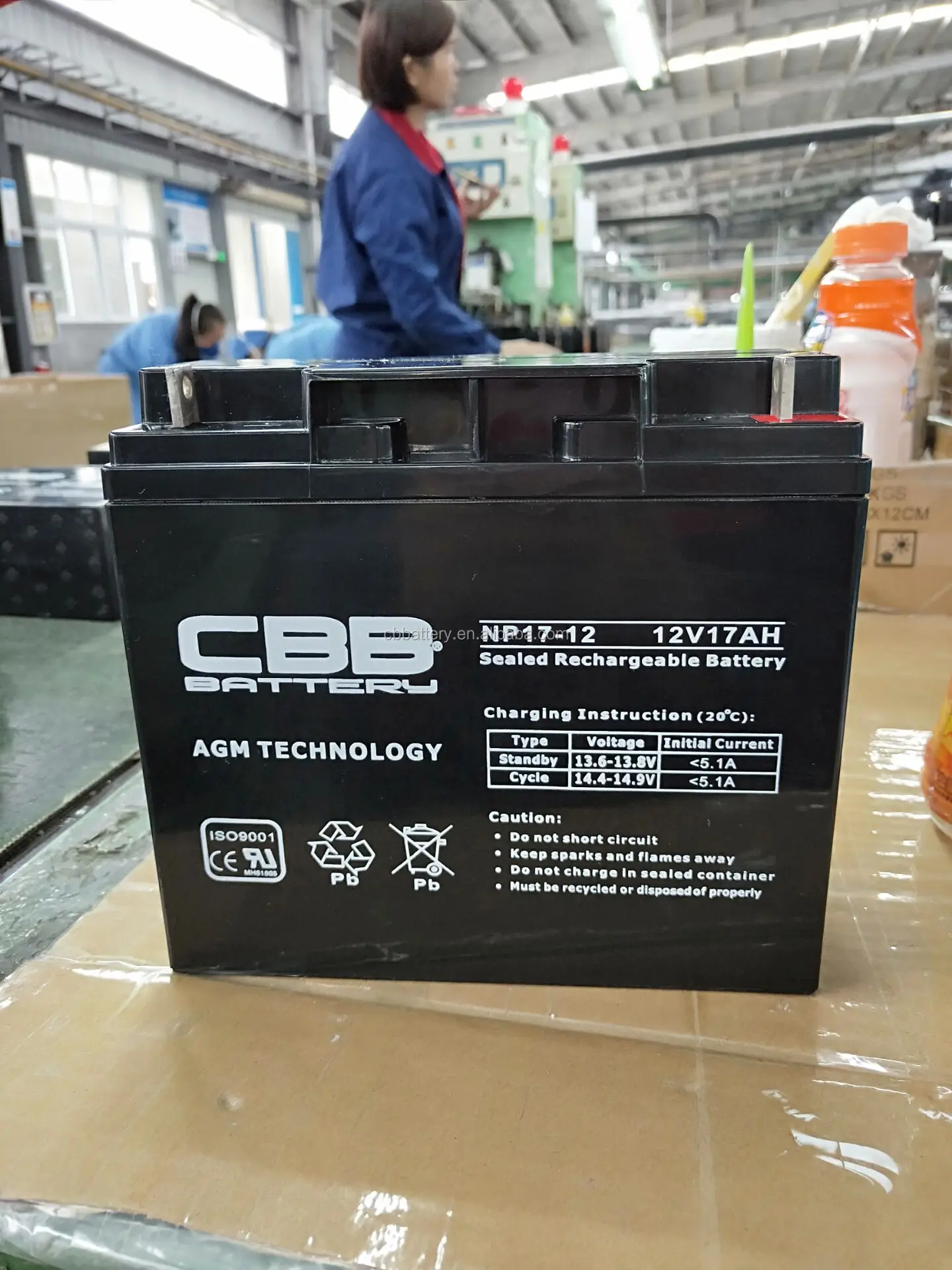

NP17-12	12	17	181	77	167	167	5.2	L1

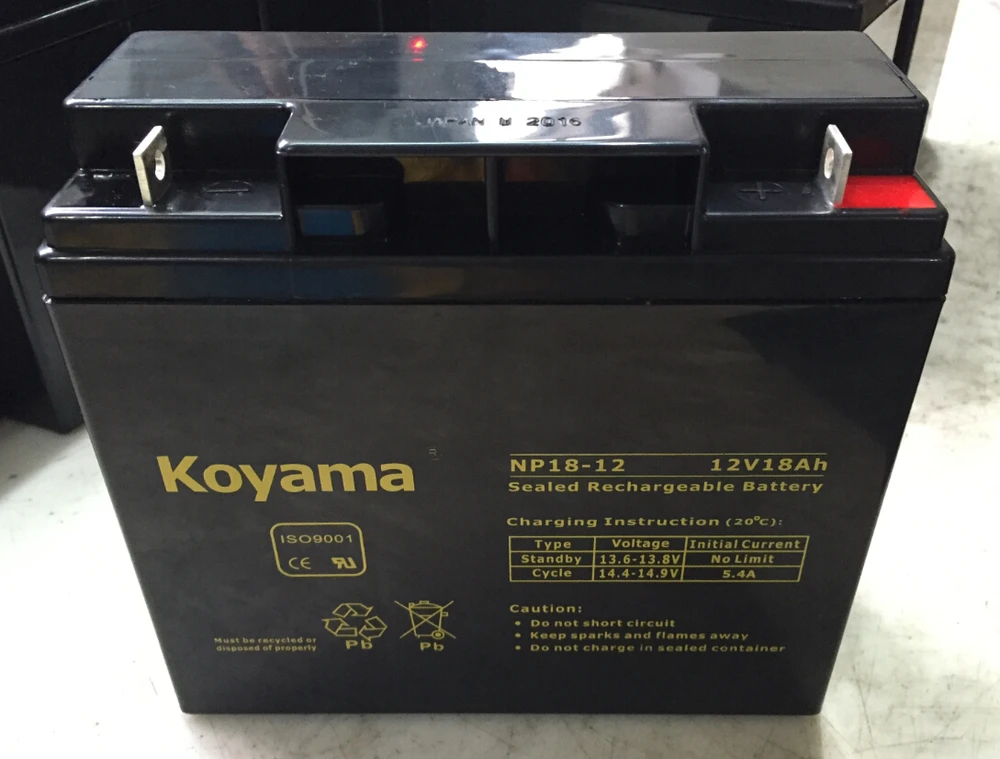

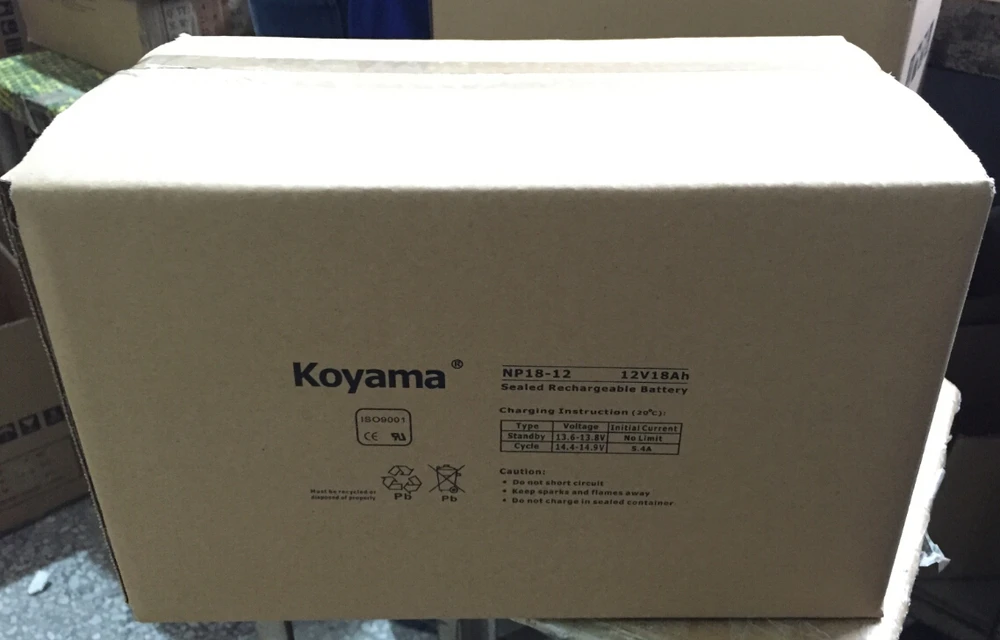

NP18-12	12	18	181	77	167	167	5.5	L1
NP20-12	12	20	181	77	167	167	6	L1
NP24-12	12	24	165	126	174	174	7.7	L6/T3
NP26-12	12	26	166	175	126	126	8.4	L2/T3
NP28-12	12	28	166	175	126	126	8.5	L2/T3







Lead time: 15-30day after getting payment



Warranty: 6/12 Batteries: 2 years











We are one of the leading manufacturers of Deep Cycle batteries for more than 20 years in Guangdong, China. All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.
