Share on (62486763097):


Price:$11,410.00 - $20,260.00

Quantity:


Product Overview

Description





Product Paramenters


Type
Parameters
Model
IIMT-CR-03
IIMT-CR-05
IIMT-CR-10
IIMT-CR-16
Payloads (kg)
3
5
10
16
Working Radius
600
900
1300
1000
(mm)
Weight
13
20.4
23.7
25
(kg)
Speed
Joint side: 180 deg/s
Joint side: 150 deg/s
Joint side: 120 deg/s
Joint side: 120 deg/s
Tool side: 0.9 m/s
Tool side: 1.5 m/s
Tool side: 2 m/s
Tool side: 1 m/s
Repeat-abilty
±0.03mm ( ISO 9283 standard)
±0.03mm ( ISO 9283 standard)
±0.05mm ( ISO 9283 standard)
±0.05mm ( ISO 9283 standard)
Collision Sensitivity
30N
30N
50N
50N
Collision Response Time
≤ 0.1s
≤ 0.1s
≤ 0.1s
≤ 0.1s
Rated Power
200W
300W
500W
500W
Programm-ing
Graphical human-machine interface
Graphical human-machine interface
Graphical human-machine interface
Graphical human-machine interface

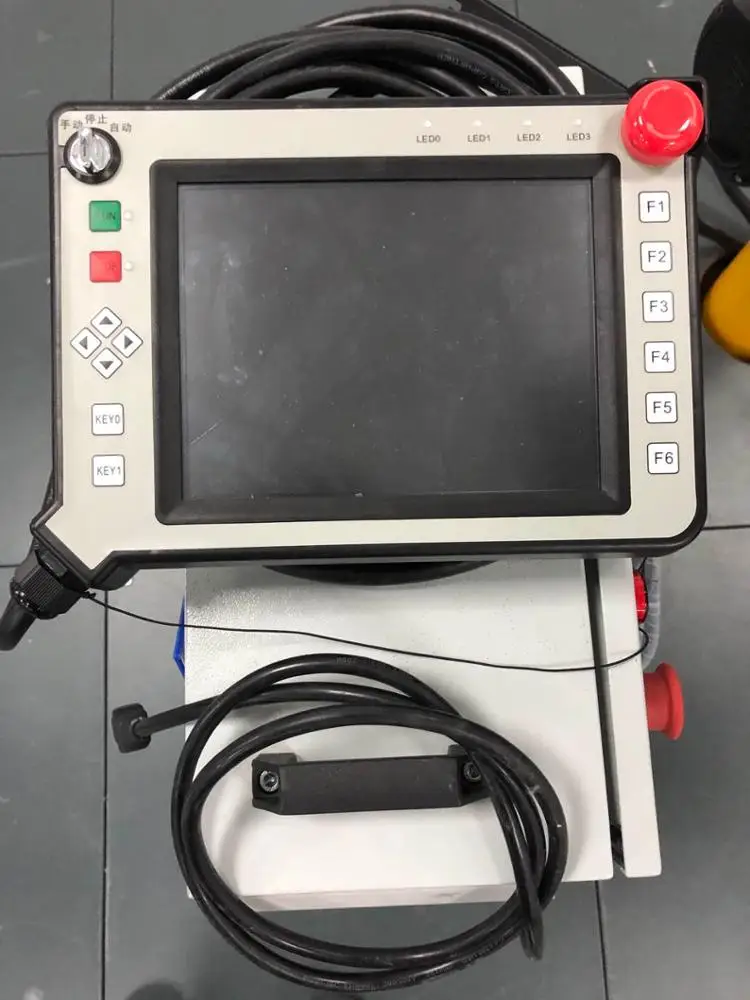

12-inch touch-screen
12-inch touch-screen
12-inch touch-screen
12-inch touch-screen
TCP/IP script programming
TCP/IP script programming
TCP/IP script programming
TCP/IP script programming
C/C++programming language
C/C++programming language
C/C++programming language
C/C++programming language
HMI
5 security configurations According to EN ISO 13849-1:2008 PLD
5 security configurations According to EN ISO 13849-1:2008 PLD
5 security configurations According to EN ISO 13849-1:2008 PLD
5 security configurations According to EN ISO 13849-1:2008 PLD
Axis Range
±360°
±360°
±360°
±360°
DOF
6
6
6
6
Materials
Aluminum, ABS plastic
Aluminum, ABS plastic
Aluminum, ABS plastic
Aluminum, ABS plastic
Communica-tion Interface
TCP/IP 100Mbit
TCP/IP 100Mbit
TCP/IP 100Mbit
TCP/IP 100Mbit
I/O Ports
16 digital in 16 digital out
16 digital in 16 digital out
16 digital in 16 digital out
16 digital in 16 digital out

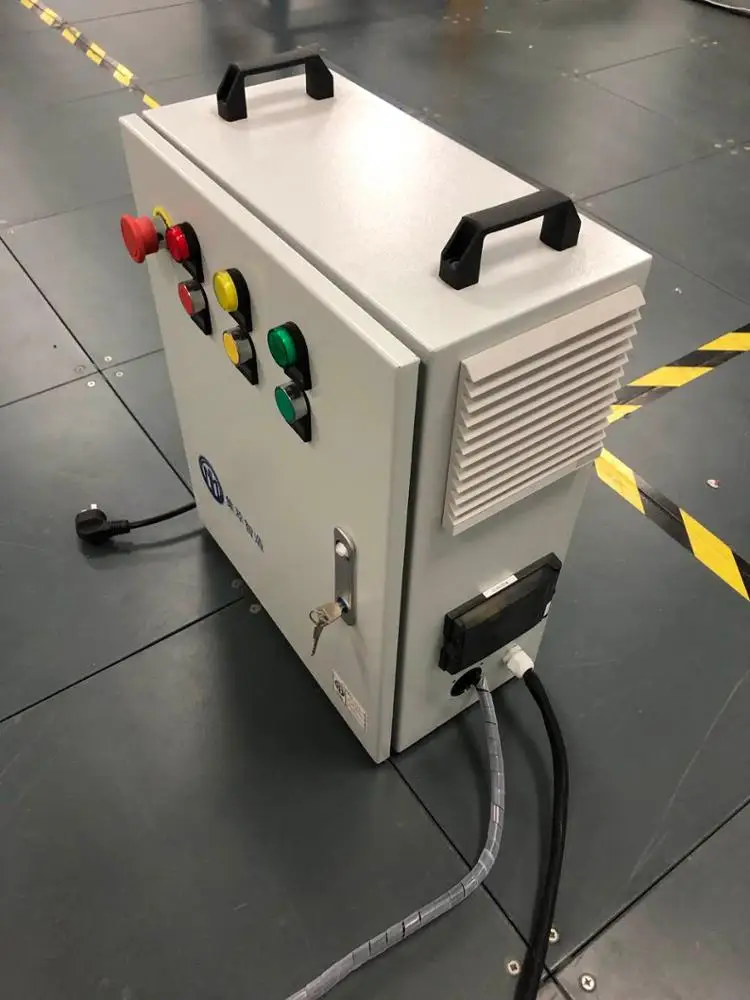

Cabinet Dimensions
400mm × 210mm × 500mm
400mm × 210mm × 500mm
400mm × 210mm × 500mm
400mm × 210mm × 500mm
IP Classifica-tion
IP54
IP54
IP54
IP54
Temperature Ambient
5 ～ 50℃
5 ～ 50℃
5 ～ 50℃
5 ～ 50℃
Power Input
220VAC，50Hz
220VAC，50Hz
220VAC，50Hz
220VAC，50Hz


Products Description


IIMT COBOT is top at its field. There are 4 model cobots from 3kg to 16kg. Cobot is easy to program and safer than industrial robot. It's easy to set up and collaborate with different assembly lines.
For more information, please contact whatsapp: 18652052872


















Jiangsu JITRI Intelligent Manufacturing Technology Institute CO.,LTD (IIMT) is an innovative technology company located in Nanjing Jiangbei New Area. IIMT is co-sponsored by three parties:
(1) Jiangsu Province Industrial Technology Research Institue
(2)intelligent manufacturing core team
(3)Nanjing Jiangbei New Area Industrial Technology Research and Innovation Park Management Committee
Since being established in 2016, the institute has gathered more than 50 high-level talents in the field of intelligent manufacturing technology; accumulated plenty of high-end automated facilities and equipment; and made more than 10 significant technological breakthroughs. In past 3 years, IIMT insists on prioritizing customer needs, marking market demand and making key technological breakthroughs. Core products includes collaborative robot, puncture robot,quadruped robot and unmanned clean vehicle etc., which are all independently researched by the institute itself. IIMT has completed more than 50 governmental research programs and has participated in more than 30 enterprise projects, including automation projects with Hydron, Sumec, Yunhai Technology. Also, IIMT has incubated more than 31 high-tech enterprises and the number grows firmly each year.In all, IIMT focuses on independent research and technology, besides providing technological service for enterprises to promote economic cooperation. IIMT won the first price of 2018 Nanjing Performance Evaluation of new research and development institution on a city level.
















FAQ


1. who are we?
We are based in Jiangsu, China, start from 2016,sell to Domestic Market(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Unmanned Cleaning Vehicle, Disinfection Robot, Food Delivery Robot, Carrying Robot, Collaborative Robot, Lidar, Brushless Torque Motor

4. why should you buy from us not from other suppliers?
Management: over 19 departments for individual programs, products, and sales services. Human resource: R&D Team of over 60 staffs with master degree and higher. 22 Intellectual Properties and copyrights.

5. what services can we provide?
Accepted Delivery Terms: FOB, EXW, FCA, Express Delivery；
Accepted Payment Currency:USD, EUR, CNY;
Accepted Payment Type: T/T,L/C,D/P D/A, MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese
