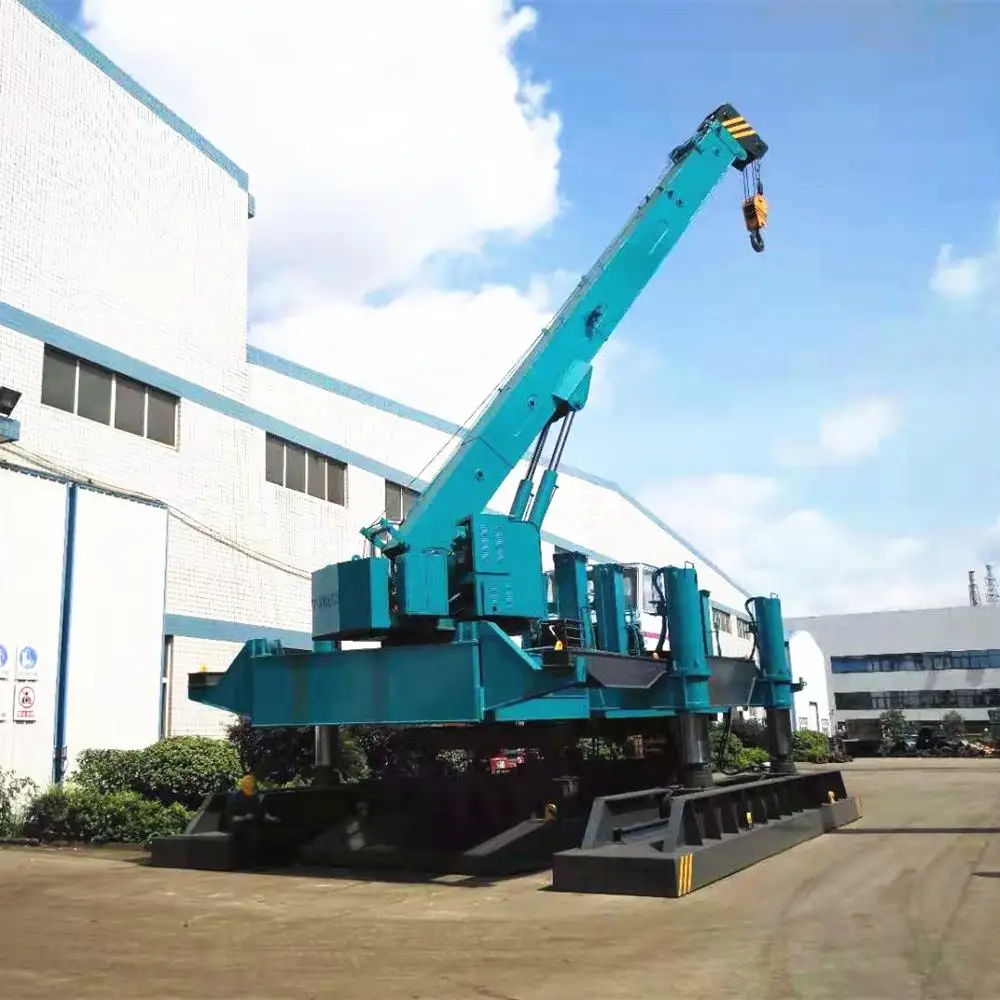

ZYC280 hydraulic static pile driver for silent piling
- Category: Pile Driver >>>
- Supplier: Changsha Tianwei Engineering Machinery Manufacturing Co. Ltd.
Share on (62486803569):
Product Overview
Description
| paramete / type/model | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | ZYC | |
| 80 | 100 | 120 | 150 | 180 | 240 | 280 | ||
| Rated piling pressure(KN) | 800 | 1000 | 1200 | 1500 | 1800 | 2400 | 2800 | |
| Piling speed(m/min) | Fast | 6.3 | 10.0 | 10.0 | 10.0 | 11.0 | 7.7 | 7.7 |
| Low | 3.00 | 2.00 | 3.00 | 3.00 | 2.70 | 1.80 | 1.80 | |
| Piling stroke(m) | 1.60 | 1.60 | 1.60 | 1.60 | 2.00 | 1.90 | 1.90 | |
| Pace(m) | Longitudinal | 1.50 | 1.60 | 1.60 | 1.60 | 2.40 | 2.40 | 2.40 |
| Horizontal | 0.40 | 0.50 | 0.50 | 0.50 | 0.60 | 0.60 | 0.60 | |
| Angle range(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
| Rise stroke (m) | 1.2 | 1.45 | 1.45 | 1.45 | 1.6 | 1.6 | 1.0 | |
| Square pile (mm) | Max | 300 | 350 | 350 | 350 | 500 | 500 | 500 |
| Circle pile (mm) | Max | 300 | 350 | 350 | 350 | 500 | 500 | 500 |
| Side piling space(mm) | 300 | 450 | 450 | 350 | 450 | 450 | 900 | |
| Corner piling space(mm) | 600 | 900 | 900 | 700 | 900 | 900 | 1800 | |
| Lifting weight(t) | 5.0 | 8.0 | 8.0 | 8.0 | 8.0 | 12.0 | 12.0 | |
| Lifting pile's lengh(m) | 8.0 | 12.0 | 12.0 | 12.0 | 12.0 | 14.0 | 14.0 | |
| Power(KW) | Piling | 22 | 37 | 37 | 37 | 60 | 60 | 60 |
| Lifting | 15 | 11 | 22 | 22 | 22 | 30 | 30 | |
| Main dimension (m) | Work length | 5.20 | 6.65 | 9.45 | 9.45 | 9.9 | 11.1 | 12.0 |
| Work width | 3.87 | 4.20 | 5.20 | 5.20 | 5.50 | 6.30 | 6.10 | |
| Transport height | 2.00 | 2.70 | 2.90 | 2.90 | 3.00 | 3.00 | 3.10 | |
| Total weight(T)≥ | 80 | 100 | 120 | 150 | 180 | 240 | 280 | |
Q: Are you a manufacturer or a trading company ? what kind of machine do you produce?
A: We are a leading manufacturer for kinds of piling machinery with over 20years experience, located in Changsha, Hunan, China. Our main products are hydraulic static pile driver, Bored pile drilling rig, Hydraulic hammer, Disc Pelletizer etc
Q: What does the hydraulic static pile driver used for?
A: The hydraulic static pile driver is used for jacking in the precast cast concrete pile. Any shape is ok, like square pile, round pile, triangle pile, tubes,H-pile and so on. It is no noise, no pollution, no vibration during working. It is static pile driving type for piling .
Q: How about the lead time and payment terms?
A: Normally it is 30days after deposit is received if there is no special requirements. Both T/T and L/C as payment terms are ok for us.
Q: How about after sale service and warranty of machine
A: We will send engineer to assemble the machine and train the operators and maintenance . 1 year warranty for machine structure and 6months for main spare parts, but lifelong after-sale service provided.
Q: Is the customization acceptable ?
A: Yes, we welcome the customization.
