MLNJ20/15 TQLQ52 Complete set 1 ton/h rice plant

Product Overview

Description

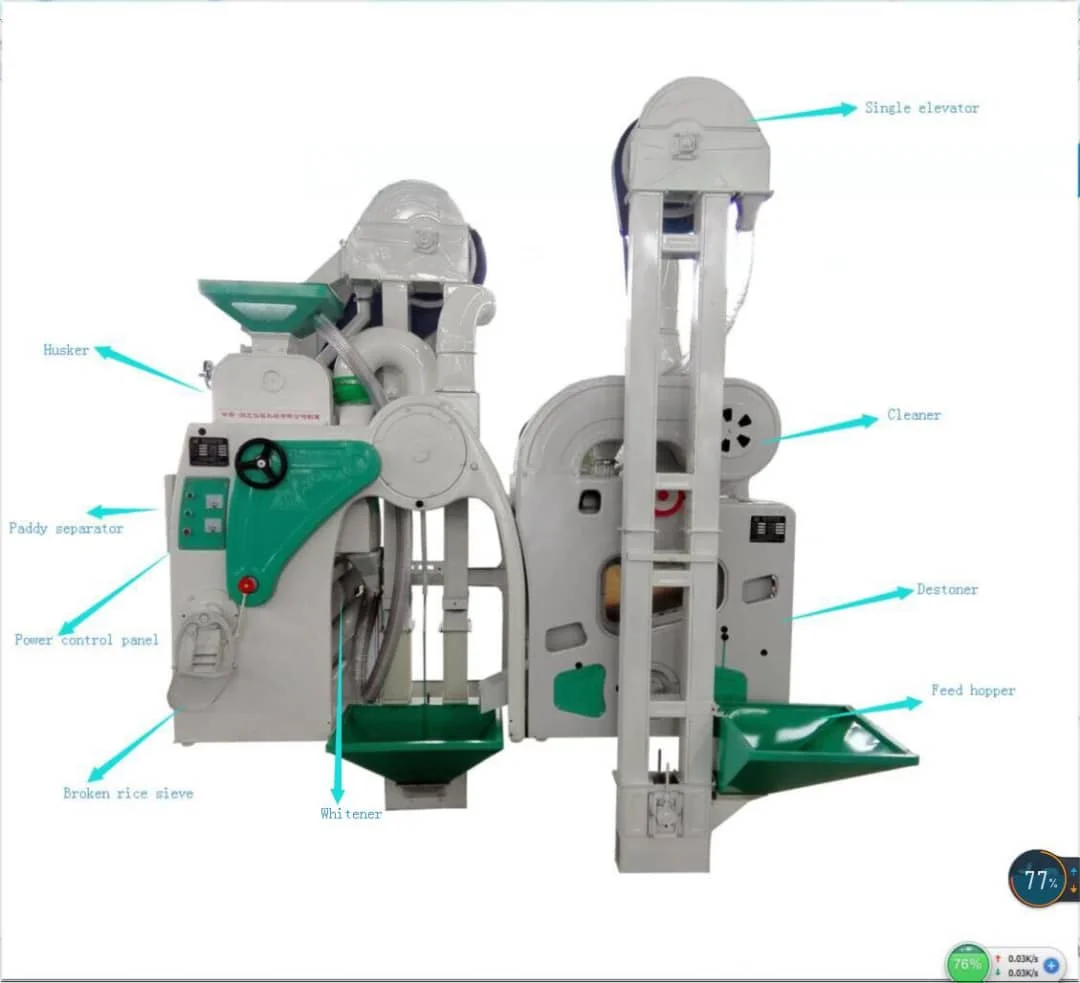

MLNJ20/15+TQLQ52 Complete set 1 ton/h rice plant

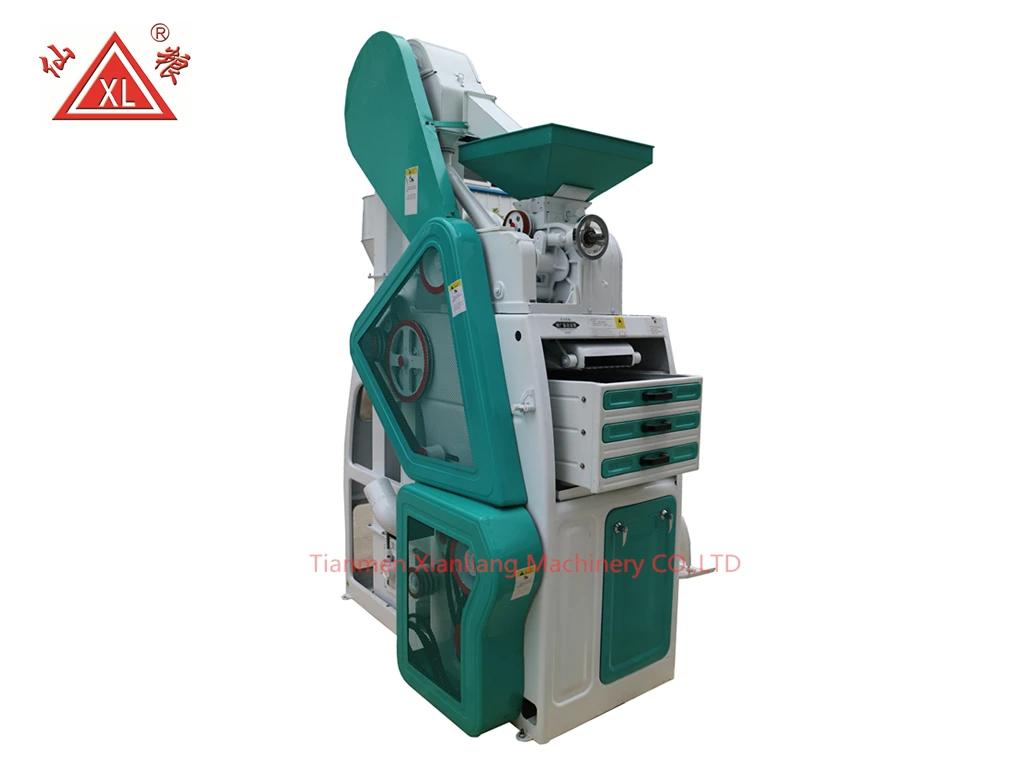

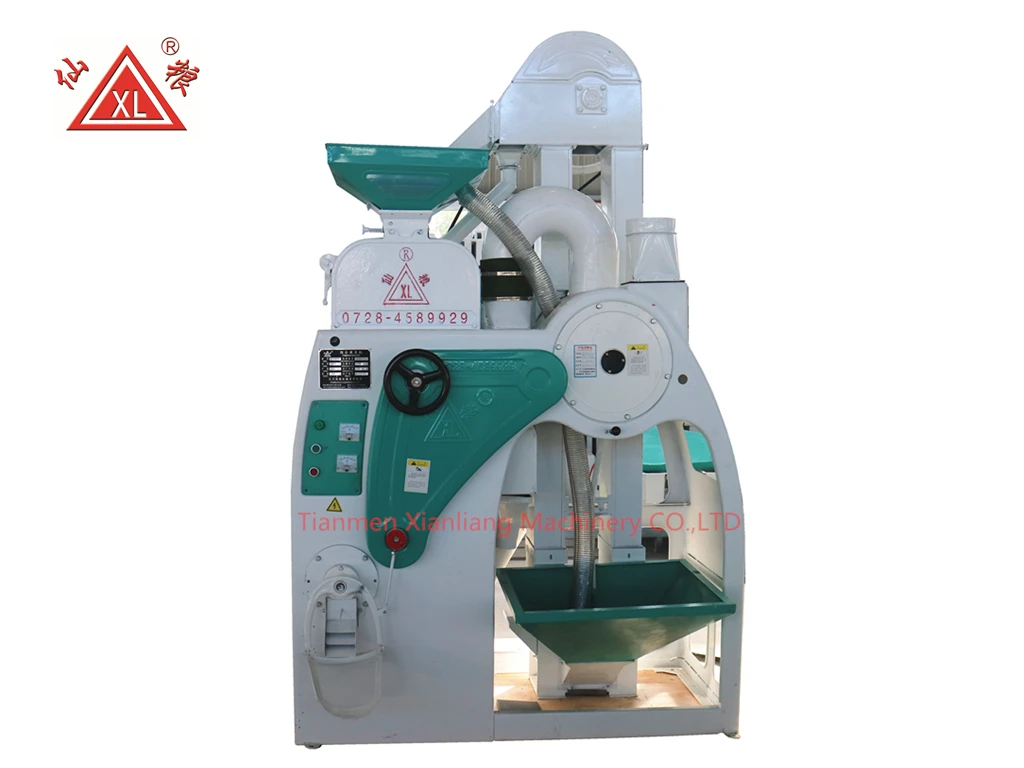

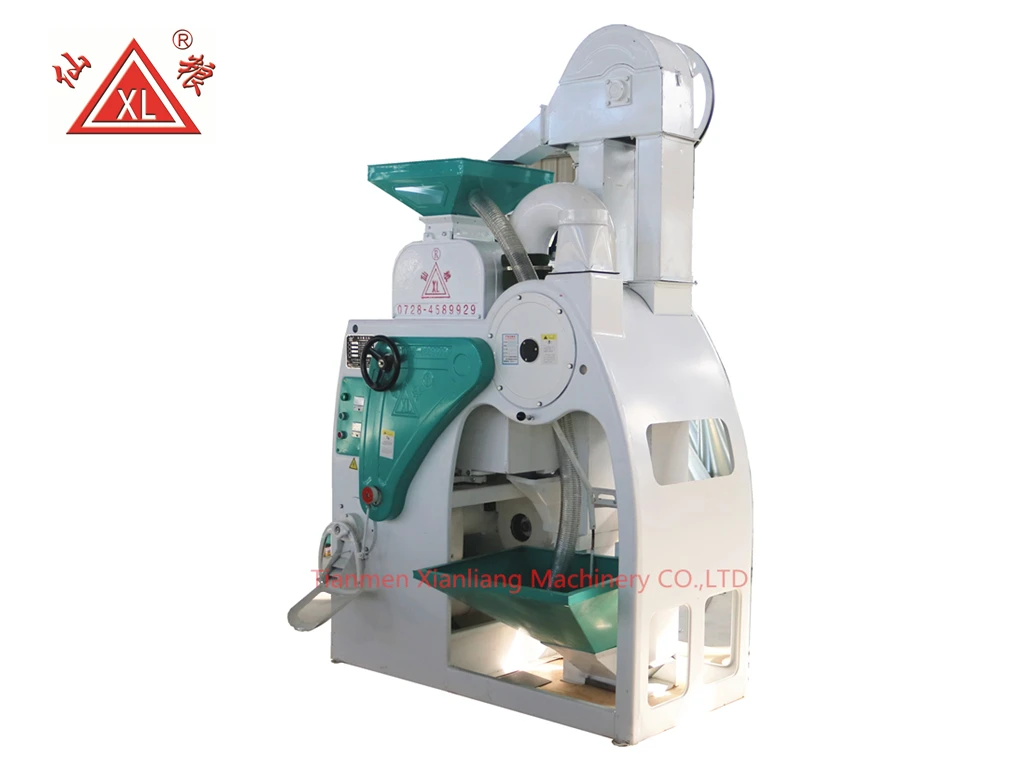

MLNJ20/15 combined set machine for rice husking and milling

Feature:

MLNJ20/15 Combined rice mill is  new product that we design and developed ourselves according to the demands of customers and market.This series of rice mill adopt the special type crude bran separator, it can separate chaff and mixture of paddy and unpolished rice thoroughly, we have declared the national patents. The advantages of this machine are short processing flow,less remain in machine,save electricity,easy operation,convenient maintenance,high ratio of polished rice, it is one of the product that supporting and promoting by our country.



This type of machine has a special bran separator which can make the chaffs and mixture of paddy and husked rice separate thoroughly. The features of it are short processing flow, less residue in machine, save electricity, easy operation, convenient maintenance, high rice yield from paddy.



Main Technical Parameters:

Model and Type	Capacity (kg/h)	Power  (kW)	ratio of polished rice( %)	speed of main shaft (r/min)	Weight (Kg)	External Dimension (L×W×H)(mm)
MLNJ20/15	1000	18.5	71	1450	690	1800×1000×2300

 Power supply:380V/50Hz

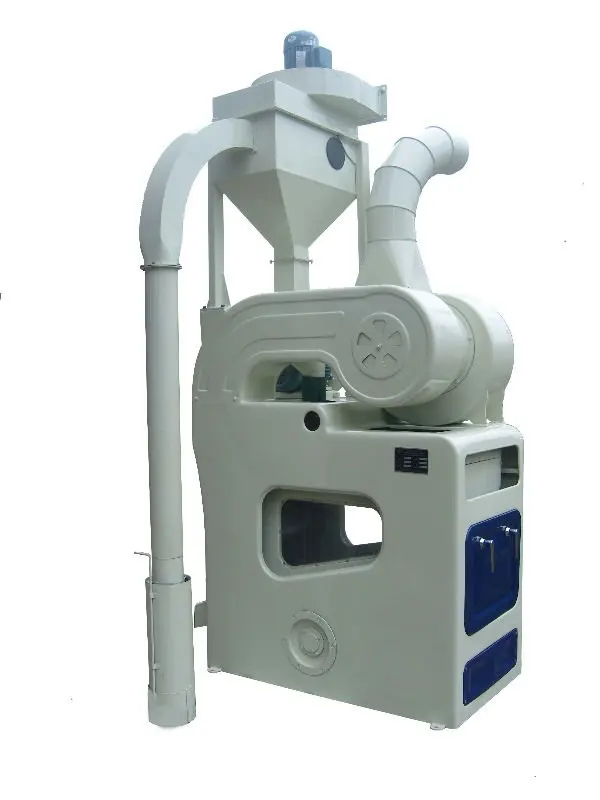

TQLQ series of stoner adopt the special selecting room, matching two dedusting fan, sealing whole machine, no dust out of machine, can achieve the ideal environmental demands. The structure with reciprocating, adopt rubber bearing in connection, small vibrating, low noise. And it has the advantages of convenient installation,well effect of stone and impurity cleaning,easy operation, etc. It is the first choice for small processing plant!



Model and Type	Capacity (t/h)	Power (kW)	Air volume (m3/h)	Speed of Main Shaft (r/min)	Weight (kg)	External Dimensions (L×W×H)
TQLQ52	1.3	3	2600	420	320	1270×1300×2700



Power supply:380v/50Hz
