air conditioning and radiator integration HVAC system room thermostat with RS485 timer, 5 2 days programming

Product Overview

Description

Floor Heating Thermostat with RS485 Communication



General

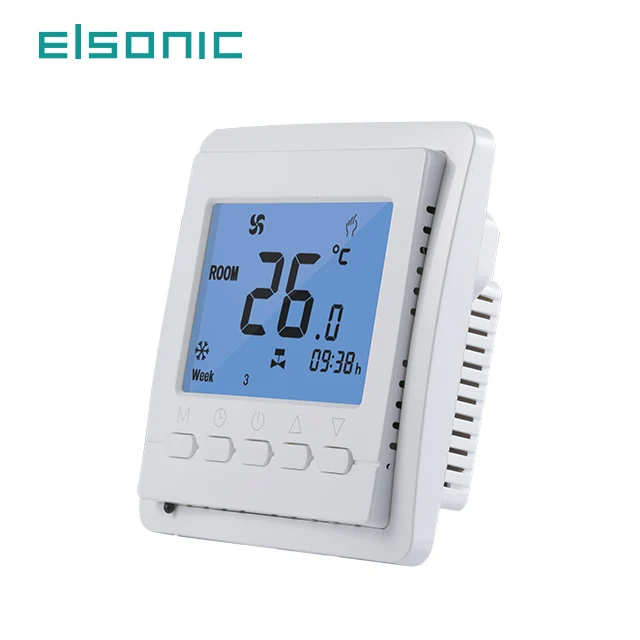

R9300 Series LCD Heating Thermostat adopt NTC sensor, Output relay controls the on/off of the motorized valve. When room temperature is 1 lower than set-point, thermostat opens the valve; when they are equal, it closed the valve. The max. current load is 16A. With computerized controller technique. R8500 Series Thermostats have Timing Open/Close and 7days 4 cycle programmable function. LCD displays room temperature and set-point mode.





Specification

Sensor	NTC
Temperature Control Accuracy	±0.5ºC
Set-point Range	5-35°C
Power Supply	AC220V ± 15%, 50/60 HZ
Output Power	AC220V2A for water heating, AC220V16A for electric heating
Shell	PC+ABS (Fire-proof)







CHARACTERISTICS

- Nice design

- Easy operation

- NTC Sensor, accurate Temperature Measurement

- LCD indicator
