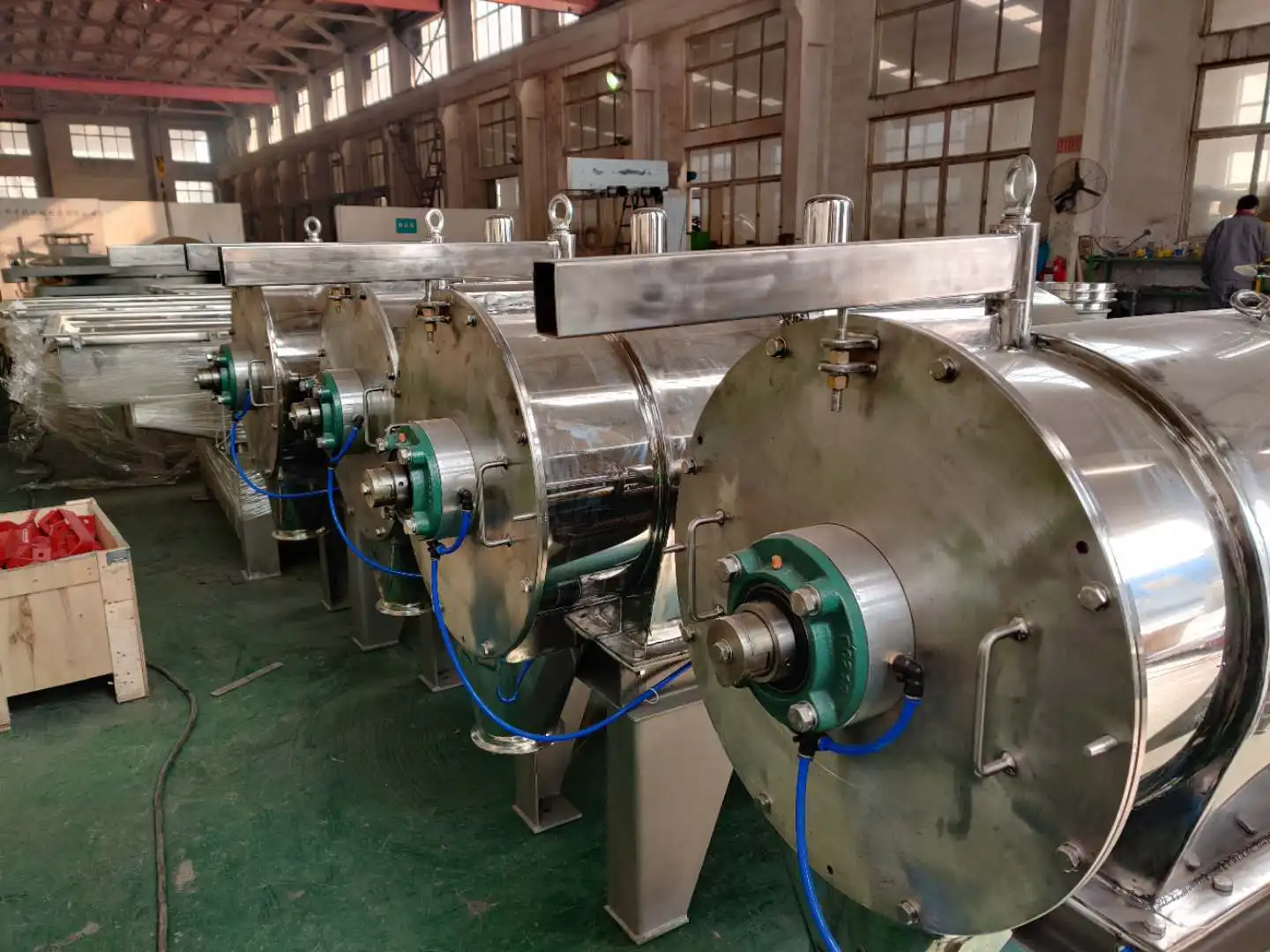

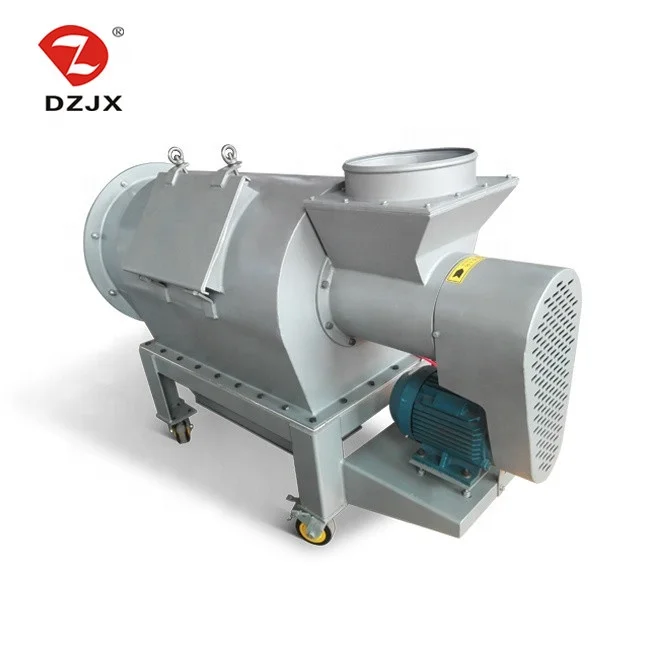

High efficiency screening machine powder horizontal airflow centrifugal sifter machine
- Category: >>>
- Supplier: Xinxiang Dongzhen Machinery Co. Ltd.
Share on (62486950169):
Product Overview
Description
Products Description
Coating clay auto Screening Machine Centrifugal sifter Sieving unit is a new type and high precision fine powder sieving machine with characteristics of high efficiency & lower noise.

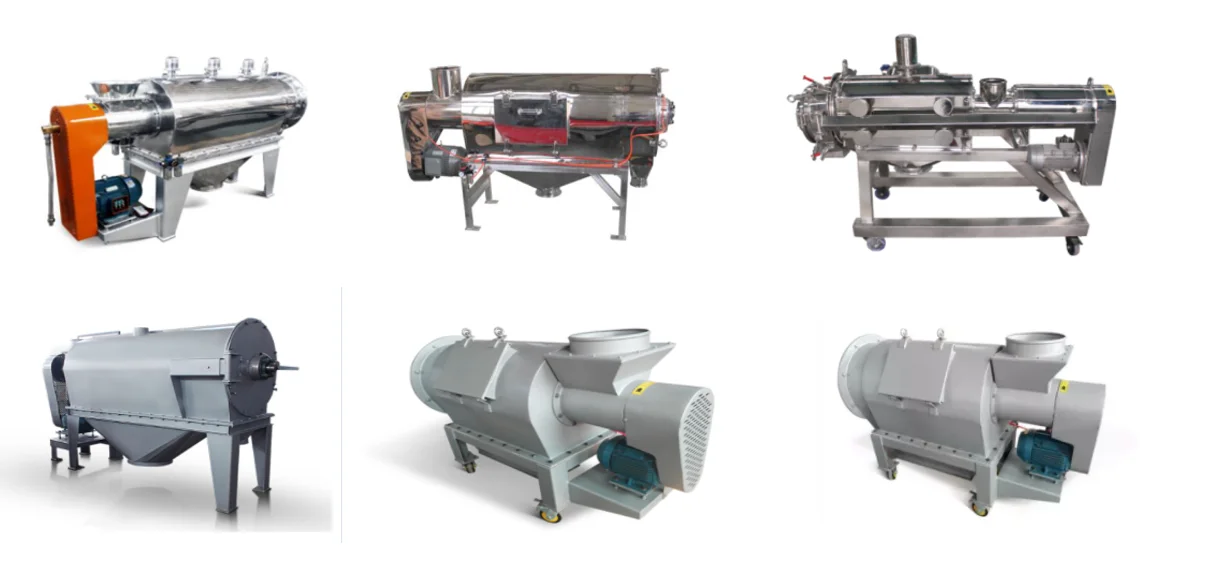

Model | Body material | Mesh size |
BL 18-65 | Carbon steel, SS304/316 | 325 mesh below |
BL 30-100 | 325 mesh below | |
BL 50-130 | 325 mesh below | |
BL 65-180 | 325 mesh below |

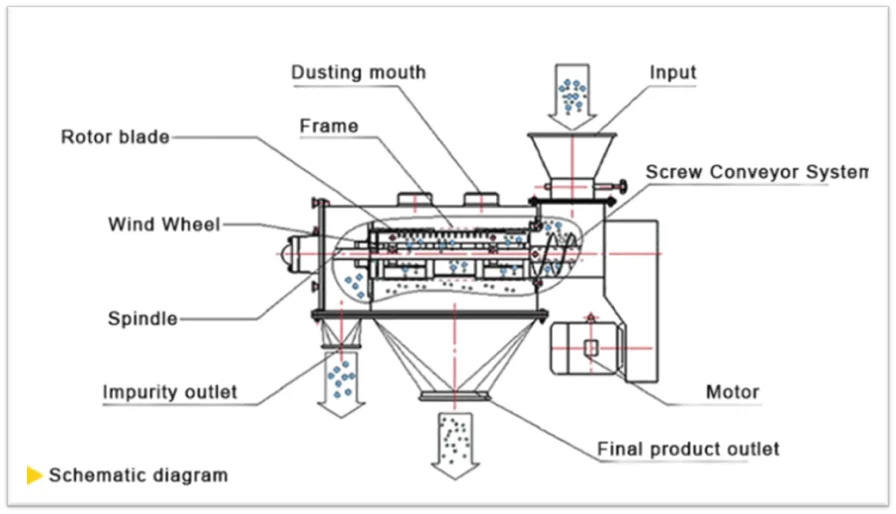

Working principle
The horizontal airflow screen is cylindrical and placed in the body. After the material passes through the screw conveying system, it is mixed with air flow and atomized into the mesh cylinder. The wind wheel blades in the mesh cylinder simultaneously subject the material to centrifugal force and cyclonic propulsion. This forces the material to be sprayed through the net and discharged from the fine material discharge outlet. The materials that cannot pass through the net are discharged from the coarse material discharge outlet along the cylinder wallAdvantages and characteristics.
Our Advantages
1.Long service life of screen. | ||||||||
2.The height of the inlet and outlet can be customized. | ||||||||
3.It is suitable for material which has less oversize material. | ||||||||
4.The discharge port can be directly connected with vacuum feeder, screw conveyor and other conveying equipment. | ||||||||
Application field
Widely used in a variety of difficult to sieve fine powders, such as light calcium powder, active calcium powder, activated carbon powder, starch, Chinese medicine powder, fly ash, zinc powder, graphite powder, quartz sand powder, gold powder, clay powder, hawthorn powder, fruit powder, calcium hydroxide powder, pesticide powder, konjac powder, phosphor powder, wood powder, flour powder.

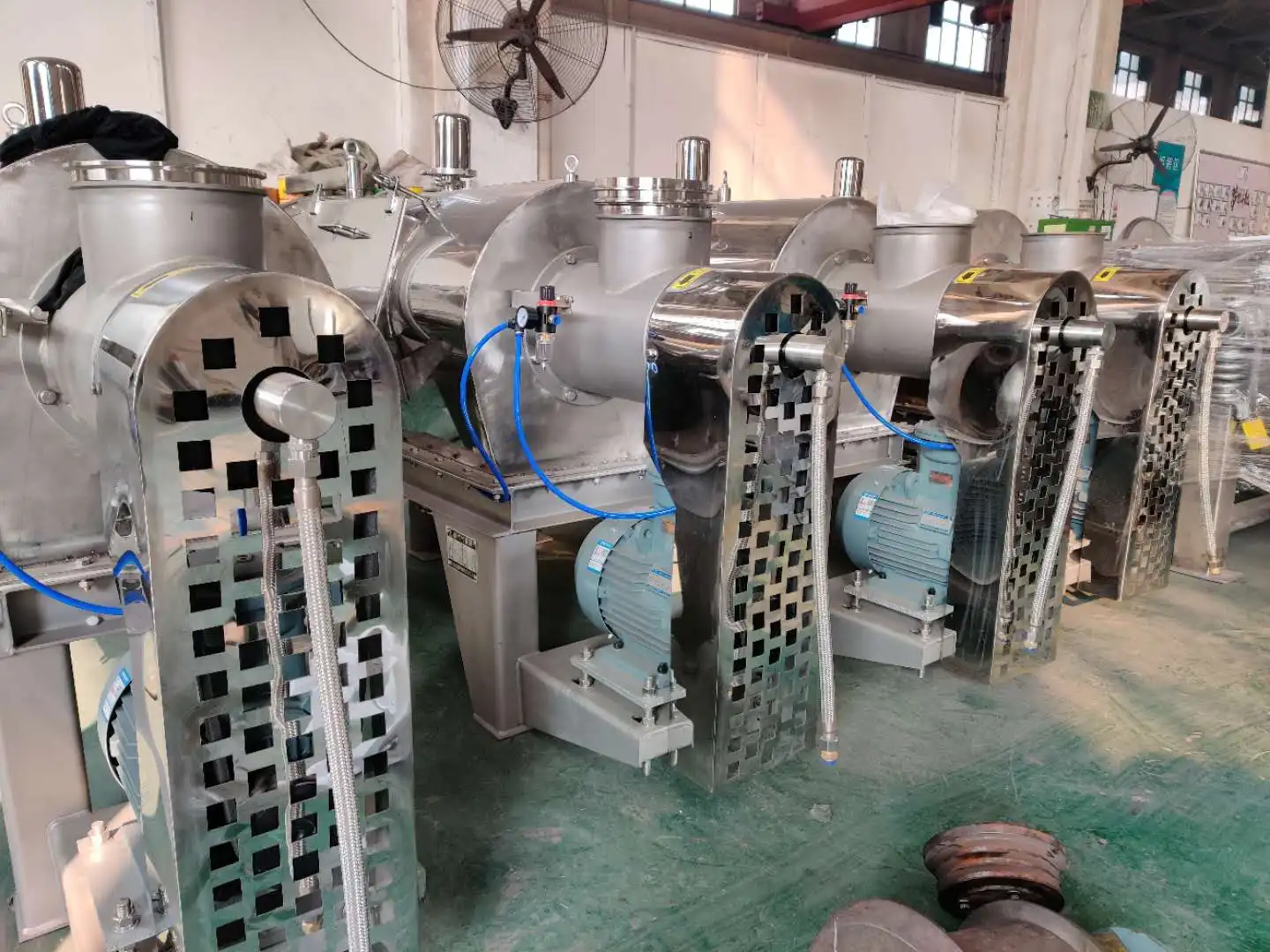

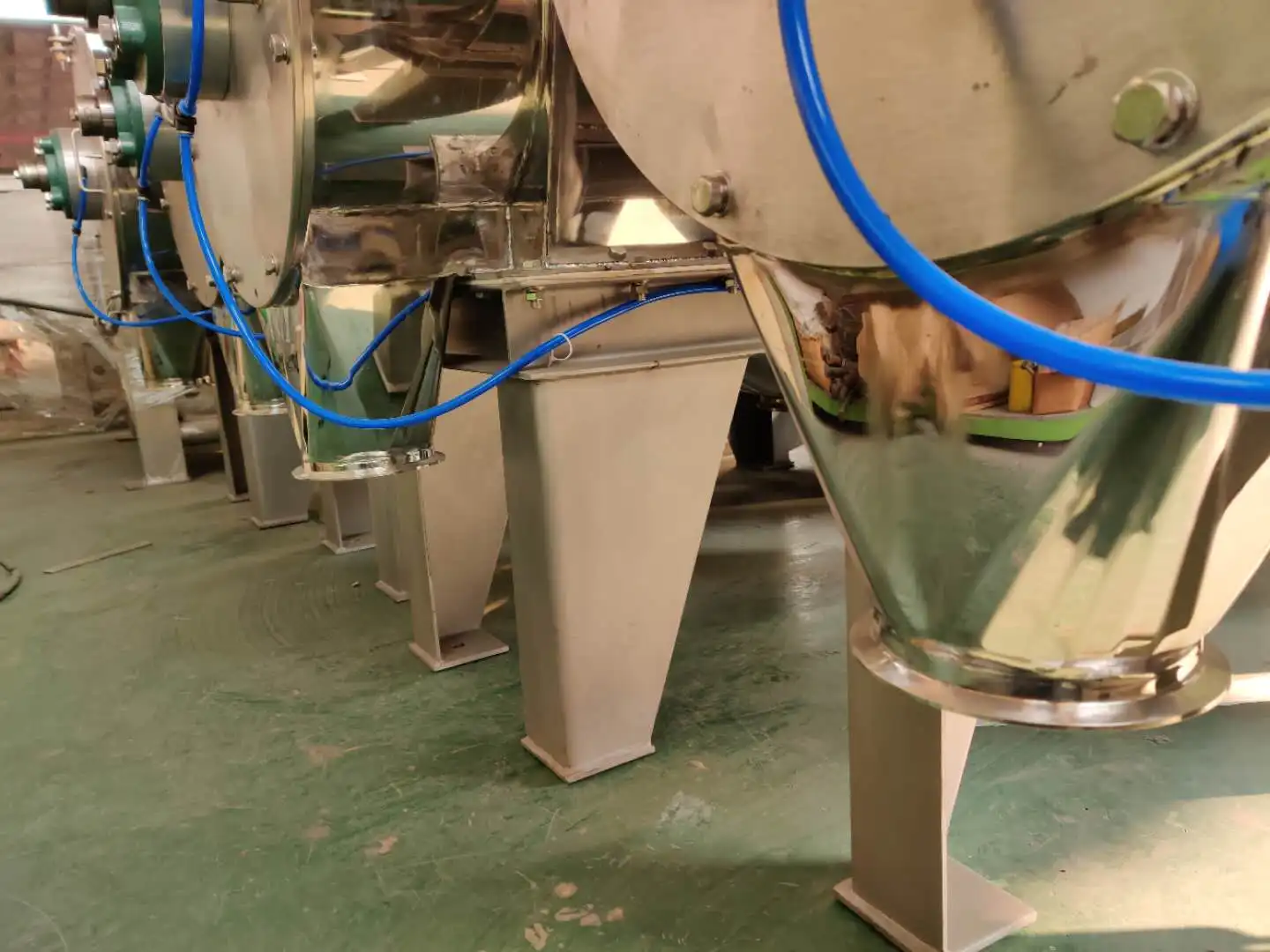

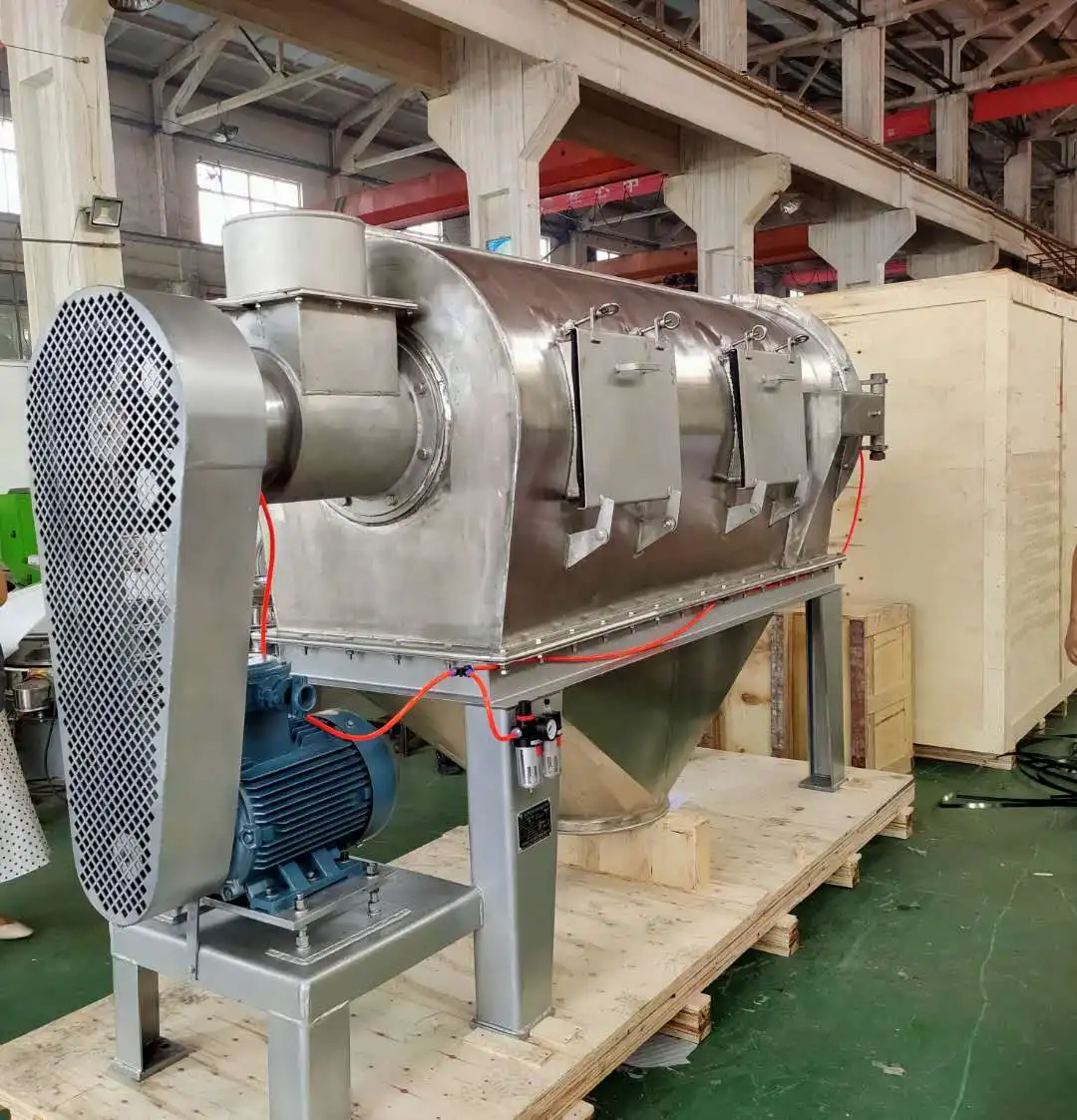

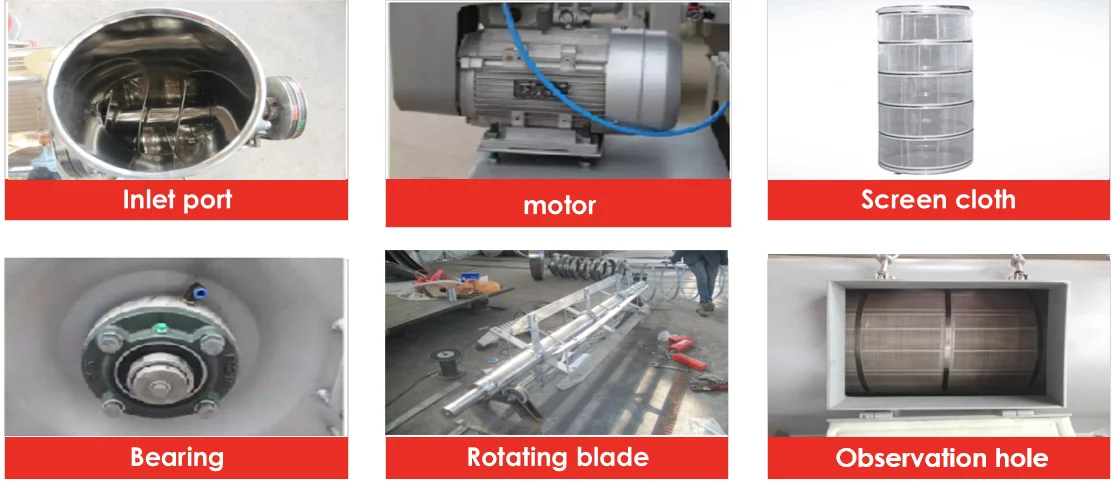

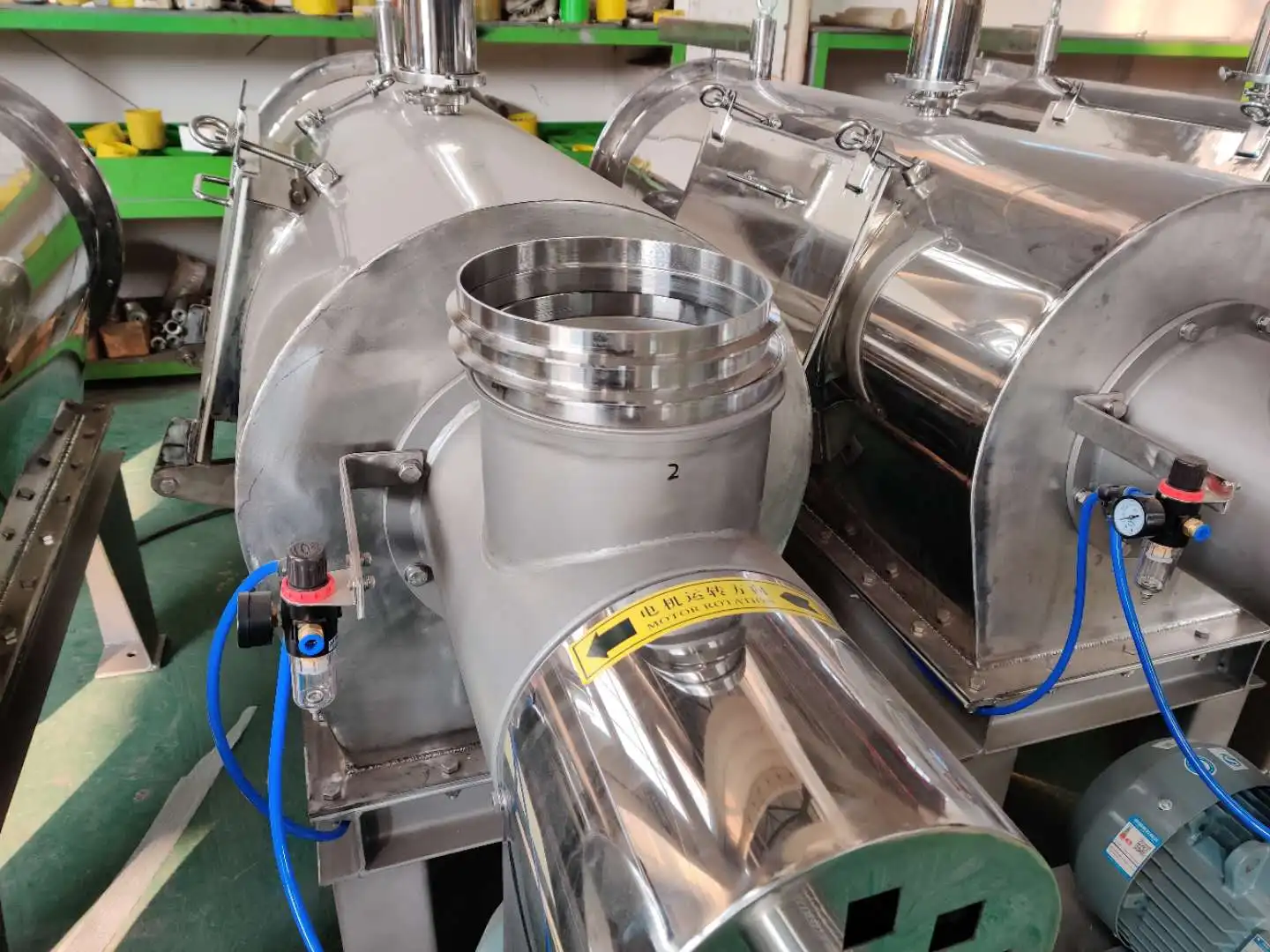

Details Images
Packing&Shipping
Company Introduction
Dongzhen Machinery Co., Ltd is a manufacturer of vibrating screens, centrifugal sifters, tumbler screens,qyratory screens and aluminum foil tape with well quipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensivelvused in mining.pharmacy, food chemical,metal powder and other industries.
FAQ
Q:What factors I need to get a quotation?
A: Material size and bulk density,height of discharge port, ideal capacity for proper type is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
As the professional manufacturer of screening & conveying equipments since 1987, we are pleased to offer you the best product in a competitive price.
A: Material size and bulk density,height of discharge port, ideal capacity for proper type is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
Q:What is the real delivery time of your factory?
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
Q: How do your after-sale service work if the product got damaged?
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)
As the professional manufacturer of screening & conveying equipments since 1987, we are pleased to offer you the best product in a competitive price.
