Labs 100ml Hydrothermal Synthesis Autoclave Reactor With PTFE Lining
- Category: >>>
- Supplier: Yancheng Tiandi Labware Factory
Share on (62487029115):
Product Overview
Description
Product information

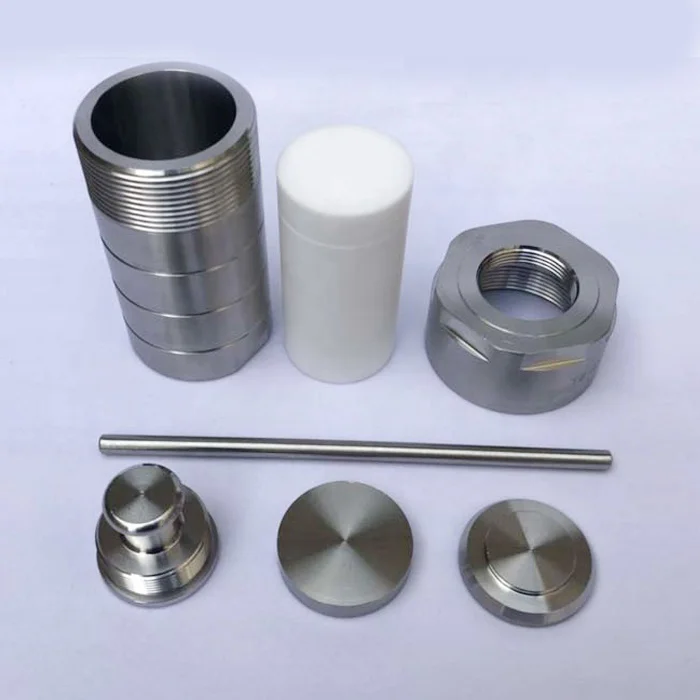

100ml hydrothermal synthesis autoclave reactor with PTFE lining
We have 25 ml. 50 ml, 100 ml, 150 ml, 200 ml, 300 ml, 400 ml, 500 ml, 1000 ml, 1500 ml reactor. Safetytemperature is 220 degrees, the highest pressure of 3 mpa, this product USES the high quality non-magnetic 0 cr18ni9ti stainless steel refined .Has a beautiful appearance, reasonable structure, easy operation, good corrosion resistance, is widely used in catalysis, crystal, polymer and other experiments.
100ml hydrothermal synthesis autoclave reactor | ||
Shell material | Quality stainless steel.304L | |
Capacity | 100ML | |
Liner material | Special PTFE | |

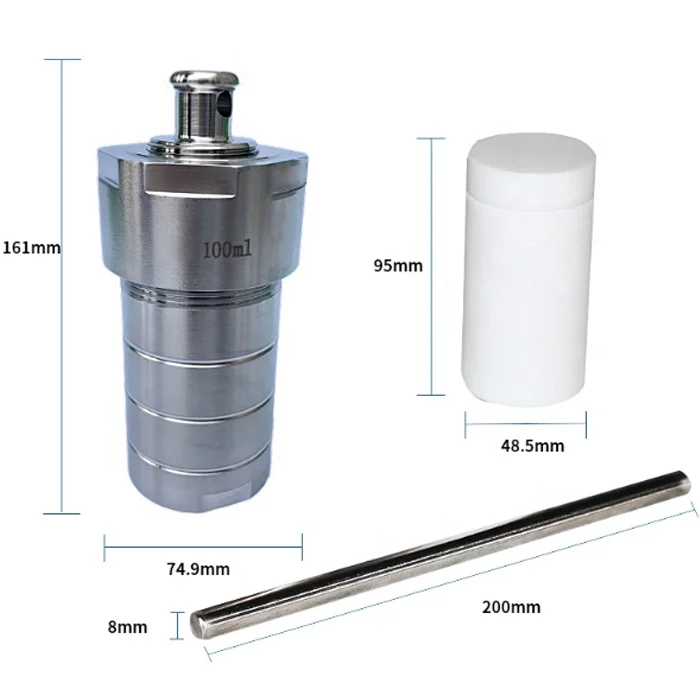

Shell size | Length 161mm x Width 74.9mm | |
PTFE size | Length 95mm x Width 48.5mm | |
Rod size | Length 200mm x Width 8mm | |
OEM logo | YES | |
Safe temperature | Short time:≤ 220 °C Long time:≤ 200 °C | |
Advantage | Durable in use | |
Place of origin | Yancheng city,China | |
Specification
The following size is made by manual measurement,it will be litte difference.Please understand.
Size (ml) | Shell Width x Length size (mm) | PTFE Liner Width x Length size (mm) | Inner Liner Width x Length size (mm) |
25ml | 53 x 92 | 33 x 66 | 24 x 53 |
50ml | 65 x 140 | 40 x 78 | 30 x 69 |
100ml | 74.9 x 161 | 48.5 x 95 | 39 x 84 |
150ml | 98 x 190 | 58 x 114 | 45 x 98 |
200ml | 107 x 210 | 63 x 135 | 47 x 118 |
250ml | 107 x 210 | 65 x 135 | 52 x 123 |
400ml | 123 x 220 | 81 x 138 | 65 x 122 |
500ml | 135 x 220 | 91 x 136 | 75 x 120 |
