Industrial mixer silicon polyurethane sealant double planetary mixer price for sale
Introduction
The Double Planetary Mixer includes two blades that rotate on their own axes, while they orbit the mix vessel on a common axis. The blades continuously advance along the periphery of the vessel, removing material from the vessel wall and transporting it to the interior. After one revolution the blades have passed through the entire vessel, after three revolutions most materials have been mixed and after only 36 revolutions, the blades have contacted virtually the entire batch. The Double Planetary Mixer is great for paste materials up to 8 million cps. It is also used for tablet granulations, drying, and dry powder blends of friable-shear sensitive materials. Several agitator blade choices are available including the rectangular and high viscosity designs.
Product Advantages
Higher efficiency, better quality
The Max. dispersion rotation speed can be up to 1500rpm, it can rapidly disperse the powder in the liquid evenly; Due to its high shear forces, the material will be uniformly dispersed and formed a good suspension effect. Due to the strong shearing force , the materials are dispersed evenly and form good suspension effect.
Safe and convenient operation
Adopt hydraulic cylinder as lifting actuator. Control the hydraulic up, stop, down through the oil pump, easy operation and stable. The dispersing disc is fixed to the main shaft with Hexagon socket-head cap screws, which can be disassembled and exchanged quickly, easy to clean. Different dispersing discs can be exchanged accordingly to production process to obtain dispersing result. Different clamping types(Belt Clamping, Manual Rotation Clamping, Pneumatic Clamping) are optional to fix the tanks properly to prevent from accident due to the tank displacement during operation.
Various installation ways
With compact structure, the machine can be floor type and platform type. Tank working with the mixer can be removable or fixed type.
Customized options
Different options are available such as explosion-proof type, closed type, multi-tanks type, with lifting cover type, co-axial type/dual-shaft type, mounted on kettle type, etc.. Material can be customized to be SS304 \\SS321 \\SS316L.

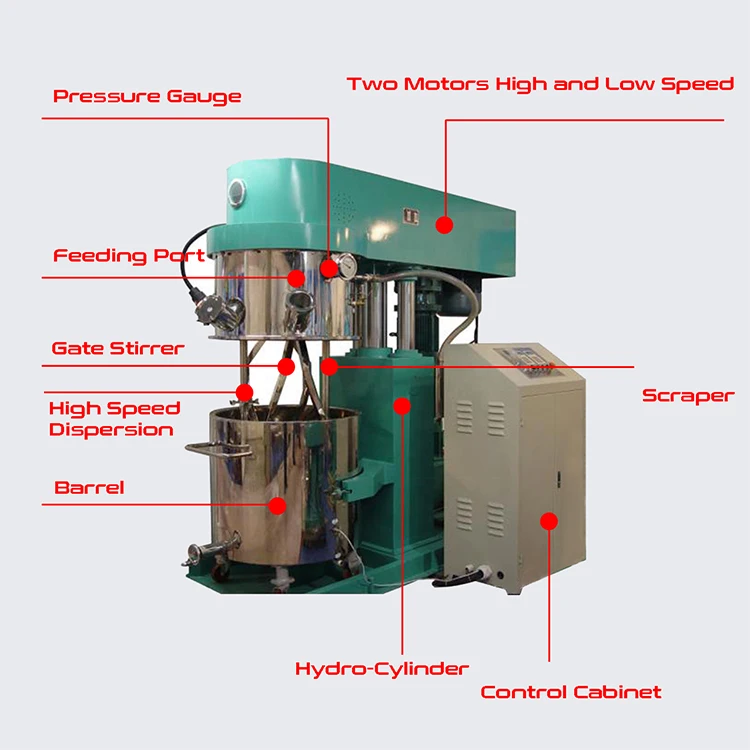

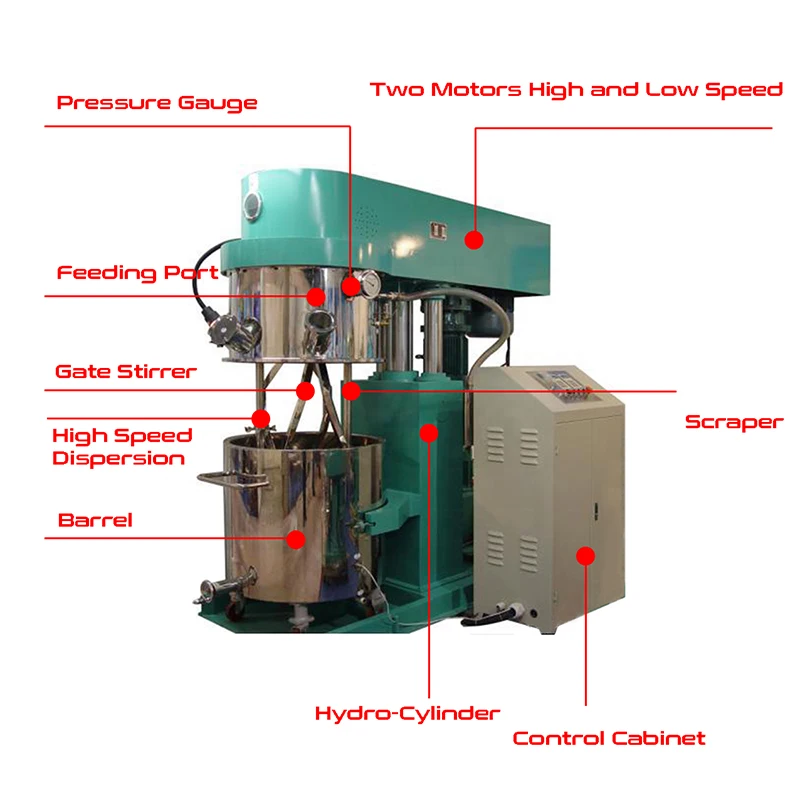

Working Principle
The mixer is equipped with low-speed stirring components and high-speed dispersing components. The low-speed stirring components are driven by planetary gears. The stirring paddles also rotate during revolutions to move the material up and down and around it, so as to achieve the ideal mixing effect in a short time.
The high-speed dispersing component revolves with the planet carrier and rotates at a high speed at the same time, so that the materials are subjected to strong shear and dispersion mixing, and the effect is several times that of the ordinary mixer. The dispersing parts are divided into single dispersing shaft and double dispersing shaft. Customers can choose according to their needs.
Two double-frame agitators can revolve and rotate at the same time in the barrel, which can realize evacuation, heating, and cooling, and can adjust the speed according to the situation. Equipped with multiple mixing buckets, it can be operated by one machine and multiple buckets. The matching press makes the discharge more convenient.
Technical Datas
| Model/Volumn | 2L | 15L | 25L | 60L | 100L | 200L | 300L | 500L | 1000L |
| Barrel Dia (mm) | Ø200x200 | Ø330x300 | Ø350x350 | Ø510x420 | Ø600x500 | Ø750x600 | Ø840x800 | Ø1000x850 | Ø1250x1000 |
| Revolution Motor (kw) | 0.75 | 1.5 | 2.2 | 3 | 3 | 3 | 4 | 22 | 30 |
| Revolution Speed (RPM) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-40 | 0-40 | 0-35 | 0-35 |
| Rotation Speed (RPM) | 0-70 | 0-70 | 0-70 | 0-70 | 0-70 | 0-60 | 0-60 | 0-45 | 0-45 |
| Dispersion Motor (kw) | 1.1 | 2.2 | 2.2 | 5.5 | 5.5 | 7.5 | 11 | 30 | 37 |
| Dispersion Speed (RPM) | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 | 0-1500 |
| Scraping Speed (RPM) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-40 | 0-40 | 0-35 | 0-35 |
| Degree of Vacuum (MPa) | ≤-0.098 | ≤-0.098 | ≤-0.098 | ≤-0.098 | ≤-0.098 | ≤-0.098 | ≤-0.098 | ≤-0.098 | ≤-0.098 |
| Lift Distance (MM) | 200 | 400 | 500 | 600 | 650 | 750 | 900 | 1000 | 1100 |
| Weight (kg) | 250 | 800 | 1000 | 1750 | 2500 | 3000 | 3500 | 4500 | 6500 |
| Machine Length (mm) | 700 | 750 | 850 | 1800 | 1900 | 2000 | 2300 | 2670 | 2900 |
| Machine Width (mm) | 400 | 600 | 600 | 900 | 900 | 950 | 1080 | 1100 | 1400 |
| Machine Height (mm) | 1700 | 1800 | 1800 | 1800 | 2000 | 2080 | 2400 | 3600 | 3900 |

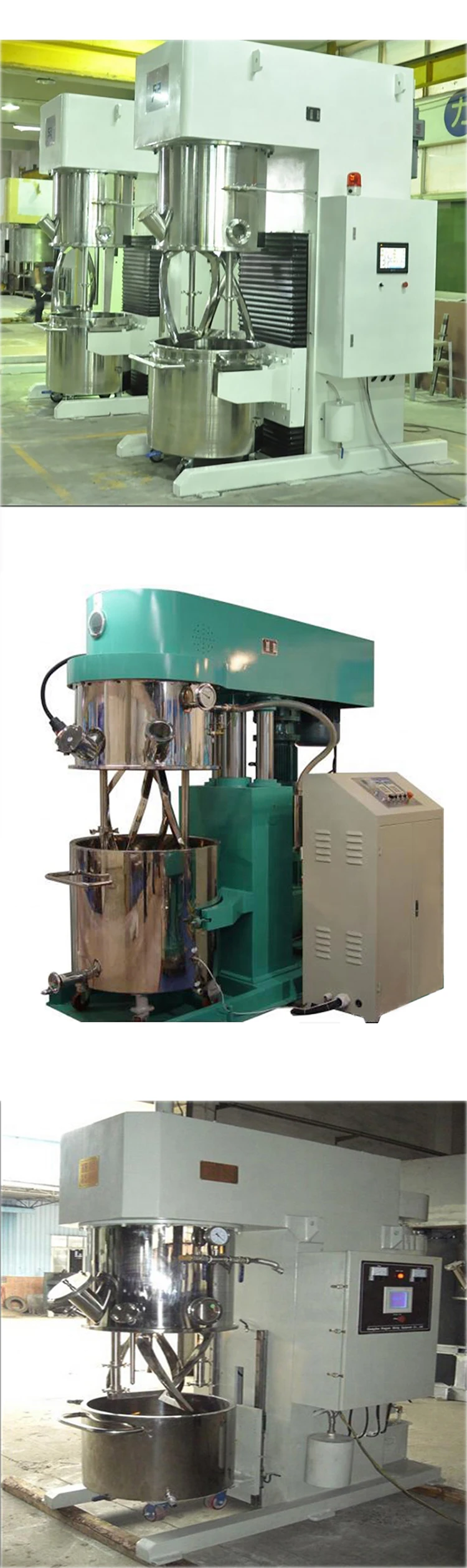

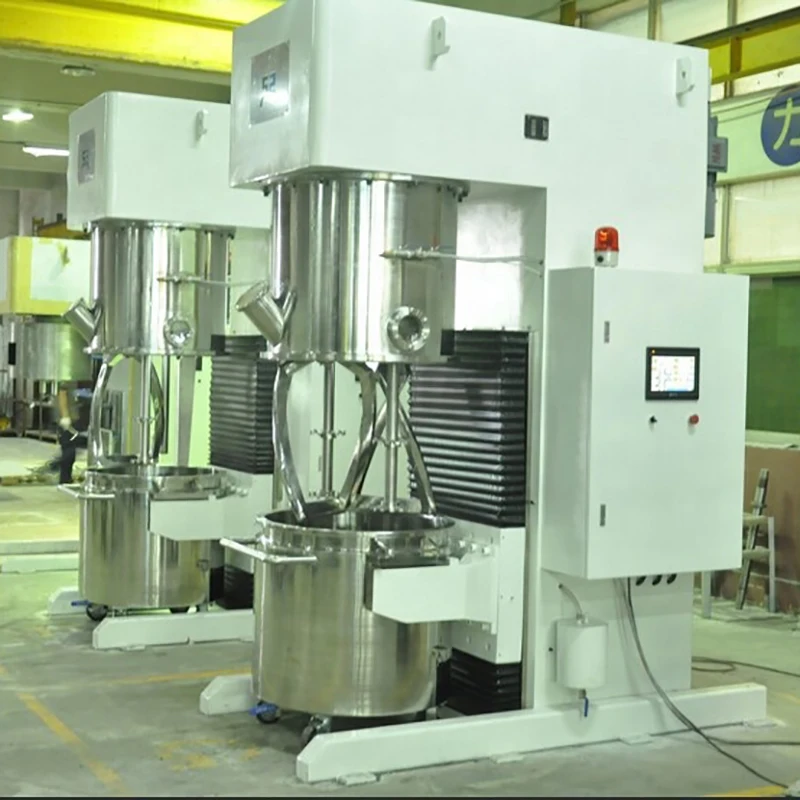

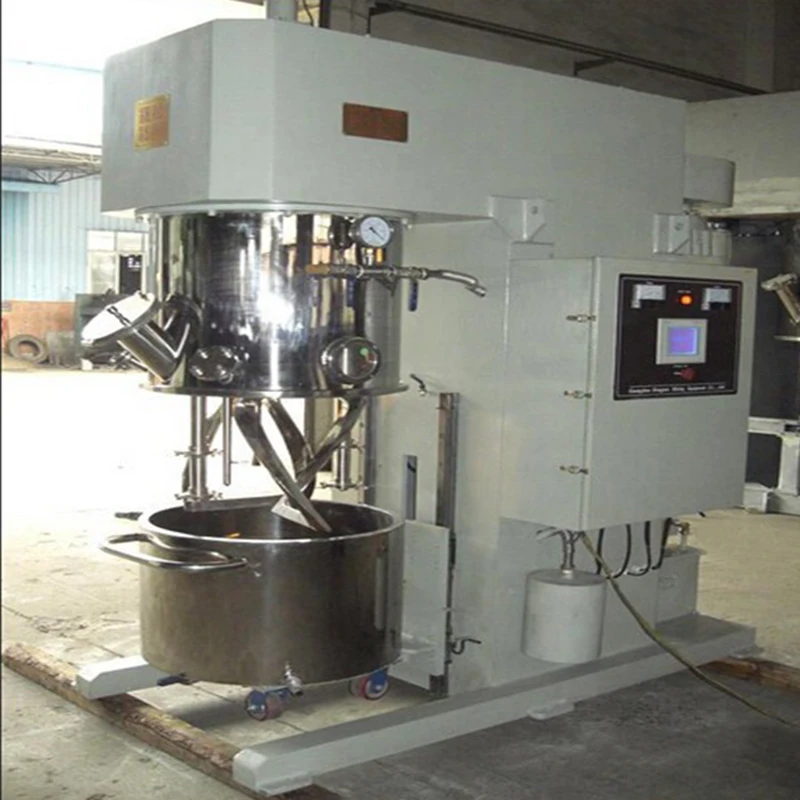

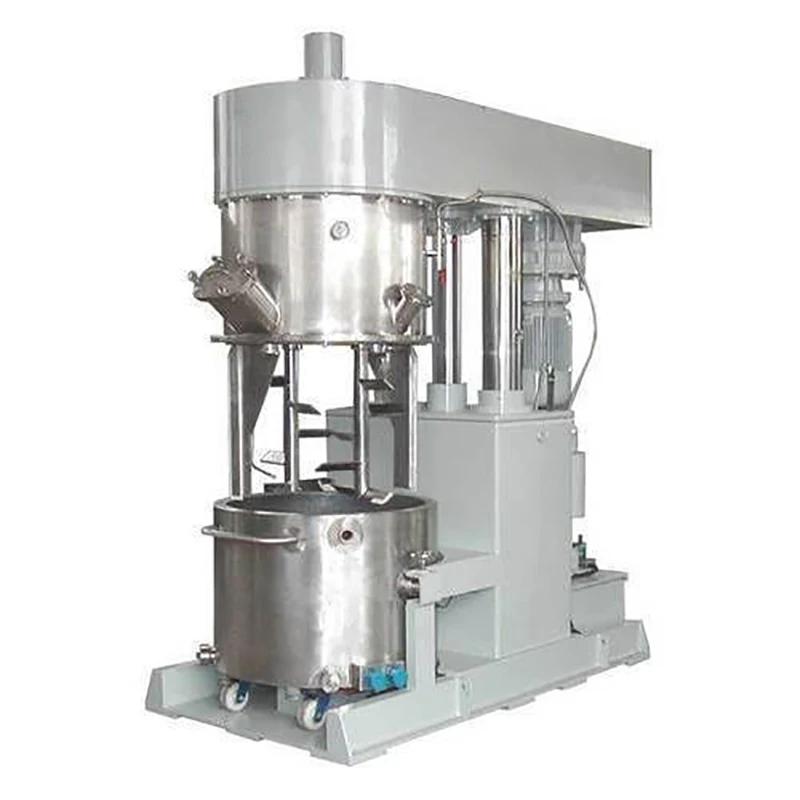

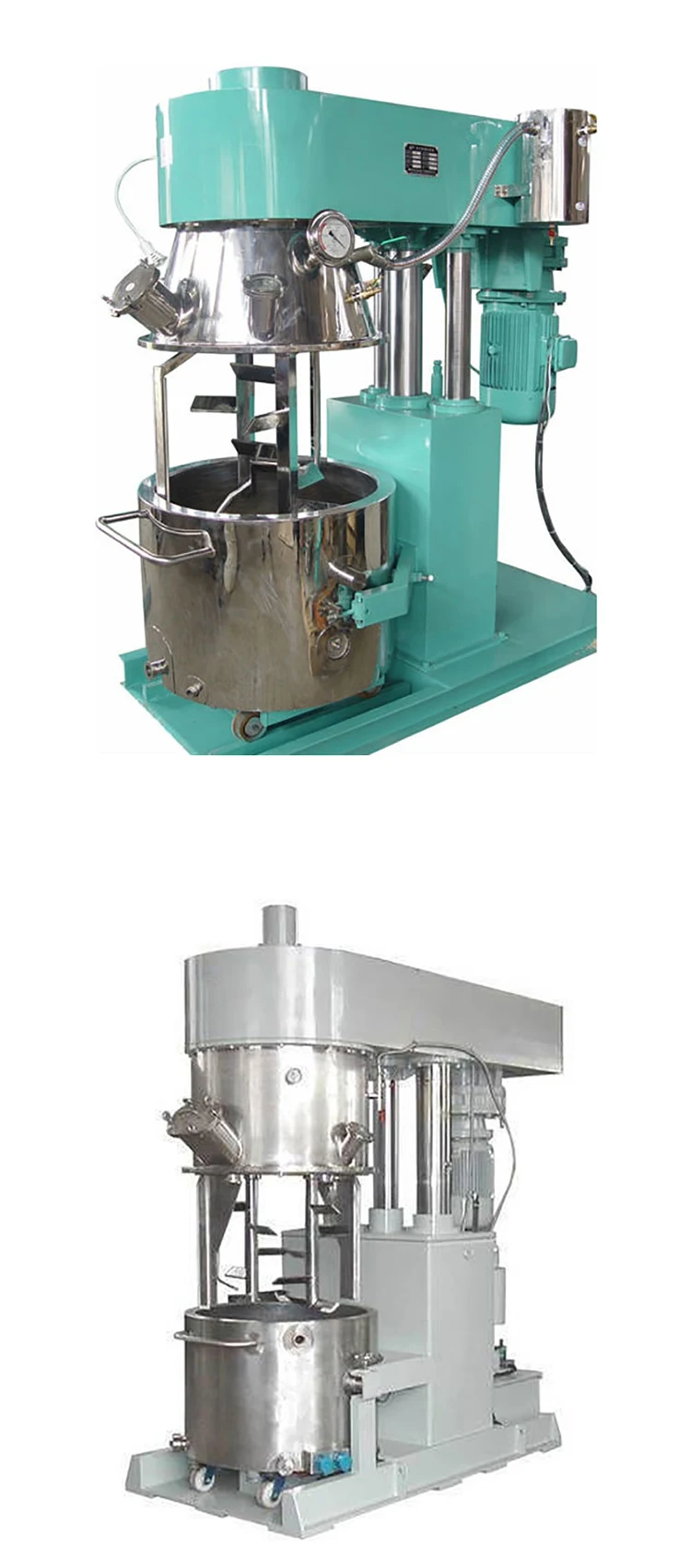

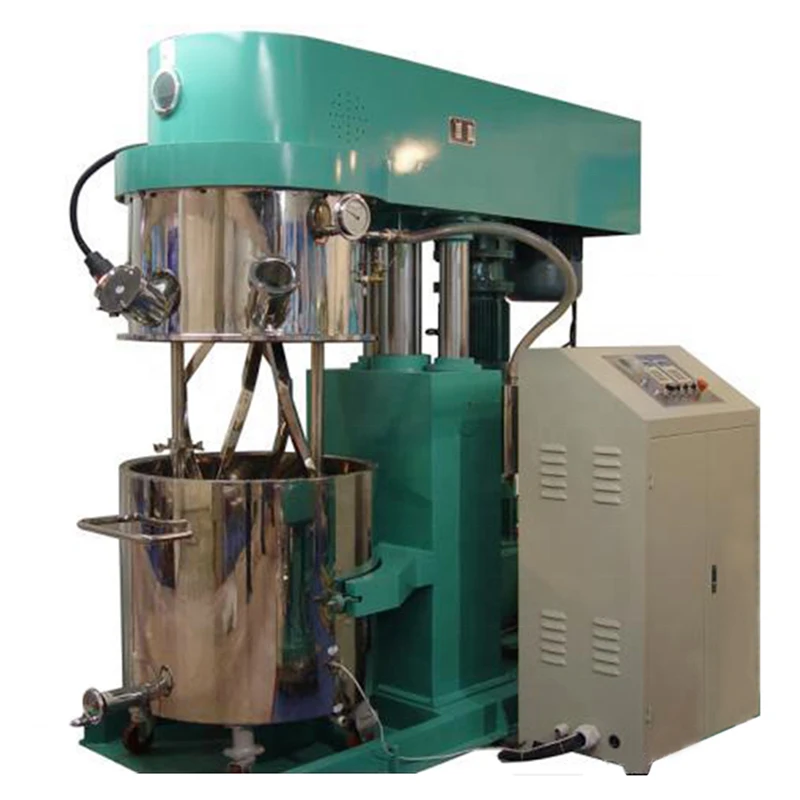

Detailed Images
Process Technology
Application
Packaging Information
Standard strong export plywood case, pallet for equipment, or as per customer’s requirements.
Delivery Information
About delivery approach
A: By sea or by air, detailed delivery approach could be discussed.
About delivery time
A: Usually it takes about 15-30 working days after we receive your PO cand pre-payment. However, it would depend on our production schedule and the complexity of the equipment.
About trade term
A: Usually we send the equipment in FOB term, however, the CIF is also acceptable, which could be decided by customers.
Payment Information
By T/T in Advance, or Irrevocable L/C at Sight. The trade will be guaranteed by Alibaba.
The equipment could be customized, welcome to consult us to know more details about the price, packing and delivery information.
Company Profile
In 1996, New Hongda Chemical Machinery Co., Ltd. was founded by Wang Zhongren in Laizhou, which is located in the coast of Laizhou Sea. New Hongda Corporation is focused on its mission of providing solutions to our Machinery Product customers that yield superior productivity and return on investment.
Over the last 20 years, New Hongda Corporation has evolved from a regional marketer of chemical machinery equipment in China to the a global competitive manufacturer of complete product varieties/series and services delivering lifecycle solutions that maximize customer return on investment. Major products include Complete Resin Production Line, Complete Paint & Coating Production Line, Complete BMC/SMC Production Line, Complete Adhesive Production Line, Dry Mortar Production Line, various specifications and types of Reactor, Dispersion, Grinder, Mixer, Kneader, Filter, Emulsification and other sets of equipment. These products serve a broad range of industries, including cosmetics, metallurgy, food-processing, pharmaceuticals, fodder, paper, paint, resin, construction, fertilizer and chemical industries.
We can customize different specifications of reactors according to customers’ requirement. There are more than 10 series product catalogs and engineer assistance for you, welcome to consult us to know more information about the details.
Certification
Our complete quality - control system for products was certified by ISO9002 and CE listed.
Our Services
a. On time delivery.
b. More than 20 years experience.
c. Quality guaranteed and professional service.
d. OEM & ODM. Various design based on client’s requirements.
2. How to place order?
Send inquiry→Basic quotation→Confirm details→ PI & Contact→Pay deposit→Production ( 20-30 days)→Pay balance→Delivery (5-8 days by air, 28-35 days by sea.) →After-sale service.
3. Will you send us drawing of required machine for checking?
Yes, we’d like to send you our draft drawing of the required machine . After you place order, we shall send you details drawing
and technical parameters. Then shall put into production once you confirm the production.
4. Is there any quality warranty and after service?
The warranty period of mechanical portion of the equipment shall be a year after you receive the equipment, and help buyer installation and commissioning the equipment, and free training operator.
