3.0 V DC Small Surface Mount SMD Vibration Motor used for Bracelet
- Category: >>>
- Supplier: Shenzhen Ineed Youngsun Technology Co. Ltd.
Share on (62487374459):
Product Overview
Description
3.0 V DC Small Surface Mount SMD Vibration Motor used for Bracelet

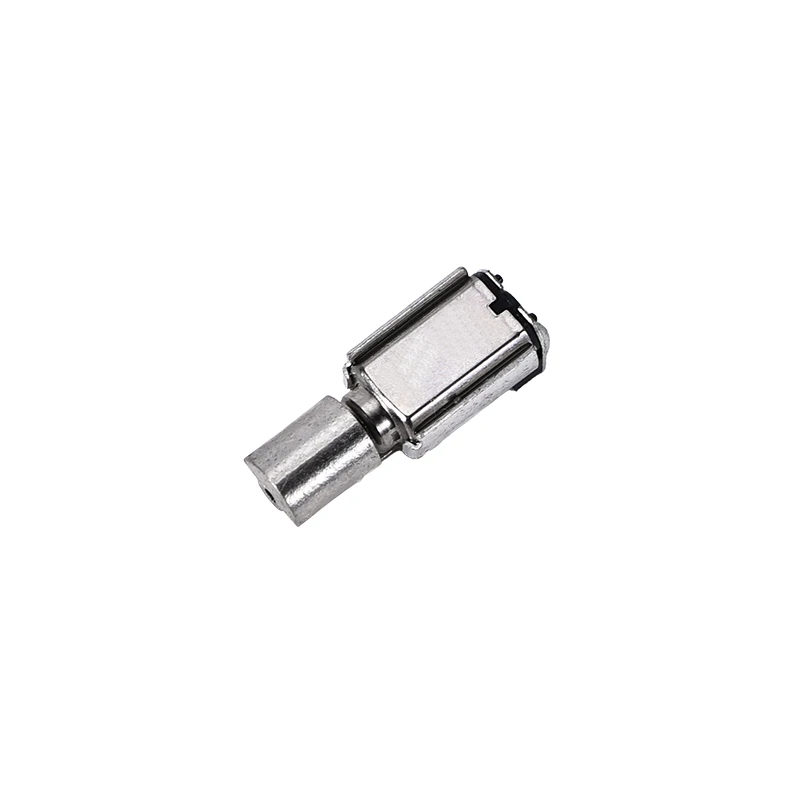

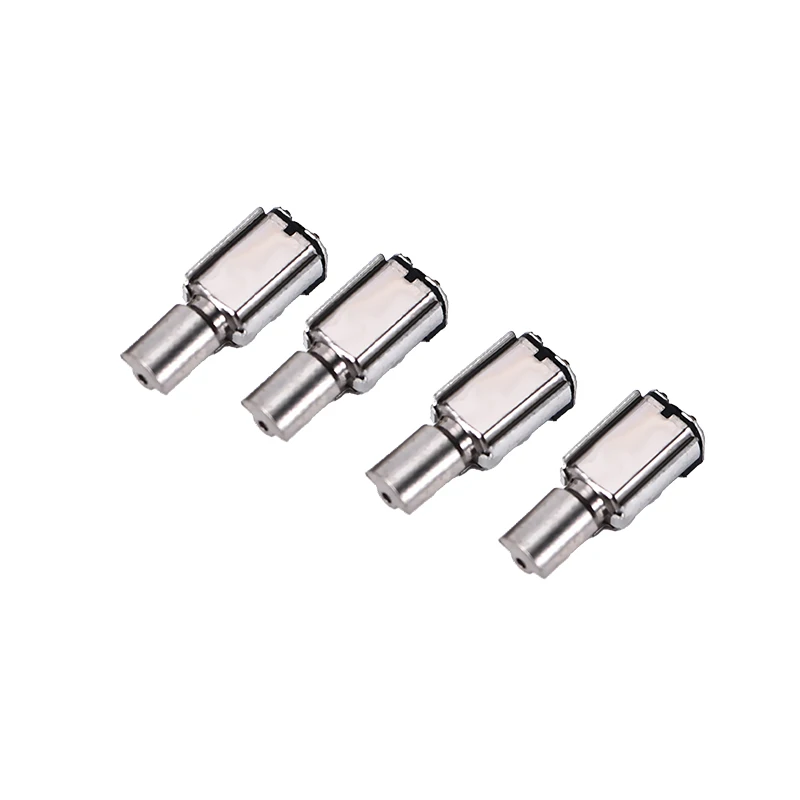

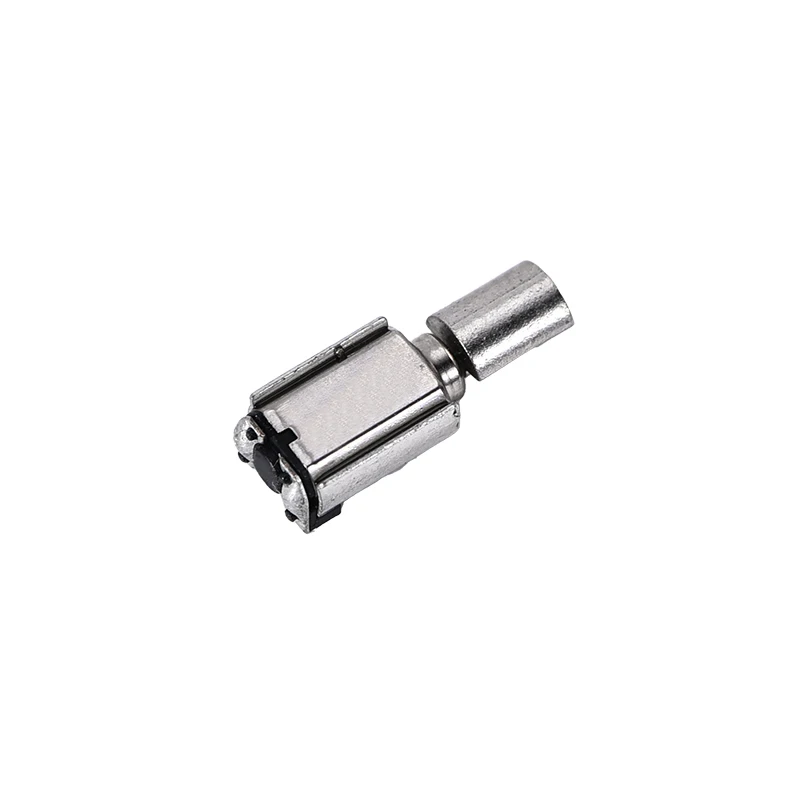

Motor Photo:

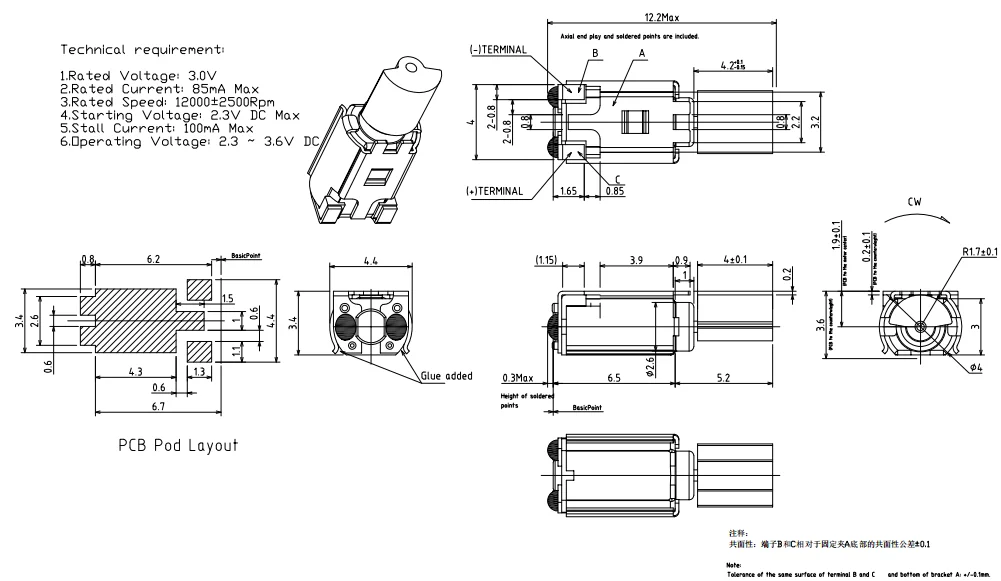

Product Drawing:
Technical data:
| Motor model | motor size (mm) | Rated voltage | Rated speed | Rated current | Stall current | Starting voltage | Operating voltage | ||
| Height of motor body | Width of motor body | Overall length | V DC | rpm | mA | mA | V DC | V DC | |
| IND-SMD-002 | 3.4 | 4.4 | 12.2 | 3.0 | 12,000±2,500 | ≤85mA | ≤100mA | ≤2.3 | 2.3-3.6 |
This vibration motor have the shortest body lengths, with SMD type reflow solderable contacts, widely used in assembly in the working environments as high as 250 ºC.
You could find the right haptic solution with our below various vibrators:
7-10mm diameter coin type brushed vibration motors.
3-4mm height reflow solderable SMD type vibration motors
4-7mm diameter cylinder type brushed vibration motors.
5-9 diameter coin type brushless vibration motors.These BLDC Motors have much longer lifetime than the normal brush type motors. At the test mode of 0.5s On 0.5s Off as one cycle, total lifetime can be 1 million cycles.
8-9 diameter coin type linear vibration motors. Vibrating in direction Z, vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.
Company Information
Manufacturing all kinds of micro motor for over ten years. These motors are widely used intelecommunication devices and health-care products, medical devices and robotic products. Monthly capacity over 15 million motors.We have been making the best efforts tobecome one of the leading micro motor manufacturers in this industry. By investing ten percent of our annual revenue into R&D as well as advanced facilities, we continue to grow stably.Our mission is to produce cost effective products with good quality to satisfy ourcustomers worldwide. This is the target we aim at now and forever......
1) Competitive Advantages
- Experienced Staff: average 7-year experience in R&D
- Competitive Price
- High Product Performance: Low noise, High efficiency, Long lifespan
- Small Orders Accepted
- Short Lead Time 2-3 Weeks
- International Approvals: ROHS/ISO9001:2015, ISO14001:2015, OHSAS18001:2011
2) Production workshop (Part)
Worshop site 1 Worshop site 2
3) Testing equipments
4) Packing & Shipping

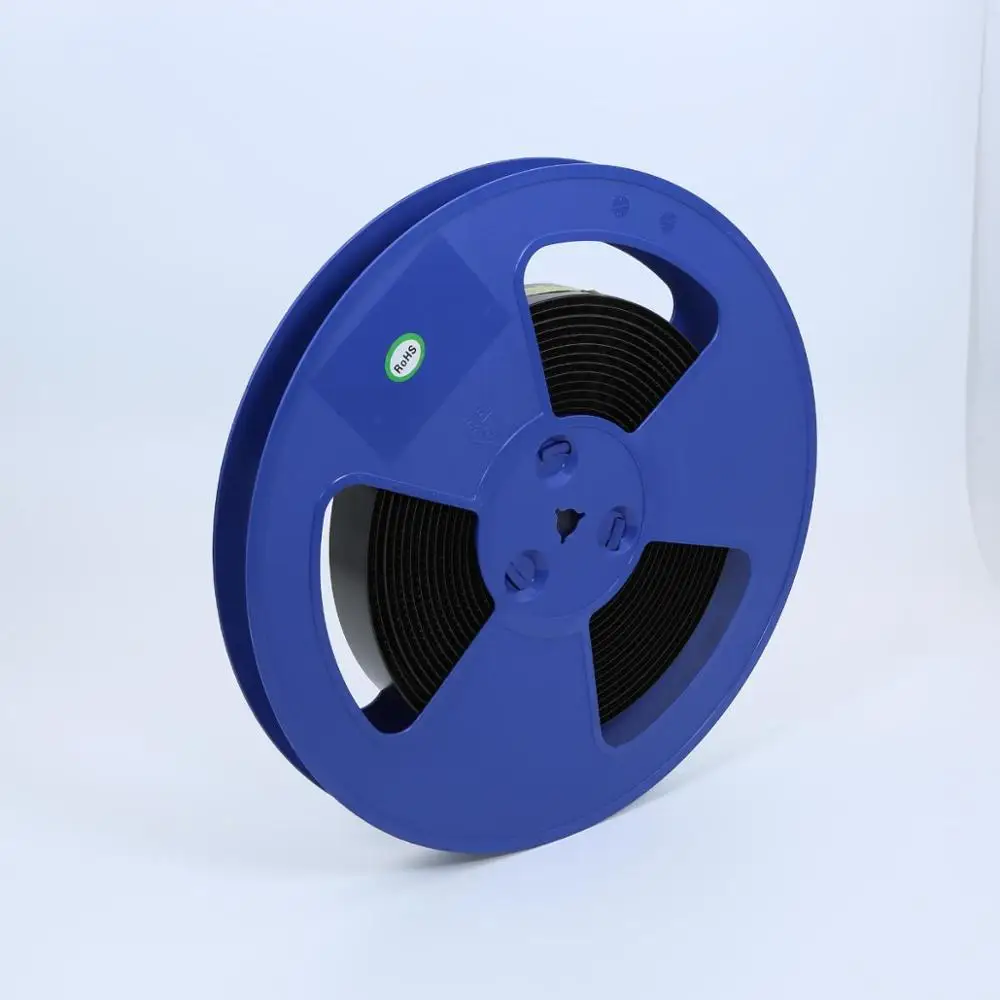

Packing Details

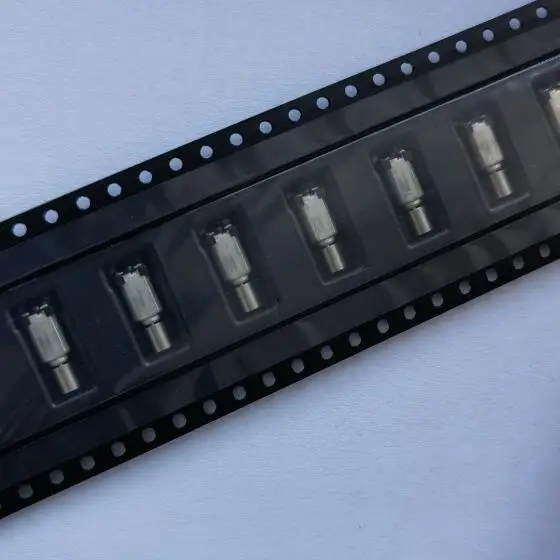

1000pcs per tray, 5 trays per carton, 5000 pcs per carton
Carton size: 34cm*34cm*21cm
Gross weight: 5.5kgs/ carton
Inner box bubble, then carton. And then reinforced with plastic pallet for outer packing. Or according to client's requirement.
