LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn. as a new type rechargeable lithium battery, LTO battery has great performances of perfect high safety, high stability,super long cycle life and strong temperature tolerance.
Item | Parameters | |
Model | OSN-LTO-66160H | |
Materials | LTO | |
Nominal capacity | 40Ah | |
Nominal voltage | 2.3 V | |
Dimension
| Length: 160±1.5mm | |
Diameter: 66±1mm | ||
Weight | 1.24±0.1kg | |
Internal Resistance | ≤1mΩ | |
Operating voltage
| Charge cut-off voltage | 2.8 V |
Discharge cut-off voltage | 1.5 V | |
Standard charge/discharge current
| Charge current | 1C(40 A) |
Discharge current | 1C(40A) | |
Maximum charge current | 10C | |
Maximum discharge current
| 10C | |
Cycle life | 30000 times | |
Operating Thermal Ambient | Charging | -50℃~ 65℃ |
Discharging | -50℃~ 65℃ | |
Storage Thermal Ambient | Short term(within 1 month) | -20℃~ 45℃ |
Short term(within 1 year) | -20℃~ 20℃ |

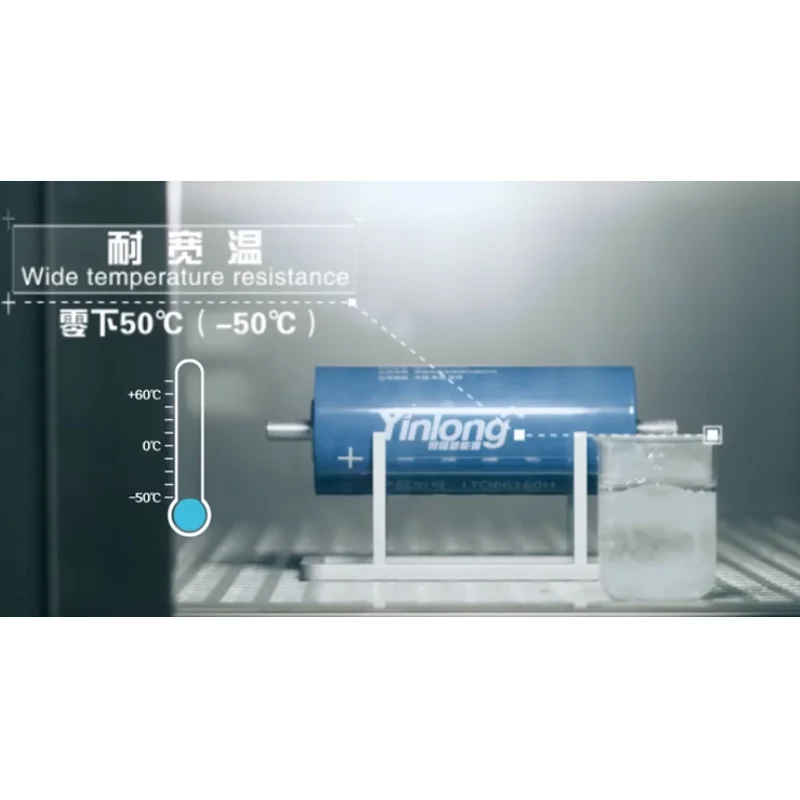

Wide working temperature range: -50°C ~ 65°C

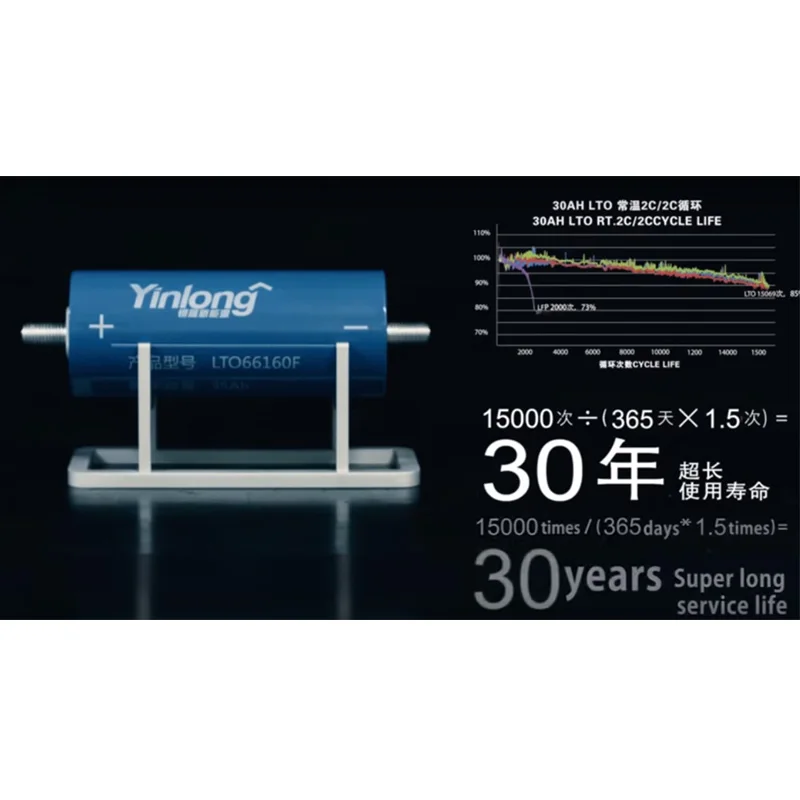

Super long cycle life: over 30,000 times
· Passenger and commercial plug-in hybrid electric vehicles (PHEVs)
· Passenger and commercial battery electric vehicles (BEVs)
· Mild and micro hybrid vehicles
· Long-Duration (LD) grid energy storage systems
1) Electric vehicles and charging stations, tourist coaches, yachts, wind and solar energy storage power, traffic signals
2) Solar hybrid street lighting, UPS power supply, home storage
3) Coal, disaster relief emergency, weather radar, electricity, smart grid, communication base stations
4) Hospitals, finance, telecommunications , system critical backup power systems
Attentions:
For safety usage, please be careful on below:
Warning!
1. Do not immerse the battery in water and keep it dry when not in use;
2. Do not knock, throw or affect the battery near a fire source or under extremely hot conditions;
3. Please charge according to the charging requirements;
4. Do not reverse the positive (+) and negative (-) terminals;
5. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals;
6. Do not directly weld the battery terminals.
