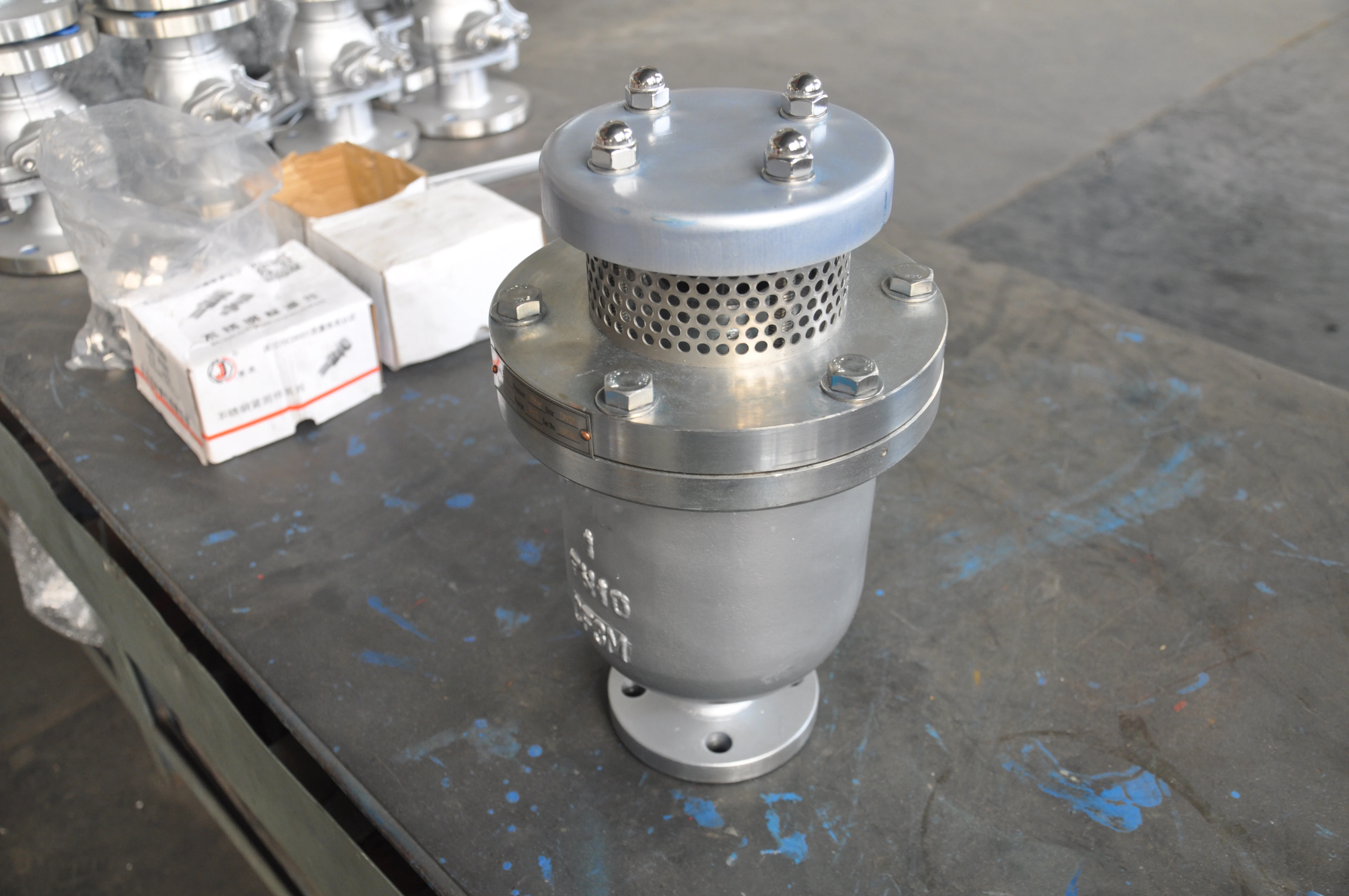

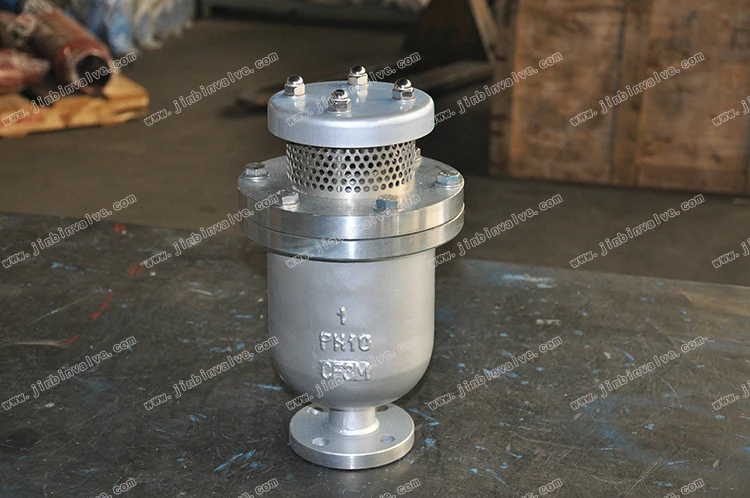

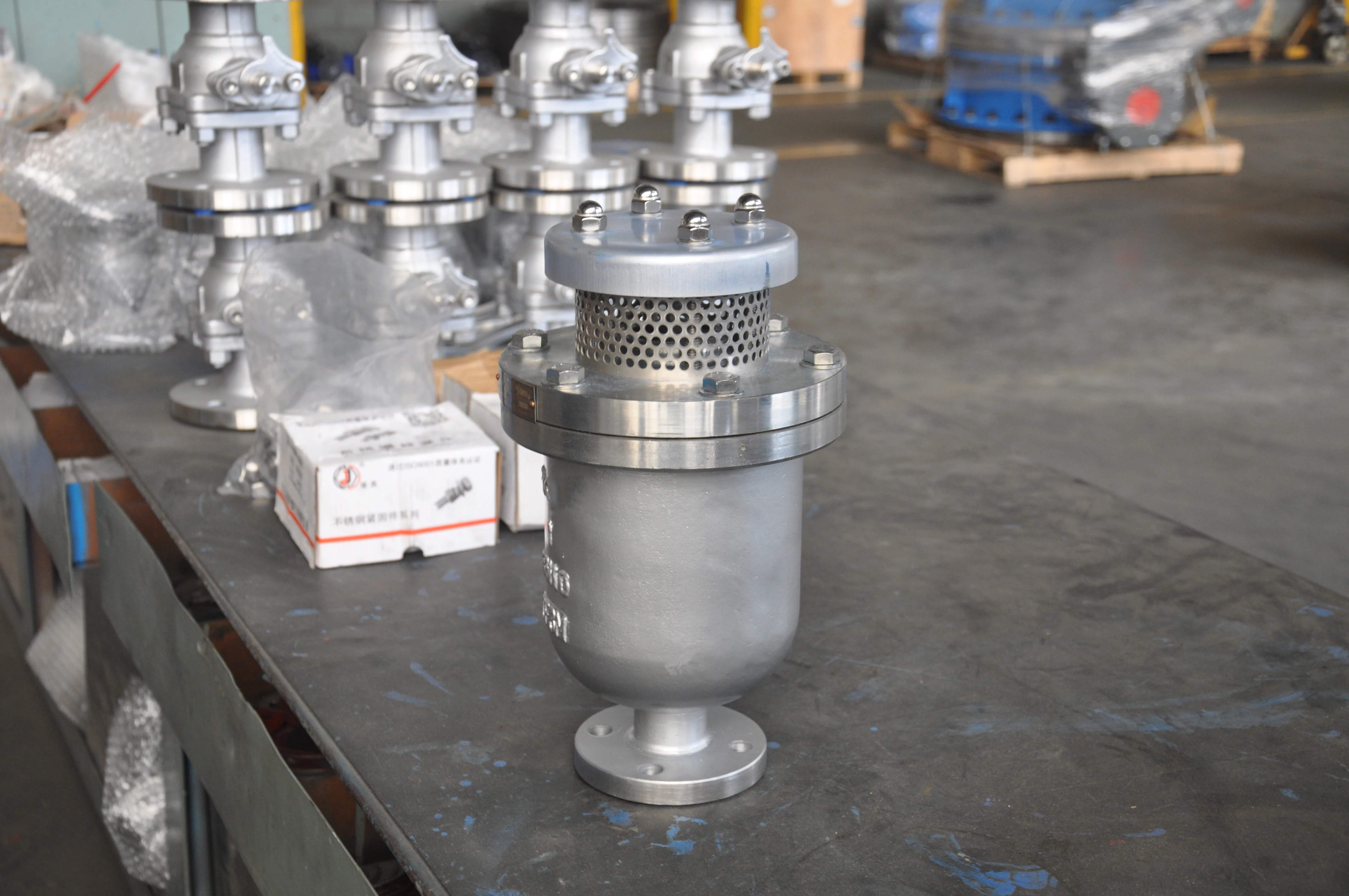

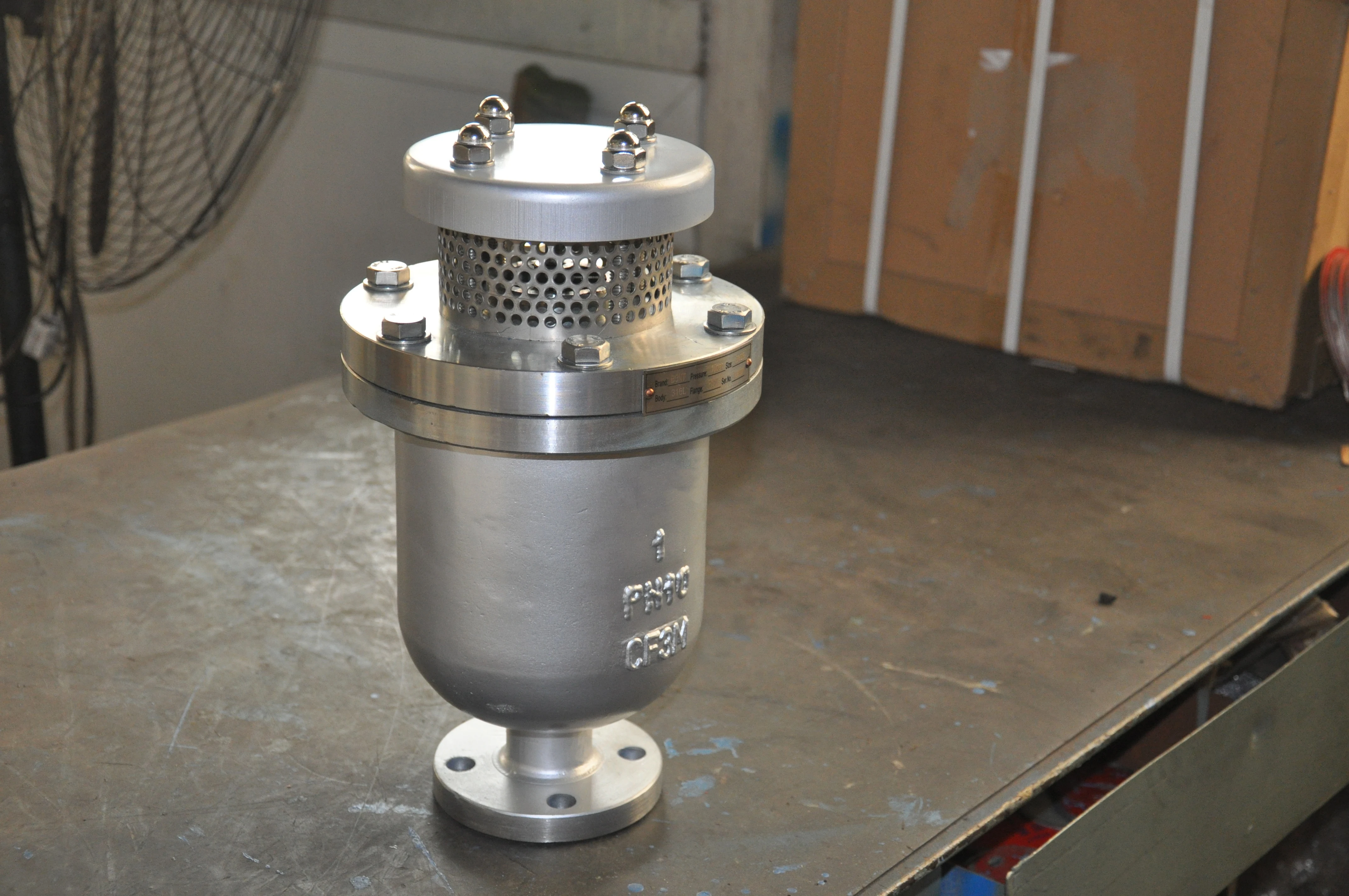

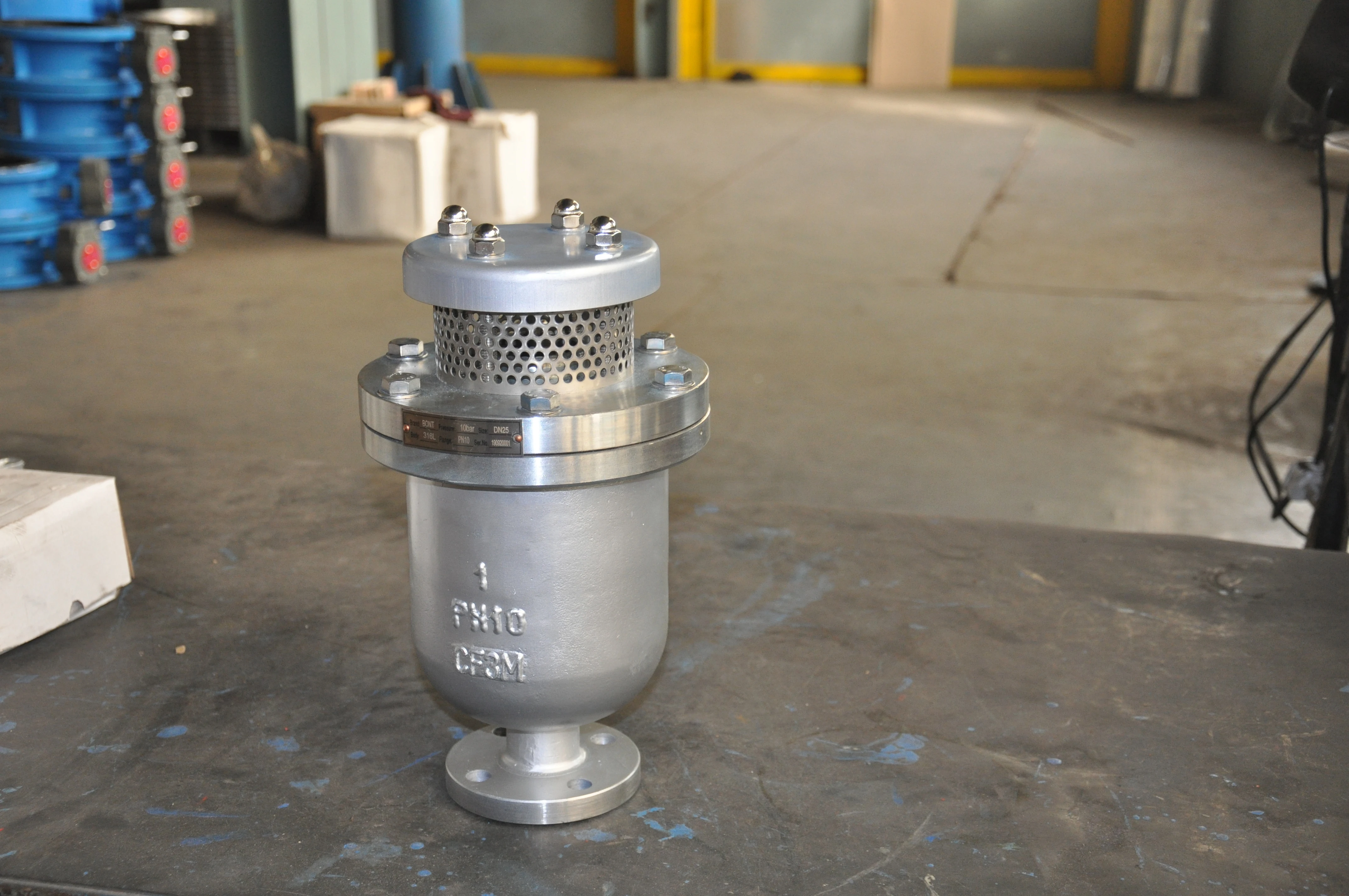

stainless steel automatic air vent valve
- Category: >>>
- Supplier: Tianjin Tanggu Jinbin Valve Co. Ltd.
Share on (62487417771):
Product Overview
Description
Product Description
Brief introduction
The air vent valve is discharging the gas from the pipe to clear the pipe. If no air vent valve is installed, the pipeline will
have air resistance at any time, so that the water output of the pipeline can not meet the design requirements. If the power is cutting off when the pipeline is running, the negative pressure of the pipeline will cause the pipeline to vibrate or break, and the air vent valve will quickly draw the air into the pipeline to prevent the pipeline from vibrating or breaking.
have air resistance at any time, so that the water output of the pipeline can not meet the design requirements. If the power is cutting off when the pipeline is running, the negative pressure of the pipeline will cause the pipeline to vibrate or break, and the air vent valve will quickly draw the air into the pipeline to prevent the pipeline from vibrating or breaking.
Performance specification | ||||||||
Nominal Pressure | PN10 / PN16/150LB | |||||||
Testing Pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. | |||||||
Working Temperature | ≤100°C | |||||||
Suitable Media | sea water,water | |||||||

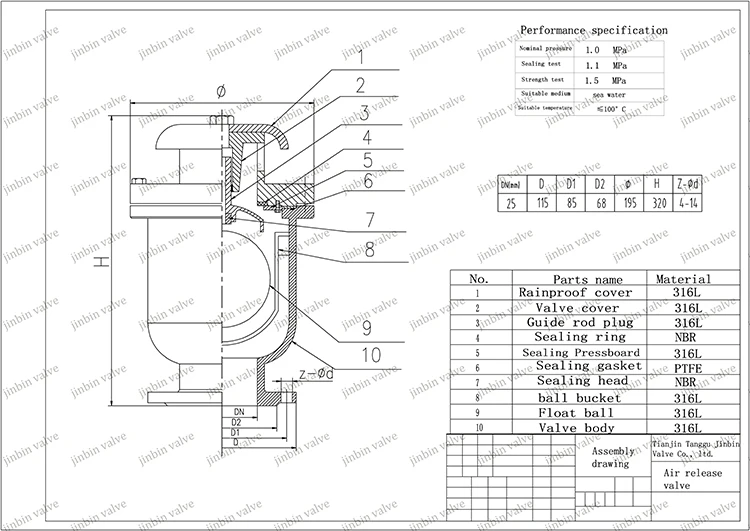

Material of main parts | ||||||||
Body material | Stainless steel | |||||||
Float ball material | Stainless steel | |||||||
Sealing ring material | NBR | |||||||
Sealing gasket material | PTFE | |||||||
Ball bucket material | Stainless steel | |||||||
Valve cover material | Stainless steel | |||||||
Related Products
Company Introduction
Tianjin Tanggu Jinbin Valve Co., ltd with brand THT is large manufacture in China engaged in research, development and production of valves.
Tianjin tanggu jinbin valve co.,ltd was founded in 2004,with registered capital of 113 million yuan,covering an area of 20000 square meters,including 15100 square meters for factories and offices.
THT products have been exported to more than 30 countries and region, such as UK, USA, UAE, Russia, South Korea, region of mid-east, south and south east Asia, South America and Africa!
Our customers
Certifications
Production process
FAQ
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
