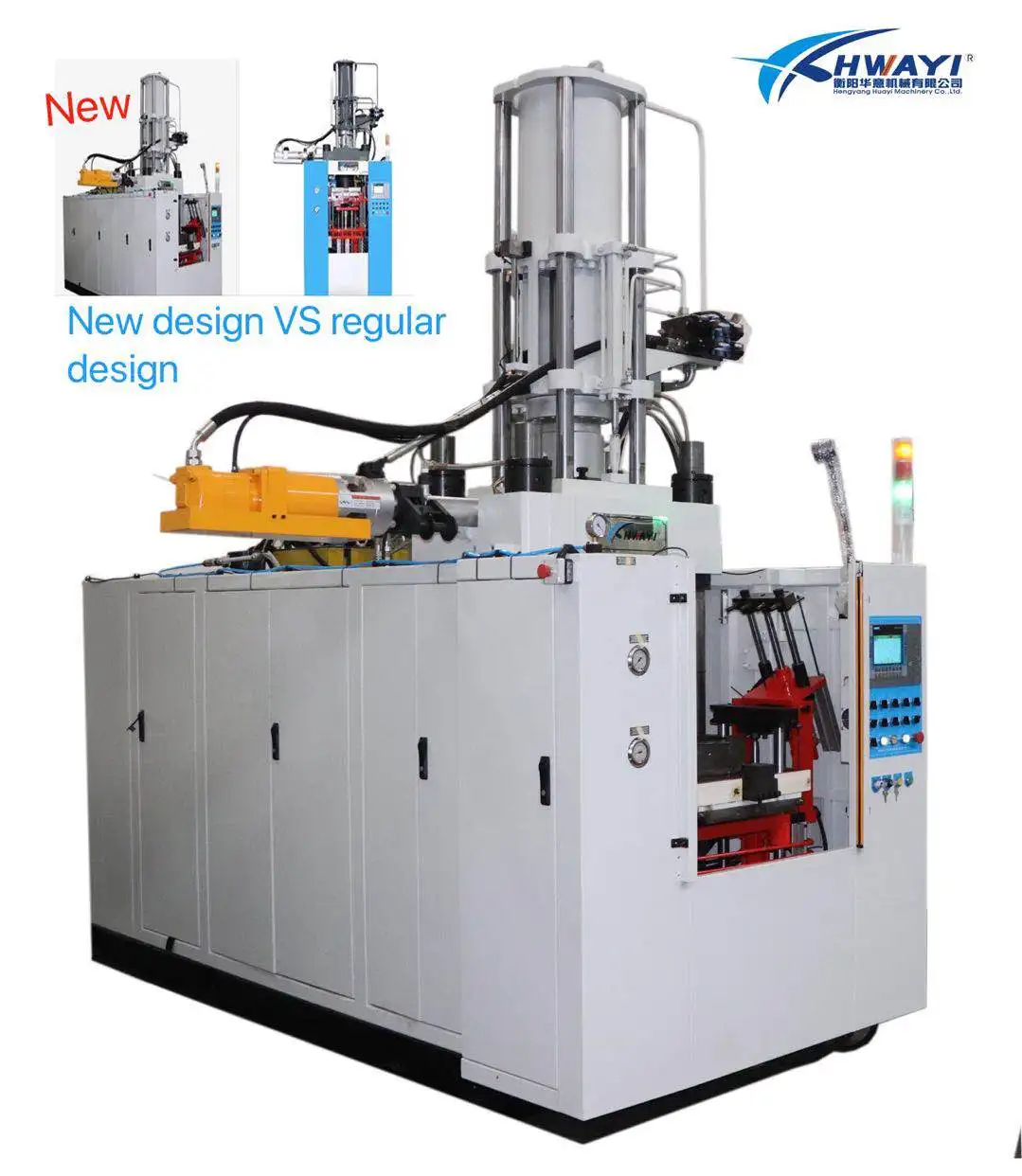

HYZ-200A Rubber Injection Molding Machine is suitable for Solid Silicone Rubber material product making, such as: Sealing Ring, Insulator, Bushing, Cable Joints etc.
This type of machine includes stuff, plasticizing, injection, vulcanization and clamping system. It not only improves the automation level and the production efficiency, but also improves the quality of rubber product. It is the ideal equipment of molding high quality rubber products.
Specifications
HYZ-200A
Injection Volume(cm3)
2000/2400
Clamping Force(kN)
2000
Platen Size(mm)(Width*Length)
550*550
Dimension btwn Tiebar(mm)
650*360
Space of Platens(mm)
570
Max. Clamping Stroke(mm)
500
Min. Mold Thickness(mm)
80
Nozzle Diameter(mm)
Φ5.5
Arc Radius of Nozzle(mm)
SR19
Heating Power(KW)
12
Total Power(KW)
28
Dimensions(m)(L*W*H)
3.5*1.2*3.9
Reference Weight(Ton)
8
