fireproof automatic gate caution garage door automatic operators rolling door
- Category: >>>
- Supplier: Fujian Anlin Intelligent Science And Technology Co. Ltd.
Share on (62487597832):
Product Overview
Description
verified Informatio
Anlin changes the traditional shutter door motor and leads the whole industry. We invite you to join the "blue ocean plan" for win-win development.
Product Description
Product information
| Fireproof Rolling Door Motor Parameter | ||||||||
| Model | Input voltage | Rated power | Output speed | Output torque | Elvation | Rolling tube diameter | Max elevating | Type of chain |
| 600-3p | AC 380V 50hz | 250W | 5.5r/mim | 335N.m | 600kg | 5" | 6m | 10A |
| 1000-3P | AC 380V 50hz | 370W | 4.0r/mim | 750N.m | 1000kg | 6" | 9m | 10A |
| 1500-3P | AC 380V 50hz | 800W | 4.0r/mim | 1100N.m | 1500kg | 8" | 9m | 12A |
| 200-3P | AC 380V 50hz | 1500W | 3.5r/mim | 2450N.m | 2000kg | 8" | 16m | 16A |

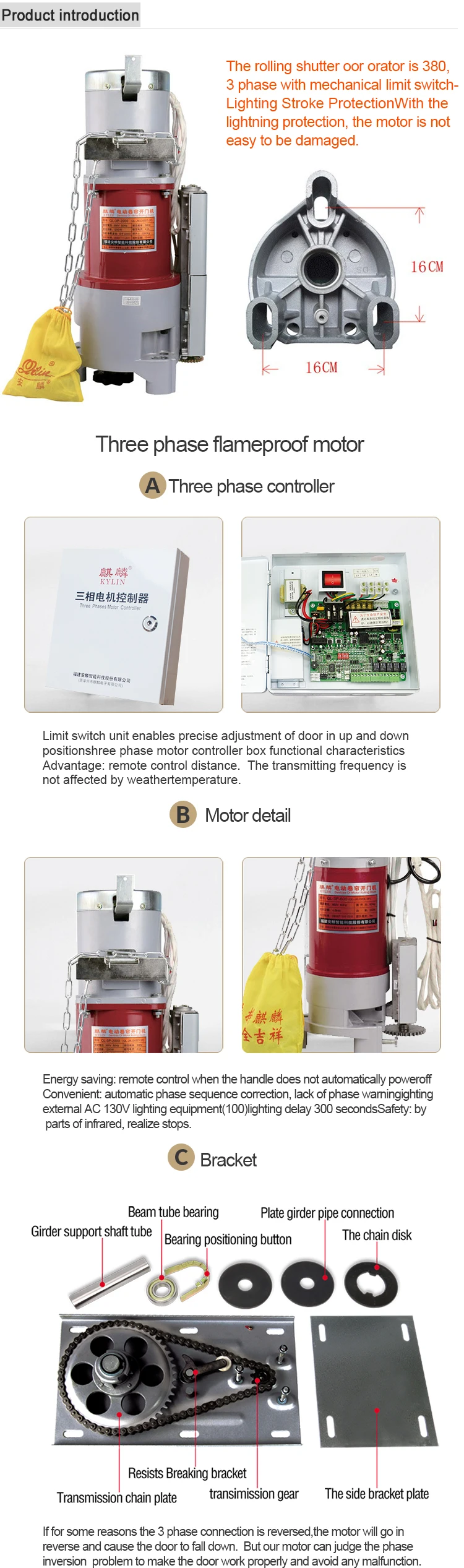

Product characterist

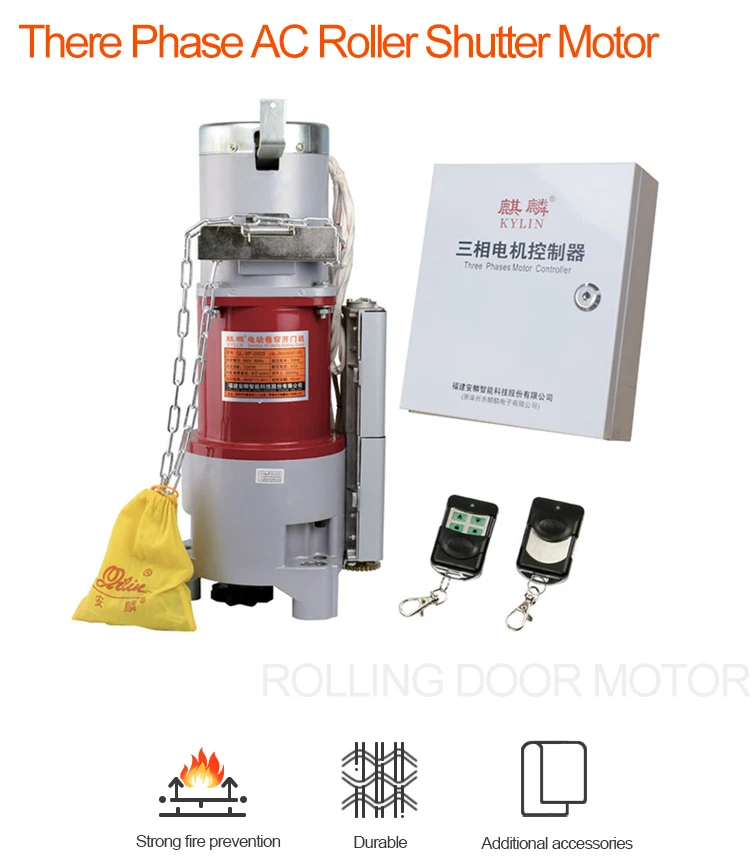

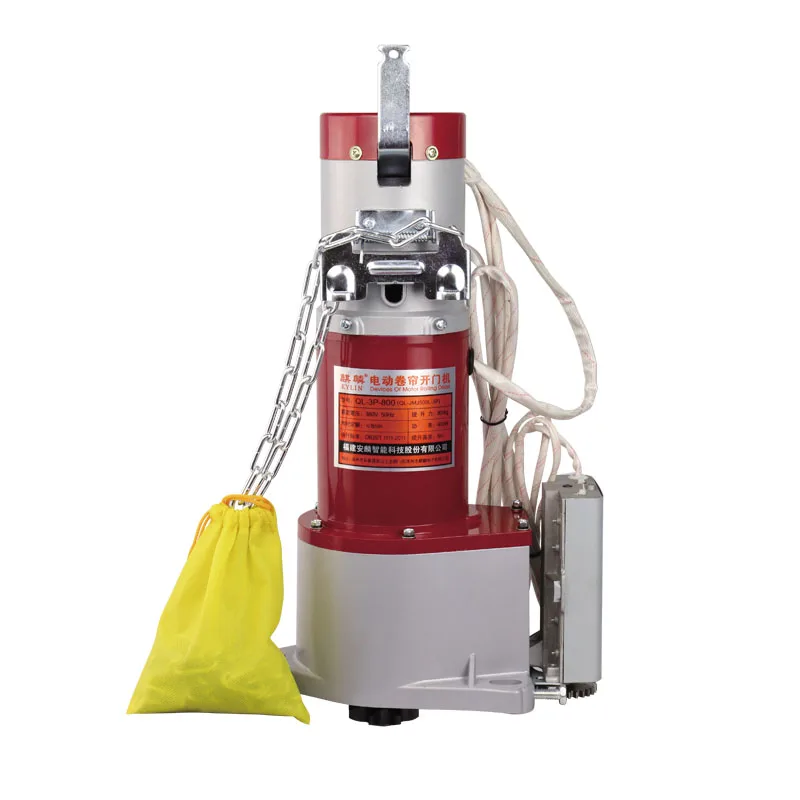

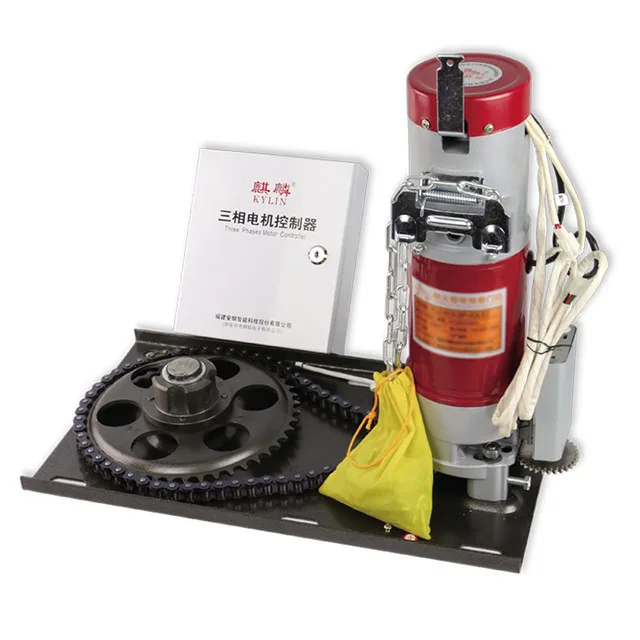

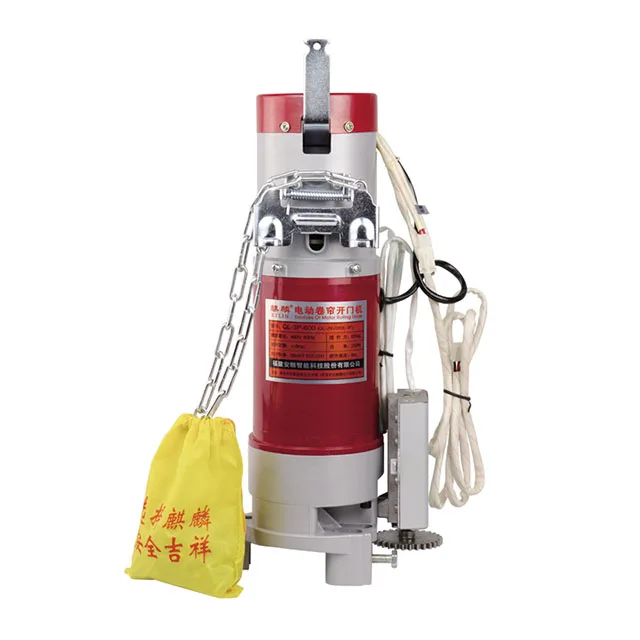

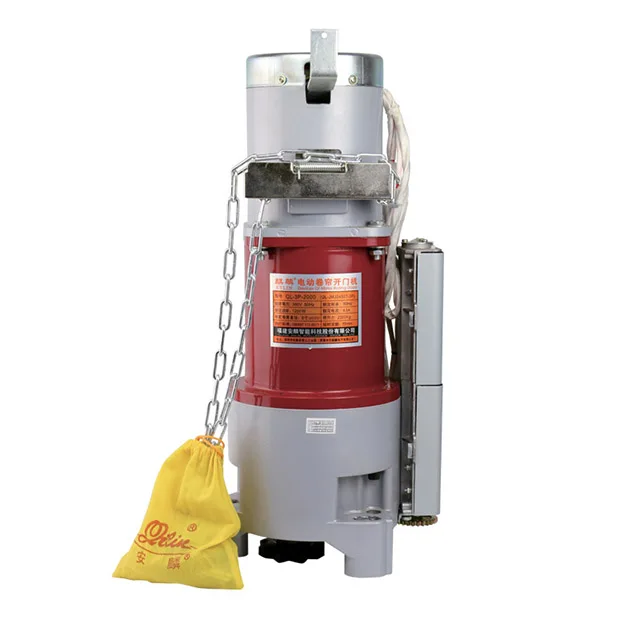

Anlin fireproof rolling door motorand control system
The world's first The debugging time is reduced by 10 times,
the patent products,Free adjustment phase Not need to adjust trave limit on motor of high place. Anti rush out of limit,110V/220V/380vare ok for our Fireproof Roller Door Motor 100% copper material insi e motor, so it have a laer capacity and durable than other motors.
