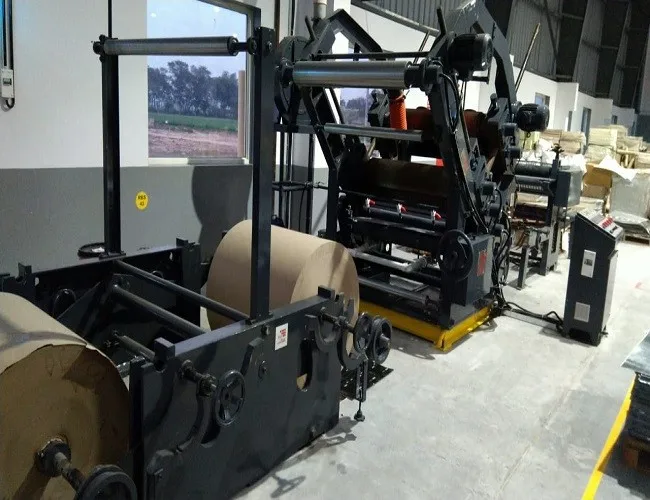

Heavy Duty Double Profile Fingerless Corrugation Machine, corrugated Box making Machinery Plant

BOXMAC Senior Make Double Profile Fingerless

Heavy Duty High Speed Bearing mounted Paper

Corrugation Machine

 with two set of Flute rolls with  A/C Variable Frequency Drive (VFD) Motor with Blower system complete Set.

2-Ply board pass-out by vacuum suction method, with blower control system.

-Bearing of corrugated and pressure roller are having high temperature lubricate grease.

Technical Specifications:

(A) One Set of Flute Rolls 'A' 36 and one set of flute rolls 'B' 52 type or as per your requirement.
(B) Flute Rolls material alloy steel.
(C) Flute Rolls Dia 223 mm.
(D) Gum Roll & Gum Pipe is Hard Chrome Plated.
(E) Glue circulation Pump.
(F) Electric Heaters 3 Nos. with one of 13 Kw and two of 11 Kw each & Pre Heaters- 2Nos with 4 Kilowatt each.
(G) 7.5 H.P Motor (SIEMENS) with Variable Speed A.C. Drives.
(H) Vacuum Suction Blower with 10 H.P. motor (SIEMENS)
(I) Control panel for heat control fitted with thermostats and for synchronize with sheet cutter.
(J) With all Standard Accessories complete.

Delivery Time : 45 to 60 Days

Packing method

1. Plastic film wrapping outside
2. Hard wooden case
3.Then loading in container
