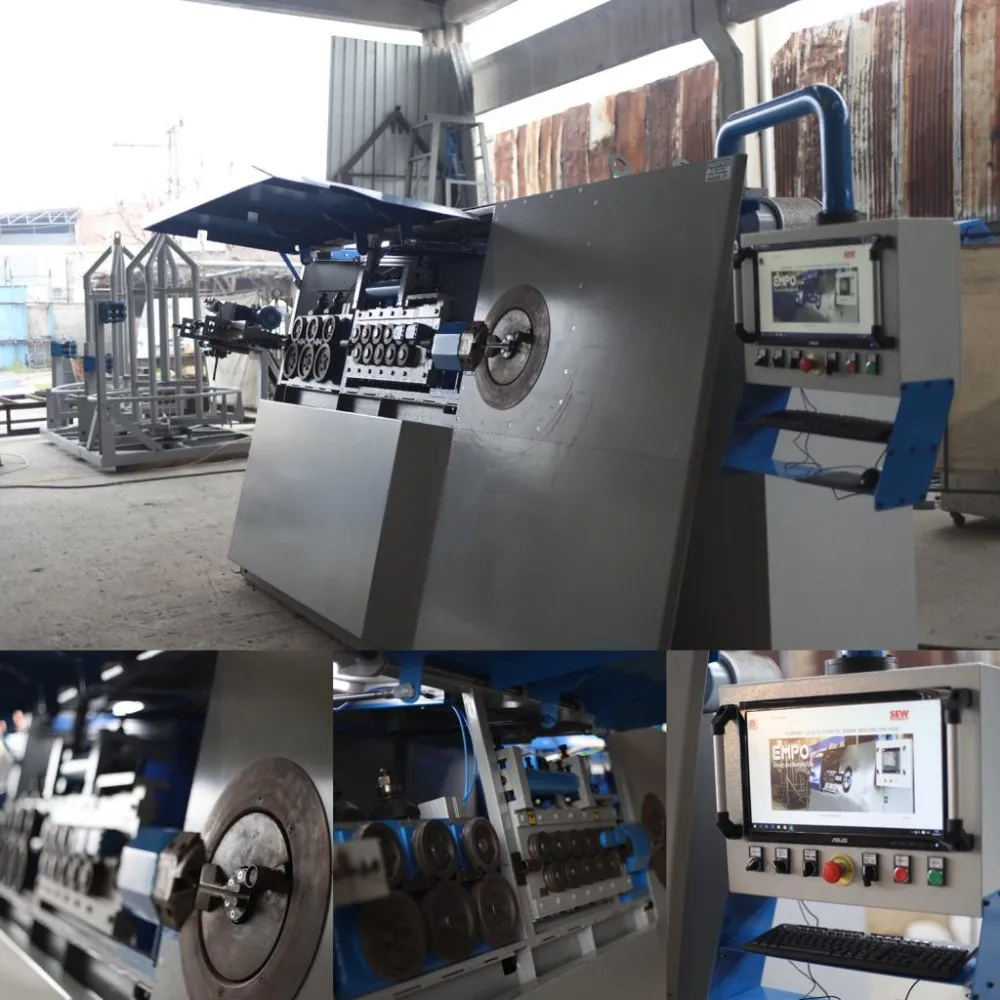

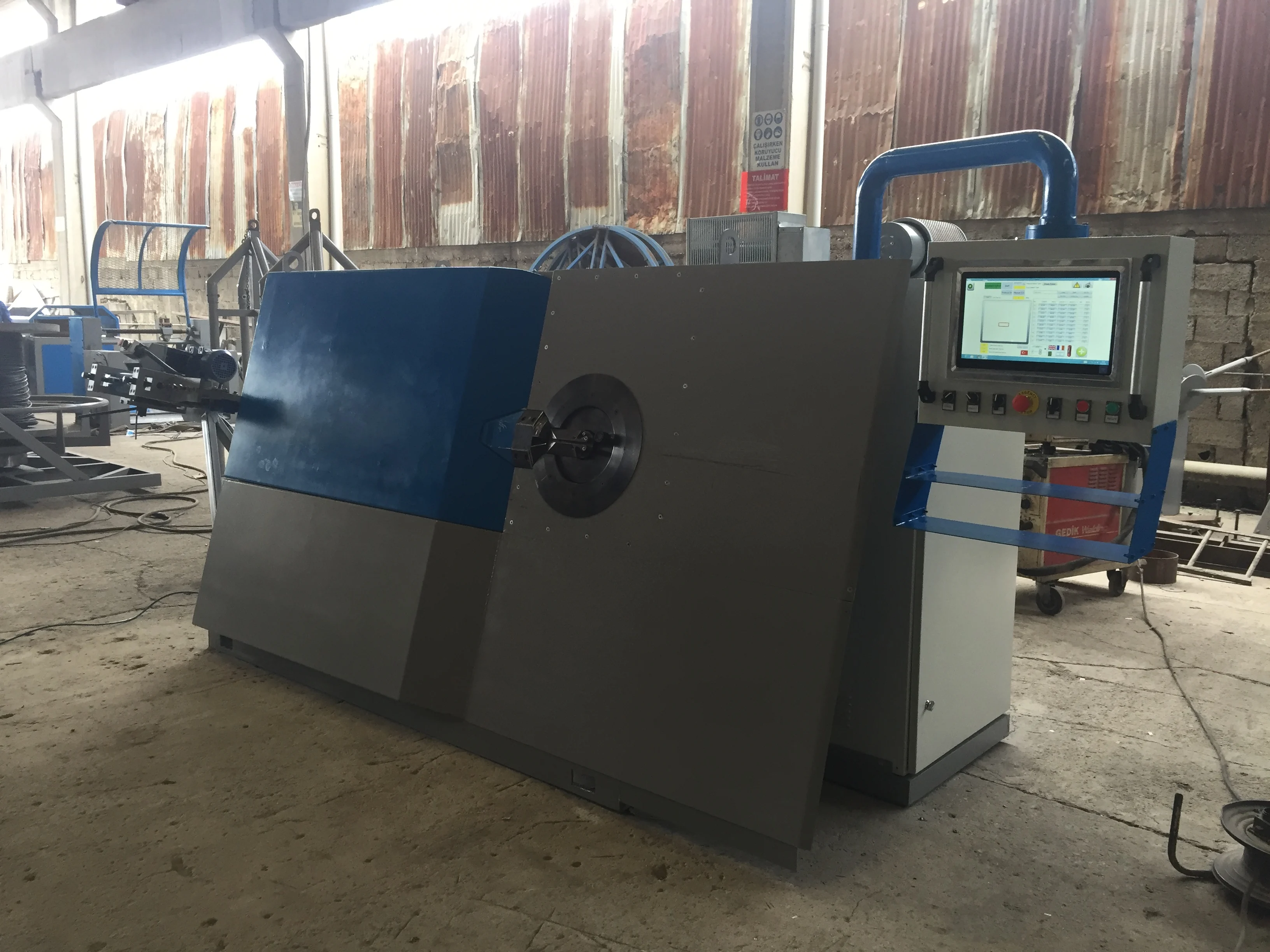

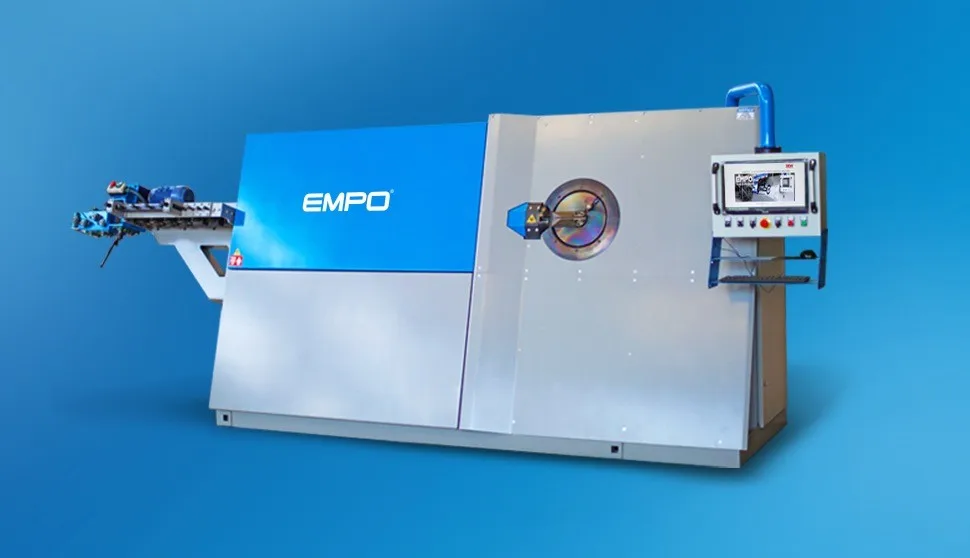

2D Stirrup Wire Bending Machine
2D Stirrup Wire Bending Machine
2D Stirrup Wire Bending Machine
2D Stirrup Wire Bending Machine
2D Stirrup Wire Bending Machine
2D Stirrup Wire Bending Machine
2D Stirrup Wire Bending Machine

2D Stirrup Wire Bending Machine

Share on (62487619299):


Price:RUB 4,307,729.50

Quantity:


Product Overview

Description

Product Description

Product Application

1-Technical Details
Model ROBOMAT-2212
Production Capacity Single Wire Φ 10-12mm
Double Wire Φ 6- Φ 8m
Max.Bending Opportunity CW&CCW /Bidrectional
Max.Driving Opportunity Manuel & Automatic Forward &Backward
Rated Power 2 Servo ServoMotor 7,5Kw+5Kw
Driving Motor 7,5Kw (Servo Motor)
Bending Motor Power 5Kw (Servo Motor)
Length Tolerance +/-1mm
Bending Tolerance +/-1 degree
Driving Speed 90m/minutes
Bending Speed 1200 /min.
Straightening Part  6-12meters (Optional)

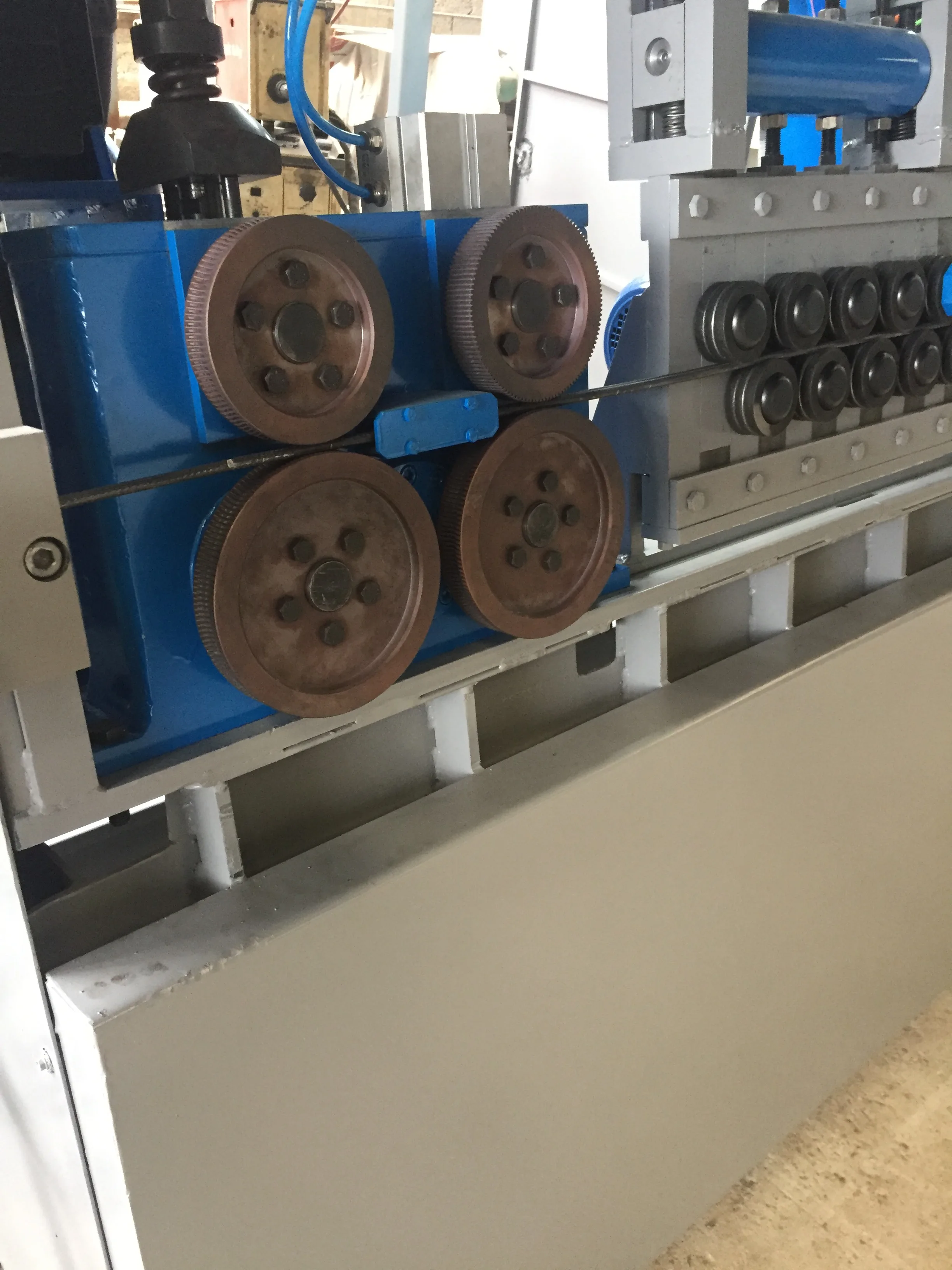

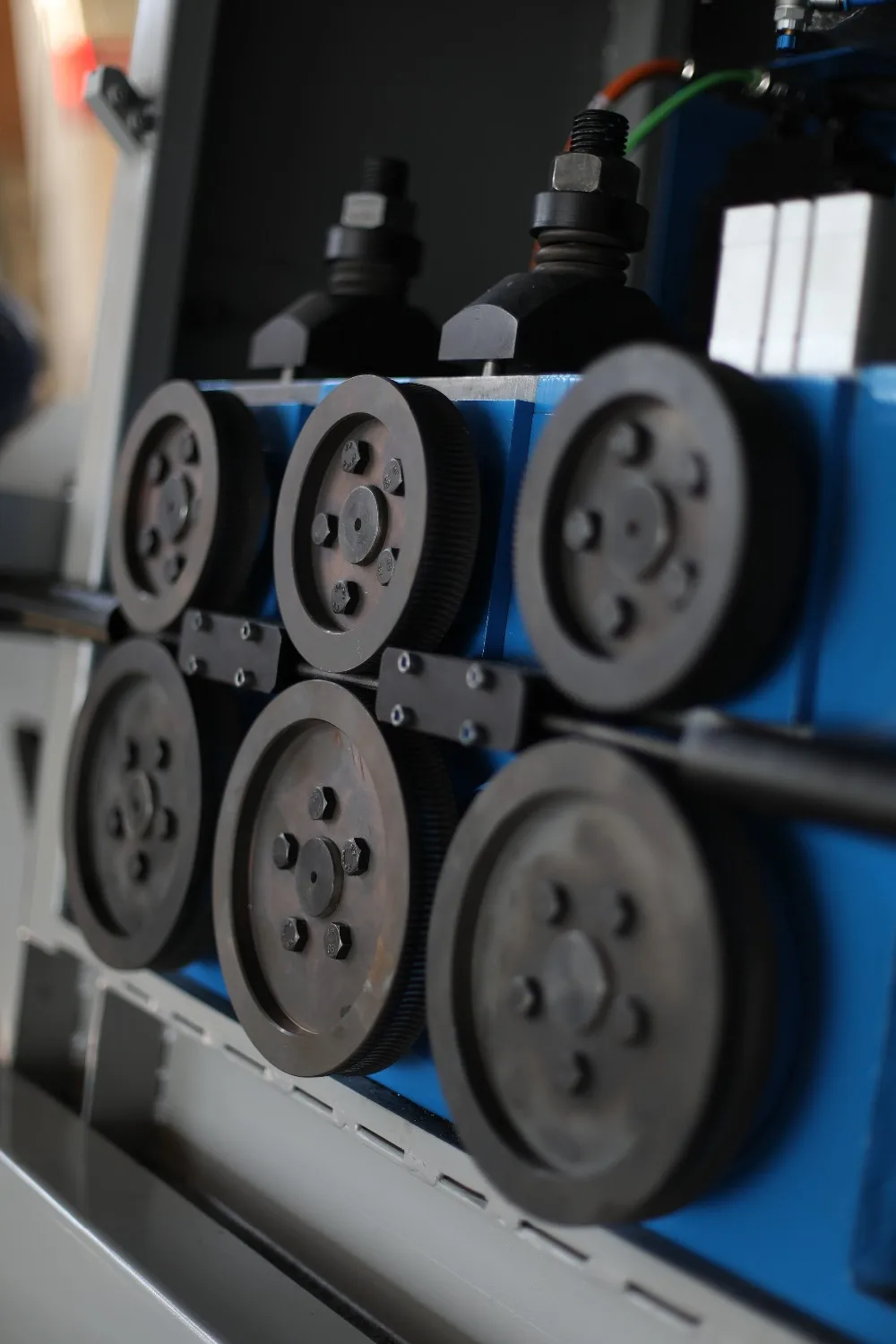

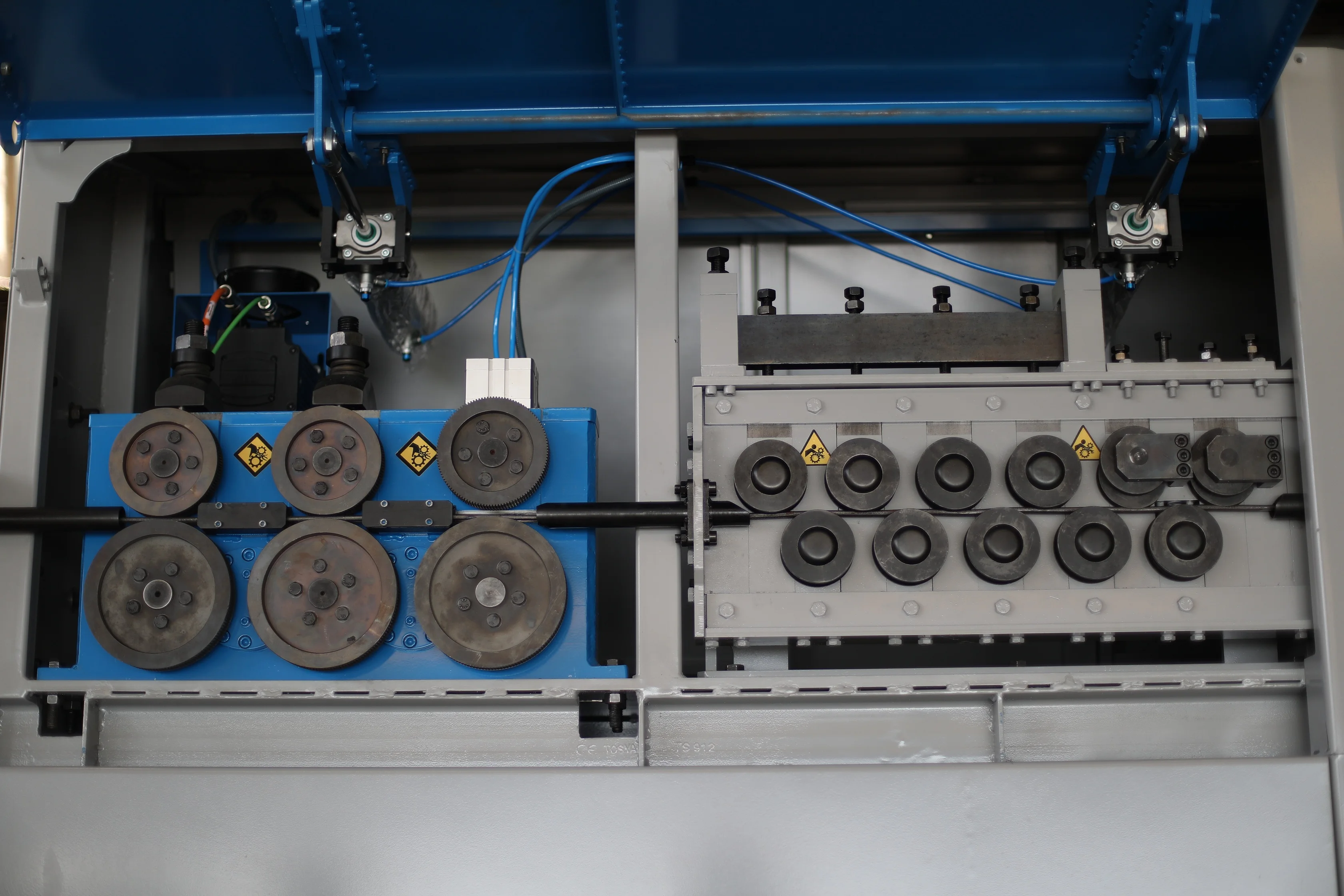

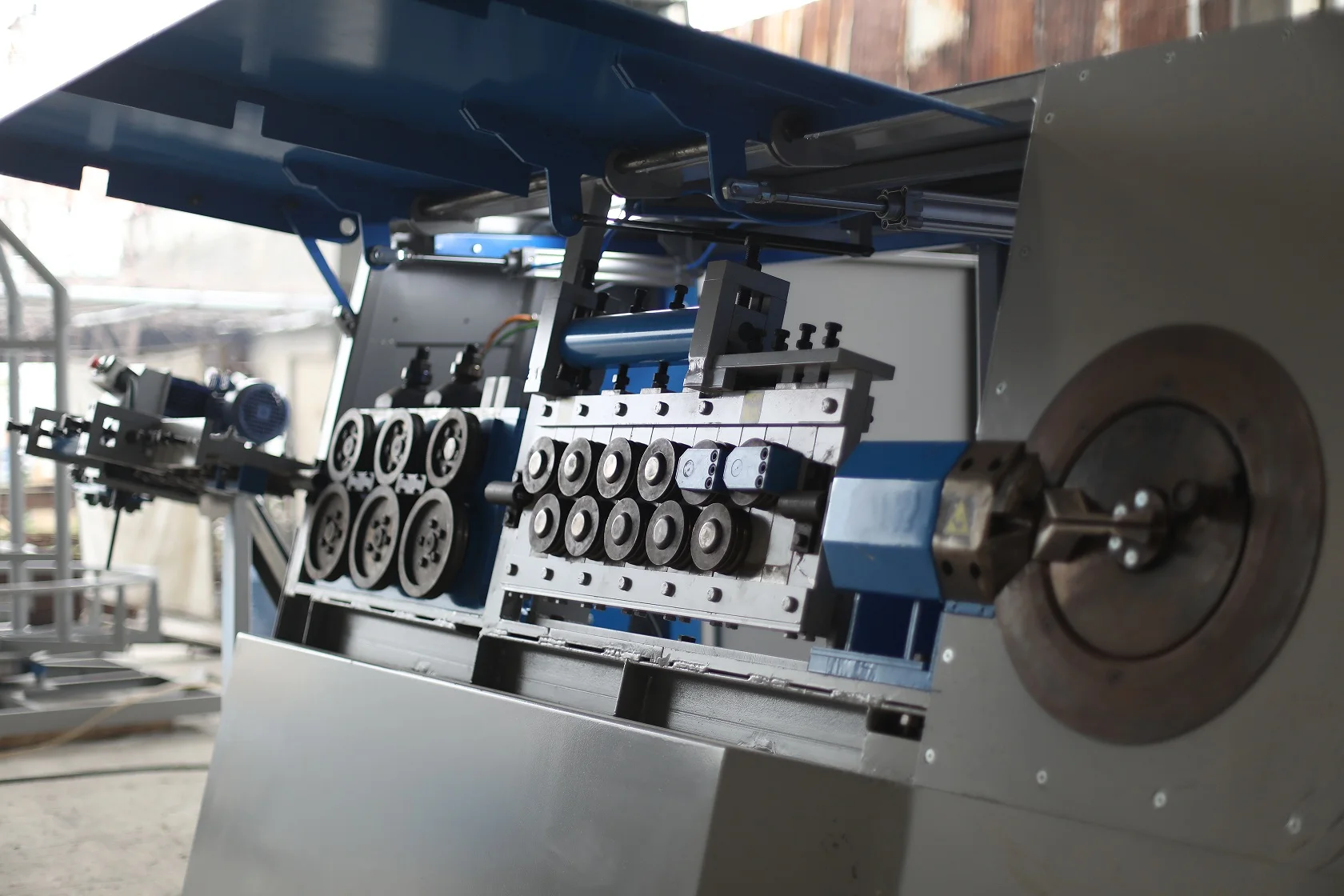

Pre-Straightening Unit X&Y Axis Multipla Rollers
Control Units Operator sensitive /friendly program ,Shapes can be easly created helping with angles &length by operator.The program was written by SEW Engineer.
Driving Unit Industrial Type Gear Box by EMPO
Bending Unit Industrial Type Gear Box by EMPO


Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certification CE ISO

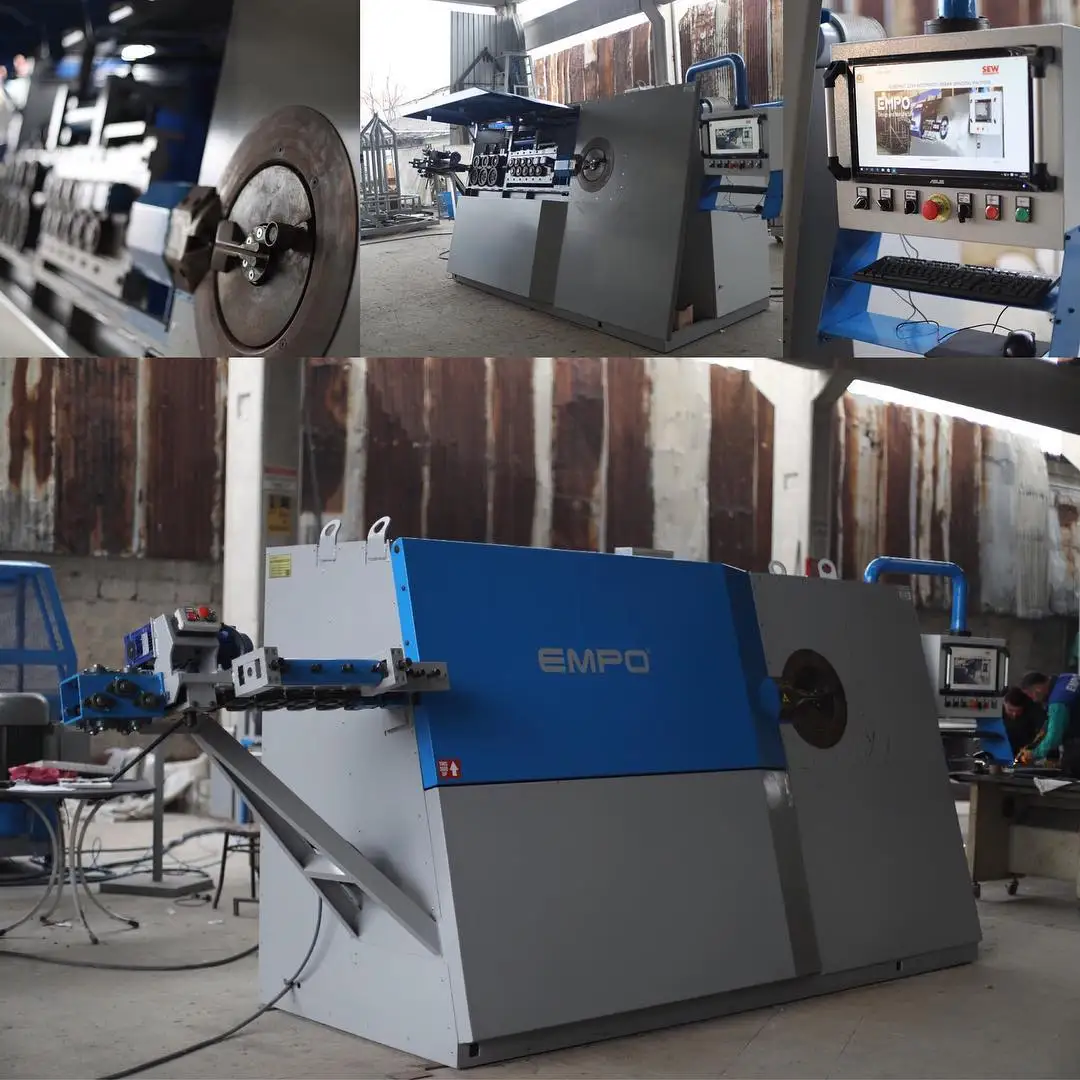

Detailed Images

Machine Parts

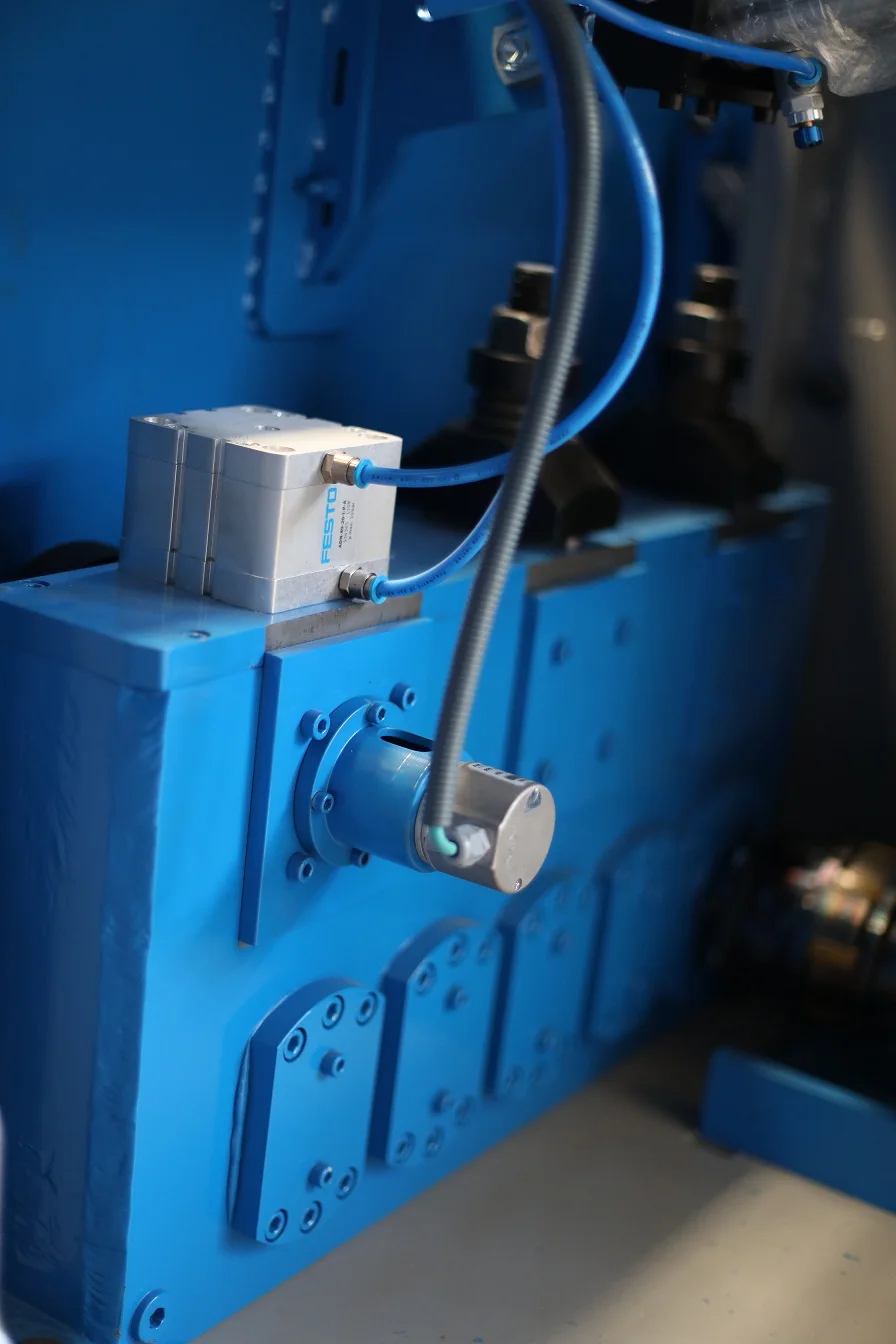

Name: PNEUMATIC PISTONS

Brand: FESTO

Original: Germany


Main Features

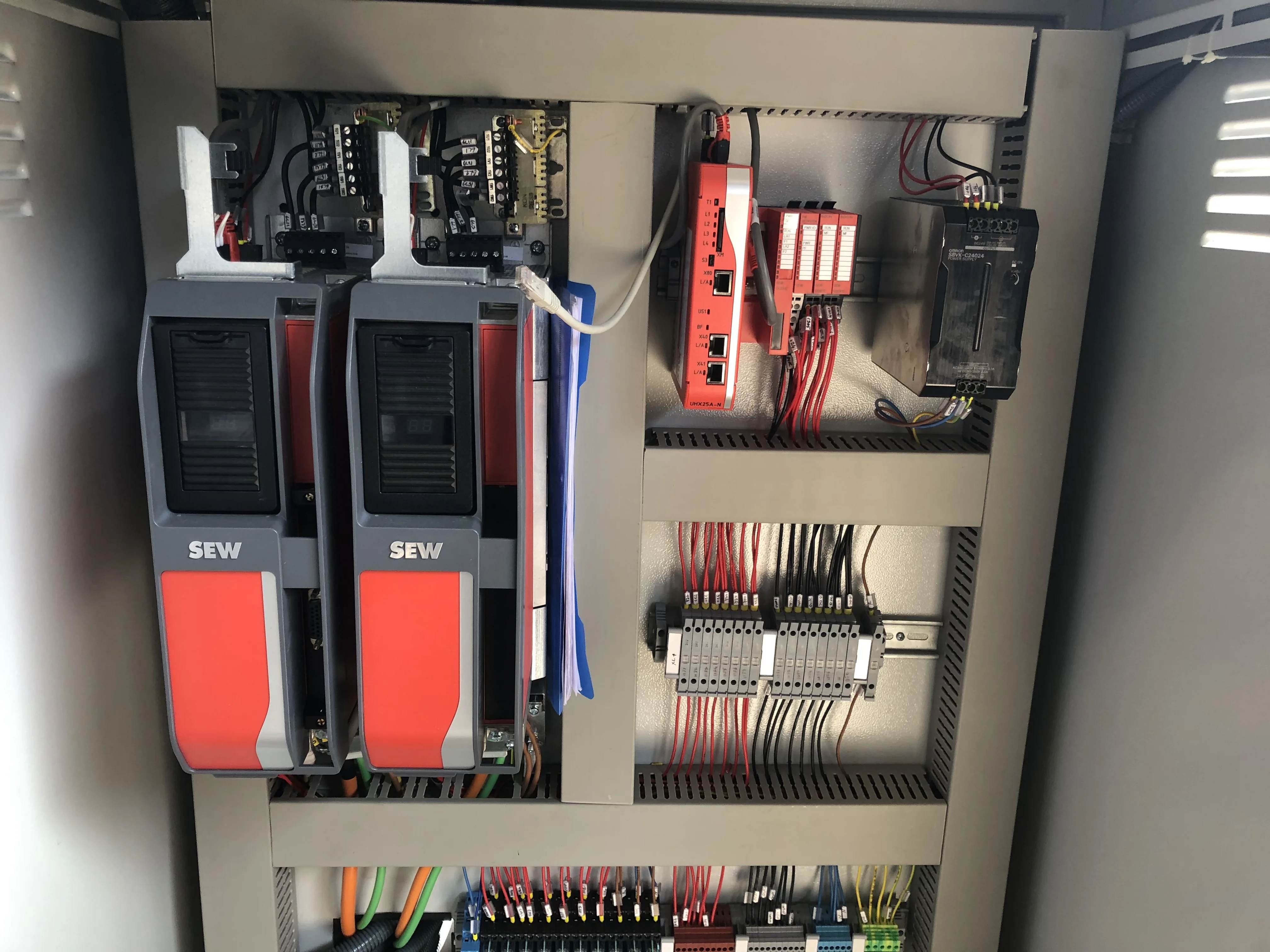

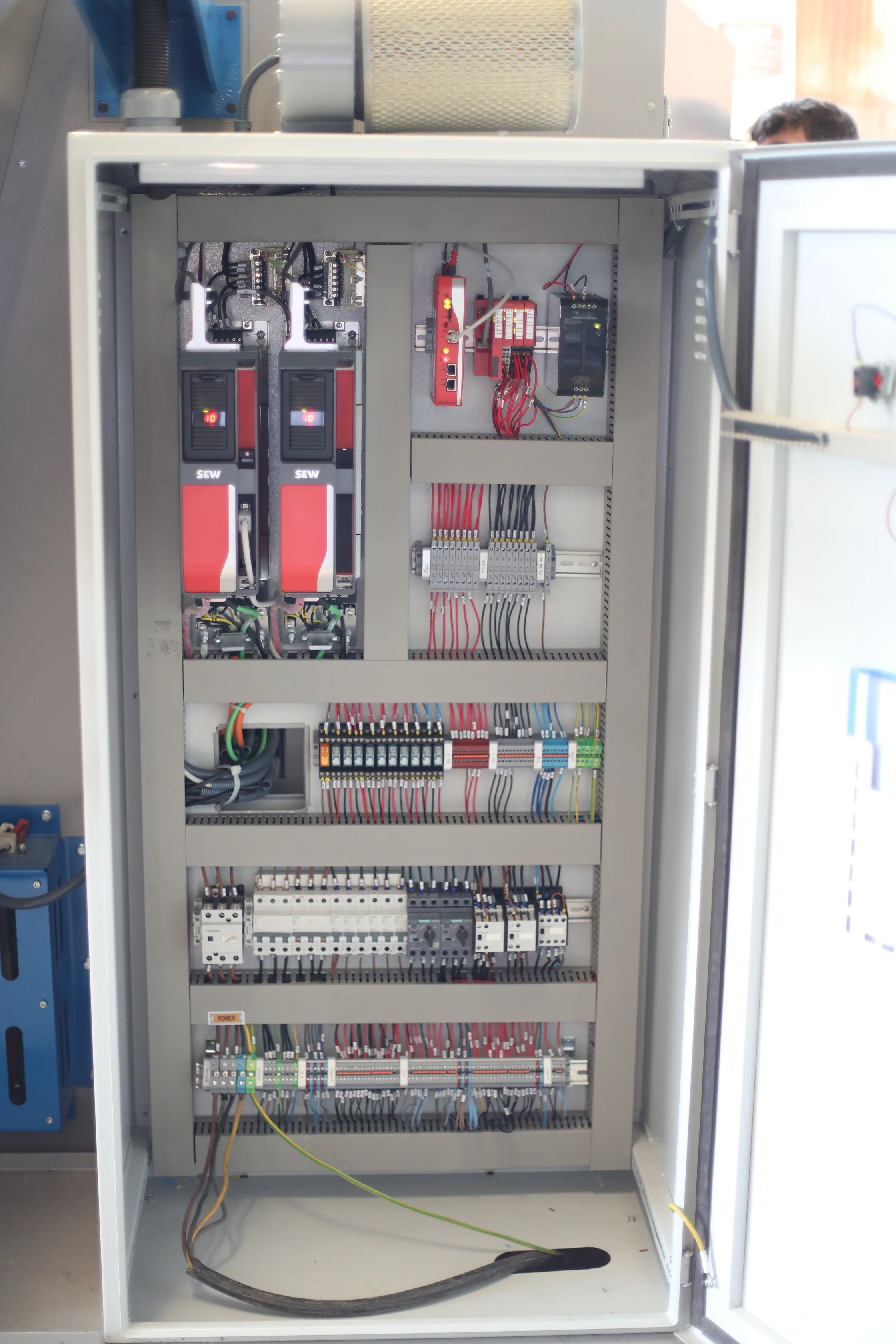

Name: CONTROL DRIVER
Brand: SEW EURODRIVE
Original: Germany

Machine Parts

Name: SERVO MOTORS
Brand: SEW EURO DRIVE

Orginal: Germany

Main Features

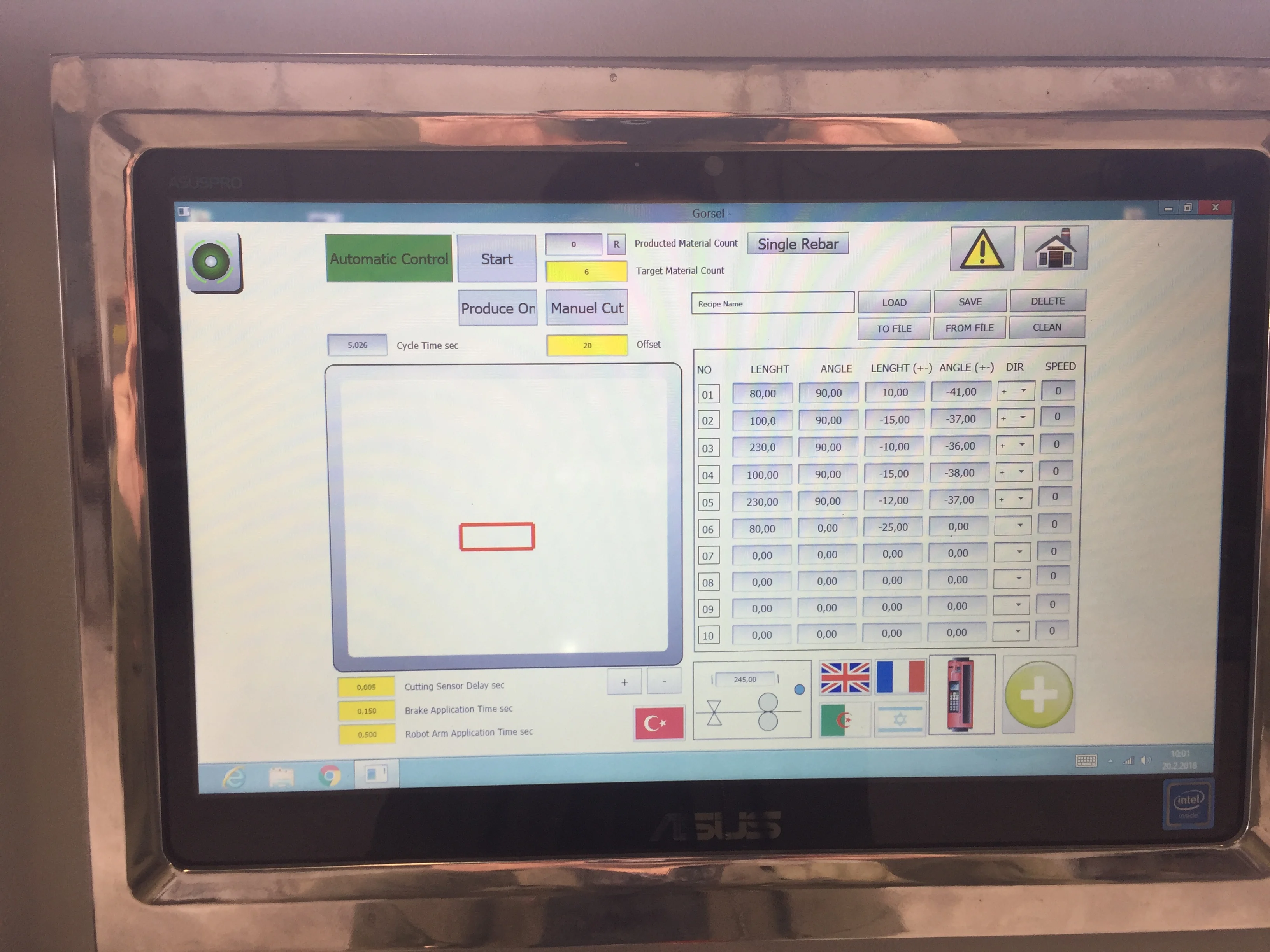

Name: CONTROL PANEL

Brand: ASUS
Original: JAPAN

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
2.7T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
2.7 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
