Online Touch Screen Metal Detector Metal Inspection Machine Conveyor belt metal detection machine With CE Certification JZD 600

Share on (62487751532):


Price:

Quantity:


Product Overview

Description

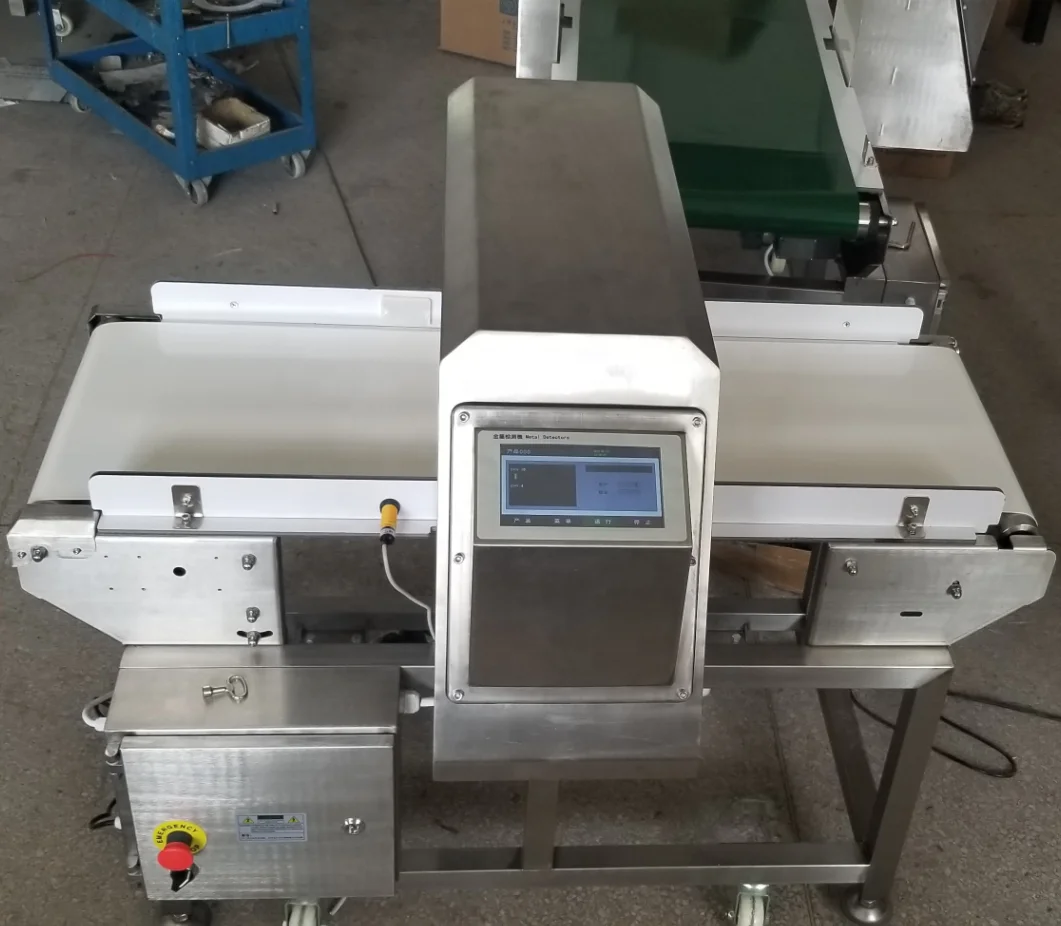

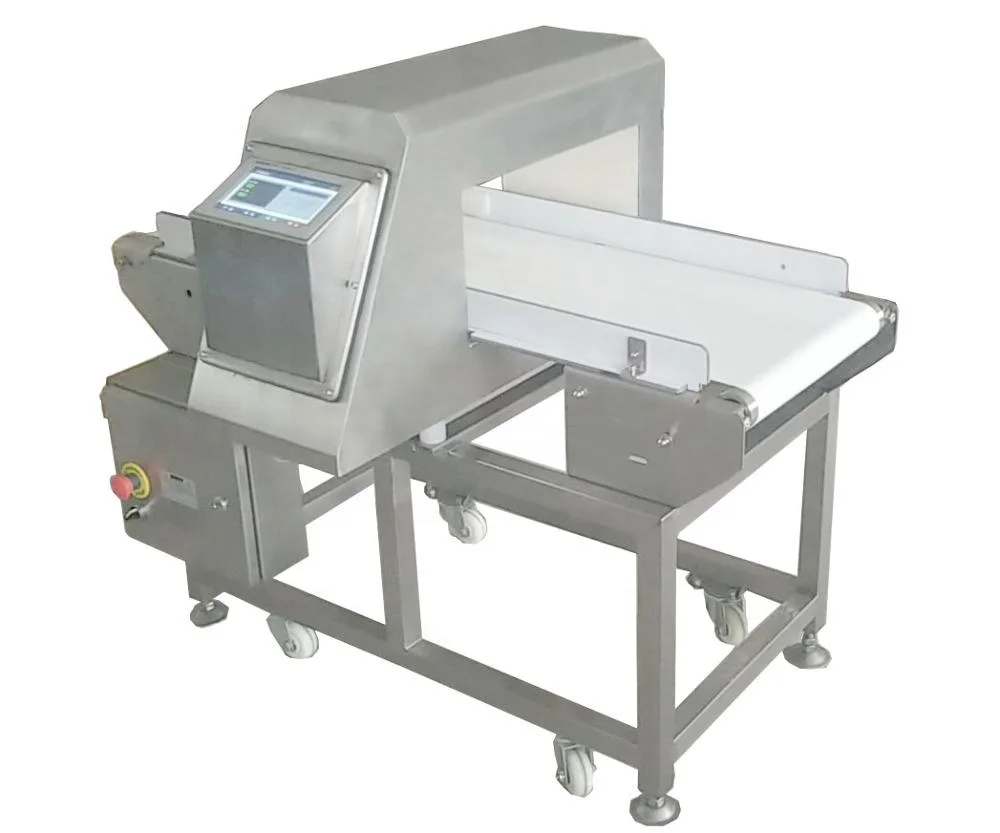

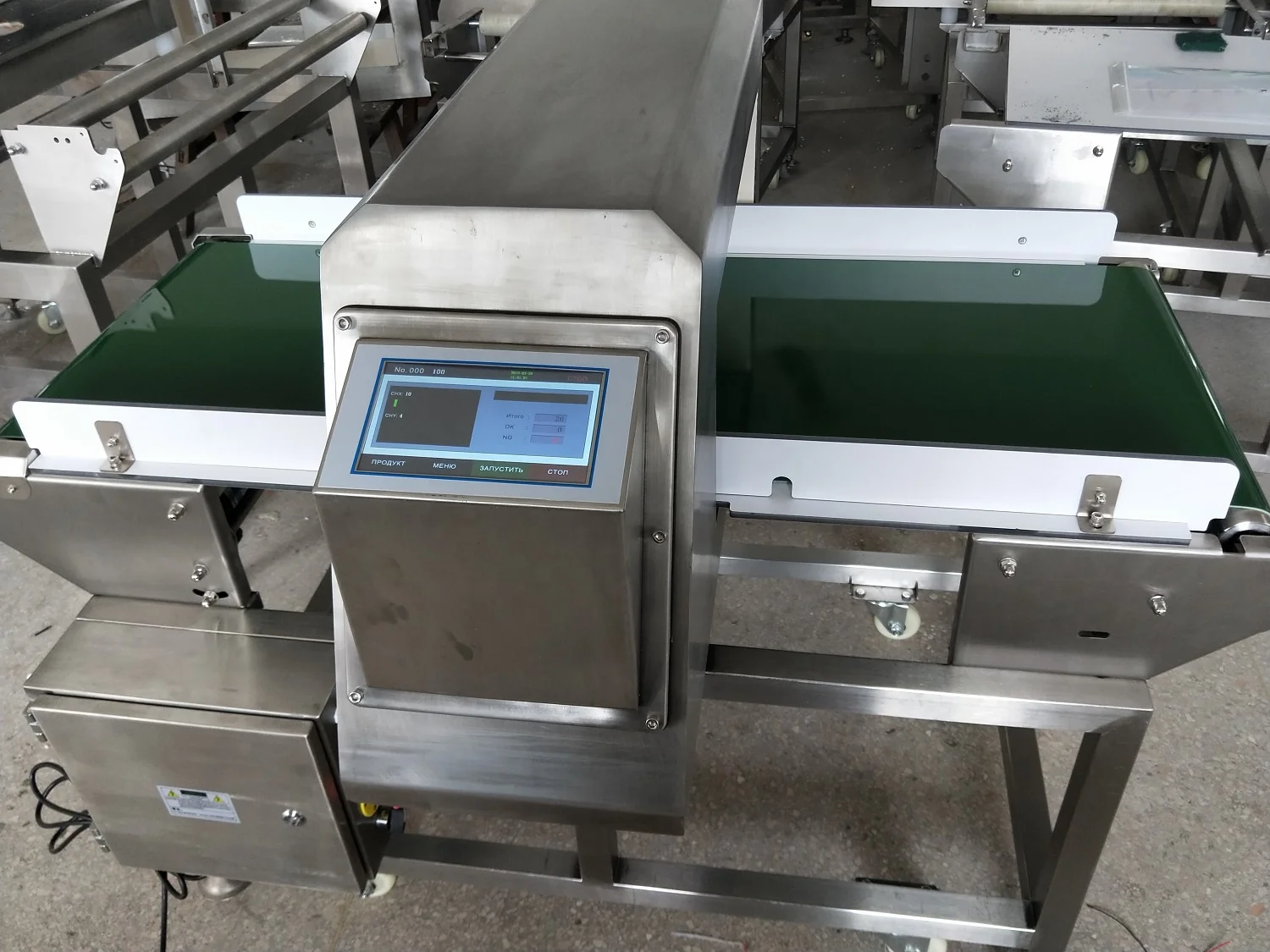

Touch Screen Metal+Detector Metal Inspection Machine Conveyor belt metal detection machine With CE Certification JZD-600

Application

This kind of equipments can be used in the detection metal foreign bodys in food,medicine,food additives,spices,health products and other fields

Characteristics

         1. All made of SUS304 Stainless steel,anti-erosion and long life span

2. Multi-frequency detecting, self-analysis function, high sensitivity.

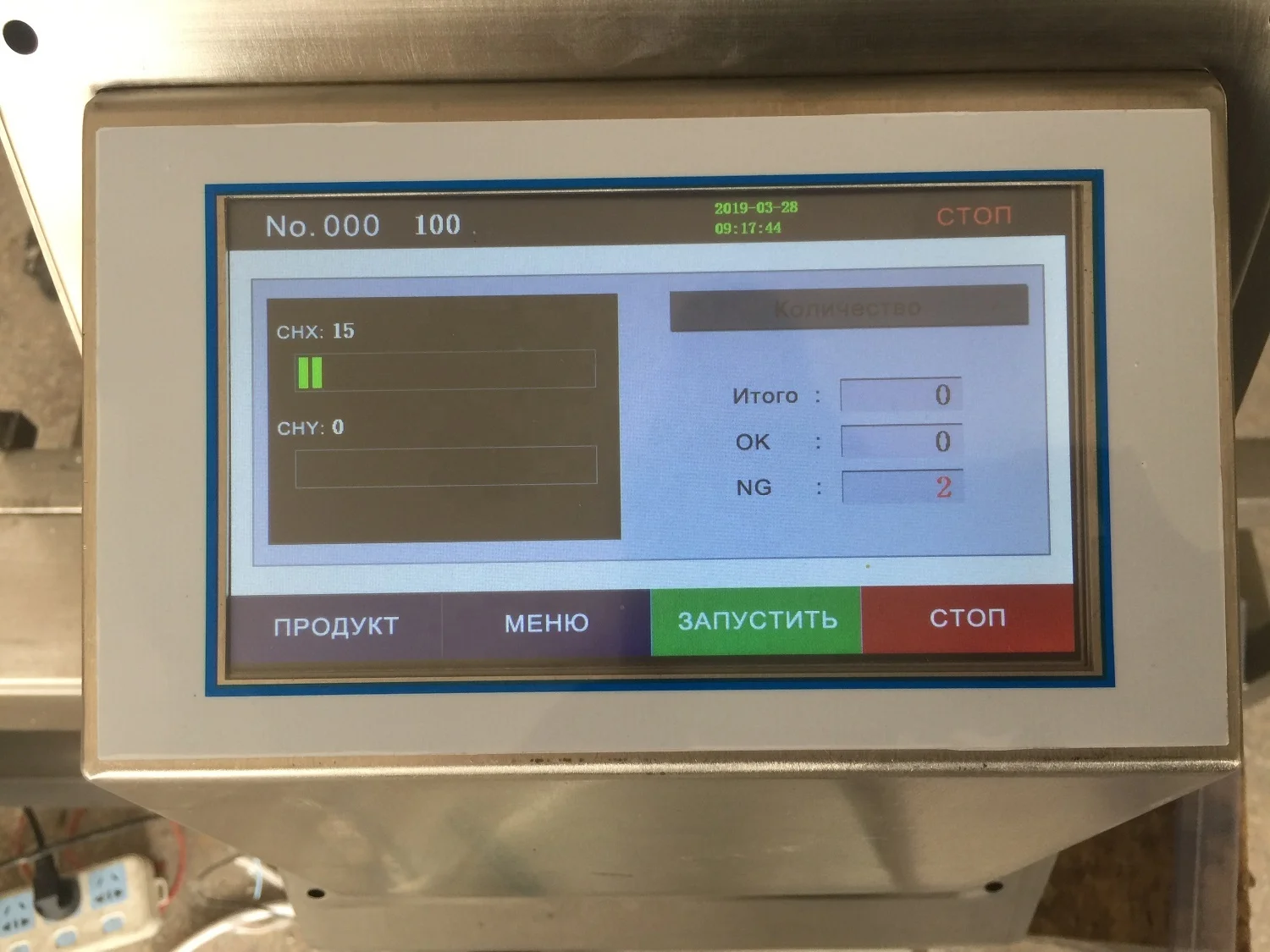

3. Colorful LCD touch screen , convenient user to operate

4. Can store about 100 product data, is suitable for a product line with volatile detecting products.

5. Dual channel detecting: one channel to detect FE and the other to detect non-ferrous metals.

6. Waterproof IP66 protection level,can be washed by high pressure water

7. Can stably work for a long time, with a special design that is suitable for a harsh production environment of strong vibration and high interference. And  the equipment won’t miss alarm even when you tap the probe.

8. The design of a succinctly detachable framework is easy for the operators to clean the equipment

Technical Parameters

Model

JZD-600

The Width of inspection window (mm)

400(customized)

500(customization)

The Height of inspection(mm)

120

150

200

150

200

250

300



Detection Sensitivity

Fe(Φmm)

0.8

≥1.0

1.2

1.0

1.2

≥1.5

2.0



Non-Fe(Φmm)/SUS

≥1.5

≥2.0

≥2.5

≥2.0

≥2.5

≥3.0

≥3.5



  Alarm

alarm to stop transfer or reject setting

Raw material

SUS304

Normal machine size (mm)

1700(L)mm×910(W)mm×1000(H)mm(Based of normal size40*12cm)

Net Gross

330kg (based of normal size)

Electrical source (Power)

110V/220V/380V /440V 50Hz/60Hz (Power)90W

Conveyor speed

25-30m/min(customized)

Conveyor height

650mm±50mm (customized)

Noted:the above sensitivity judged by the machine without bearing any parts,the actual sensitivity have relation with nature and the temperature of the products etc,can install auto -rejection equipments according custom's requirements
