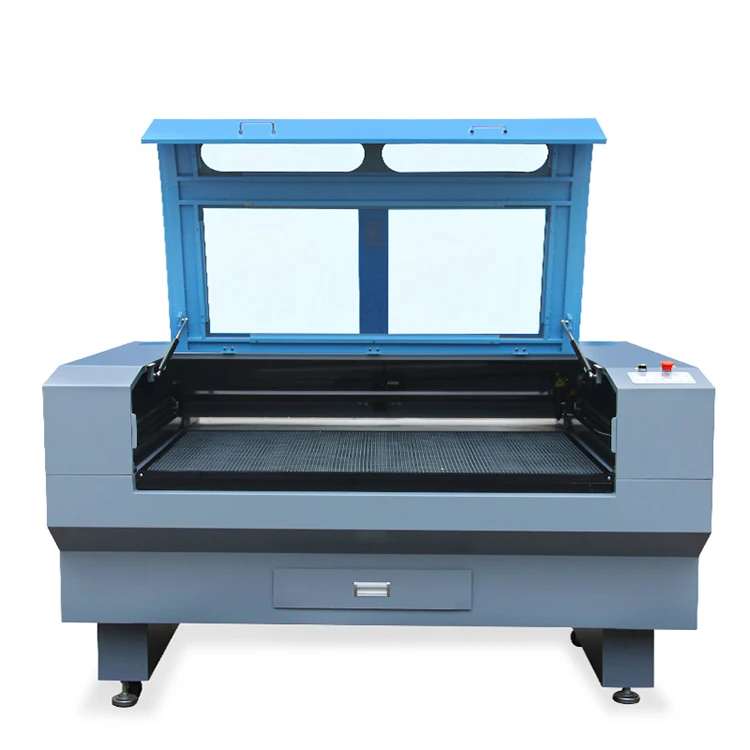

80W 6090 Co2 Laser Engraving Cutting Machine For Wood Pictures And Photos

Product Overview

Description

80W 6090 Co2  Laser Engraving Cutting Machine For Wood  Pictures And Photos

1. Autofocus function(optional)

  2.working area 900*600(Customized available)

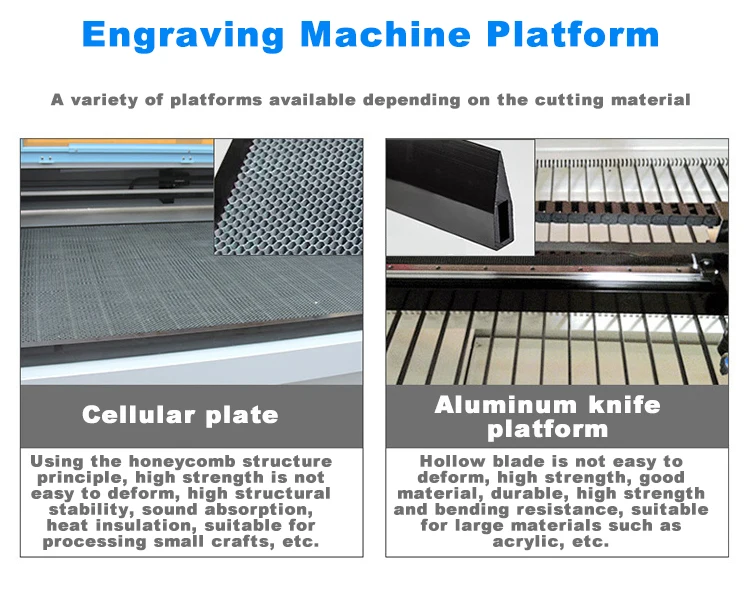

  3.Aluminium Knife and Honey comb working table
4.Imported mirrors and lens
5.Leadshine motor driver
6.TAIWAN STAF Hiwin guide rail

 7.CW3000/CW5000/CW5200(OPTIONAL)

  8.Water cut-off protect system







1 Model: LT-690   Door/Car Ottomans Mat Laser Engraving/Cutting Machine



2 Applicable materials:



wood,MDF,acrylic,plastic,plexiglass,crystal,rubber,fabric,paper and other non-metal materials.



3 Applicable Industry



Processing industries of  largescale engraving and cutting,such as garment,leather,



clipping,cutting of template, printing,



advertisement decoration,building upholster,art gift, computerized embroidery, package,



paper product ,acrylic product,middle density board etc. nonmetal sheet precision cutting



and other industries.



4 Technical Parameters:



Laser Power	60W,80W
Supply Voltage	110/220V±10% ,50/60Hz
Working Size	900mmx600mm
Working table	Aluminum knife and honey comb
Up and down size	250mm
Table control mode	Manual/Electric
Max engraving Speed	1000mm/s
Max cutting speed	600mm/s
Locating Precision	<0.01mm
Min shaping character	Character 2x2mm ,Letter 1x1mm
Resolution	0.0125mm
Cutting thickness	0-15mm
Control Configuration	DSP
Data transfer Interface	USB
System Environment	WINDOWS XP/Win7/8
Graphic file format	BMP,PLT,AI,CDR,DXF
256 Color separation output	Support
360 degree slope engraving	Support
Off line working	Support
Cooling Way	Water Cooling
Operating temperature	5°C -35°C
Water protecting sensor and alarm	Yes
Net Weight	260Kg
Machine dimension	1480x1010x1100mm







Laser  engraving cutting Machine features and functions:

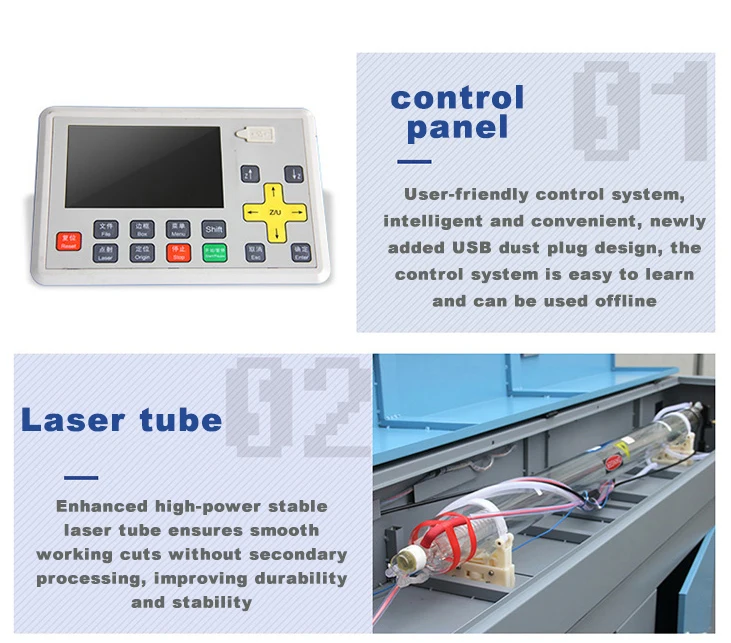

 1. adopted DSP digital control technology integrated frame structure to ensure the work stability.



 2.support AutoCAD, CorelDRAW CAD, CDR and other graphical software and make it available to directly output pictures.



 3. USB data interface can support heat play . Quick data transitting without taking up computer resource Chinase & English edition liguid display can make it easy for user to operate.



 4.laser engraving and cutting machine adopts high Precision step-by-step motor as drive part

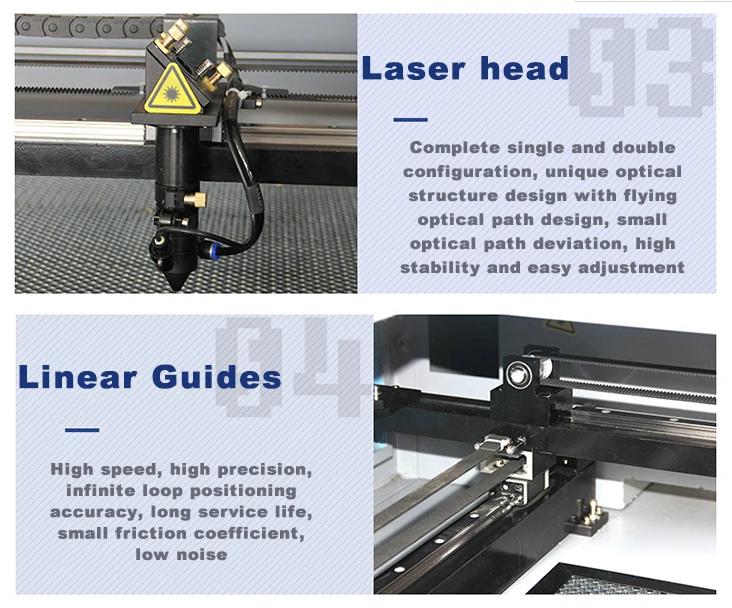

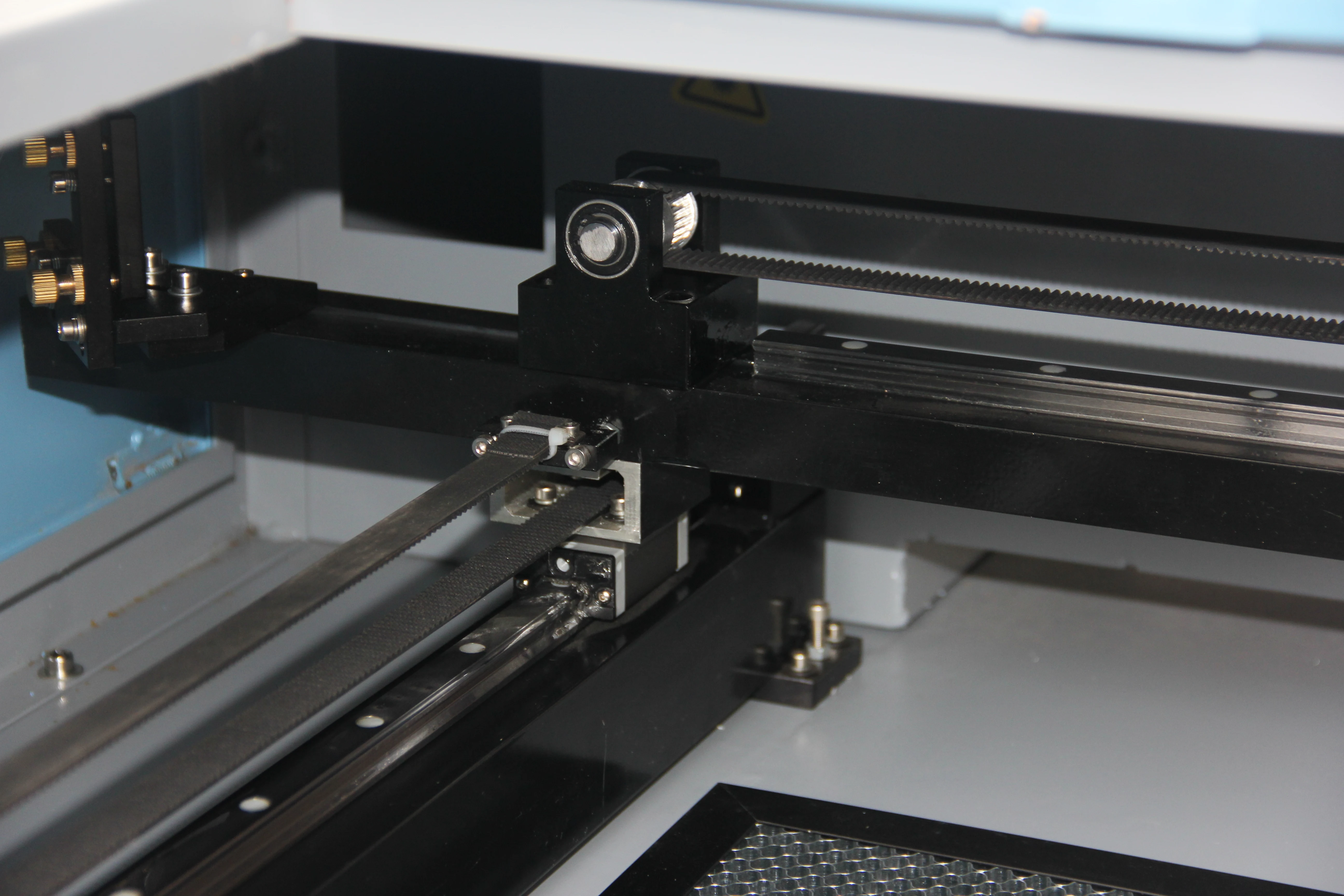

 5.utilizes three original TaiWan straight line guide tracks in axis X and Y



 6.uses four pieces of specialized laser lens, and enables the machine speedy and accuracy incisive.



 7. The engineering design to the path of rays system improves the regulation accuracy of the flight path of rays and the laser use efficiency.



 8.This series of laser cutting and engraving machine is an ideal choice for professional cut and engrave.





Laser engraving cutting Machine Configurations :



  1.USA ZnSe 63.5 focus lens diameter 22MM or 50.8 focus lens dia 20MM



  2.USA Molybdenum mirror diameter 27MM/ 25MM

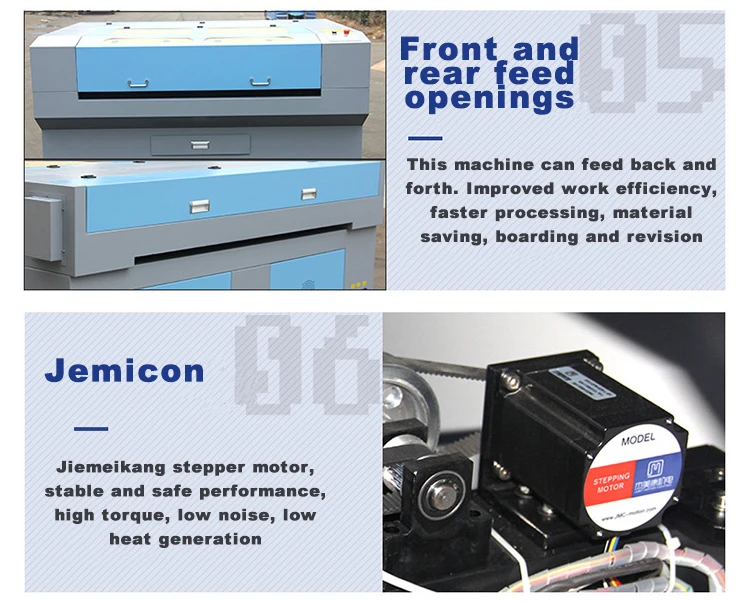

  3.leadshine stepper motor and driver /Servo motor



  4.TAIWAN linear Guide rail, Germany  belt transmission.Hi precision gear

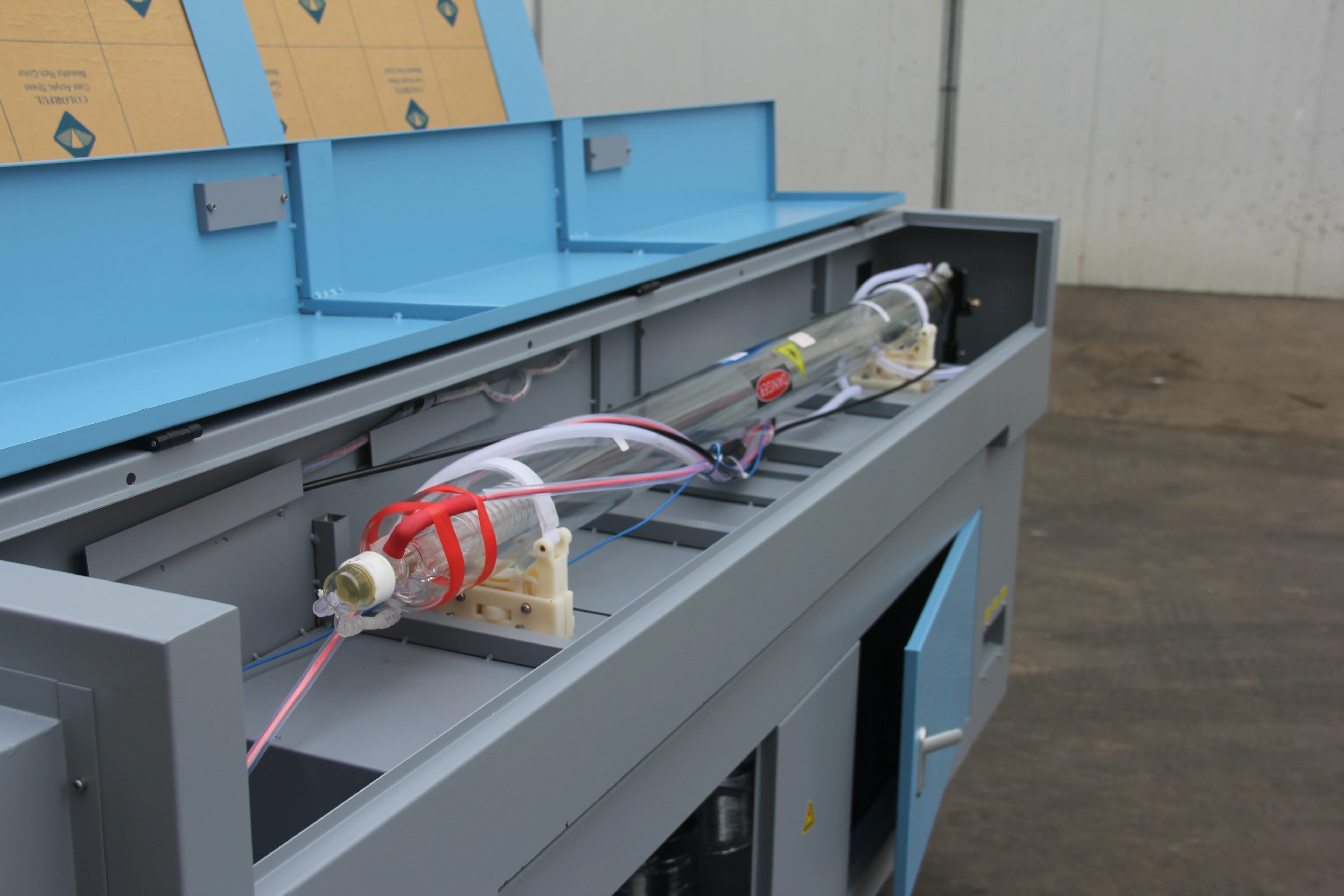

  5.china famous brand laser tube ,good beam for laser cut

Standard Accessories:

1.1x power cable

2.1x USB cable

 3.1x CD(RDCAM software 6.0 english version)

4.1x air Pump

5.1x exhaust fan

6.1x exhaust fan pipe

7.1x water pump

8.1x water pipe

9.water chiller























Q1.How to get the most suitable machine and best price ?
Please tell us:
*the material you wanna handle
*the MAX size of these materials(length,width and thickness)
*the work you wanna handle with this machine (Engraving ? Cutting? or others?)



Q2.Do you have the manual of machine?
Yes ,we can provide manual ,CD software and installing video to help you operate the machine expertly.



Q3.If we don’t know how to use the machine ,can you teach us?
Yes,of course. We can offer you free training and engineers available to service machinery training overseas
if you would like to offer them business expenditure.



Q4.How about your after sales service?

We offer professional and timely after sale 24 hours online service via phone ,Skype or TeamViewer.
We our technician will contact you once you got the machine and we could provide secure teaching as a professional factory.
