Viatom Checkme Pro Doctor Personal Health Blood Oxygen Pulse Rate Vital Signs Monitor ECG
ECG Machine
Product Description
ECG
Lead Type
Display Gain
Band Width
Lead Set
Sweep Speed
Integrated ECG electrodes External ECG cable and electrodes
1.25 mm/mV, 2.5 mm/mV, 5 mm/mV10 mm/mV, 20 mm/mV
0.05 to 40 Hz
Lead I, lead II
25 mm/s
Electrode Offset Potential Tolerance
Measure Mode
Accuracy
Sampling Rate
HR Measurement Range
±300 mV
Episode, continuous
±2 bpm or ±2%, whichever is greater
500Hz
30 to 250 bpm
Sampling Accuracy
ST Measurement Range
Measurement Summary
16 bit
-0.5 to +0.5 mV
Heart rate**, QRS duration, ST segment***,QT/QTc Rhythm analysis(Regular ECG Rhythm, High Heart Rate, Low Heart Rate, High QRSValue, High ST Value***, Low ST Value***, Irregular ECG Rhythm,Unable to analyze)
Detailed Images
Related Products
Company Information

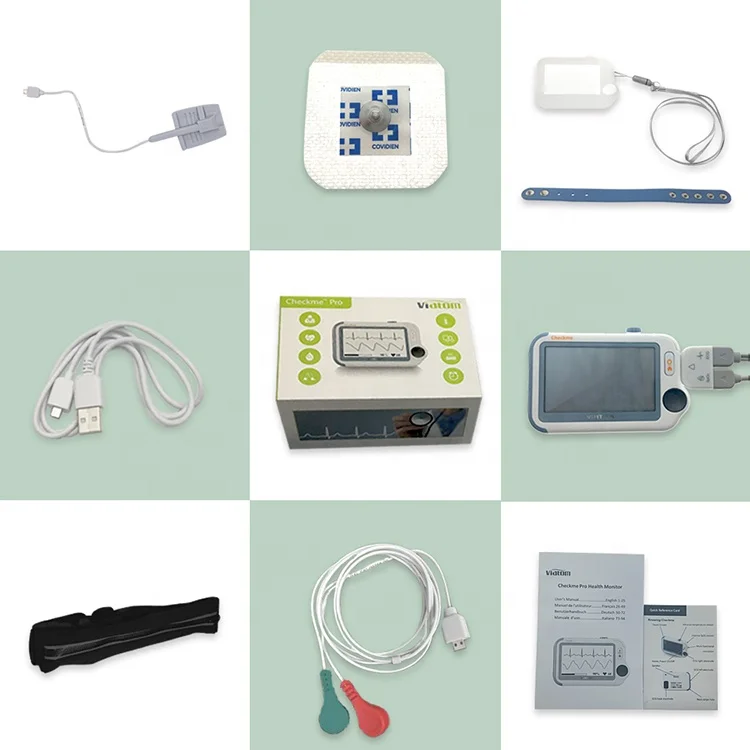

Packaging & Shipping
FAQ
Q1: Can this be used with a pacemaker? A: Pacemaker patients need to consult a specialist or doctor before measuring results.
Q2:Will the unit tell me if my heart is currently in atrial fibrillation, or will it just read out ‘irregular heartbeat? A: It can detect if your heart is currently in atrial fibrillation and reported as "irregular heartbeat". Arrhythmia, Heart Pause, Atrial Fibricular (AF), Tachycardia & Bradycardia, Premature Ventricular Contraction (PVC), all of these are shown as 'Irregular heart beat'.

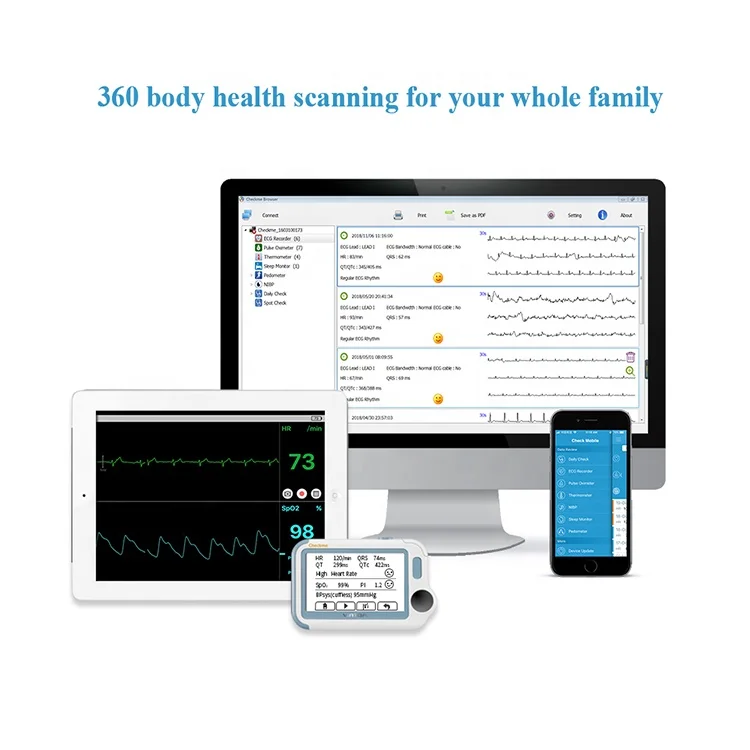

Q3: Will this work with phone APP? How to use with my smartphone? A: It will. Checkme Pro Doctor can work with iOS 9.0 or above, iPhone 4s / iPad 3 or above, also can work with Android 5.0 or above Use the APP “MyBeats Hub”and “MyBeats Air(special for “24hours ECG holter”, install the latest APP on your smartphone(support BLE Bluetooth) from App Store (iOS) or Google Play (Android). 1) Switch on the device Bluetooth in Setting->Bluetooth. 2) switch on the Phone Bluetooth. 3) Run the APP, add the device in the APP. (don’t pair the device in the phone Setting menu, only in the APP) 4)The data will be downloaded automatically
Q4: Does the ECG report include the QTC interval? A: Yes. The machine will report the QTC interval.
Q5: Do I have to pay to save my ekgs? A: No, you do not need to pay to save your EKGs. Our application allows local storage of your EKG history at no additional charge as part of our basic service.
