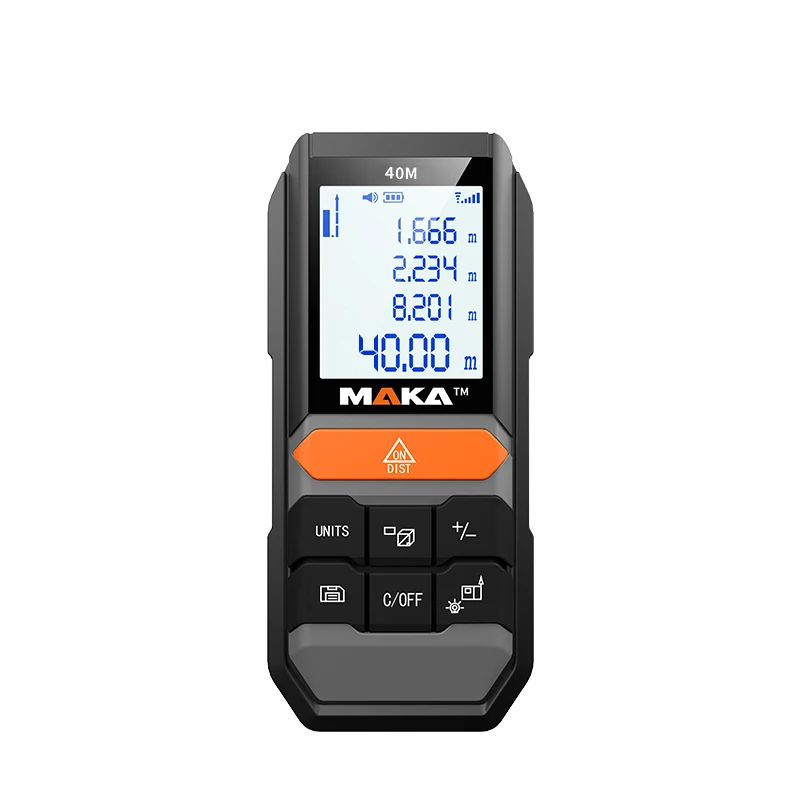

Интертек 40 м нового дизайна цифровой лазерный дальномер для прибор для измерения Лазерные дальномеры
- Category: Laser Rangefinders >>>
- Supplier: Jinhua,Maka,Technology,Co.,Ltd.
Share on:
Product Overview
Description
TUV Certified Factory
Contact us
Lizzy Xu
E-mail： [email protected]
WeChat： 15258981196
Jack Jiang
E-mail：[email protected]
WeChat：jjl7075
WeChat： 15258981196
Jack Jiang
E-mail：[email protected]
WeChat：jjl7075
● Open for a wide cooperation
● All of our items are under the cover of patents applied
● More than 1 million pieces annual output to a top quality guarantee .
● Established in 2011 , leading in the designing and manufacturing of laser meter, wall scanner, laser level etc.
● Experienced exports to the whole world, such as USA, Japan, Korea, Europe ,Russia and Australia ,etc, with completed
certifications like FCC/ETL/CE/EMC/Rohs Certificates, BSCI, IS09001 management system.
● Many sound Long-term co-operations with giant companies globally
● A great pack of policies support to VIP clients
● All of our items are under the cover of patents applied
● More than 1 million pieces annual output to a top quality guarantee .
● Established in 2011 , leading in the designing and manufacturing of laser meter, wall scanner, laser level etc.
● Experienced exports to the whole world, such as USA, Japan, Korea, Europe ,Russia and Australia ,etc, with completed
certifications like FCC/ETL/CE/EMC/Rohs Certificates, BSCI, IS09001 management system.
● Many sound Long-term co-operations with giant companies globally
● A great pack of policies support to VIP clients
a. small and portable, stable performance, safe and reliable.
b. simple function, easy to operate, convenient to carry.
c. Instead of tape measure. it is operated by one person and can be used for Length, volume, area measurement.
b. simple function, easy to operate, convenient to carry.
c. Instead of tape measure. it is operated by one person and can be used for Length, volume, area measurement.
Accuracy of measurement | ±3mm | ||||||
Measuring range | 0.03-40/50/60/70/80/100/120m | ||||||
Display minimum unit | 1mm | ||||||
Single measurement time | 0.1～4 seconds | ||||||
Unit of measurement | M(meter)/ft(feet)/in(inch) | ||||||
Laser level | Class II | ||||||
Laser type | 620~670nm | ||||||
Laser power | <1mW | ||||||
Continuous distance measurement | support | ||||||
Area measurement | support | ||||||
Volume measurement | support | ||||||
Pythagorean measurement | support | ||||||
Area, volume, Pythagorean , +/- measurement | support | ||||||
Maximum and minimum measurements | support | ||||||
Store the data | 20 sets of data | ||||||
Switch of measurement datum | support | ||||||
Display lighting | support | ||||||
buzzer | support | ||||||
The battery type | AAA alkaline battery 1.5Vx2 | ||||||
Battery life | Can perform 5000 measurements | ||||||
Operating temperature | 0°C－40°C | ||||||
Storage temperature | -20°C－60°C | ||||||
Self-closing laser | 15 seconds | ||||||
Automatic shutdown | 120 seconds | ||||||

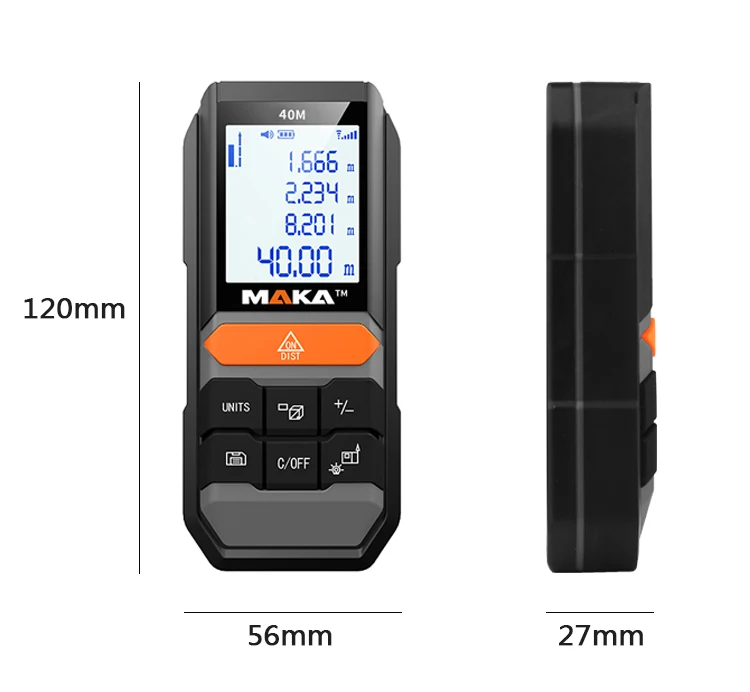

Size | 120mm x 56mm x 27mm | ||||||
* Under bad measuring conditions (such as too strong light, too large or too small reflection coefficient of measured surface),the measurement accuracy will have a large error.
* In outdoor mode, the laser power will increase. Please be careful to use it in
accordance with local laws and regulations.
accordance with local laws and regulations.
Note: In the measurement mode of Pythagorean , the right Angle side must be less than the hypotenuse length before the instrument can calculate, otherwise the instrument will display an error message. In the measurement mode of Pythagorean , to ensure the measurement accuracy, it is necessary to start from the same starting point, and measure according to the hypotenuse ，right angle side.
Right view
Left view
Rear view
Contact us
Lizzy Xu
E-mail： [email protected]
WeChat： 15258981196
Jack Jiang
E-mail：[email protected]
WeChat：jjl7075
WeChat： 15258981196
Jack Jiang
E-mail：[email protected]
WeChat：jjl7075
Area accumulation/reduction

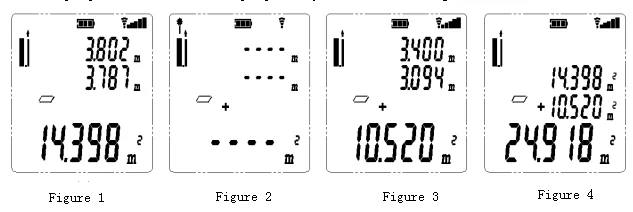

The first area value is measured according to the method of area measurement, as shown in figure 1. Short press "+/-" key，Until the LCD auxiliary display area (The third line) shows “+”，As shown in figure 2, the second area value is measured according to the method of area measurement，The result is shown in figure 3，Finally, press "DIST" key to get the results of two times of measured area value accumulation，The last two measured area values are displayed in the auxiliary display area,The results of the addition are displayed in the main display area, as shown in figure 4.

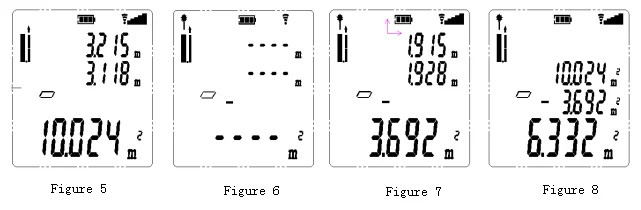

The first area value is measured according to the method of area measurement, as shown in FIG. 5，Short press "+/-" key，Until the LCD auxiliary display area (the third line) displays "-"，As shown in figure 6, the second area value was measured according to the method of area measurement, and the results were shown in figure 7，Finally press "DIST" key to get the result of two subtractions of measured area values,The measured area values of the last two times are displayed in the auxiliary display area, and the results of subtraction are displayed in the main display area, as shown in FIG. 8.

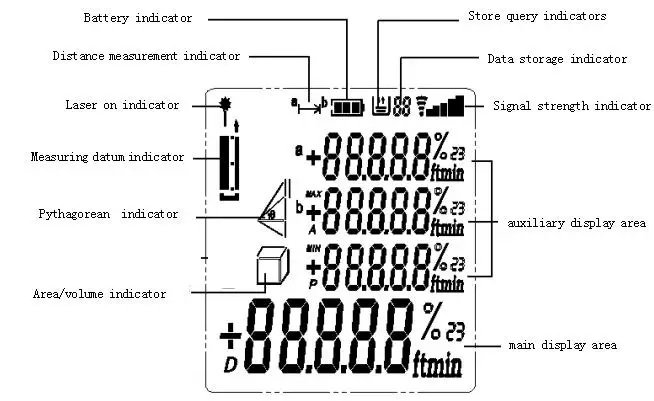

Prompt information
During the use of the instrument, the following information may appear in the main display area：
Information | cause | solution | ||||
B.L | Battery voltage is too low | Replace the battery | ||||
T.L | Instrument operating temperature is too low | Heat up the instrument | ||||
T.H | Instrument operating temperature is too high | Cool the instrument | ||||
D.H | Measurement data out of range | Remeasure | ||||
S.L | The signal is too weak | measure strong reflection points | ||||
S.H | The signal is too strong | Measure weak reflection points | ||||
H.F | Hardware error | Restart the shutdown, if the switch has not been solved for several times, please contact the dealer | ||||
Applications

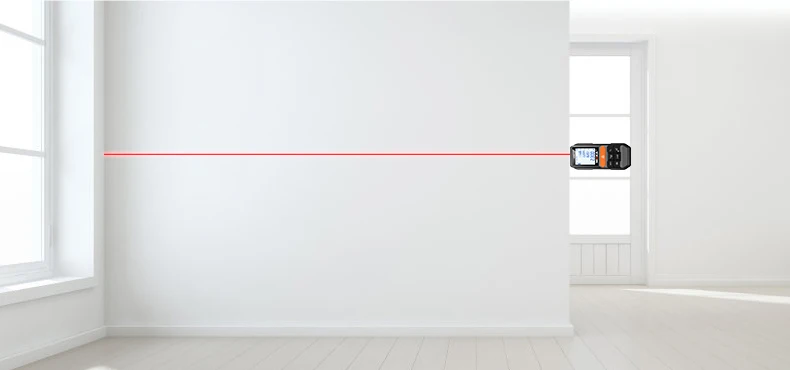

Single measurement
Press the orange button short and fire A laser to show the measured length A.

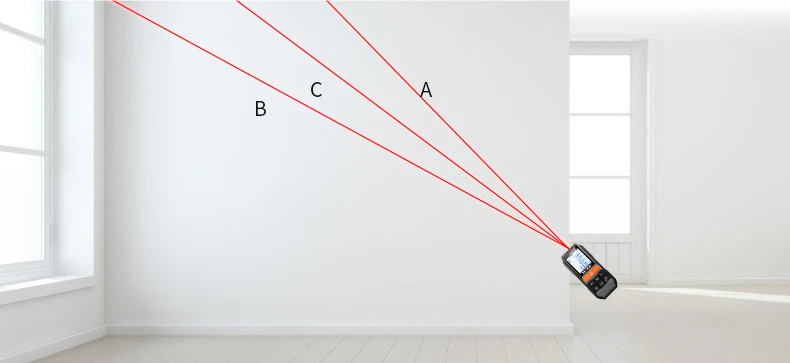

Continuous measurement
Long press the orange button for continuous measurement.Refresh A, B and C lengths in real time.

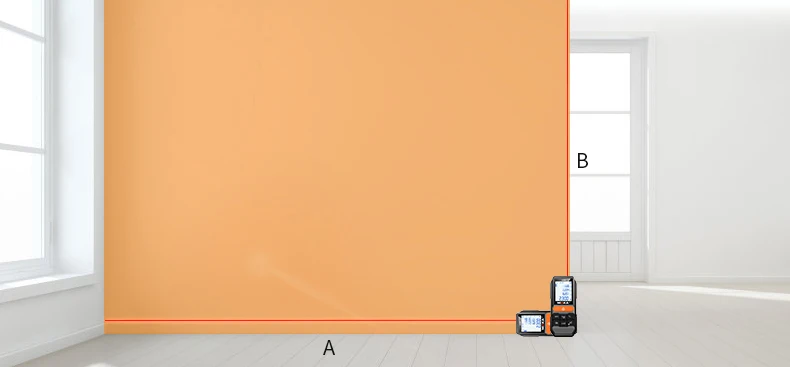

Area measurement
Press the "Area、volume" button, select the area mode, measure the length and width, and then the area can be displayed.

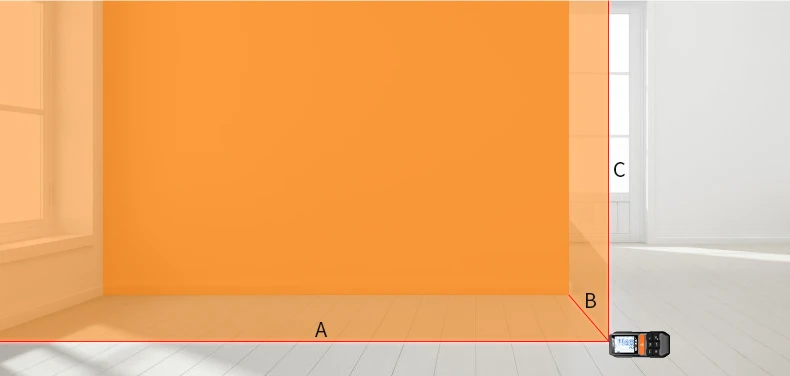

Volume measurement
Click the "Area, volume" button to display the volume for measurement.
Contact us
Lizzy Xu
E-mail： [email protected]
WeChat： 15258981196
Jack Jiang
E-mail：[email protected]
WeChat：jjl7075
WeChat： 15258981196
Jack Jiang
E-mail：[email protected]
WeChat：jjl7075

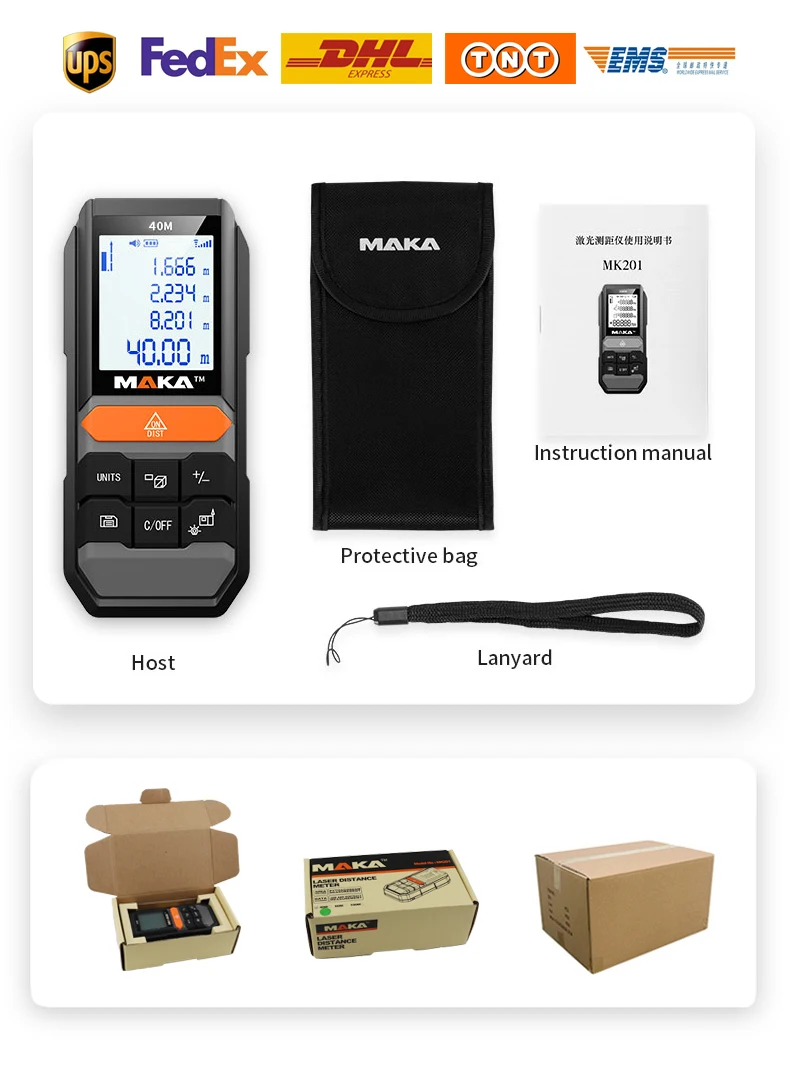

Package & Transportation
Warm tip: for small orders, the batteries are not included in the delivery.

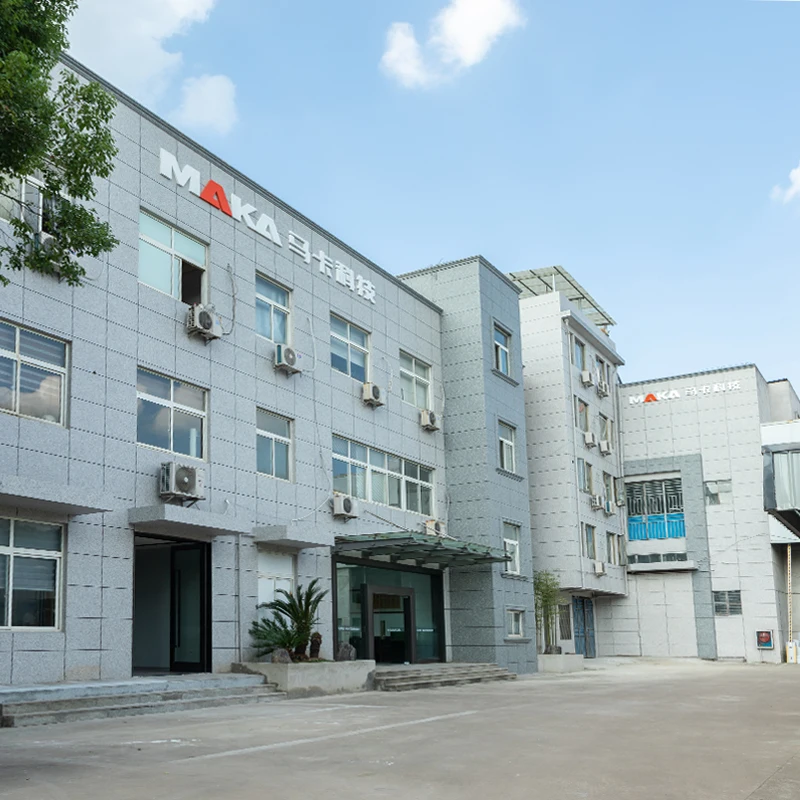

Company Profile
Jinhua maka technology co., LTD is an experienced professional designer and manufacturer of multi-functional wall detector, infrared thermal imager, laser rangefinder, laser level, humidity meter, endoscope products in the awards of high-tech enterprise and innovative patent demonstration enterprise, and has obtained ISO 9001-2018, BSCI certificates, CE/EMC, EM60825-1:2007, ETL, FCC,C-tick, ROHS, REACH etc.

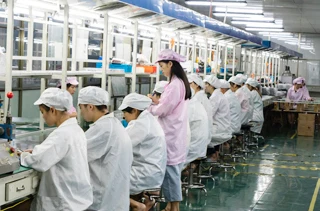

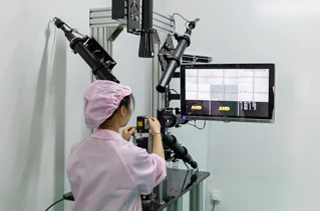

Adhering to the concept"Quality is the life of the enterprise", our company has built an experienced quality management team, the number of QC is more than 25% of the total employees. There has been a strict quality control chain from incoming material inspection (IQC), process inspection (PQC), outgoing inspection (QA) to reliability test verification (QE) to completely achieve quality control with no blind spots. We set up quick response system to collect products reviews or comments from the market and clients for any improvements and development and have successfully achieved zero customer complaints from our clients these years and been one of the quality suppliers of many famous company around the world.
Our company acts under the concept of "Innovation is the soul of enterprise development", insists on "Innovation-driven development strategy" and yearly invests a great percentage of sales amount in the research and development; There is a gradually increasingly experienced and innovative R&D team. During the passed ten years, we successfully developed a good number of products with good market shares, most of which are patented and have been popular with consumers in their high reviews building us a good name home and abroad.
Adhering to the concept"Quality is the life of the enterprise", our company has built an experienced quality management team, the number of QC is more than 25% of the total employees. There has been a strict quality control chain from incoming material inspection (IQC), process inspection (PQC), outgoing inspection (QA) to reliability test verification (QE) to completely achieve quality control with no blind spots. We set up quick response system to collect products reviews or comments from the market and clients for any improvements and development and have successfully achieved zero customer complaints from our clients these years and been one of the quality suppliers of many famous company around the world.
Our company acts under the concept of "Innovation is the soul of enterprise development", insists on "Innovation-driven development strategy" and yearly invests a great percentage of sales amount in the research and development; There is a gradually increasingly experienced and innovative R&D team. During the passed ten years, we successfully developed a good number of products with good market shares, most of which are patented and have been popular with consumers in their high reviews building us a good name home and abroad.
Certifications
A number of certification
The company's products have obtained ce-EMC,ROHS,EM60825-1:2014,ETL,FCC and other related certifications.
To download the certificate, click on the certificate picture and download it from the company profile.
Exhibition
Our company participates in various exhibitions every year
• Germany Cologne international hardware fair
• Las Vegas international hardware fair
• Canton international hardware exhibition
• China International Hardware Fair
• Shanghai Hardware Expo
• Las Vegas international hardware fair
• Canton international hardware exhibition
• China International Hardware Fair
• Shanghai Hardware Expo
FAQ
Q 1. Are you a manufacturer or a foreign trade company? How about your pricing?
We are an experienced professional designer, manufacturer and exporter of laser meter, distance meter, wall scanner etc for over 10 years with strict quality controls.
We are open for a negotiable price for all of our clients. You may send us emails for any of your concerns.
We are open for a negotiable price for all of our clients. You may send us emails for any of your concerns.
Your concerns are of the most importance to us and takes our first focus.
Q 2. How can I go to your factory?
Our factory is located in Yongkang, Zhejiang,China.
About 1.5 hours from Guangzhou by air; 2 hours from Shanghai by highway , and 1.5 hours drive to Yiwu city.
Warmly welcome to our factory!
About 1.5 hours from Guangzhou by air; 2 hours from Shanghai by highway , and 1.5 hours drive to Yiwu city.
Warmly welcome to our factory!
Q3 . What's the annual outputs?
More than 1 million pieces each year.
Q 4. What's your MOQ? Can I buy some samples to test your quality or my market?
Generally MOQ is 100pcs.
Sample order also is accepted. We are pleased that you can test our items' quality and market.
Sample order also is accepted. We are pleased that you can test our items' quality and market.
Q 5. Can you provide OEM&ODM service?
Yes, we do have much experiences with many giant companies in the industry globally. If you need more details, please contact us.
Q 6. Do you have neutral English labels, manuals and cartons?
Yes, we do.
Q 7. Do you have quality control?
Yes, all items shall be 100% inspected strictly before delivery. Yearly there are several times of annual audits from the third parties and our clients.
Q 8. How about warranty?
We offer 1 year warranty.
Q 9. Did you attend Exhibitions?
Yes. Every year we attend Spring Canton fair during April 15th-19th and Autumn Canton fair during Oct 15th-19th. And we always go to Cologne, Vegas Show, MITEX Show etc. Welcome your visit.
Q10. Did you export goods to EU/South and North America/USA/Asia ect ?
Yes. If you need more details, please contact us for our company presentation.
