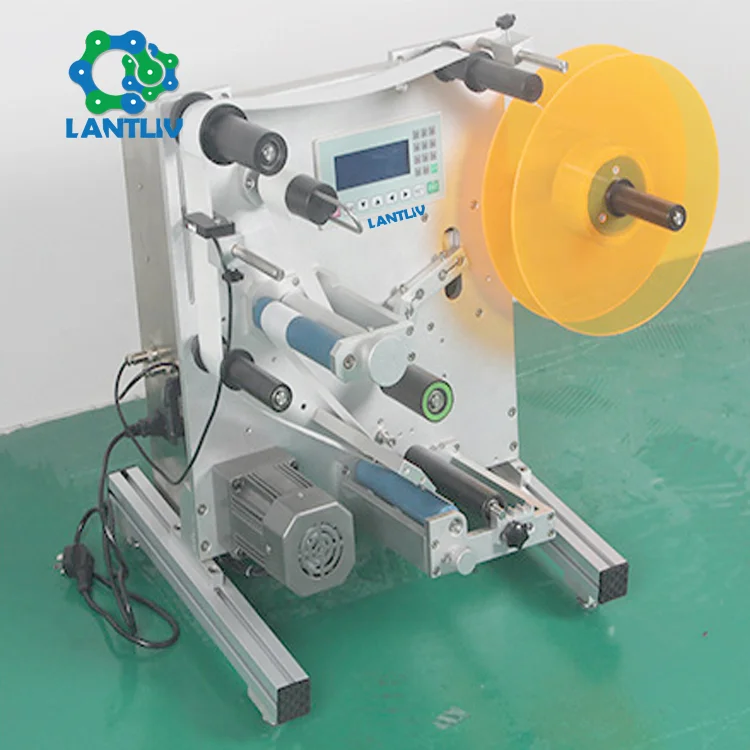

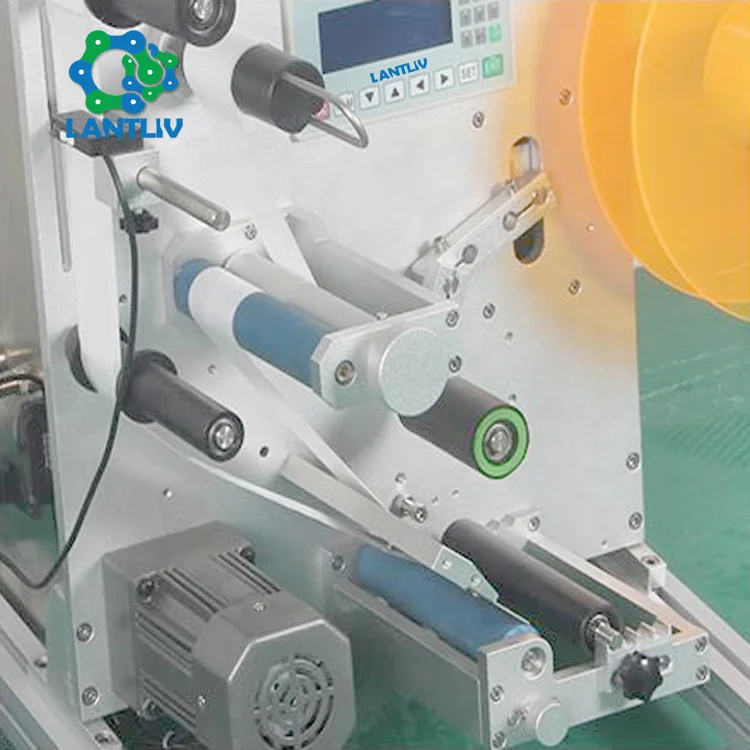

SL 130 Round Bottle Label Applicator Machine Self Adhesive Semi Automatic Labeling Machine For Bottle Front And Back Labeling
- Category: >>>
- Supplier: Guangzhou Lantliv Machinery Co. Ltd.
Share on (62488713725):
Product Overview
Description
Product Description
Semi automatic self adhesive labeling machine is applicable for labeling various round bottles made of glass, plastics, metal and so on with accurate positions. Also a coder can be mounted on it to print suchidentifications as production date, shelf life and product batch number. The machine adopts an intelligentcontrol system and an optimized design, thun featured by easy use and stable performance. In particular it's suitable for labeling and coding products with a small quantity but a great variety.
Technical Parameters
Model | SL-130 |
Voltage | AC220V/50HZ |
Power | 120w |
Max label size | W120*L300mm |
Minimum label size | W10*L30mm |
Round bottle size | Max 125mm, Min 20mm |
The label core size | Inner diameter 75mm, Outer diameter 300mm |

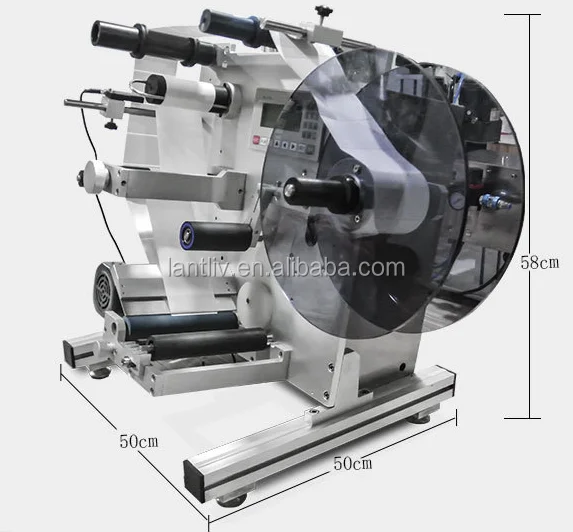

Machine size | L500*W500*H580mm |
Net weight | 45kg |
Product Details
How to Install Label Tape and Adjust its Tightness

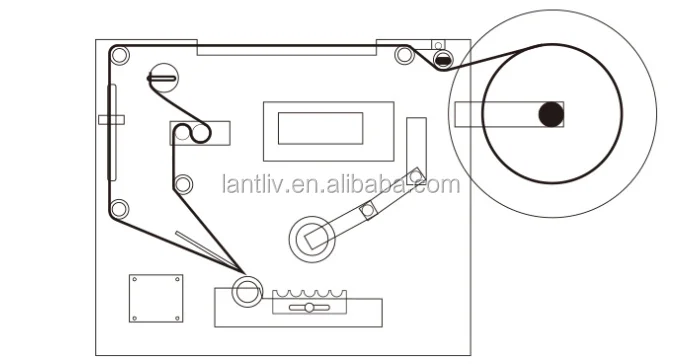

1. Release the handle of the press belt and wind the label tape in accordance with label tape windingdraming; clamp the label tape head with a U-type clip and then compress the handle of the press belt.
2. The label tape's tightness must be moderate as a too tight tape may be broken while a too loose one may have an impact on the labeling position. The micro-pressure block's pressure and the break band's tightness can be adjusted in accordance with actual conditions. 3. The waste tape's tightness can be adjusted through the hex socket screw on the tape winding wheel.
How to Adjust Rotary Torque of Bottle

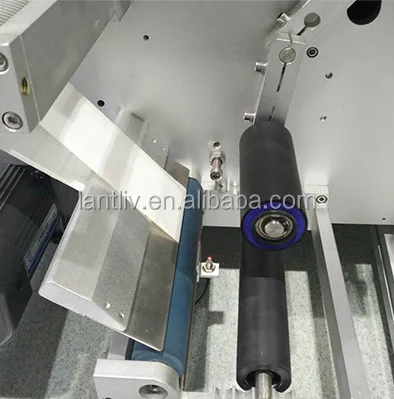

Adjust the distance between drive and driven rollers in accordance with the bottle's outer diameter; and then adjust the pressure of the press roll for pressing bottle; the pressure value is subject to the smoothdetachment of the label and no slipping of the bottle during labeling.
How to Attach a Lable
1. Adjust the longitudinal position of the bottle detecting photoelectric coupling and the label to make the label on the accurate position to be labeled on the bottle.
2. Sitch on Labeling Power: if coding is needed, switch on Coder Power and Coder Temp Control (SeeInstructions for details on operating the codder ).
2. Sitch on Labeling Power: if coding is needed, switch on Coder Power and Coder Temp Control (SeeInstructions for details on operating the codder ).
3. Set pressing bottle time, holding time and labeling time on the control panel as required. In case of double-label, it's necessary to set the interval. After setting all parameters, put in the bottle and themachine will label the bottle automatically.

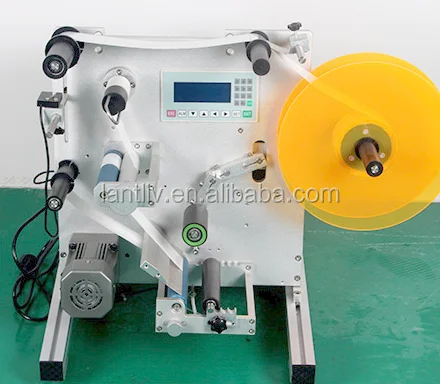

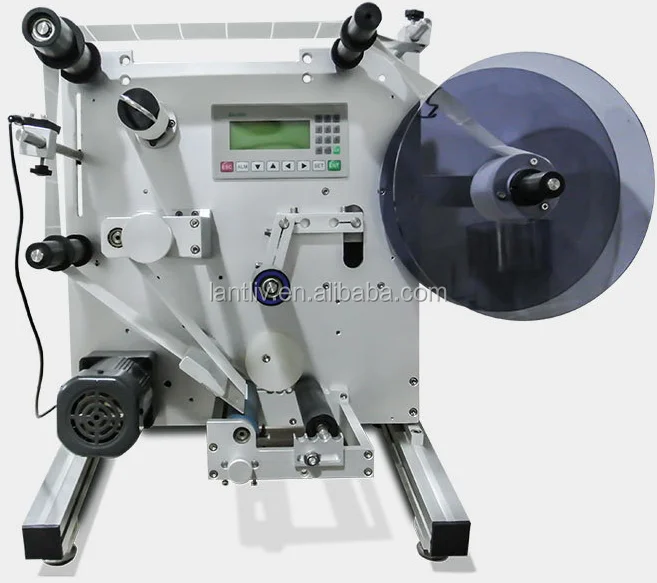

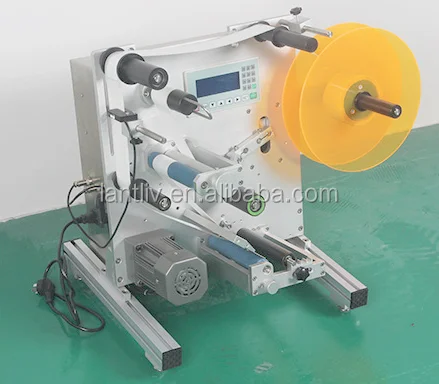

Detailed Images

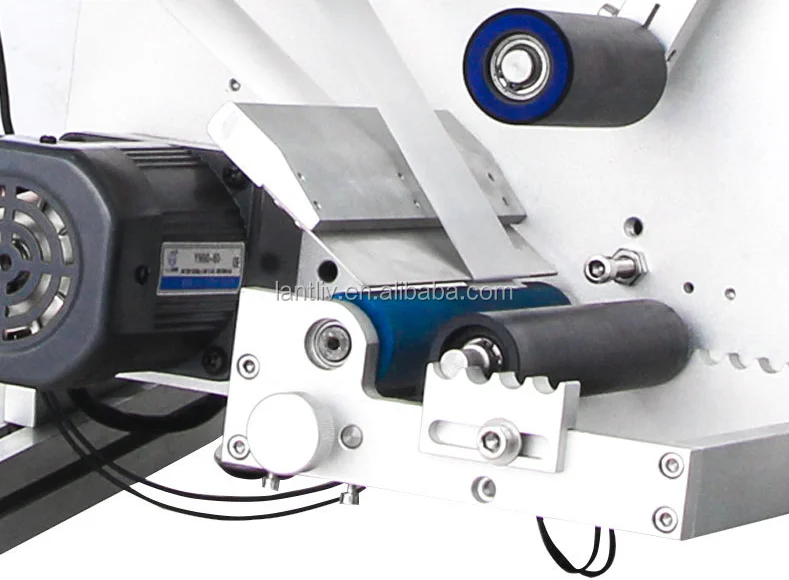

1. Adopt precise electromagnetic clutch.
2. Advanced aluminum alloy anodizing with much longer lifetime.
3. Excellent motor can meet the large load, long-time operation.
4. All parts and standard parts are made of stainless steel materials and refined.

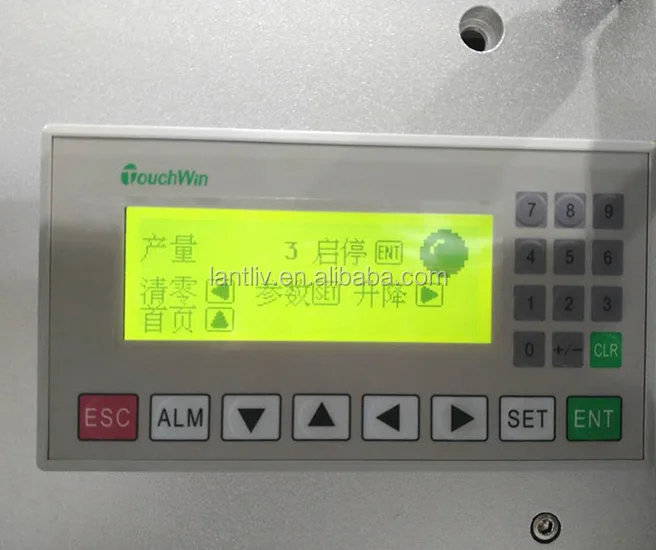

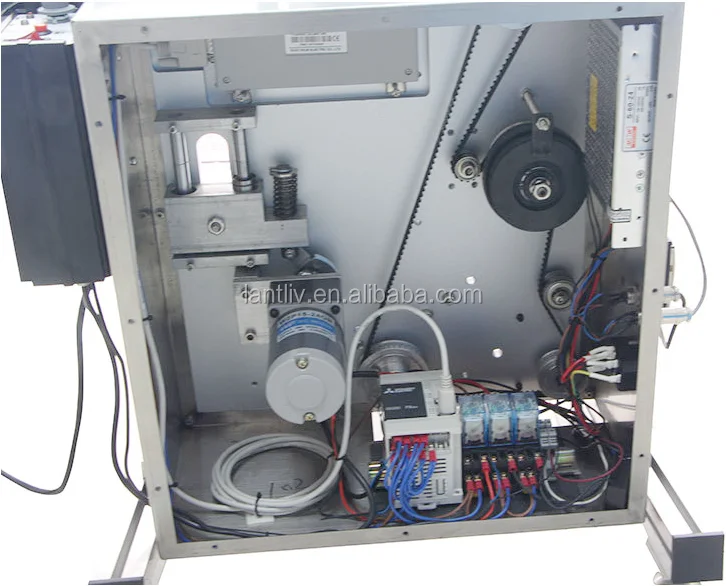

5. PLC control panel and lCD display.

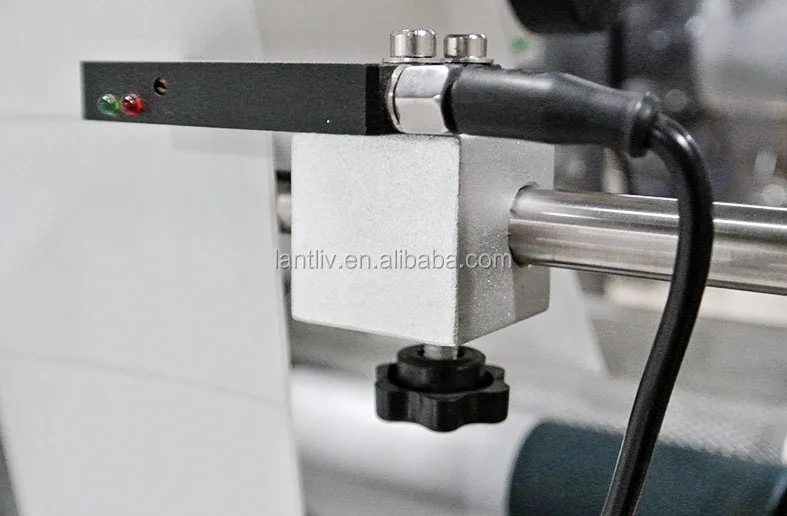

6. Excellent inspection standard optical dipole to ensure high precision.
2. Advanced aluminum alloy anodizing with much longer lifetime.
3. Excellent motor can meet the large load, long-time operation.
4. All parts and standard parts are made of stainless steel materials and refined.
5. PLC control panel and lCD display.
6. Excellent inspection standard optical dipole to ensure high precision.
Certifications
Payment & Shipping
We are experienced in the whole packing and shipping process:
1. Sufficient inner protection with different materials, including bubble bag, foam board and others.
2. Qualified wooden package or carton for different products or as customer require.
3. Strict packing process to ensure the safety and completeness of the goods.
4. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1cbm or 100kg, recommended shipment by sea.
(2) Below 1cbm or 100kg, recommended shipment by air.
(3) Below 0.5cbm or 50kg, recommended shipment by express.
1. Sufficient inner protection with different materials, including bubble bag, foam board and others.
2. Qualified wooden package or carton for different products or as customer require.
3. Strict packing process to ensure the safety and completeness of the goods.
4. For machines are big and heavy parcel, and different country with different delivery cost, so we suggest below delivery
solution:
(1) Over 1cbm or 100kg, recommended shipment by sea.
(2) Below 1cbm or 100kg, recommended shipment by air.
(3) Below 0.5cbm or 50kg, recommended shipment by express.
