Green power high performance separate flat plate solar water heater, pressure solar collector

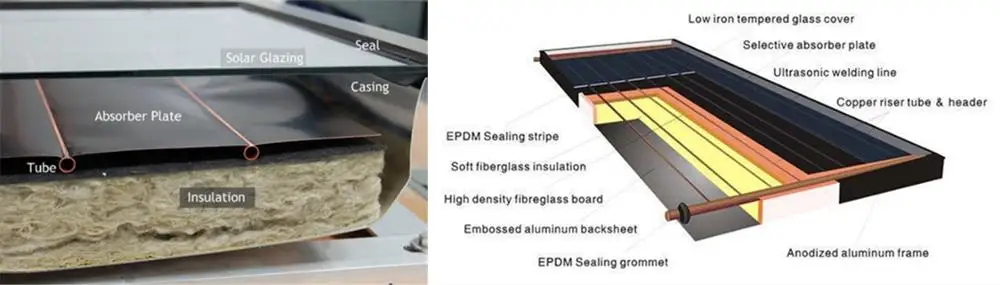

Flat Plate

Solar Collector

Dimension

L*W*H (mm)

2000*1000*80

Cover Material

Low iron,  tempered glass

Surface Treatment

Black chromed/blue film

Header

Copper TP2 22mm* 0.6mm (6 pcs)

Riser

Copper TP2 10mm* 0.5mm (6 pcs)

Insulation

Fiber glass

Casing

Anodized aluminum alloy frame

Pressurized Water Tank

Inner Tank

Food-grade stainless steel SUS304-2B/SUS316

Outer Tank

Painted steel(Galvanized steel)/Stainless steel

Insulation

High-density polyurethane foam

Accessories

Electrical heater, magnesium anode, T/P valve

Bracket

Anodized strong aluminum alloy designed for slope&flat roof

Model

Flat Plate Solar Collector

Tank

Liter

Container Loading

Qty/Sets

Collector/Pcs

Size/MM

20GP

40HQ

BS-FC-10

1

2000*1000*80

100L

51

124

BS-FC-15

1

2000*1000*80

150L

44

108

BS-FC-20

2

2000*1000*80

200L

31

75

BS-FC-25

3

2000*1000*80

250L

25

 60

BS-FC-30

3

2000*1000*80

300L

23

55
