CNC wood door stile drilling and milling shape machine

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Handle easy, only 1 lady can producing the door.

4) Running in a high automatization and intellectualization,no pollution

5) Cheap price

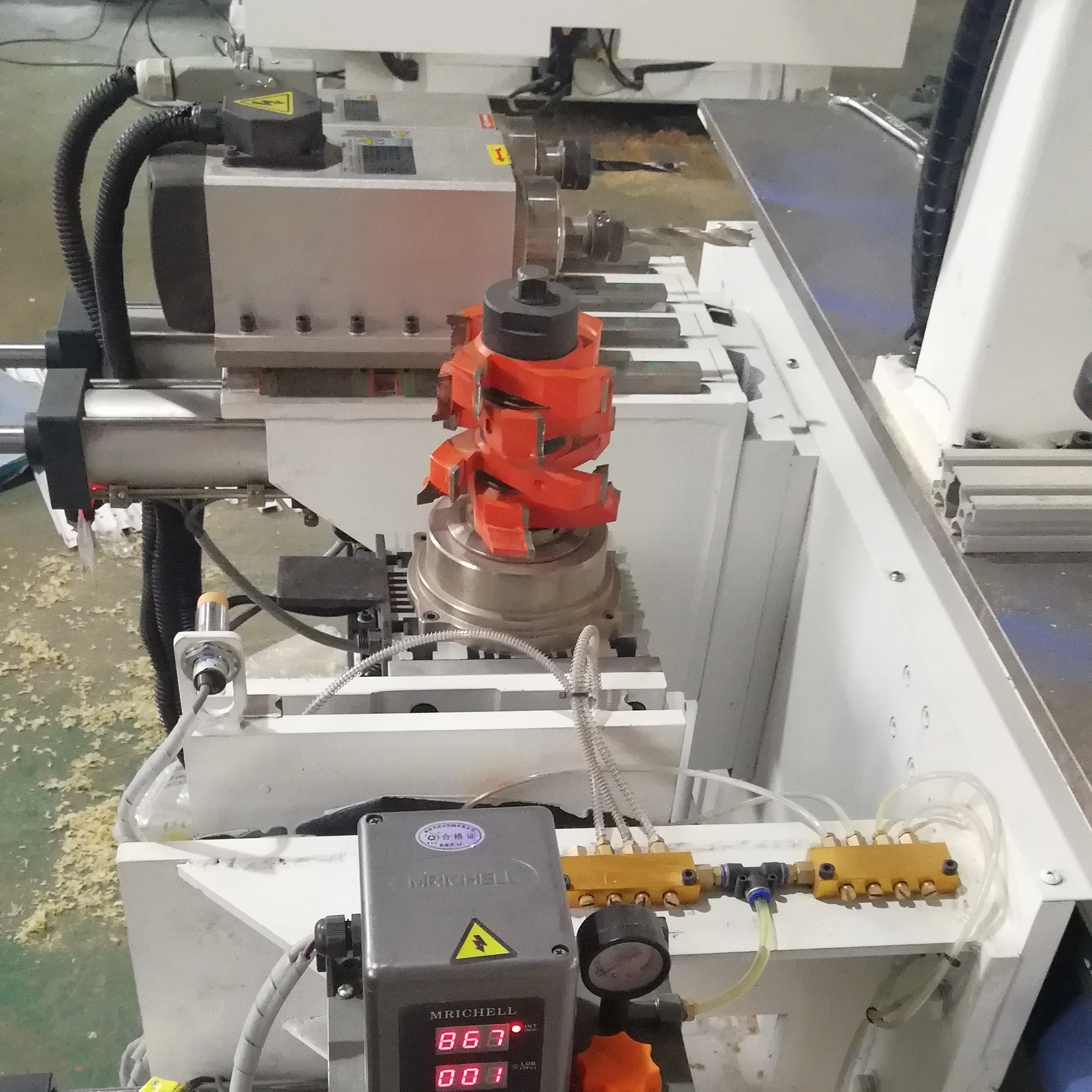

Detailed Images

Door stile working machine

Max.processing length： 2800mm Max.pressing thickness：80mm
Shaft diameter： φ35mm

Max.Milling cutter Dia：φ150mm
Spindle revolve speed: 9000r/min

Total Power： 13kw
Milling motor power： 7.5kw

Drilling Motor Power： 1.5kw
Dust Vacuum Dia: φ100mm

Machine N.W.: 2000kg
Machine size: 4050*1400*1500mm

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	4200(L) * 1500 (W) * 1600(D)
Weight	2 T
Packaging Details	The normal package is wooden box If container is too tigher,we will use pe film for packing or pack it according to customers special request.
