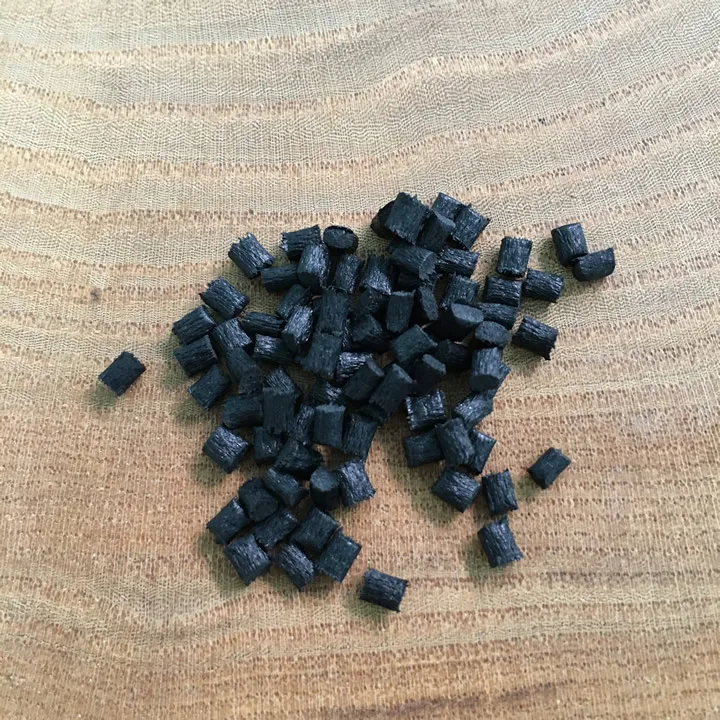

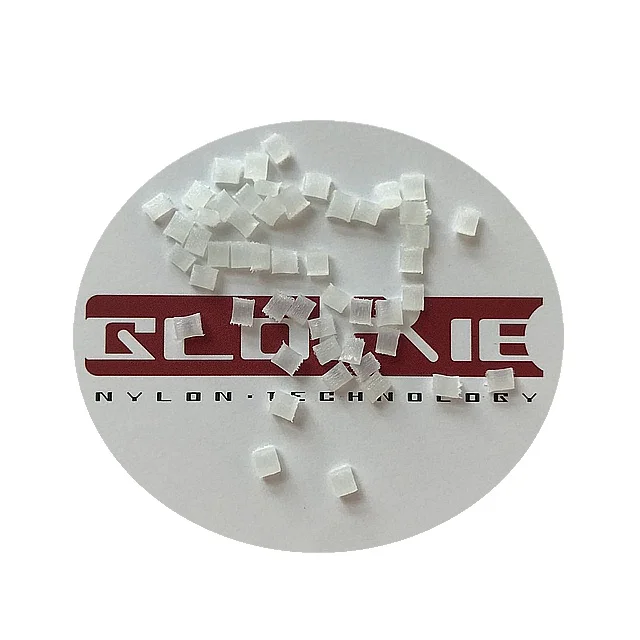

PA6 GF30 ,Polyamide6 30% Glass Fibre Reinforced,100% Virgin

reinforced polyamide 6 with 30% of glass fiber, for injection moulding. This grade has good mechanical properties and offering an excellent combination between thermal and mechanical properties.

• Good surface aspect


• Easy Processing

Bicycles component; Fixation systems; Furnitures; General purpose; Office chairs; Outdoors activities; Power tool housings; Sports equipment; White appliances

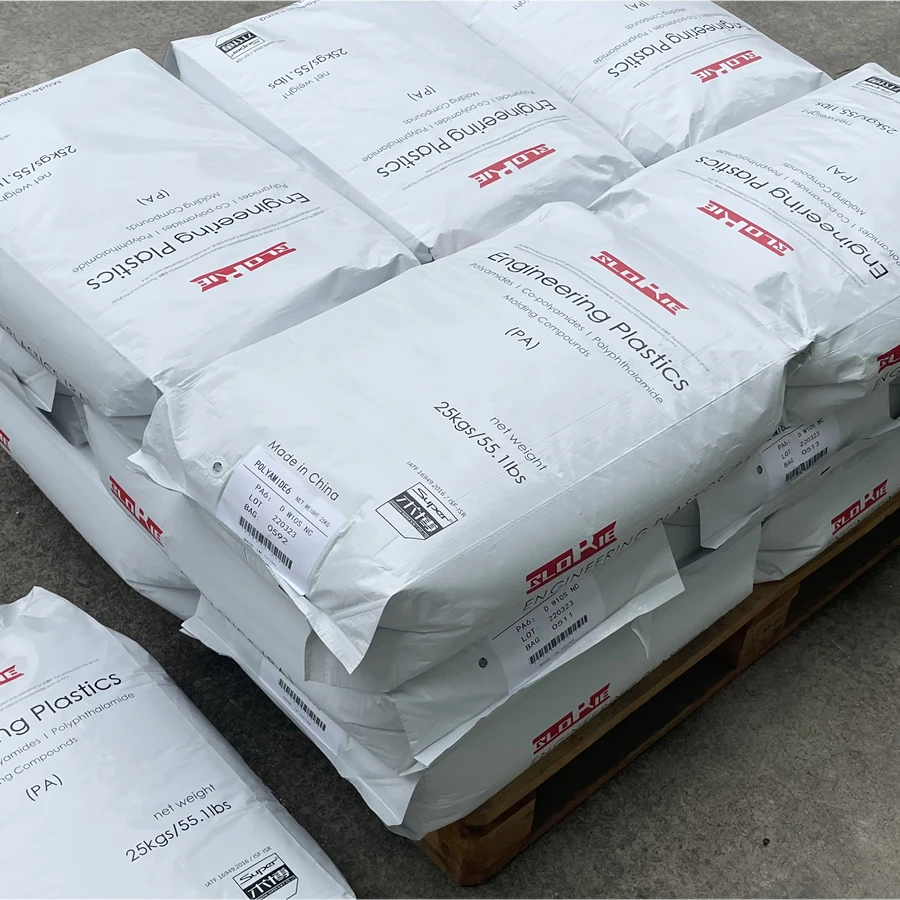

 PA (nylon) materials must be properly dried in order to provide parts with optimum strength and toughness. Nylon materials are hygroscopic and will become degraded by excessive moisture during the injection molding process. Product is supplied in moisture-protected containers and drying prior to molding is not required. If drying becomes necessary, a dehumidifying or desiccant dryer operating at 80 °C (176 °F) is recommended. Drying time is dependent on moisture level, but 4-6 hours is generally sufficient, but final moisture content must be less than 0.2%

Melt Temperature: 250-270 °C
Mold Temperature: 70-90 °C but temperatures of as low as 45 °C and as high as 105 °C can be used where applicable;
Injection Pressure: 60-90MPa.

 FILL RATE

Fast fill rates are recommended to ensure uniform melt delivery to the cavity and prevent premature freezing. Surface appearance is directly affected by injection rate.
