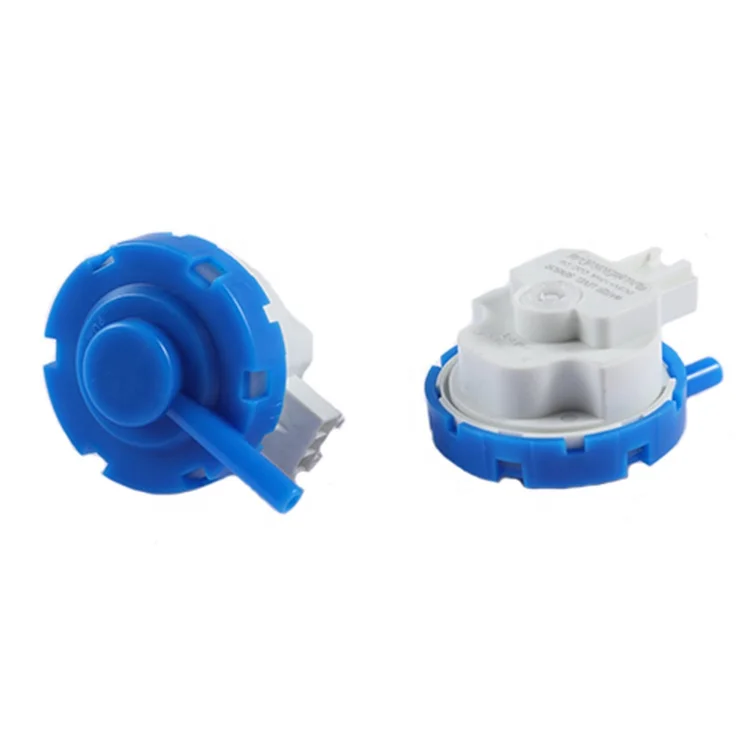

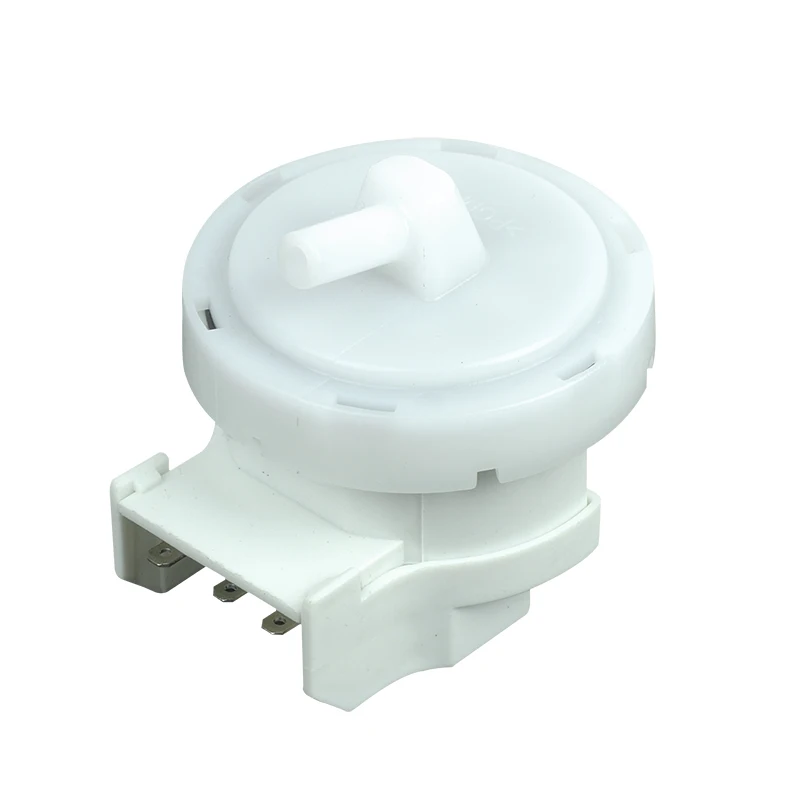

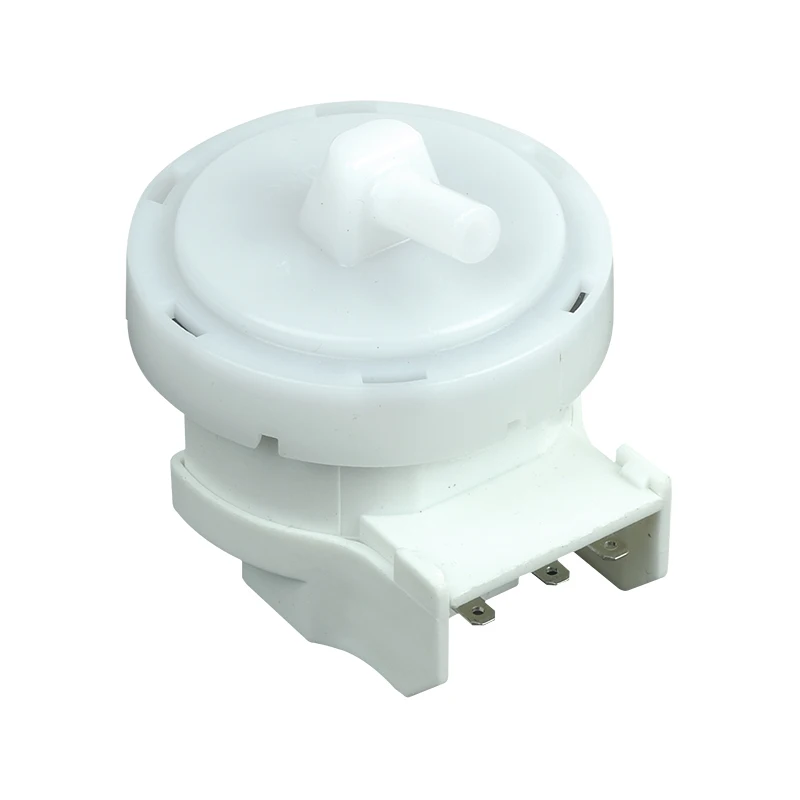

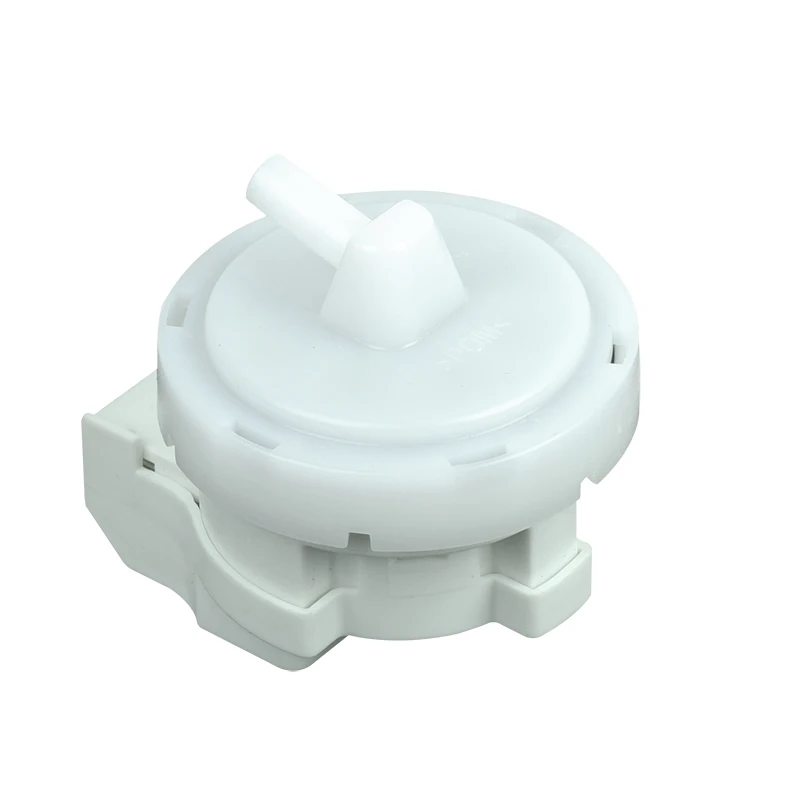

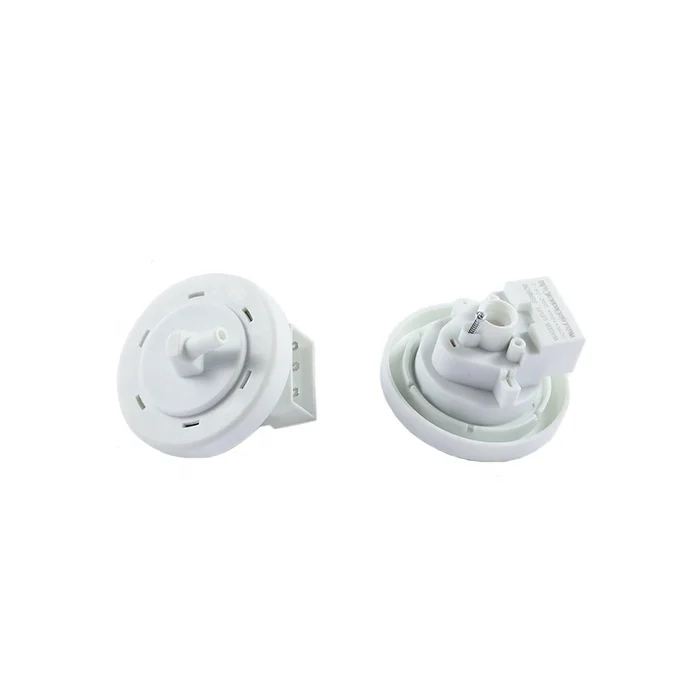

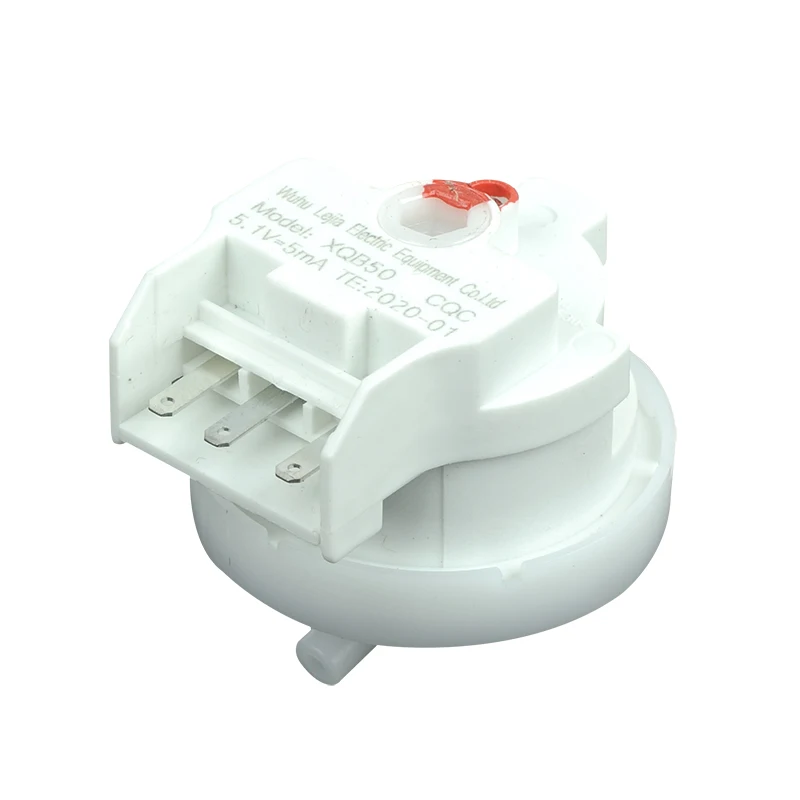

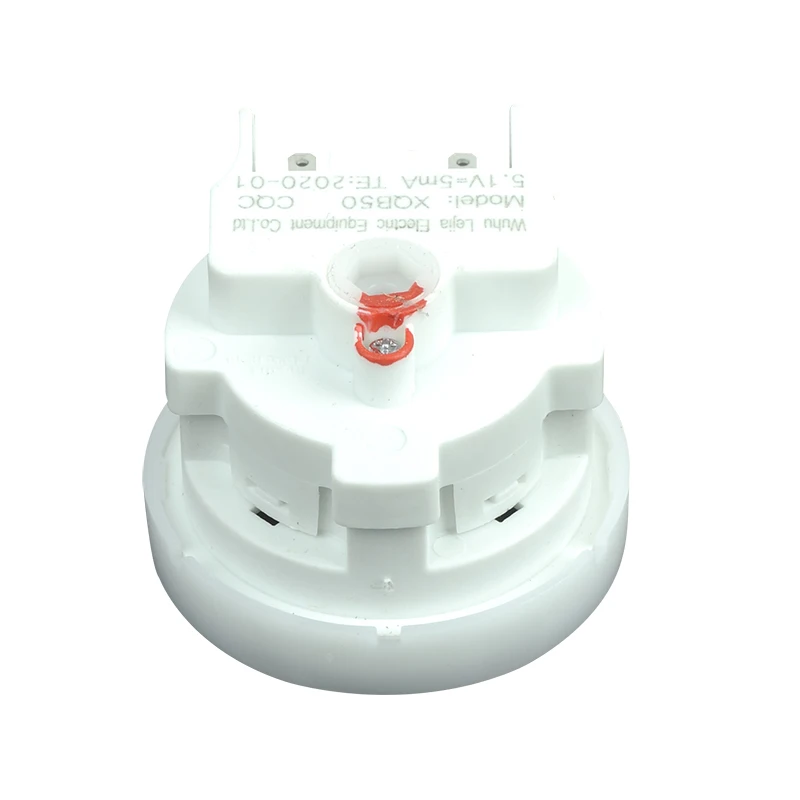

DC5V Water Level Pressure sensor Water level pressure switch for Home Washing Machine Washer

Product Overview

Description













Type: Three-terminal/ Two-terminal  Water Level Sensor

Character: Double Capacitor(Three Terminal);  Single Capacitor (Two Terminals)

Structural Description: Without/With mounting bracket



Operating Voltage: DC 5V

Environment Temp.: -10℃-50℃

Water Level Range: 0-600mm Water Column







Technical parameters

1. Smooth appearance, uniform color

2.  Nominal voltage :DC5.0±0.2V

3. Water level:customizable

4. Inlet strength:Apply force 49N/min, no air leakage

5. Air impermeability:Apply water pressure of 7.5kpa for 1min without air leakage

6. Destructive water pressure :≥ 1000nm

7. Voltage withstandatility:Apply 1500V/ sec, no breakdown

8. Insulation resistance:>20 megohm

9. Durability test:Each minute 20 times, the water level in 550mm action 50000 times, the water level changes in the 15mm below

10. The experiment of damp and hot:  Apply 1200 v/min, no breakdown under the condition of 40±3℃ and 95% relative humidity for 48 hours

















Water level sensor & Inlet valve
