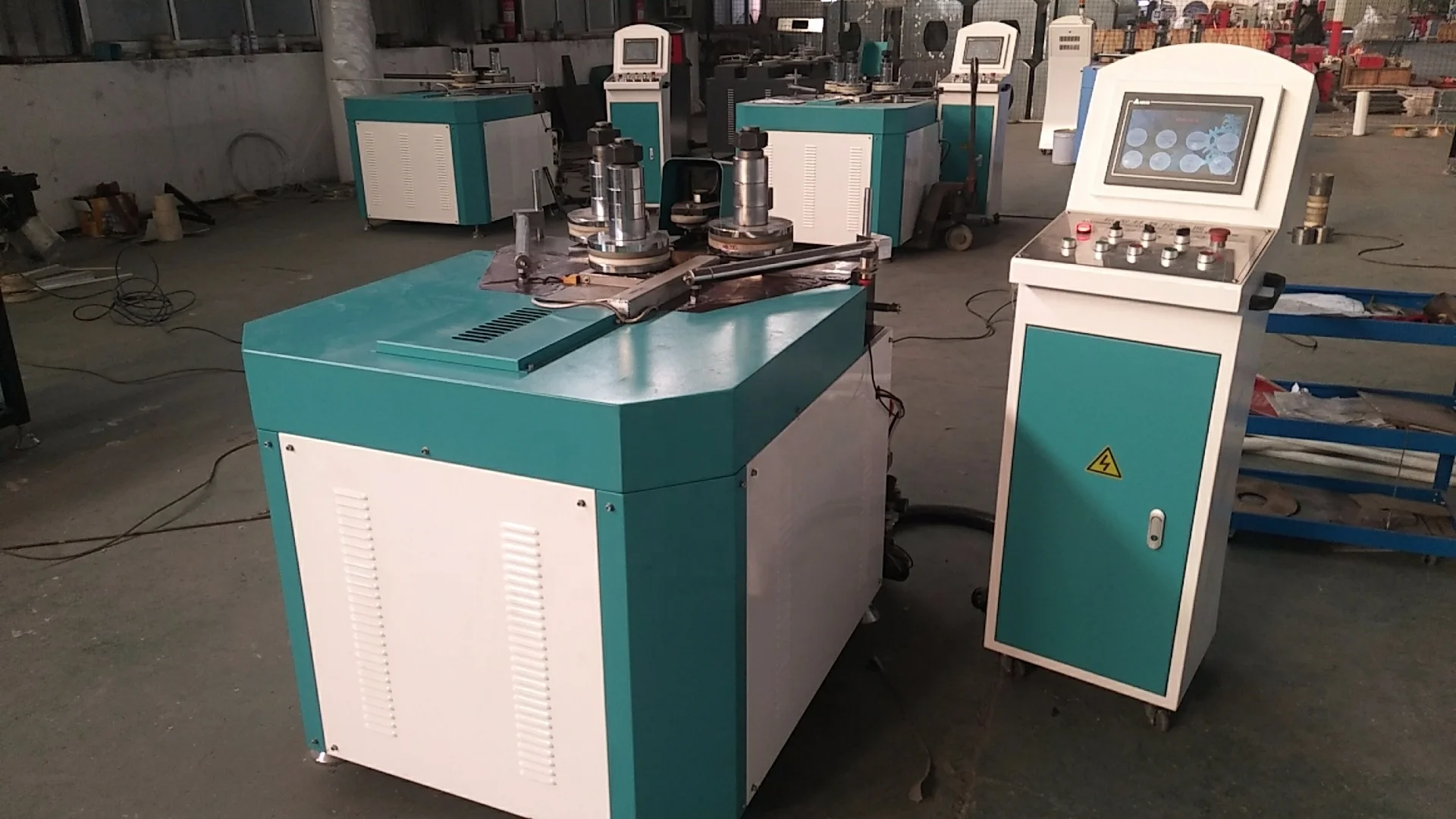

CNC Bending machine for Aluminum and PVC Arc Window profiles
- Category: >>>
- Supplier: Jinan Uniwing Machinery Equipment Co. Ltd.
Share on (62489258597):
Product Overview
Description
Function
CNC Bending Machines are widely used in the bending of various metal profiles such as aluminum doors and windows, automobile industry, aerospace, high-speed rail, wind power generation, ships, buildings, bridges, machinery, etc.
Features
In the processing of special-shaped arcs, multiple radii can be bent at one time (multi-curvature), effectively improving processing efficiency and saving labor.
The standard arc can be processed at one time, with high efficiency. It can also be molded multiple times according to the actual situation, thus ensuring the appearance and quality of the finished product.
The self-developed servo-hydraulic system is adopted to make the positioning error of the working shaft not more than 0.1mm under the working condition of the maximum pressure of 30 tons.
Accurate radius (R) control can easily complete continuous machining of multi-segment arcs and complex arcs.
The machine adopts a double-drive grating ruler and is equipped with an anti-interference module, with high precision of repeated arcs.
The X-axis is controlled by a directly connected motor: high positioning accuracy, constant torque, and no fluctuations due to speed changes.
Easy-to-operate control system, friendly and intuitive interface.
The sophisticated mold design technology perfectly solves the quality problems of wrinkles, scratches, distortions, and indentation of the final product, so as to meet your high-quality requirements for products.
Parameter:
Input Voltage | 380-430V 50Hz/60Hz |
Input Power | 5.2 kw |
Thrust of Y-axis cylinder | 15/20 tons |
Y-axis feed stroke | 0-220mm |
Max. torque of the X axis | 6000 N·m |
Min. Diameter of Bending | 100mm |
Max. Width of Profile | 150mm |
Max. Height of Profile | 150mm |
Max. Diameter of Rolls | 300mm |
Roller holding Shaft Diameter | 60mm |
Rotation speed of Shaft | 1-8r/min |
Positioning precision | 0.05mm |
Overall Dimension | 1300mmx1100mmx1100mm |
Weight | 100kg |
Main component brands:
Control system | PLC (Mitsubishi, Japan) |

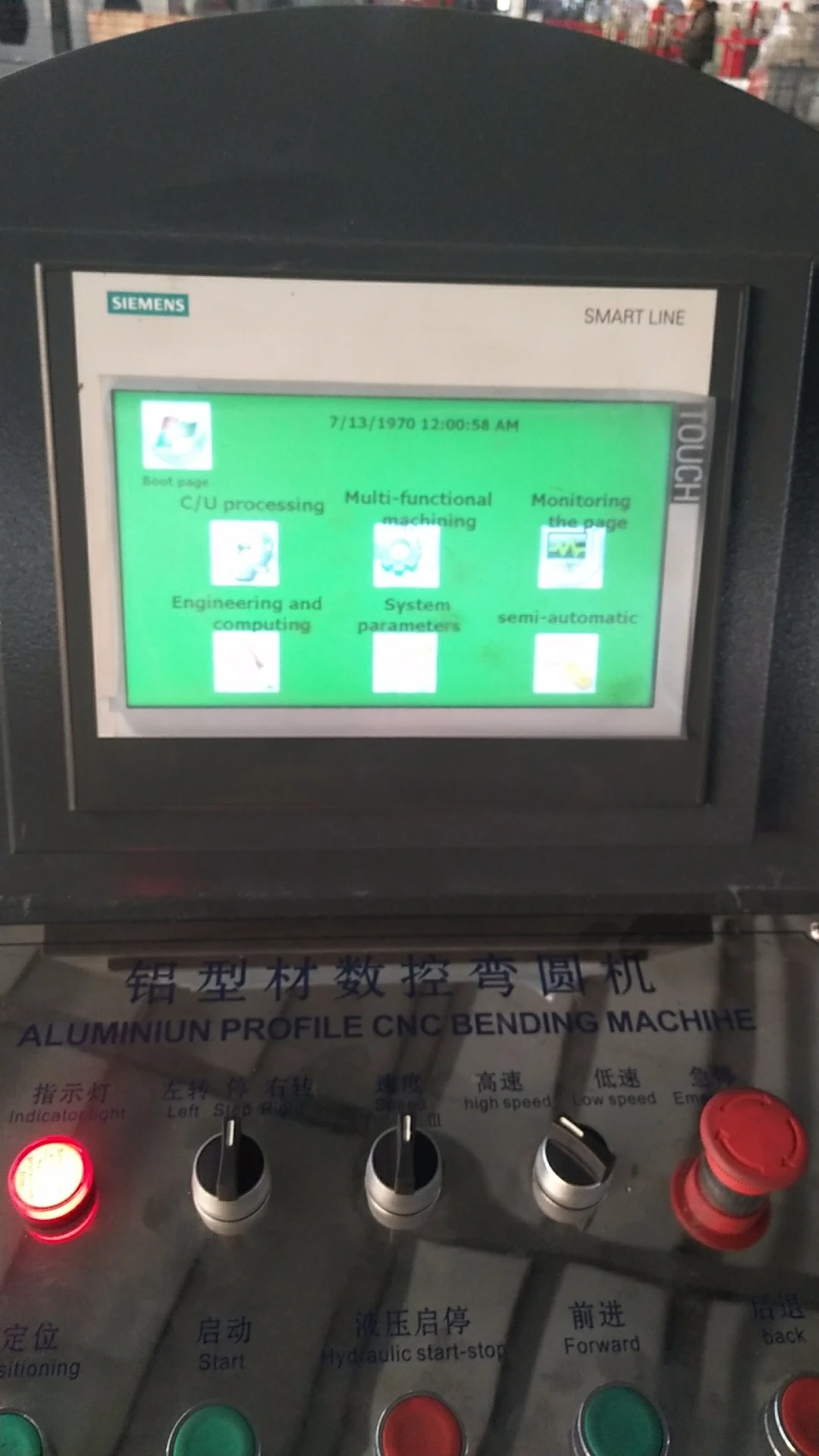

Operation system | "Delta" 10-inch LCD touch screen (Taiwan, German Siemens can be customized) |
Hydraulic system | Yuken (Japan) |
Reducer | Emoxin (Taiwan) |

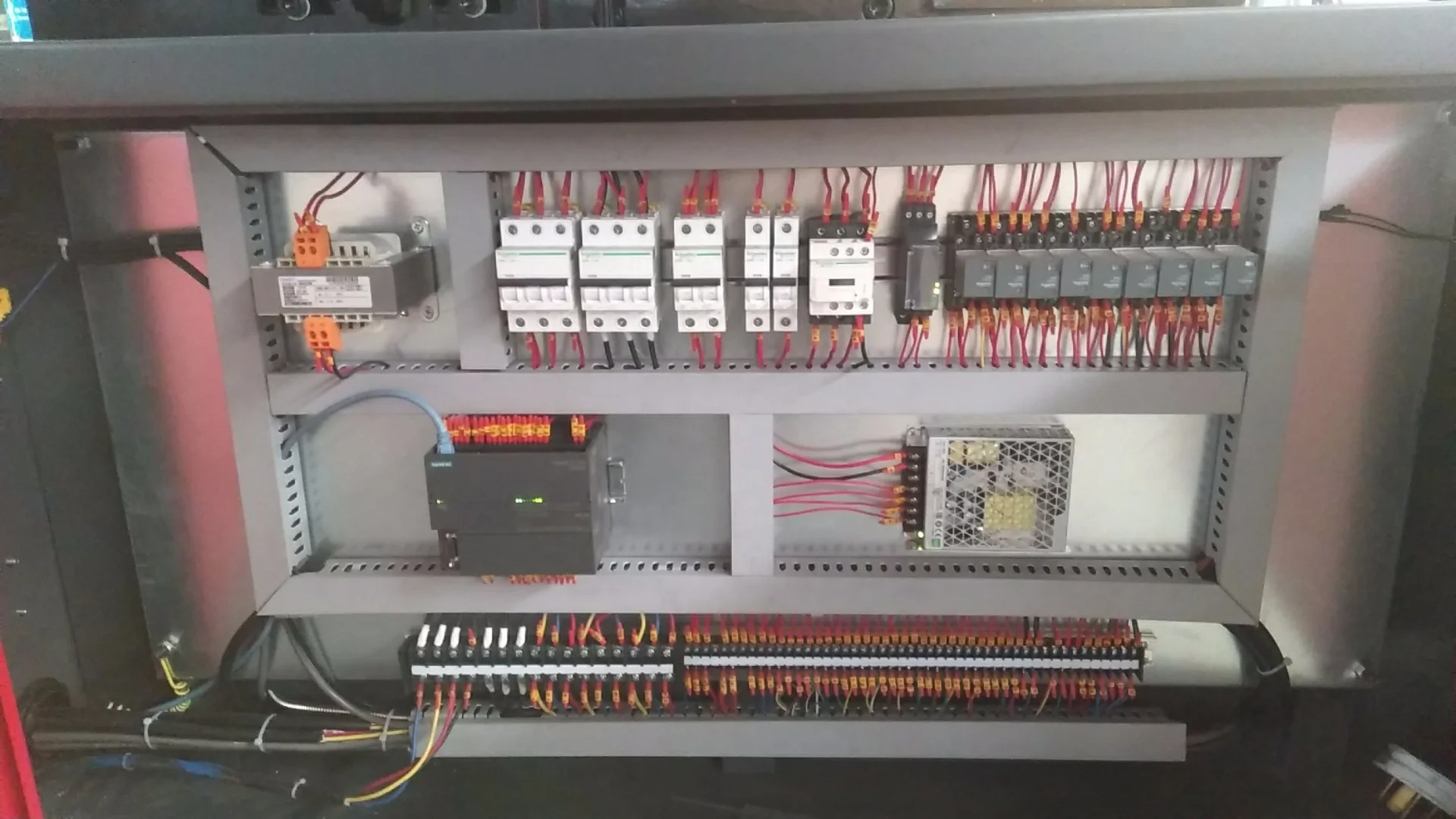

Electrical components | Schneider, France |

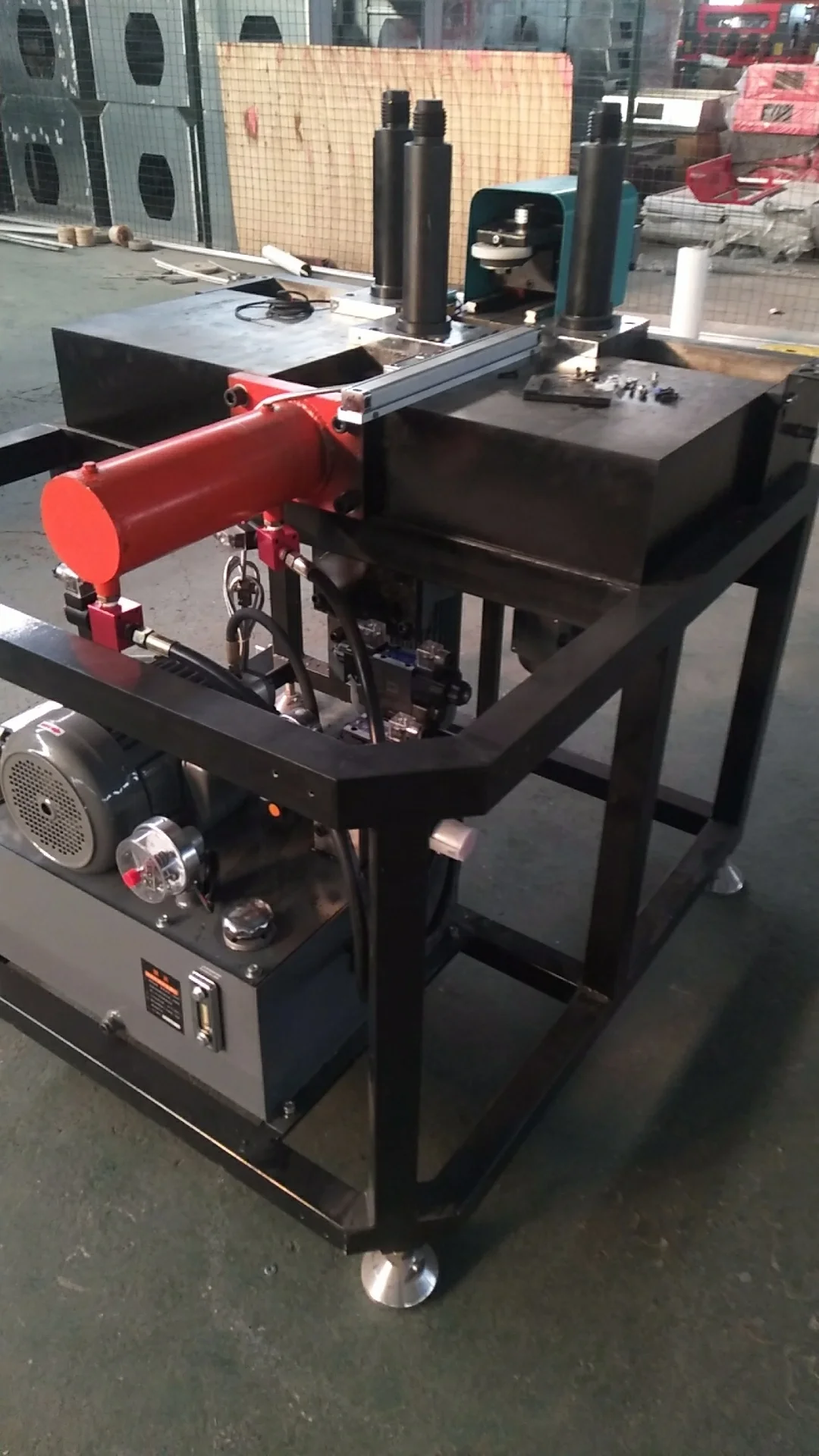

High quality hydraulic system
Product packaging
1. For FCL: Plywood / steel pallet+ Plastic cover + Winding film
2. For LCL: Plywood box+ Plastic cover + Winding film
The professional seaworthy packing can ensure the safety and antirust of the machine.
Our Services
Pre sale service
We can provide professional machine customization service and reasonable workshop planning suggestions.
After sale service
We can send professional engineer abroad to your factory for installation, debugging and operation training.
Quality assurance service
We will provide free wear parts for more than one year with machine delivery and one year warranty from the date of B / L.
Over guaranteed service
We can provide machine repair services and guarantee spare parts supply for more than 10 years.
Customer Photos
With Our Customers
Uniwing exports machines to 50+ countries and regions in the world.
Company Introduction
Jinan Uniwing Machinery Equipment Co., Ltd is located in Jinan City, Shandong Province, China, which is specialized in the sales, production and service of aluminum and uPVC doors and windows fabricating machines, WPC doofabricating machineryery, CNC router and insulating glass processing line. Uniwing relies on innovative technology and adheres to the principle of “honesty, quality and win-win” to provide various efficient processing equipment system solutions to help customers develop and grow. Uniwing has systematic services and various types of equipment. The first is to provide a feasibility analysis report for the establishment of door and window processing projects, it can reduce the investment risk of window and door factories and achieve good economic benefits. The second is to deeply understand the door and window processing technology, and provide efficient, practical and stable aluminum and uPVC doors and windows fabrricating machines, covering a series of products from sawing, drilling and milling, welding and assembly, with stable performance. The third provides CNC router system solutions, providing engraving and processing machinery for plastic, wood and other materials. The fourth provides maintenance and spare parts supply services for various kinds of machinery and equipment. The fifth is to provide import and export business.
Uniwing company will listen to the needs of customers, and is committed to providing more innovative, adaptable and stable mechanical equipment. We are willing to work with customers to develop and progress, to achieve the stability and long-term business.
FAQ
Q: What is your terms of payment ?
A: We accept T/T, L/C and Western Union.
Q: How long is the delivery time of a complete set of door and window machines?
A: 10-15 working days for standard machines or depending on the complexity of your custom requirements.
Q: How long is the warranty period?
A: One year from issuing date of B/L.
Q: Do you provide overseas service support?
A: Yes, we can send engineer abroad to your factory for machine installation, debugging, training or repair.
Q: Are you a manufacturer or a trading company?
A: We are manufacturer, our factory was founded in 2001.
Q: What is the basic machine configuration used to fabricate uPVC doors and windows?
A: 1. Double head cutting saw 2. V notch cutting saw(or End milling machine) 3.Glazing bead cutting saw 4. Water slot milling machine 5. Lock hole milling machine 6. Two head welding machine 7. Corner cleaning machine
Q: What is the basic machine configuration used to fabricate Aluminum doors and windows?
A: 1. Double head Precision cutting saw 2. End milling machine 3. Water slot milling machine 4. Single head copy routing machine 5. Single head corner crimping machine 6. Punching machine
Q: What is the basic machine configuration used to fabricate WPC or PVC doors?
A: 1. Double head frame cutting saw 2. Precision panel saw(Sliding table saw) 3.Glazing bead cutting saw 4. Two head CNC router(Engraving machine)
