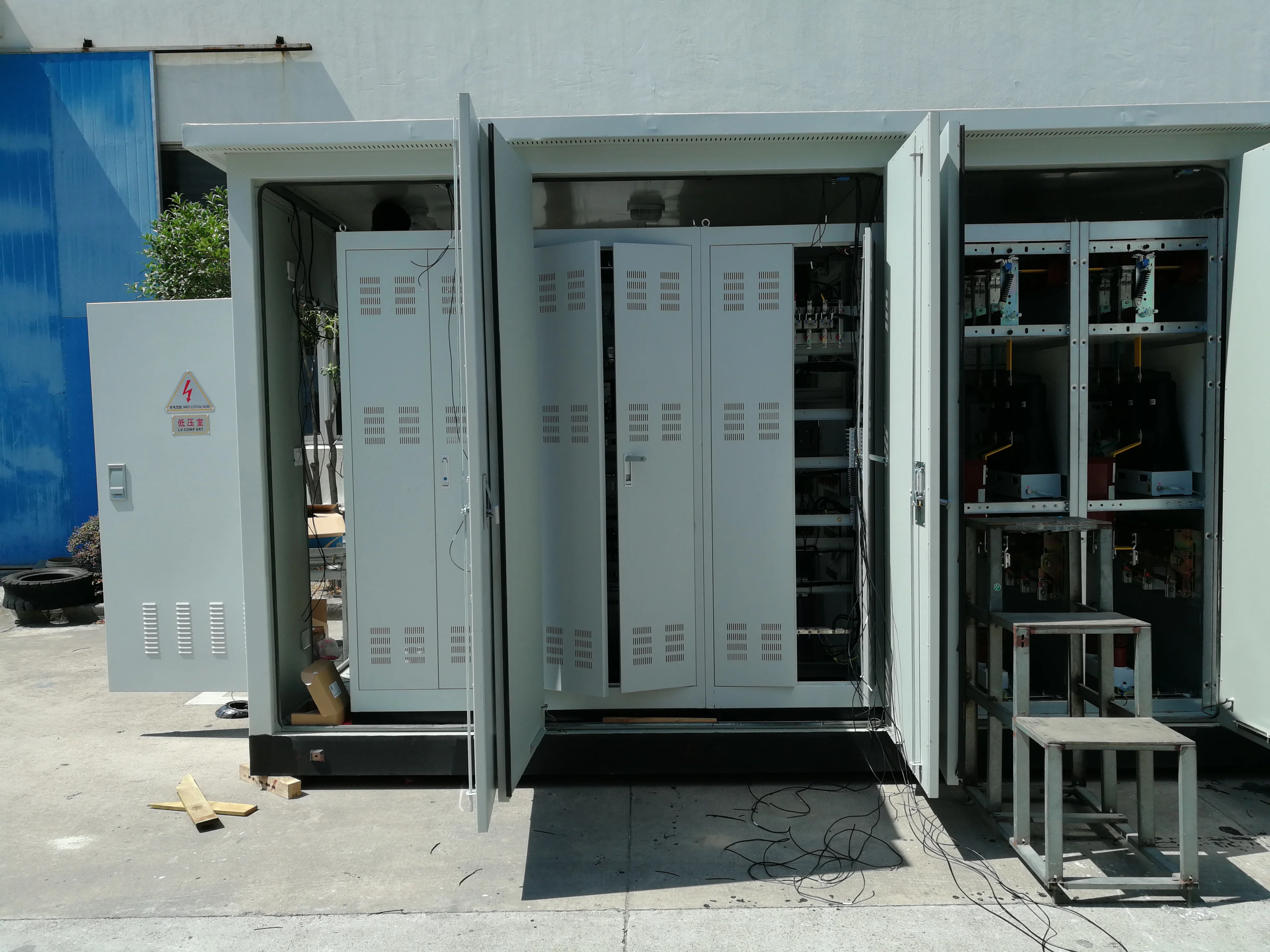

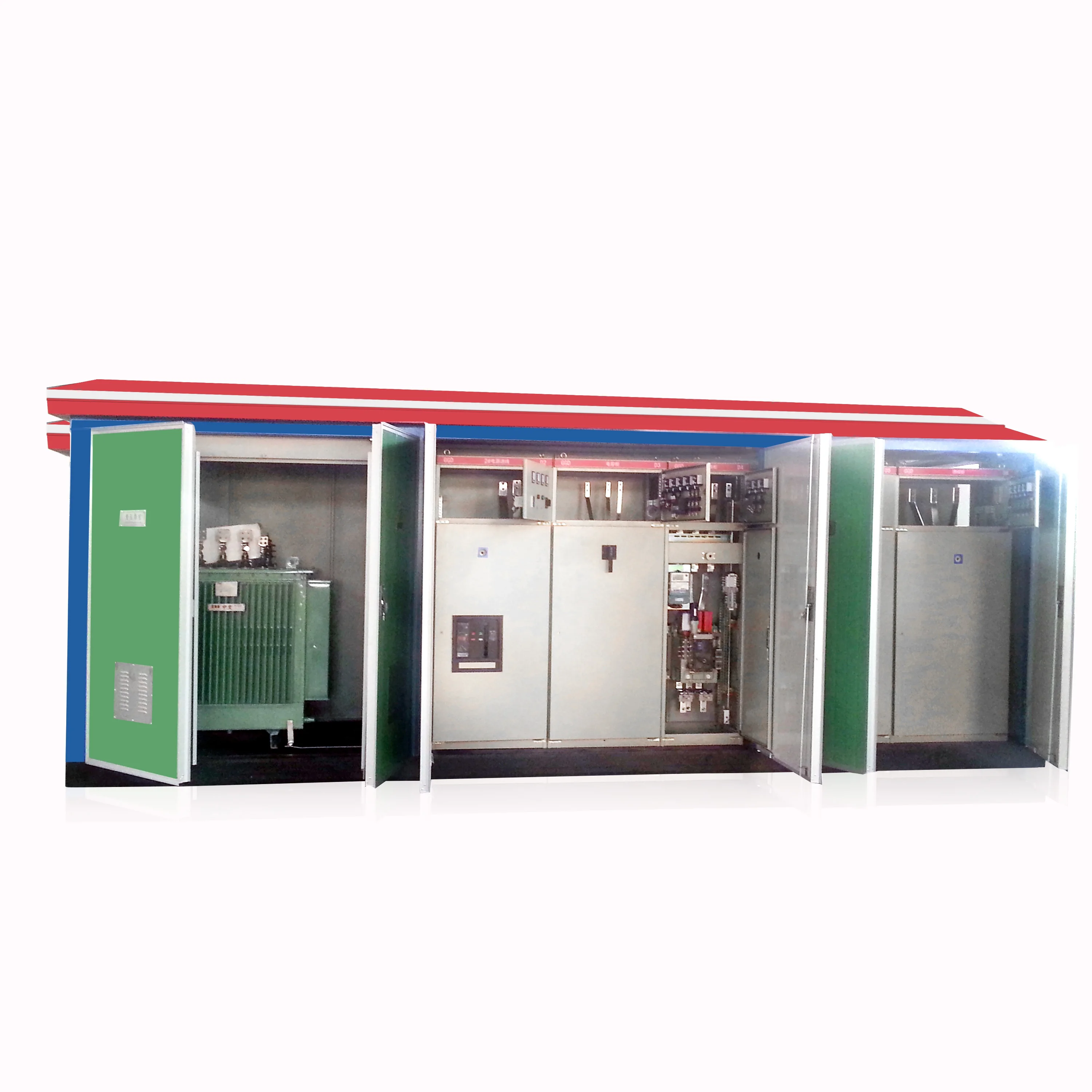

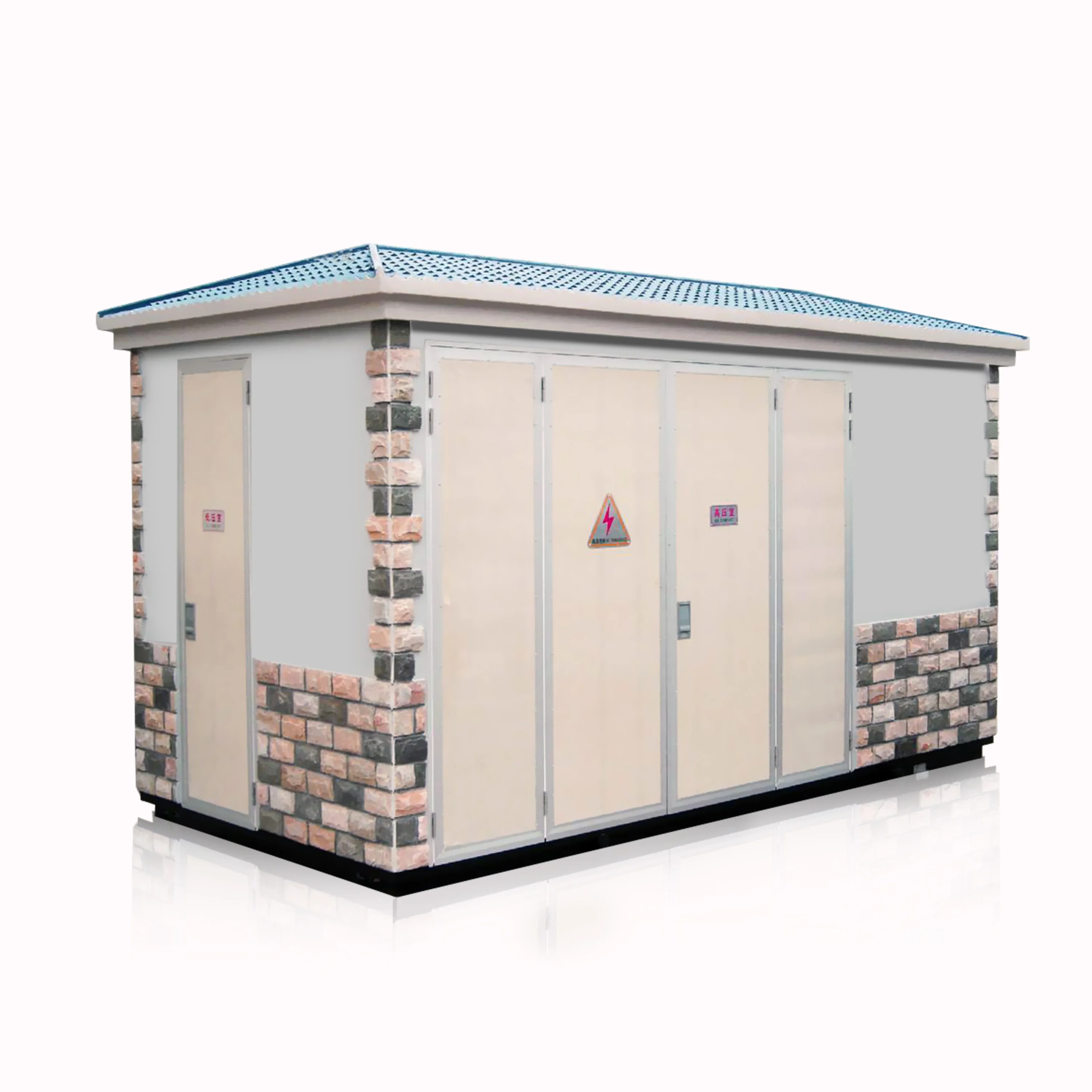

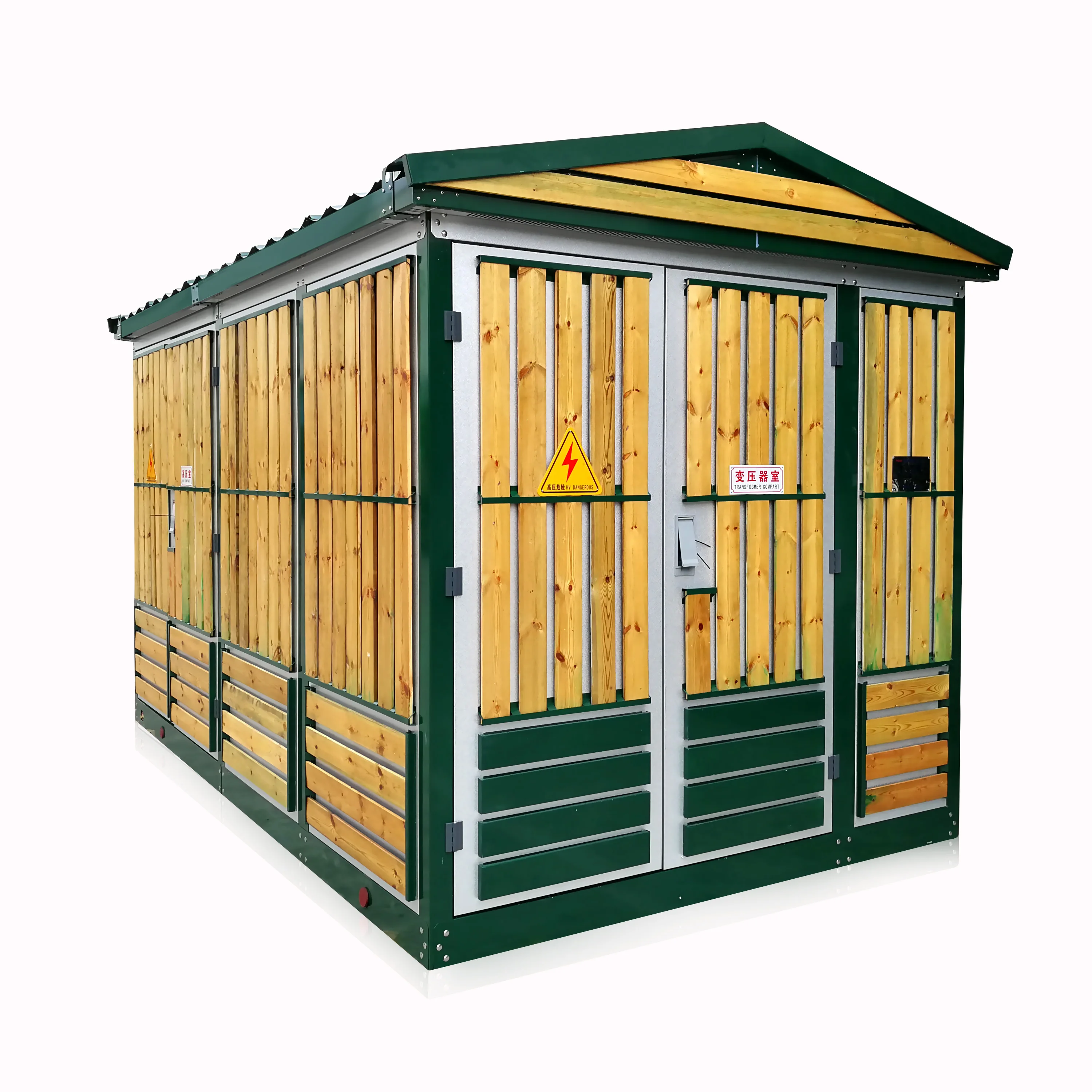

High quality box type substation from supplier with switchgear cabinet for power distribution

High quality box type substation from supplier with switchgear cabinet for power distribution

Category: >>>
Supplier: Shanghai Setn Electric Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product Description

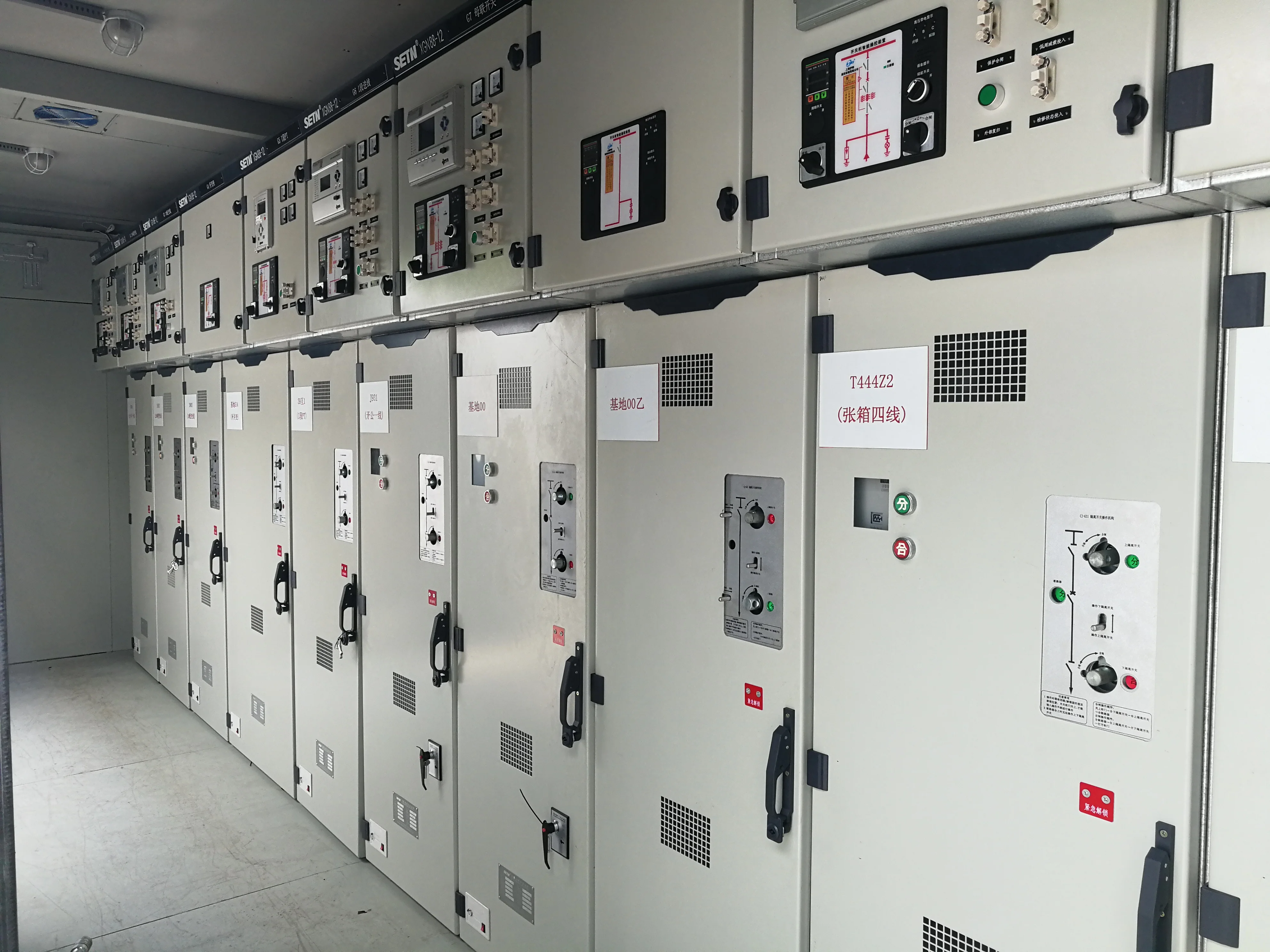

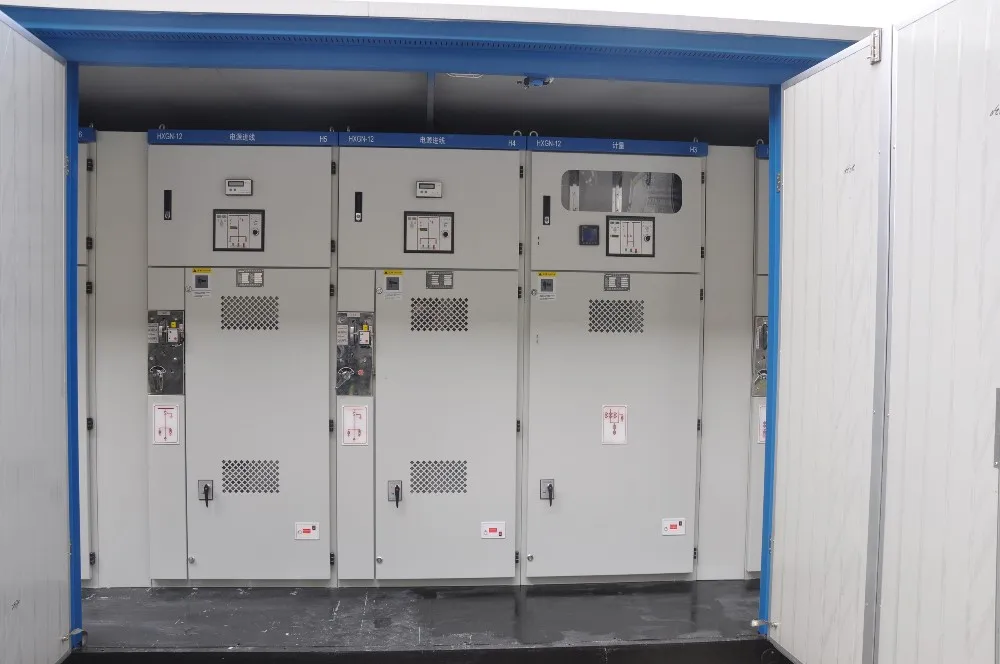

Ring network cabinet

Can be installed to meet the measurement requirements of the original measurement

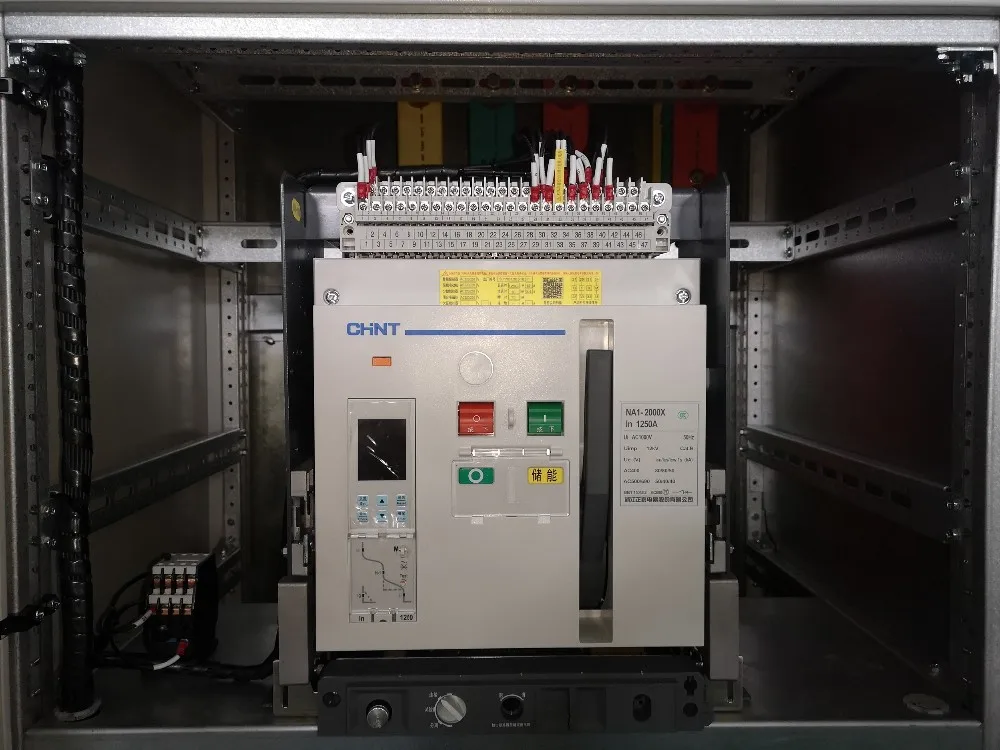

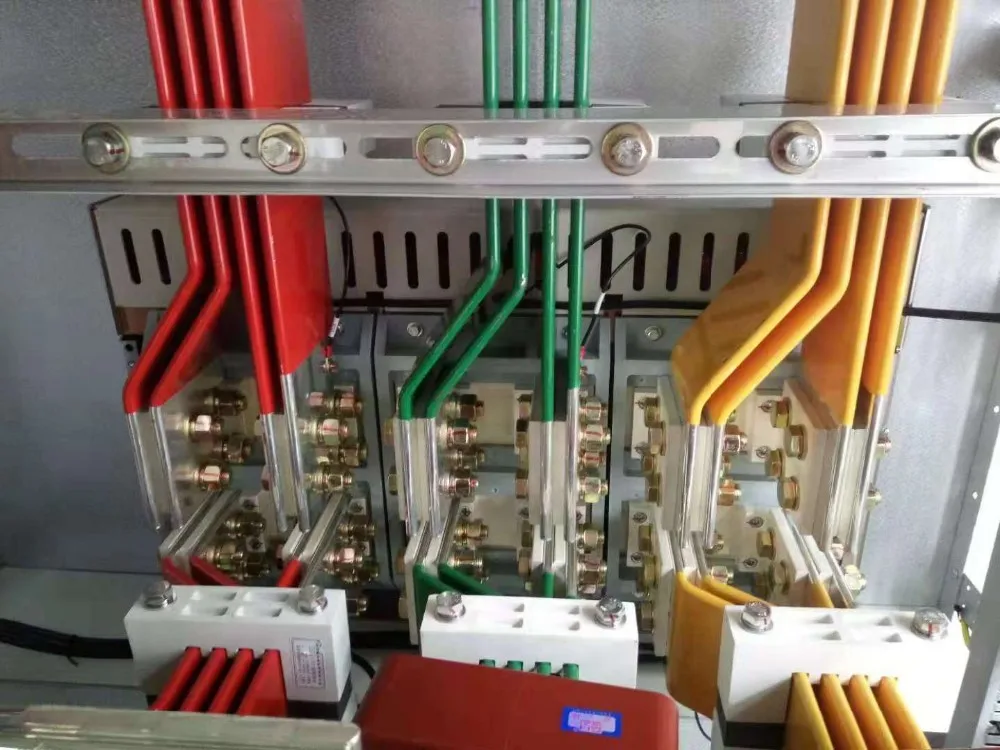

Low voltage outlet switch

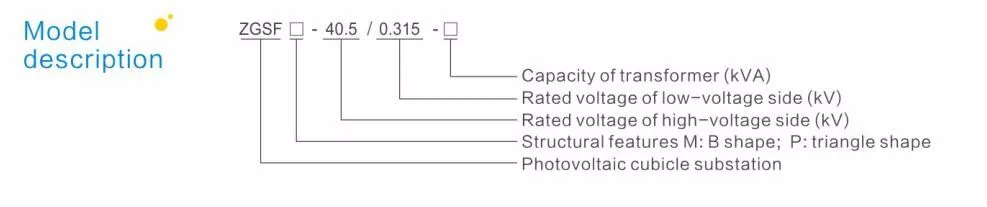

Name	box-type substation
structure	By the high voltage electrical equipment transformer low voltage electrical equipment combination
characteristics	Complete set, small size, compact structure, safe and mobile operation
function	Receiving and distributing electrical energy
material	Steel topped with glass
configuration	High voltage distribution device, transformer, low voltage distribution device,Can be arranged into a ring network power supply, terminal power supply, dual power supply
configuration
Application	Power plant substation petrochemical metallurgy transportation energy light industry textile residential high-rise building
Application

Service conditions

◎Altitude: ≤1000m;

◎Ambient temperature should be within -25°C~+40°C, mean value within 24h should not exceed +35°C;

◎Outdoor wind speed should not exceed 35m/s;

◎Relative air humidity should not exceed 90% (+25°C);

◎Seismic intensity: horizontal acceleration should not more than 0.4m/s2; vertical acceleration should not more than 0.2m/s?;

© The installation site should be free of fire, explosive danger, serious pollution, chemical corrosion or severe vibration.

◎Note: Any special requirements can be settled through friendly negotiation.

Data sheet

Main technical parameters
HV unit	Rated frequency	Hz	50
		Rated voltage	kV	7.2 12 24 40.5
		Rated current of main bus	A	630 1250 1600
		Rated short-time withstand current / duration	kA/s	20/4 25/3 31.5/4
		Rated peak withstand current	kA	50 63 80
		1min power frequency withstand voltage (to-ground/between open contacts)	kV	32/36 42/48 65/79 95/115
		Lightning impulse withstand voltage (to-ground/between open contacts)	kV	60/70 75/85 125/145 185/215
		Rated short-circuit breaking current	kA	20 25 31.5
		Ground loop short-time withstand current / duration	kA/s	20/2 20/4
		Rated short-circuit making current of main loop	kA	50 63 80
		Rated active load breaking current	A	630
		Rated closed loop breaking current	A	630
		Rated transfer current	A	1700
		Mechanical life	times	3000 5000 10000
LV unit	Rated frequency	Hz	50
		Rated voltage	kV	0.315/0.27
		Rated insulation voltage	V	690
		Rated current of main loop	A	100~3200
		Rated short-time withstand current	kA/s	30/1 50/1 100/1
		Rated peak withstand current	kA	63 105 176
		5s power frequency withstand voltage	kV	2.5 3.75
Transformer unit	Rated frequency	Hz	50
		Rated voltage	kV	7.2 12 24 40.5/0.4
		Rated capacity	kVA	30~1600
		1min power frequency withstand voltage	kV	25/20 35/28 55/50 85/75
		Lightning impulse withstand voltage	kV	60 75 125 170
		Impedance voltage	％	4~6
		Tapping range		±×2.5％ ±×5％
		Connection group		Y，yn0 D,yn11
		Type		Oil-immersed type, dry type
Cabinet body	IP code of HV and LV chambers		IP33D
		IP code of transformer chamber		IP23D
		Sound level (oil-immersed type/dry type)	dB	≤50/55

company introduction

SETN

SHANGHAI SETN GENERAL EQUIPMENT CO., LTD.

Shanghai SETN ELECTRIC Co., Ltd is a professional of power solution and distribution (PTD) engineering and PTD complete equipment supplier. We provide integrated solution and complete PTD high-tech equipment for a variety of PTD engineering. We are one of the leading enterprises in the national industrial technology upgrade plan and one of the leading brands in the field of electric power engineering of China.

Ltd was established in September of 2011 with a registered capital of RMB50.18 million. Located in Fengxian Industrial Park of Shanghai, the company has its own scientific research team, production plant and warehouse logistics system. The company is a high-tech enterprise integrating provision of PTD plant solution and R&D, manufacture and sale of high and low voltage electrical components and complete PTD equipmentthat meet Chinese standard. We are one of the few enterprises in China that can provide customers with one-stop solution in terms of large-scale PTD engineering, 3-35KV complete high and low voltage distribution equipment R&D and manufacture and technology service.

We supply Switchgear to Hainan Airport at April of 2018

We supply switchgear to the oil fields of equatorial guinea at Dec of 2018

We supply switchgear to BHTC Group for BHTC at Jan of 2019.

We supply switchgear to China Shipbuilding Industry Coproration (CSIC) at June of 2018

Certificate

Main products

GGD

voltage:400V

rated frequency:50/60

customizable voltage: under 35 kv

KYN28-12

voltage:12kv

rated frequency:50/60

customizable voltage: under 35 kv

KYN61-40.5

voltage:40.5kv

rated frequency:50/60

KYN88-12

voltage:12kv

rated frequency:50/60

customizable voltage: under 35 kv

MNS

voltage:600v/1000v

rated frequency:50/60

customizable voltage: under 35 kv

XGN88-12

voltage:12kv

rated frequency:50/60

customizable voltage: under 35 kv

zn85-12

breaker

Kvar capacitor

otal capacitance can be customized

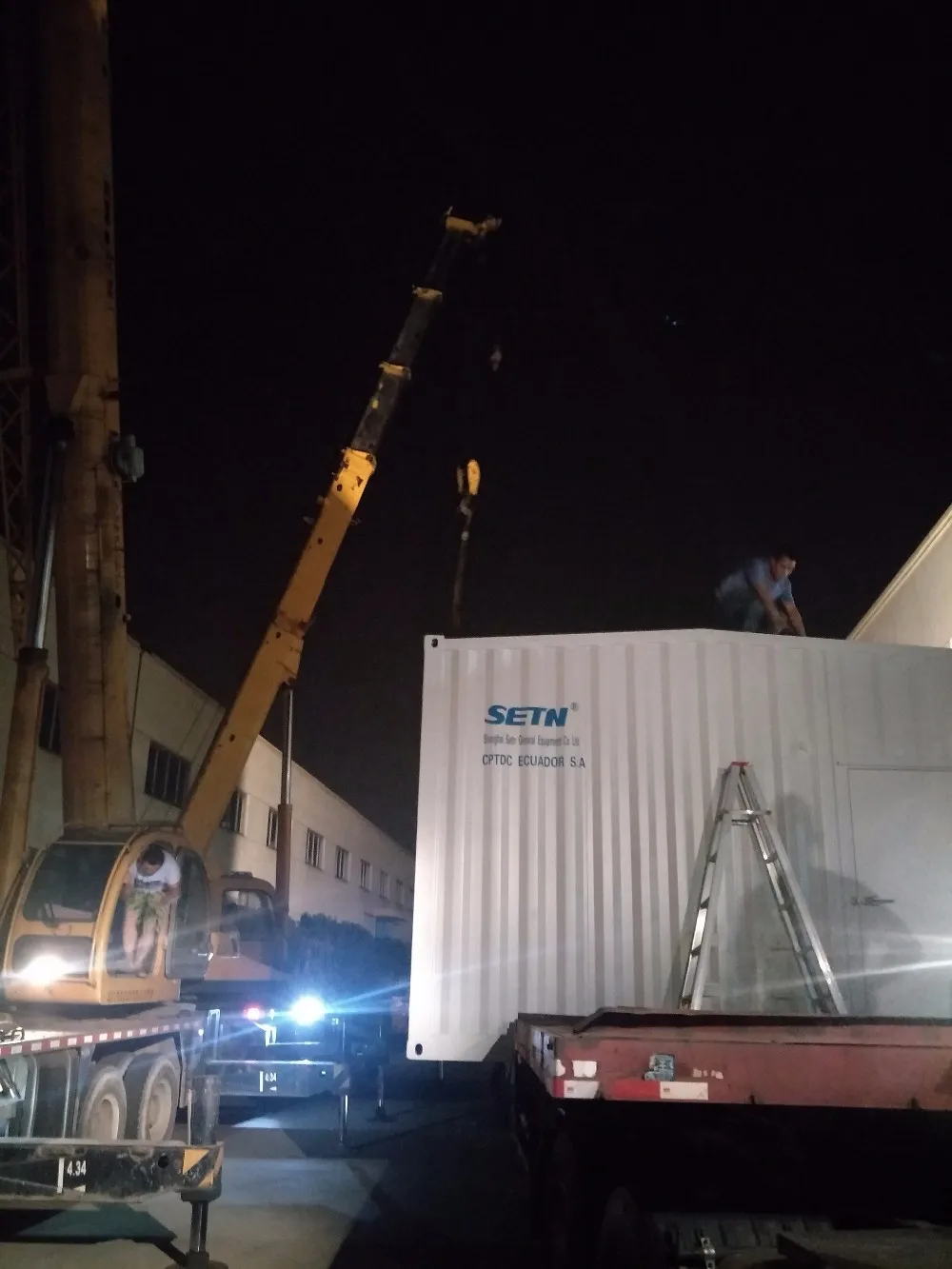

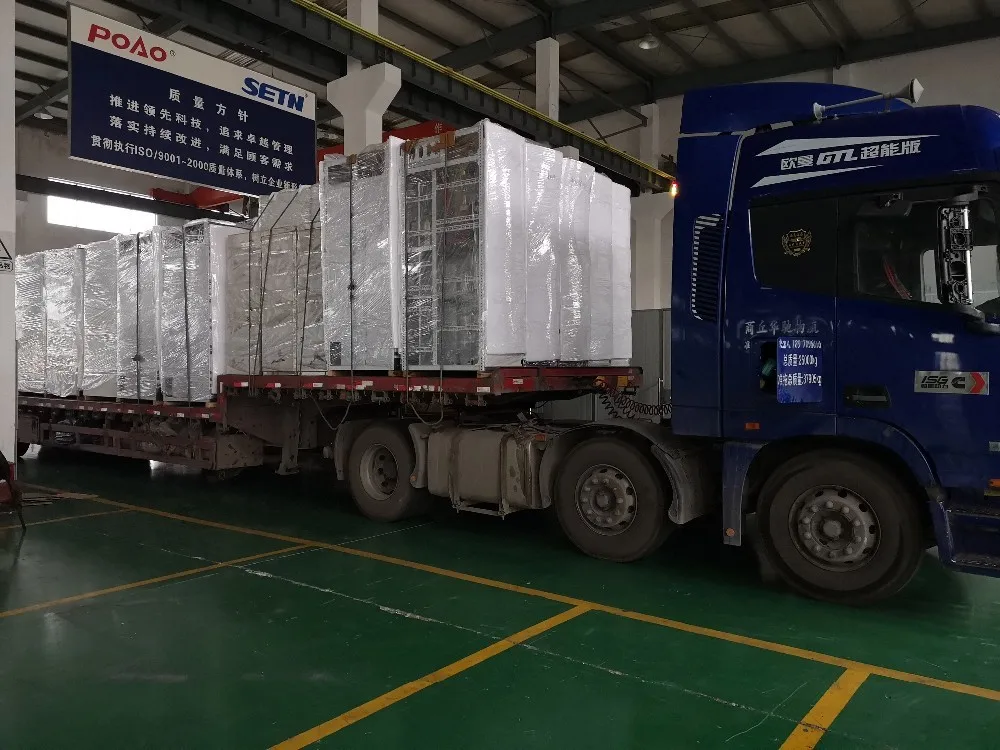

Our Delivery

We can deliver the goods by air or sea. We can provide you with a good shipping company to facilitate your choice Our delivery date is usually 15 to 20 days. If you need special customization, the time may be increased

Standard wooden boxes for outer packing

(1) 1 plastic bag/set

(2) Special package required by clients.
(3) ONE wooden case/set

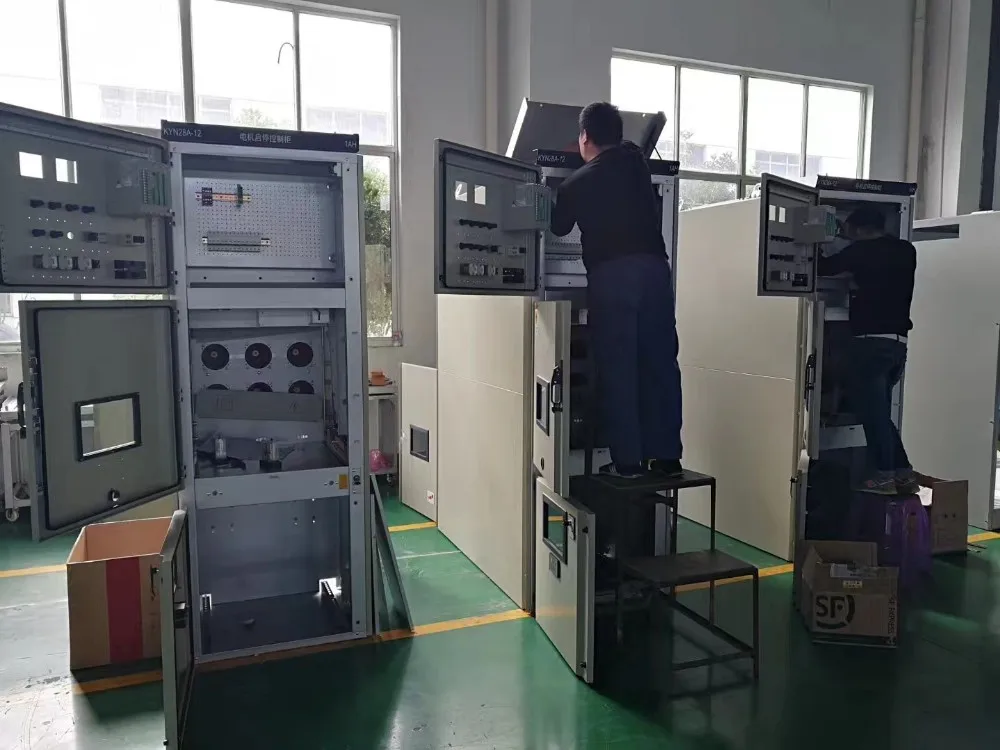

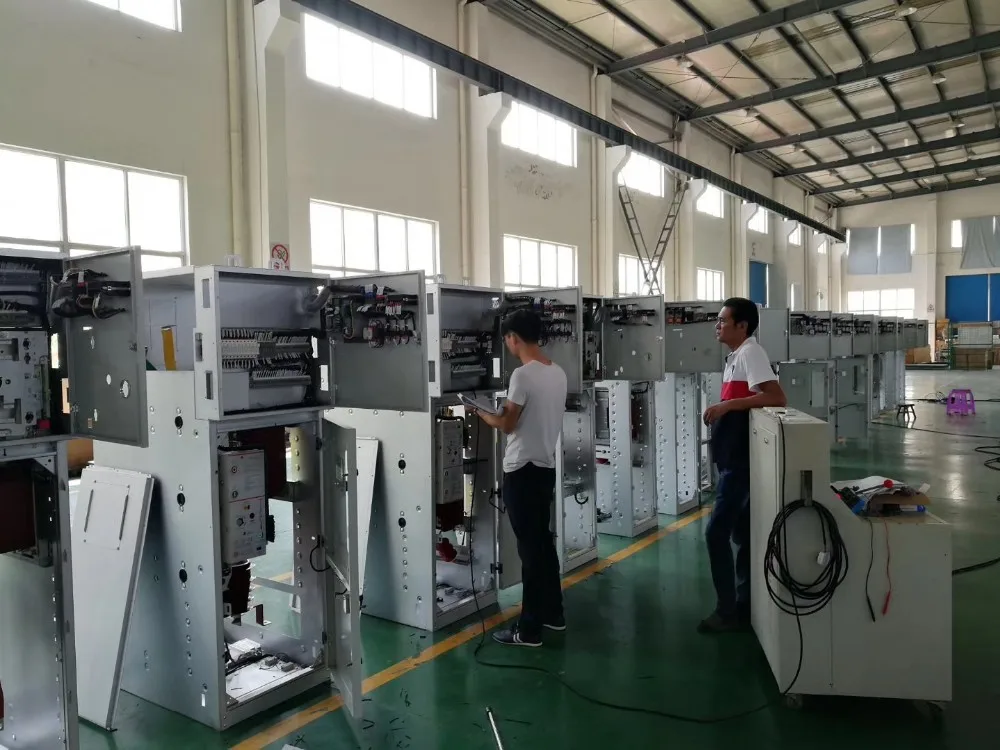

our technical staff

Our technicians are testing the quality of products. The company has strict control over the quality of products. Please rest assured that we will check the problems of products before they leave the factory
