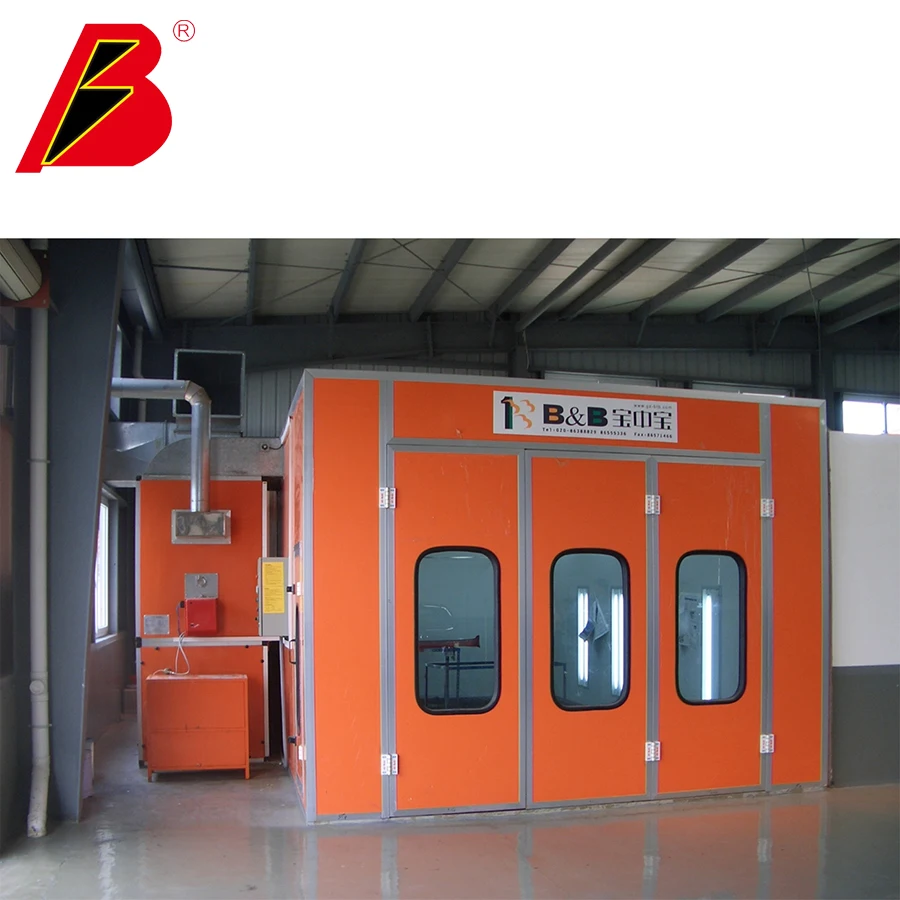

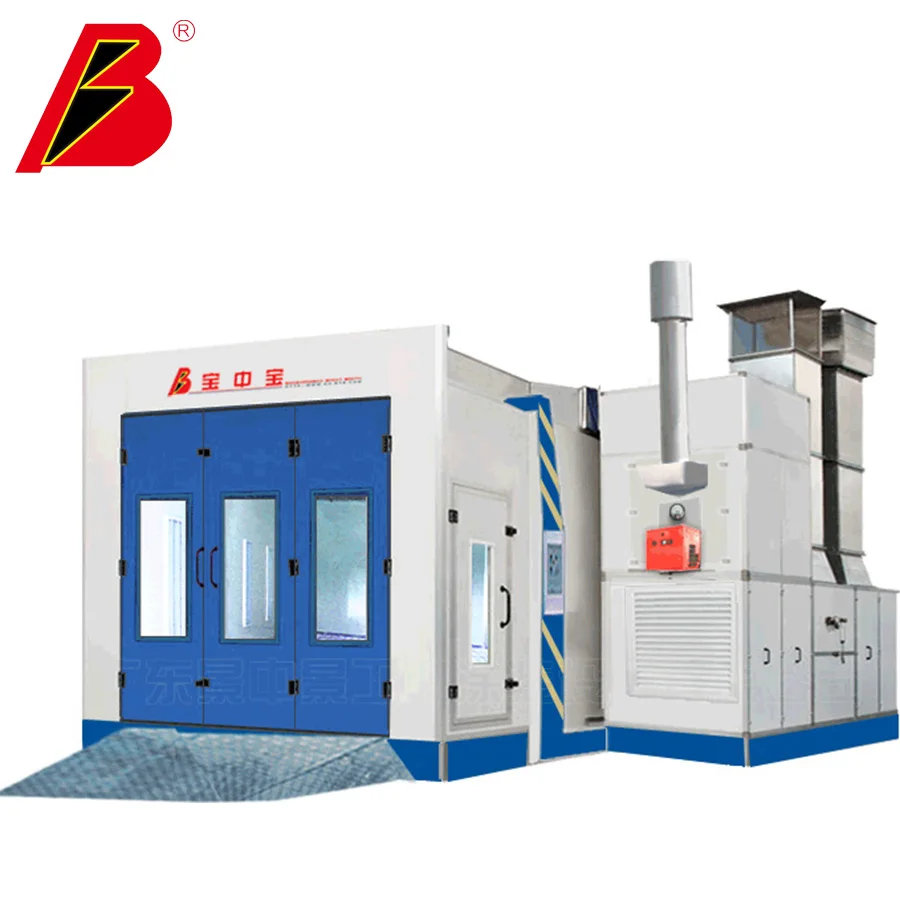

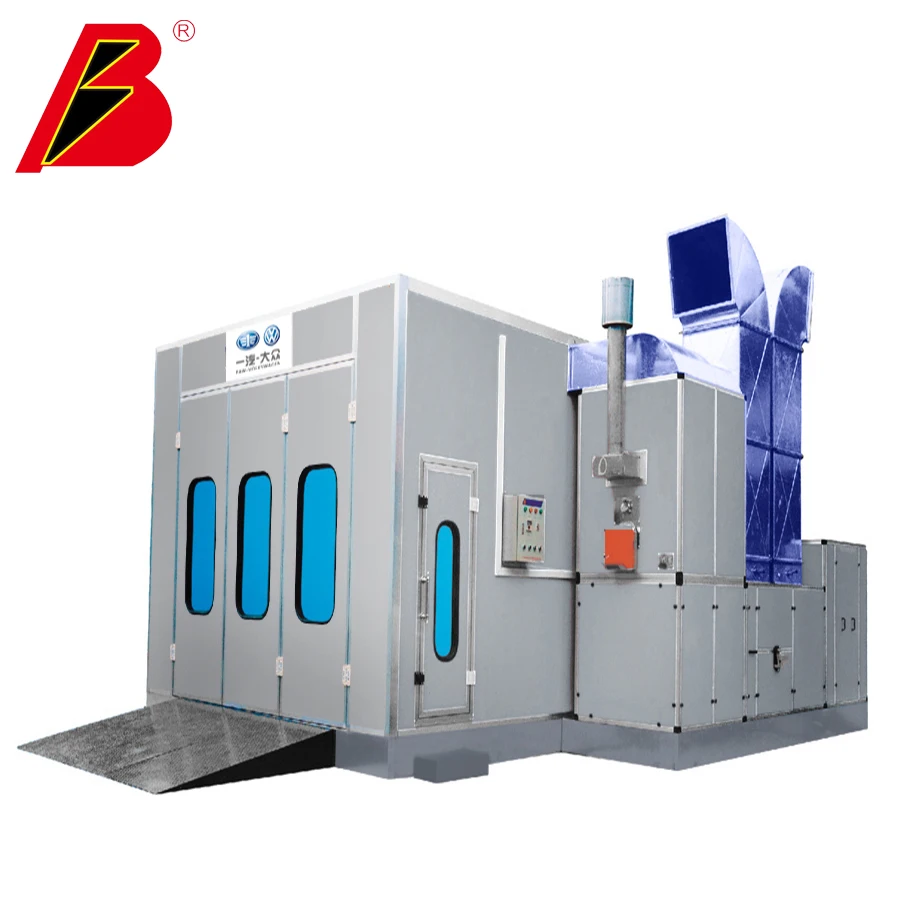

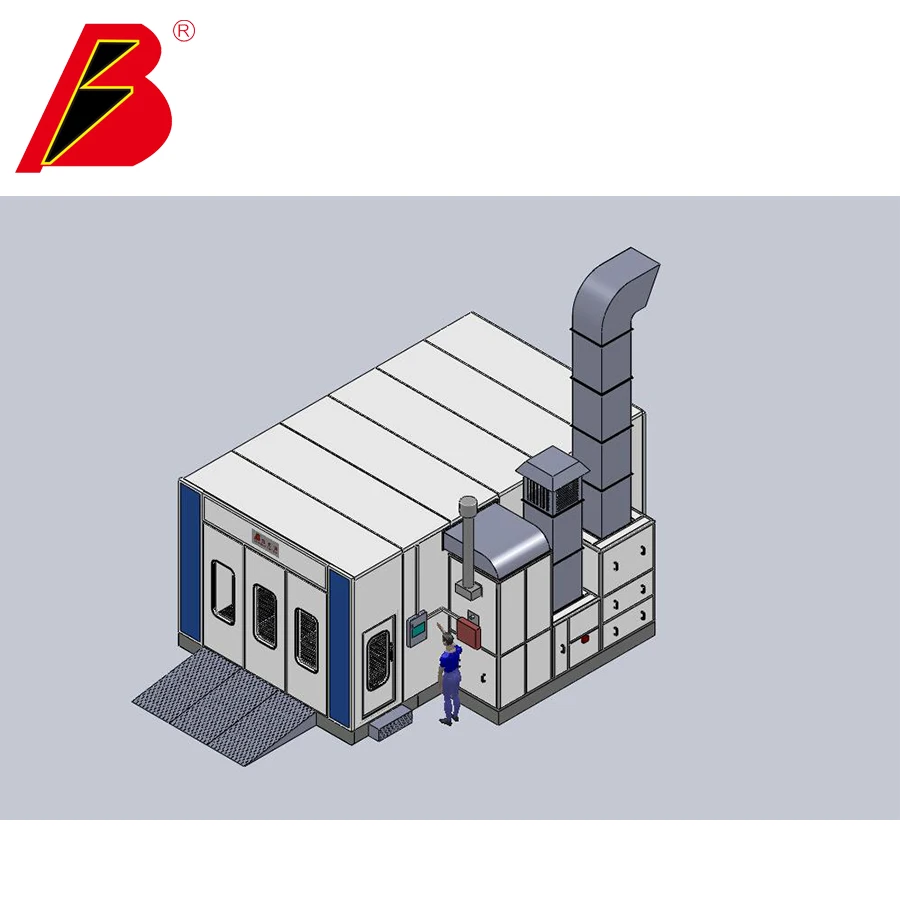

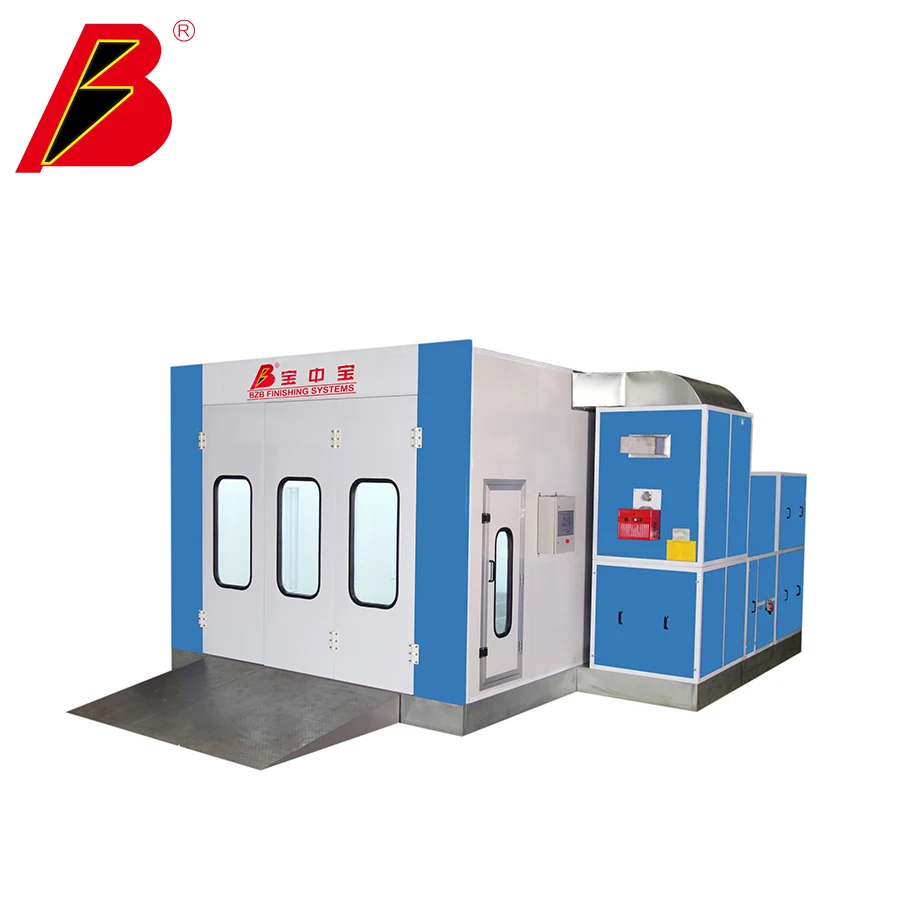

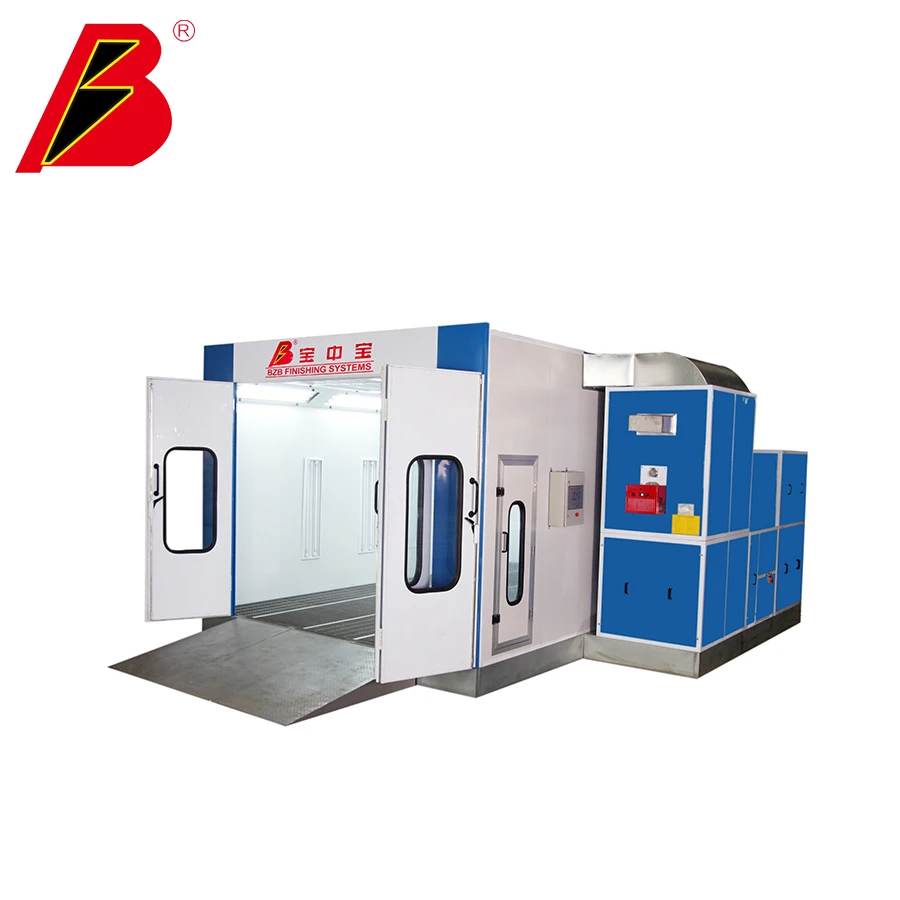

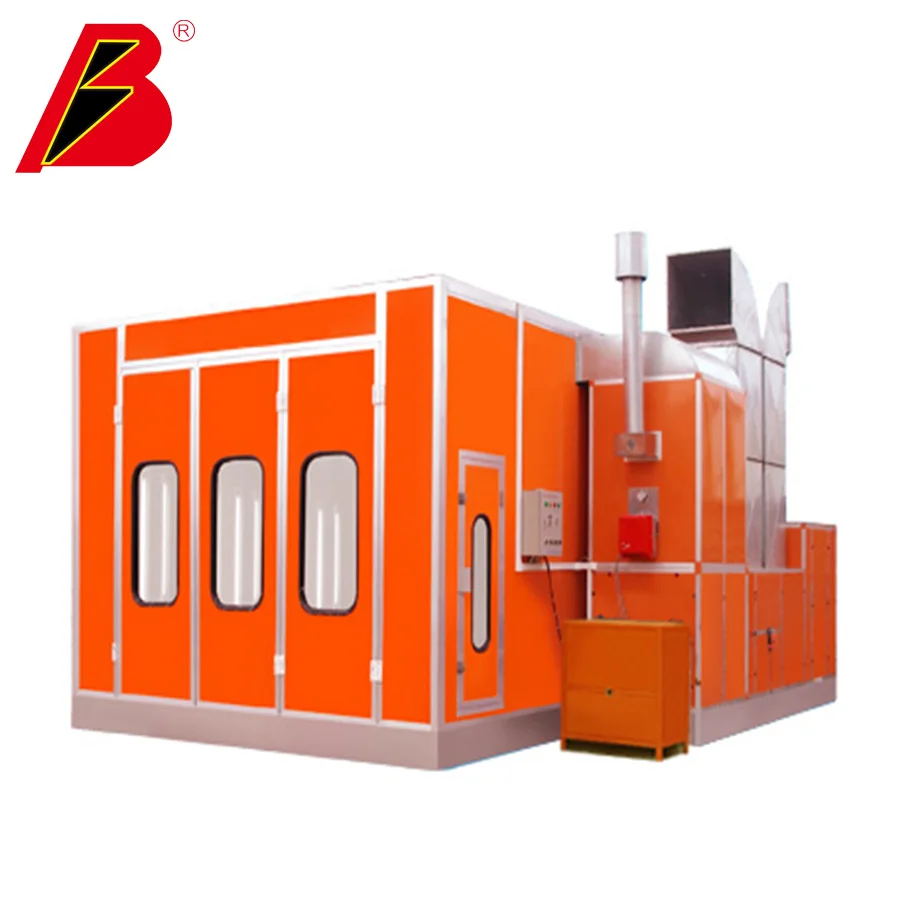

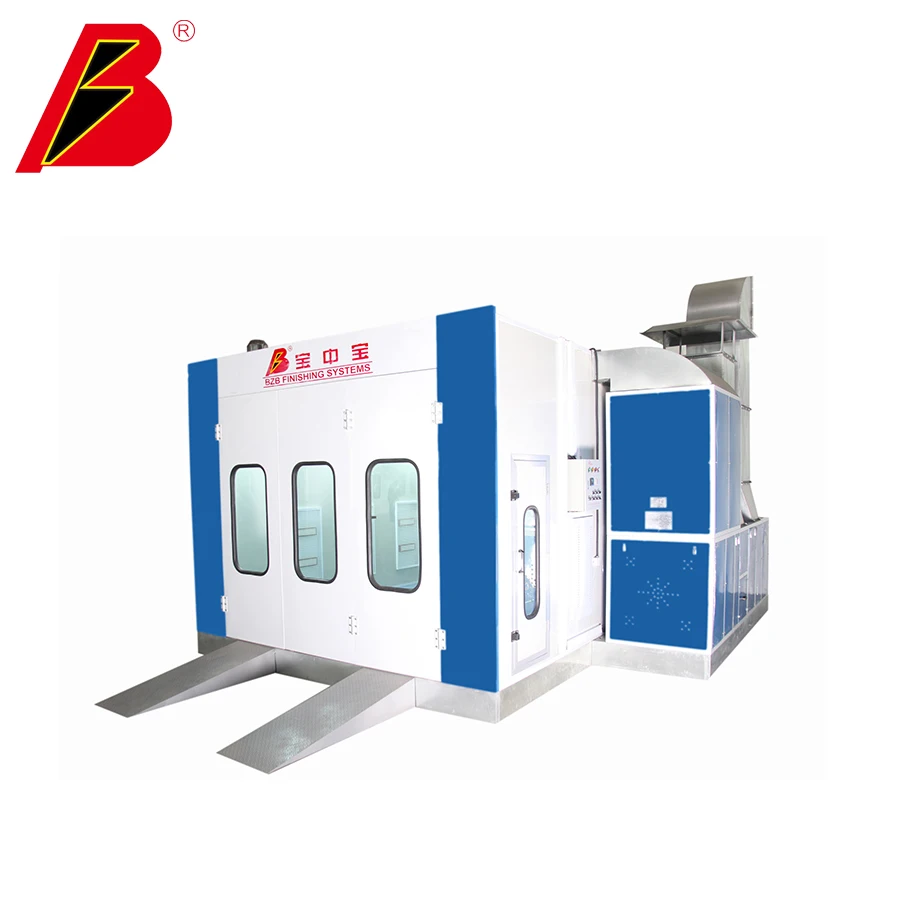

BZB 8500 spraying booth for cars external size
- Category: >>>
- Supplier: Guangdong Jingzhongjing Industrial Painting Equipment Co. Ltd.
Share on (62489321050):
Product Overview
Description
Model: BZB-8500
Outside Size | 7040×5550×3450 mm ( L×W×H) | |
Inside Size | 6900×4000×2650 mm ( L×W×H) | |
Total power | 17.7KW | |
Cabin System | Wallboard | EPS colorful steel skin board, wall panel: 70mm thick, ceiling panel: 50mm thick rock-wool panel, tongue & groove style compound construction, aluminum-alloy frame, anti-flame and heat- insulation |
Basement | 300mm height,full grid, adjustable height, galvanized steel sheet construction, three embossed steel ramp | |
| Fan | Inlet Fan: Model: YDW:4.5L, Capacity: 25000m3/h, Power: 7.5kw, Quantity: 1 set Outlet Fan: Model: YDW:5.6M, Capacity: 21000m3/h, Power: 7.5kw, Quantity: 1 set | |
| Air Volume | 24000/m3/h. air speed: 0.3m/s, air recycling times: 315times/h | |
Purification System
| Dual filtering structure, the primary filter can capture granules larger than 10 μm. ceiling filter can capture granules bigger than 4μm. the whole purification system has capacity of large volume of dust. Its filtering rate reaches 98%. air pressure balance gauge, TSP≤1.2mg/m | |
| Heating System | Italy Riello RG5S diesel burner, 260000Kcal/h, 20N damper motor, 2 sets quick dryer | |
Lighting System | Ceiling Light: 32pcs 16w LED lamp; bottom light: 32pcs 18w LED lamp, 1600 Lux | |
Controling System | PLC digital controlling, soft touching button, spray & baking switch, light switch, emergency stop, breakdown alarm | |
Environmental System | Multi-layer fiberglass filter, active carbon | |
