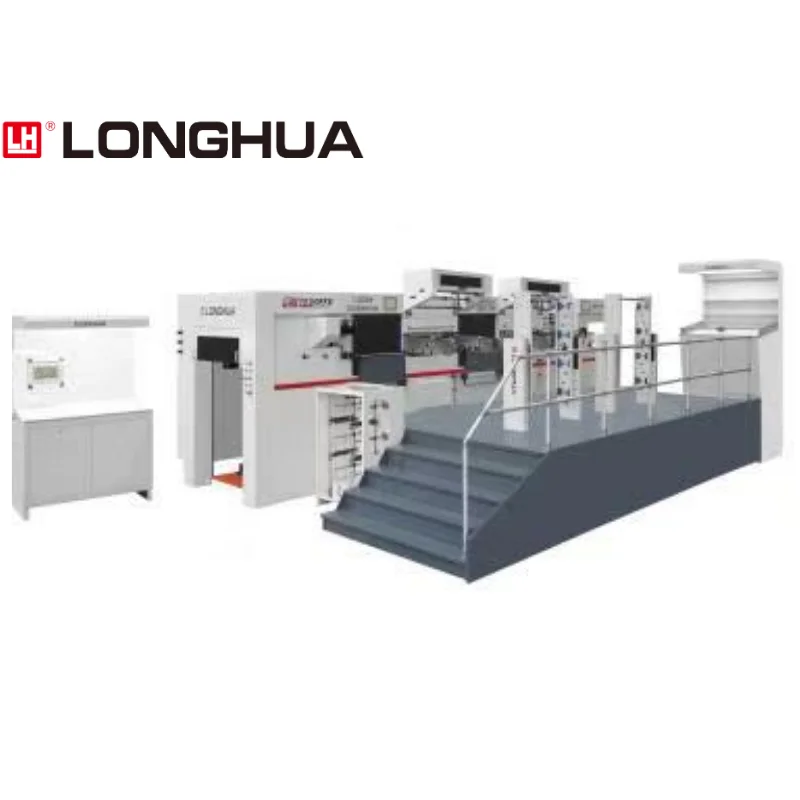

One Year Warrant Fully Automatic Holographic Position Embossing Hot Foil Stamping Die Cutting Stripping Machine For paper
- Category: >>>
- Supplier: Wenzhou Longhua Machinery Co. Ltd.
Share on (62489405010):
Product Overview
Description
Detail Product Description
______________________________________
1.high-end high effciency

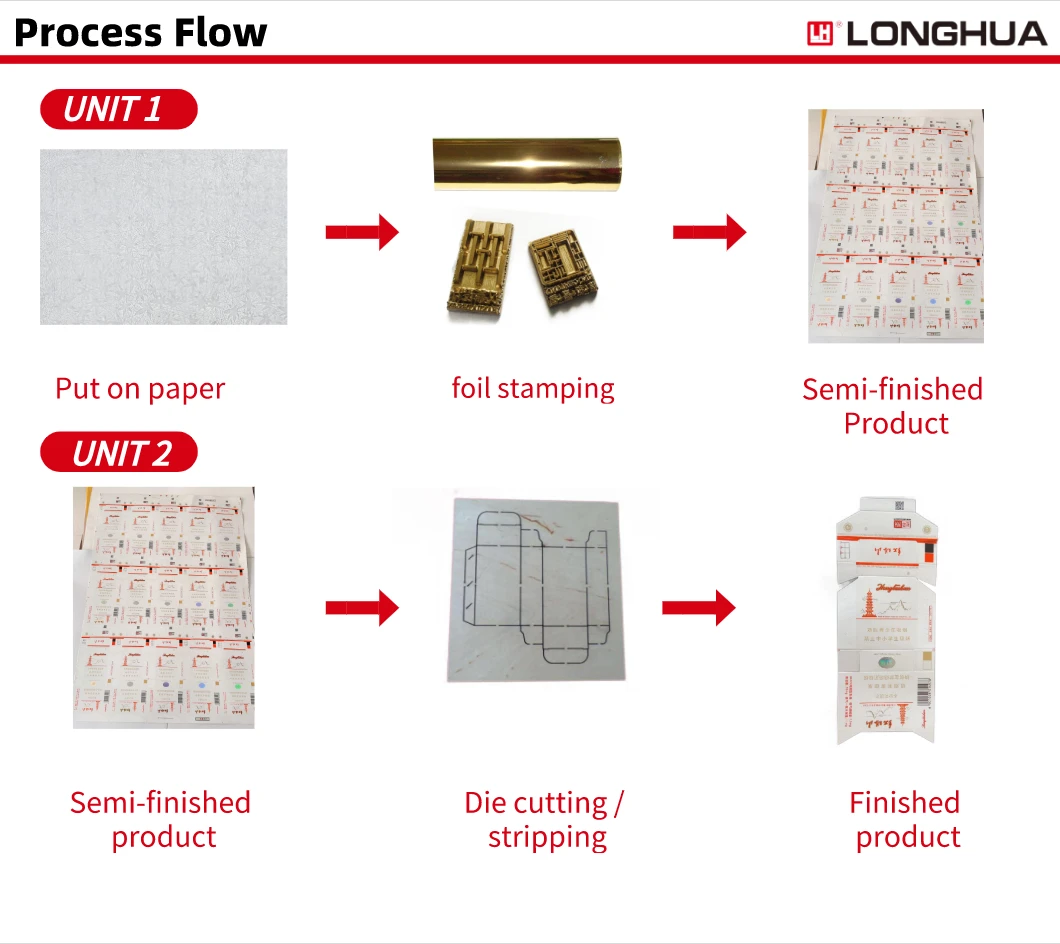

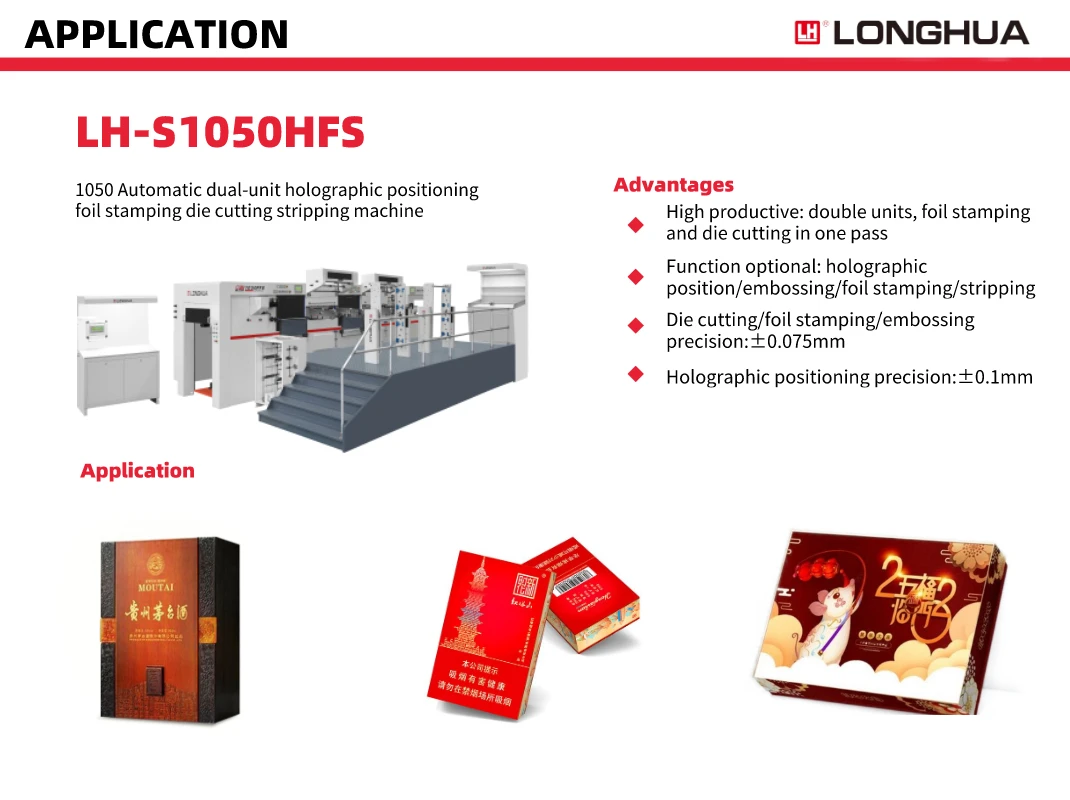

Automatic Double-unit Holographic Positioning Foil Stamping Die Cutting Stripping Machine is designed for huge orders. double units, which finishs foil stamping , die cutting and stripping in one pass, saves time and labor cost.
2. Function Optional
For Choice: hot foil stamping, die cutting, stripping, holographic positioning, embossing
Except die cutting , other functions are all optional. Ver flexible, custom-made according to your demands
3. Intelligent Systems
3.1 Non-stop paper feeding and delivery systems: feed and deliver paper constinuously
3.2 automatic lubrication system: cooling and filter oil fully automaticly
3.3 foil stamping/stripping transition system: switch from foil stamping to stripping, when doing die cutting work, vice-versa.
5.Strong Control System
electrical part is provided by main motor, and the 15 servo motors(optional) ensure the accuracy of the foil stamping position and the stable of the high speed. 12 independent heating zones provide 0-200°temperature and accomplish the variety and the fastness of the pattern. patterns are all high-quality, no bubble, no coking, no drape.
Machine Parameters
__________________________________
| MODEL | LH-1050HFS |
| Max sheet size | 1050×750mm |
| Min sheet size | 350×280mm |
| Max cutting size | 1040×720mm |
| Max foil stamping size | 1040×720mm |
| Max deep embossing size | 1040×720mm |
| Inner chase size | 1080×745mm |
| Die cutting steel plate size | 1080×736mm |
| Feed material | cardboard:60-2000g/m² corrugated paper:≤4mm |
| Plastic range | 0.1-0.2mm |
| Grabbing-sheet width | 8-17mm |
| Max pressure (optional) | regular:300Ton high pressure:580Ton |
| Max machine speed | 7500sheets/hr |
| Max foil stamping/embossing speed | 4500sheets/hr |
| Max feeder pile height(wooden pallet included) | 1850mm |
| Max delivery pile height(wooden pallet included) | 1600mm |

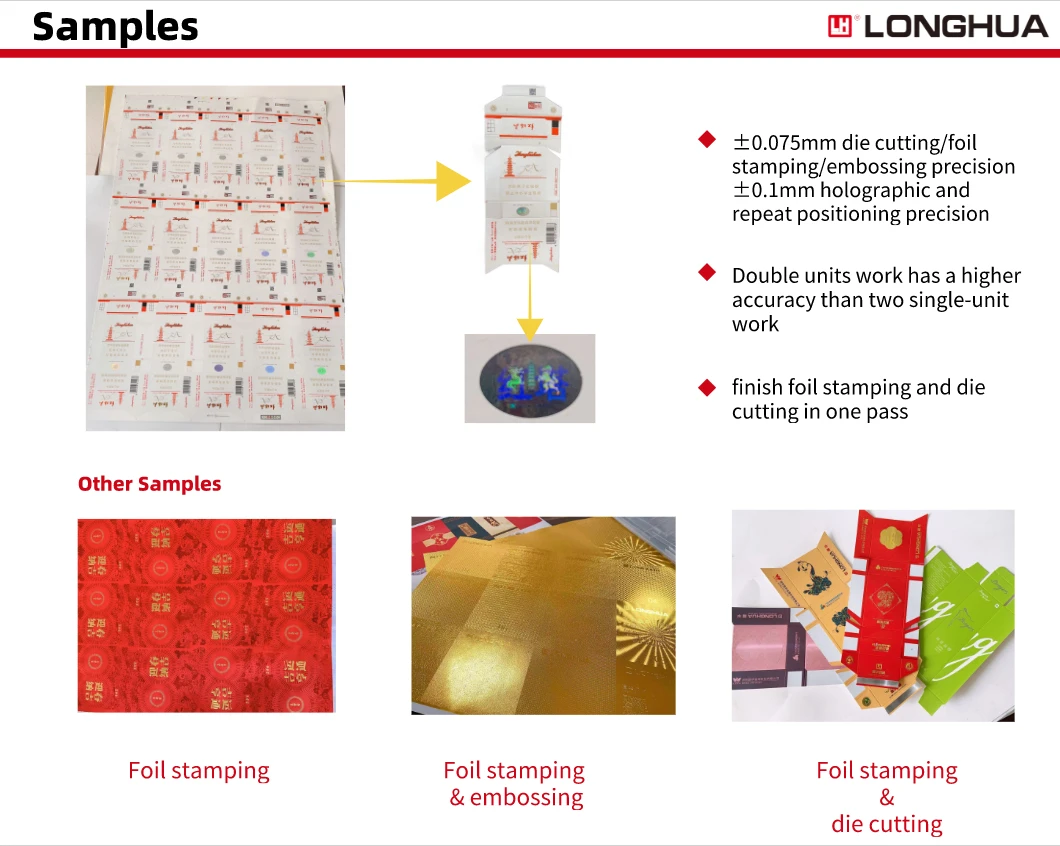

| Die cutting, foil stamping, deep embossing precision | <=±0.075mm |
| Max rolled gold diameter | Longitudinal:ø240mm Horizontal):ø200mm |
| Unit1 foil shaft | 3Longitudinal&2horizontal(Longitudinal shaft can be up to 6 shafts) |
| Unit2 foil shaft | 3Longitudinal&2 horizontal(optional) |
| Die cutting, foil stamping, deep embossing precision | <=±0.075mm |
| holographic positioning, repeat positioning precision(optional) | <=±0.1mm |
| Number of heating zones | 12heating zones,0ºC-200ºC |
| Main motor power | 15kw |
| Full load power | 105kw |
| Air requirements | 0.6-0.7Mpa;>1m³/min |

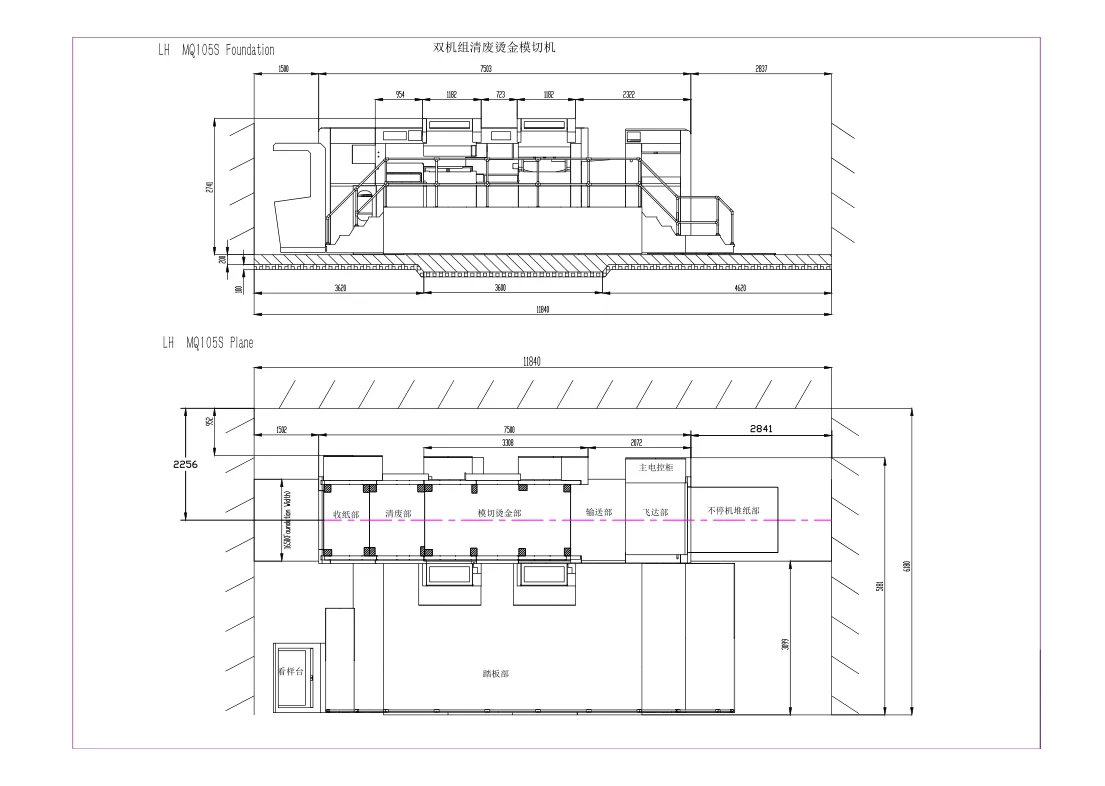

| Machine dimension | 10000×6300(include operation platform)×2860mm |
| Machine weight | ≈40Ton |

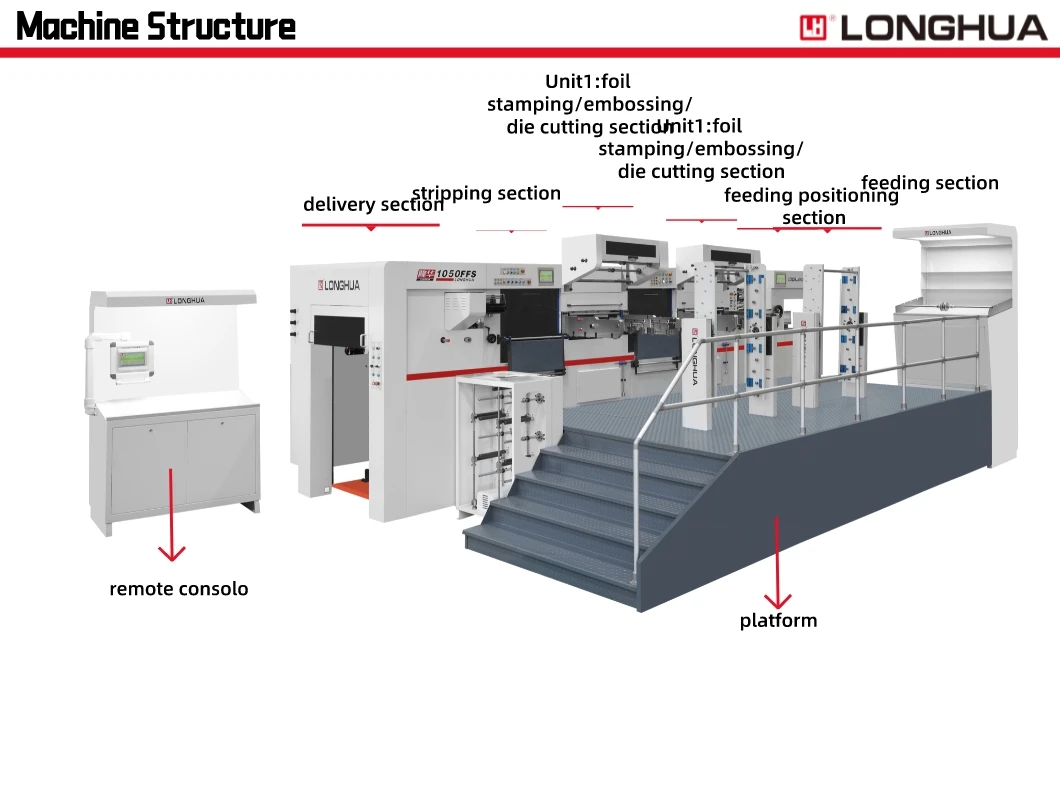

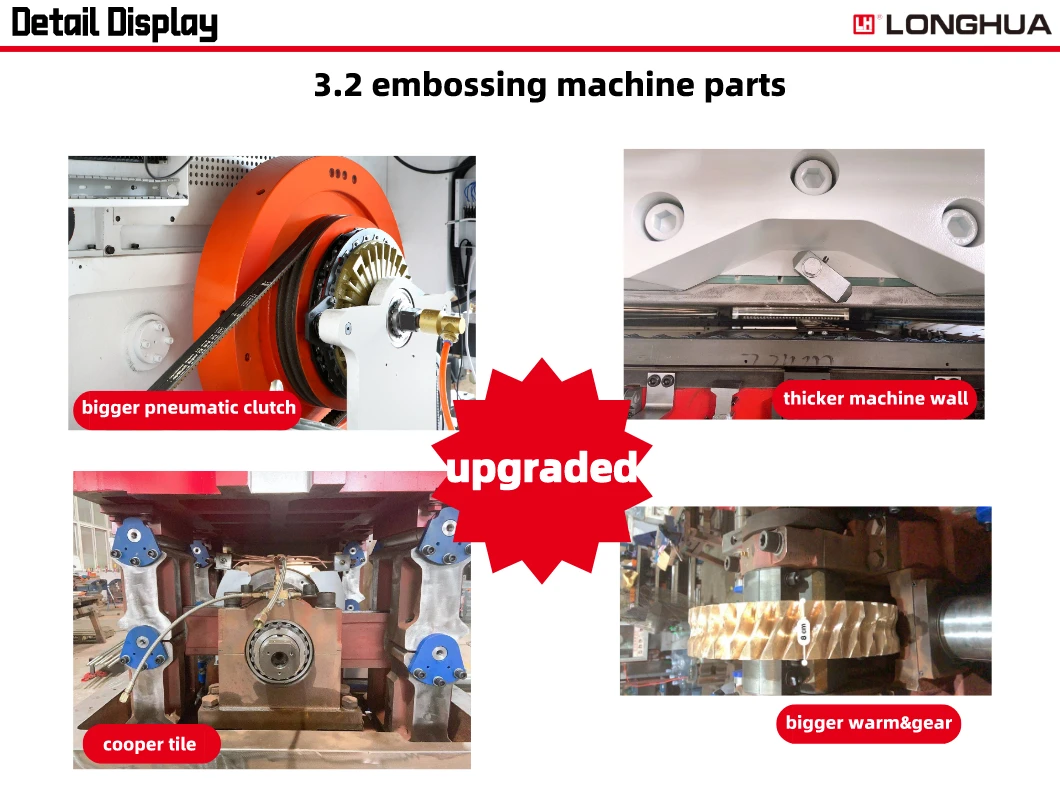

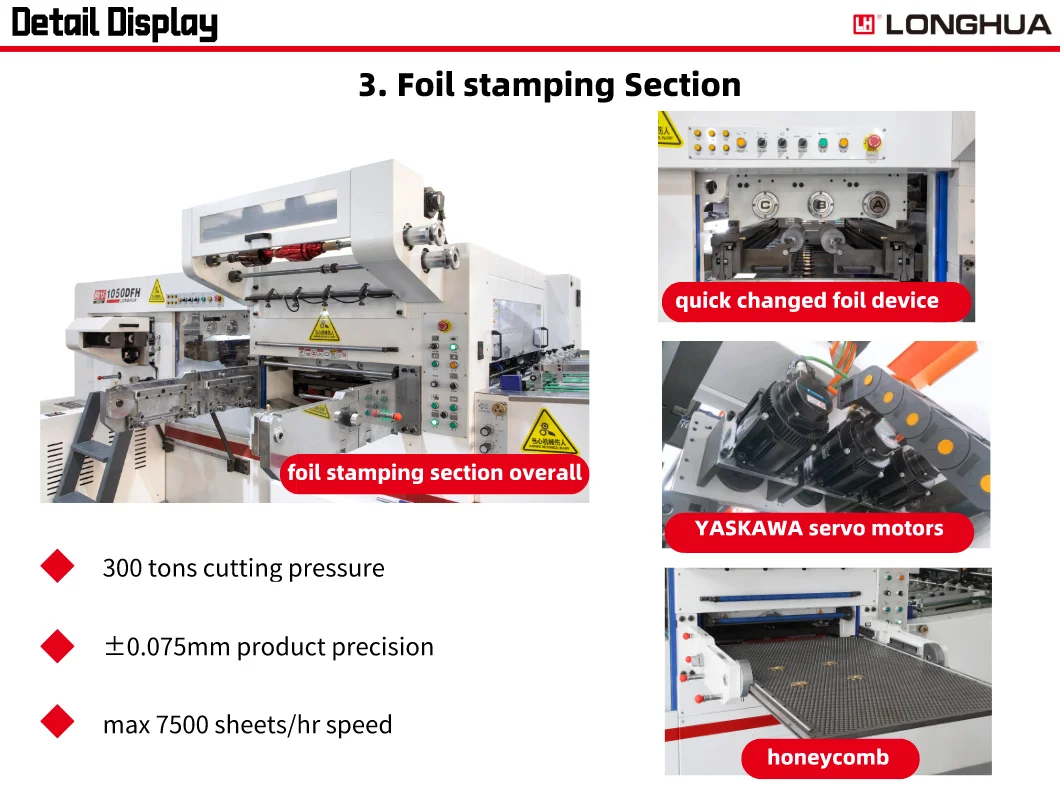

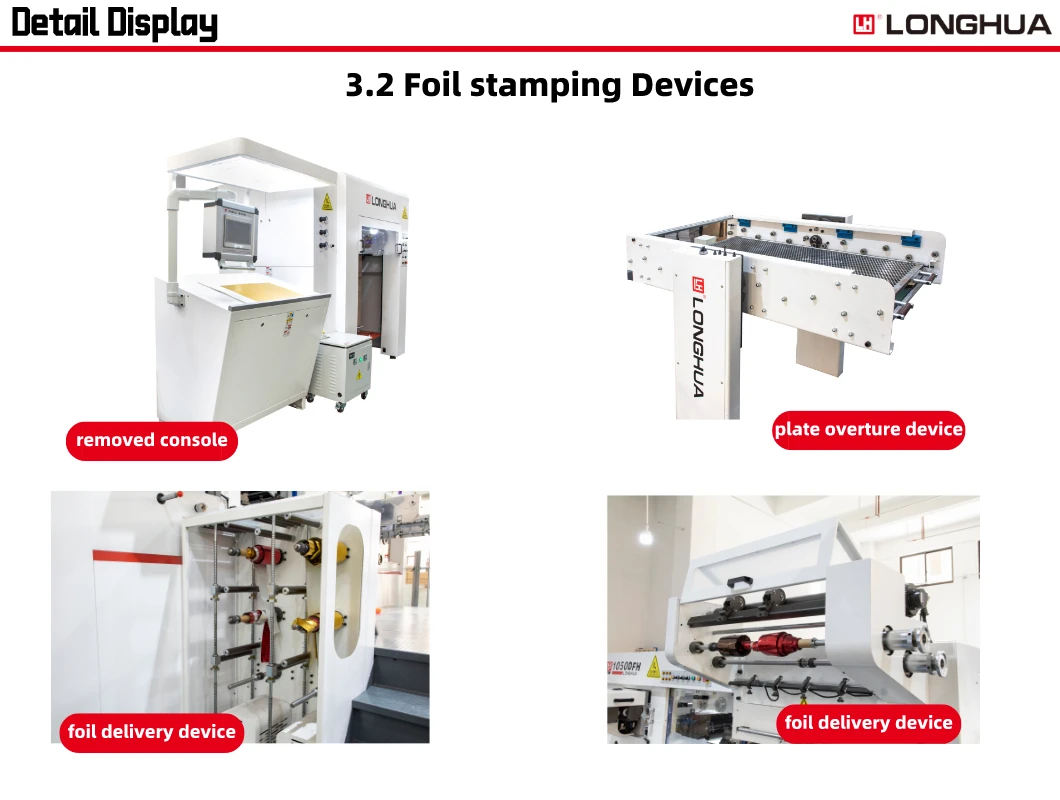

Machine Details
__________________________________
Company Information
__________________________________
After-sales Service
__________________________________

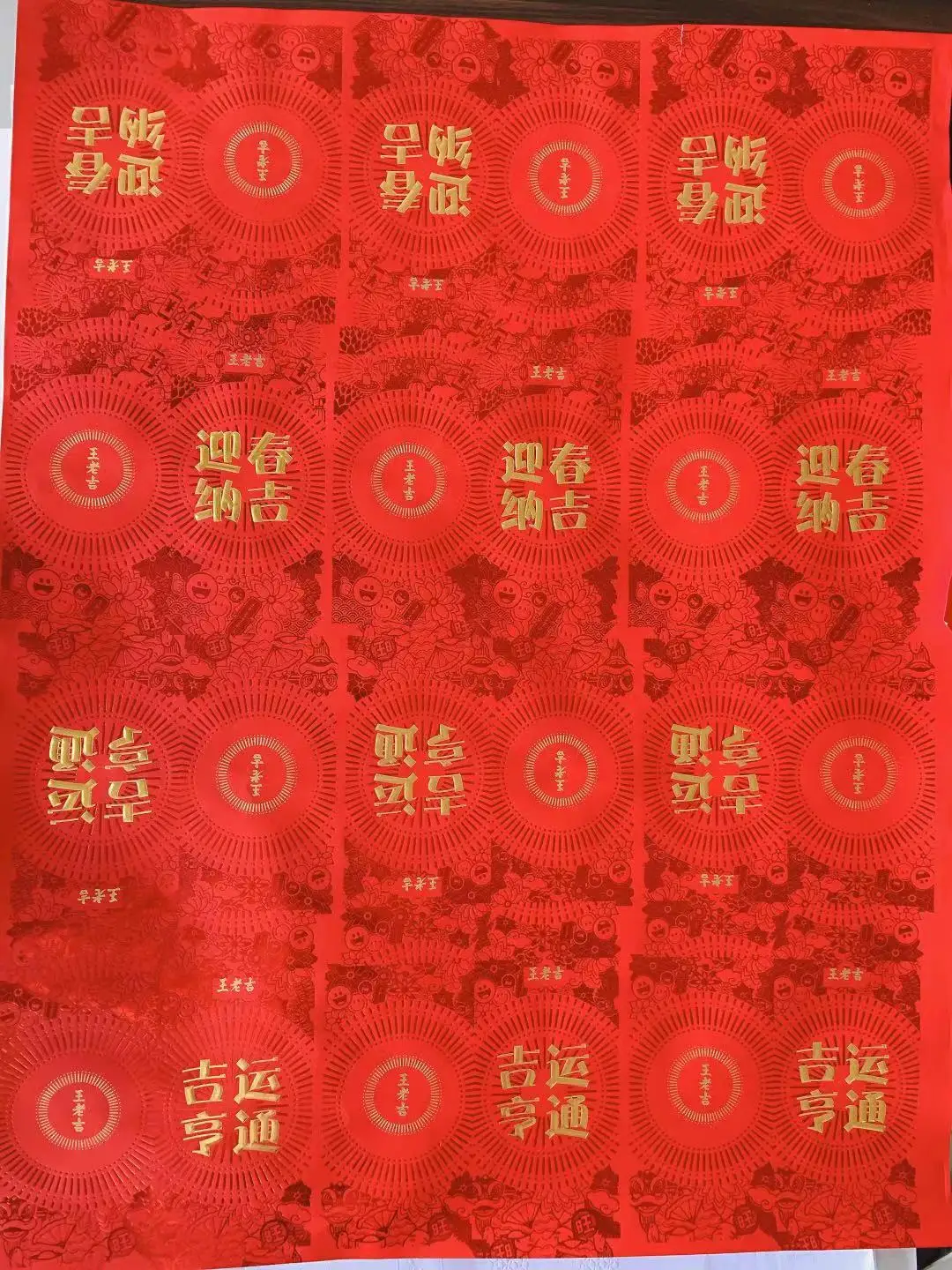

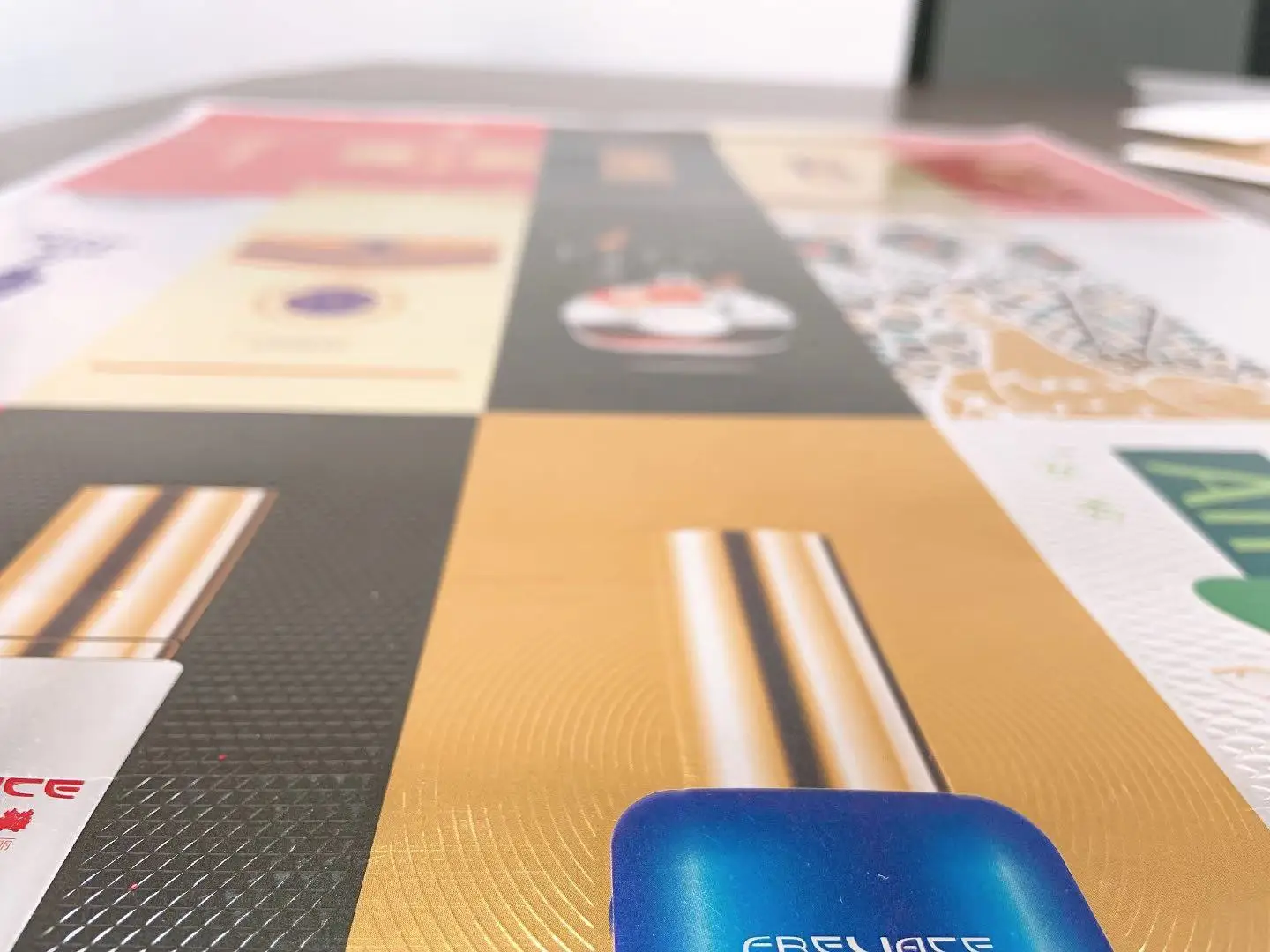

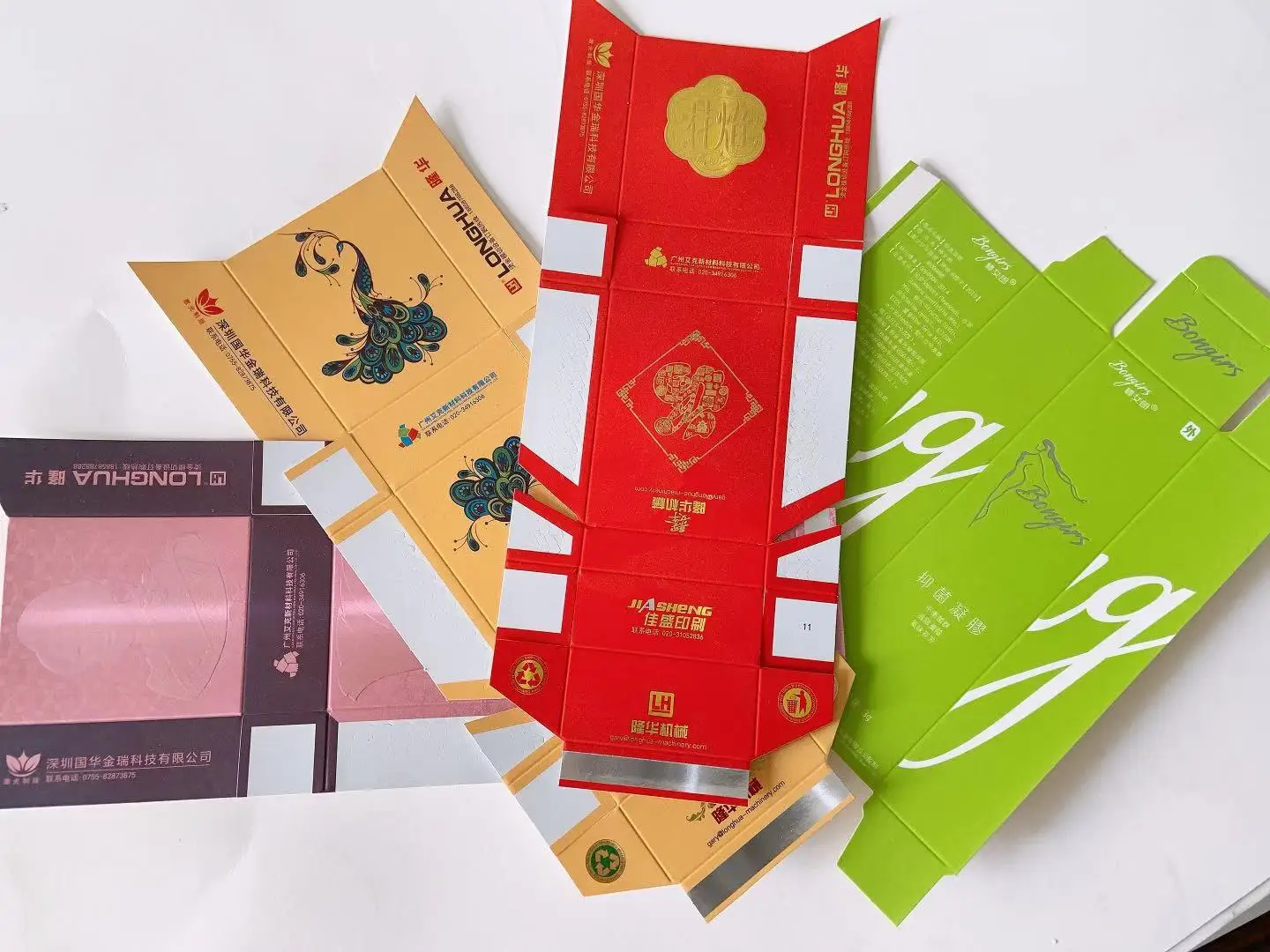

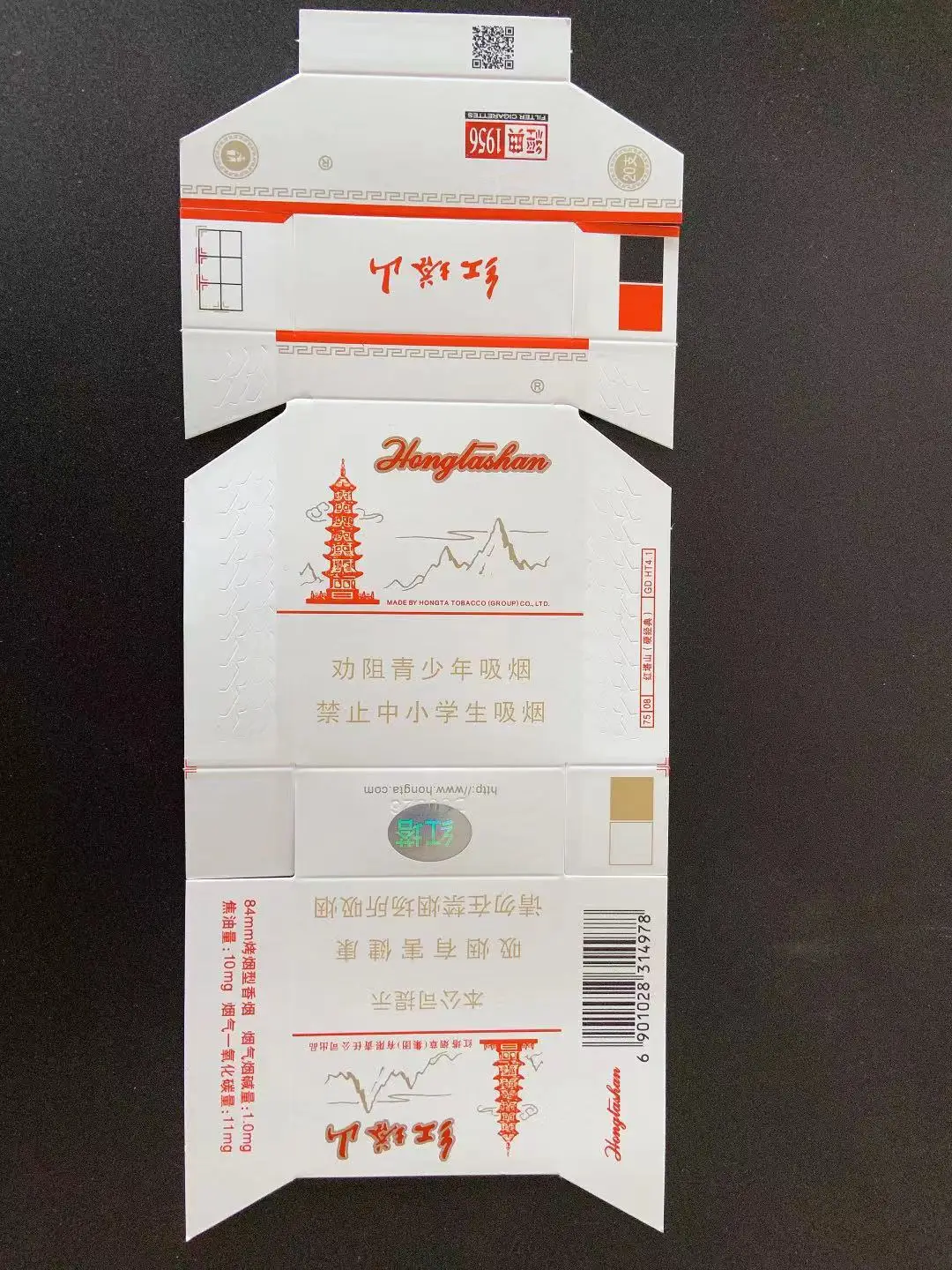

Successful Cases
__________________________________
Packaging & Shipping
__________________________________
Why choice us
______________________________________
1.About the company
Wenzhou Longhua Machinery Co.,Ltd has a excellent reputation domestic and oversea, has exported to Europe,Africa ,America and Southeast Asia ,and so on, due to our high level quality and intimate service.
The staffes of Longhua are creative,innovate,goodness,laborious,and capable,all of these excellent personalities make Longhua develop and expend maket rapidly.
2.About the machine
Die cutting machine,foil stamping machine and embossing machine ,the classics of Longhua,which are in the industry leading level .
we have product these machines for tens of thousands times,so we have a skillful technology ,and 100% ensure the quality of machines.
3.About the sevice
We provide one year after-sales sevice, including install,debug and the training. We are alway ready whenever customers need us,and so pleasant to make friends with our clients.
FAQ
______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to
purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please
contact us and we will reply you through product's photos and videos to make every detail clear.
______________________________________
Q1: Do you have stock products to sell?
We manufacture machines in batch. So most of machines have in stock, please check with us before ordering.
Q2: How about installation and training?
Installation and training: If purchaser's engineer travels at own cost to China, free training session. If engineer sent to
purchaser's factory, all travel cost paid by purchaser.
Q3: How about warranty?
Warranty period: 12 months from the shipping date of machine. Warranty will be not valid if machine subject to misuse or
accidental damage or operator's error. During the valid time, we will supply spare parts. If you have any other questions, please
contact us and we will reply you through product's photos and videos to make every detail clear.
Q4:What is your payment?
T/T.30% deposit, 70% balance before delivery.
L/C. 100% at sight.
T/T and L/C, 30% TT deposit, 70% L/C.
