STEAM BOILER

We count with vertical and horizontal steam boilers, with designs of compact and efficient sizes, models with structure of water or fire pipes with vertical and horizontal returned till 4 steps, capacities available from 5bph with certification ASME (Sociedad Americana de Ingenieros Mecánicos) and CE (Conformidad Europea).

Equipment Description

 The steam boiler offered is of fire pipe, 3 passes, wet bottom, horizontal type. The steam boiler is equipped with necessary assemblies, accessories and complete accessories, and is factory tested for safety and pressure before shipping. The entire unit fully packed, is over on resistant brackets ready for an easy installation and commissioning.

Feeding water requirements:
-Corrosion degree FTU= ≤5.0
-Hardness= ≤0.030 mmol/L
-Alkalinity= 6.0~26.0 mmol/L
-Phenolphthalein Alkalinity= 4.0~18.0 mmol / L
-pH to 25°C= 10.0-12.0 /7.0 - 9.0
- Dissolved oxygen Mg/L ≤0.10
-Dissolved solid matter= ≤4.0*10^3
-Oil= ≤2.0 Mg/L
-Total iron= ≤0.30 Mg/L
-Electric conductivity (25° (μS/cm)= ≤5.5*10^2

Boiler Water requirement:
-Alkalinity= 6.0~24.0 mmol/L
-phenolphthalein Alkalinity= 4.0~16.0 mmol / L
-pH to 25°C= 10.0-12.0
-Dissolved solid matter ≤3.5*10^3

Application Fields:

1.Force Plants

2.Industrial Processes

3.Calefaction

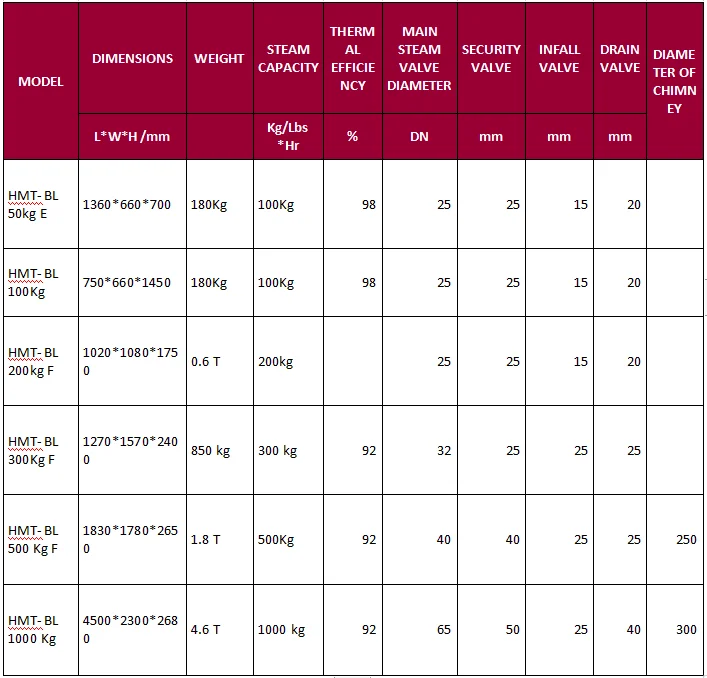

Technical Description
-Conditioned to work with gas
-General control board over carbon steel equipment with anticorrosive paint
-Has flame control
-Automatic water level control
-Gas injection by regulated selenoid valve
-Auto spark generator

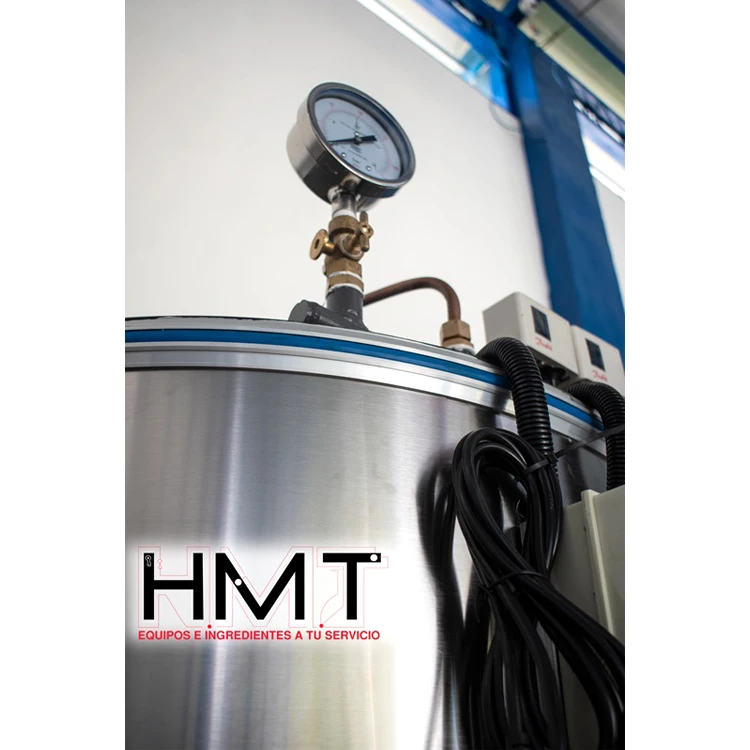

-Pressure indicator gauge type
-Process luminous indicator
-Programmer module
-Security mechanism anti explosion
-Selectors and thermal switches for motor protection

Function

Steam boiler with adequate heating area, total heat transfer, stable operation under load check, high combustion efficiency.

Material:

-Boiler cylindrical shell Q245R

-Boiler Furnace Q245R

-Tube Sheets (Front and Rear) Q245R

-Smoke tubes (screw type) 20# GB3087

-Stay Bars 20# GB3087

-Smoke box insulation high density rockwool density 100 Kg/m^3 Castable Refractory cement

-Moldable refractory cement

-Shell insulation high density rockwool density 100Kg/m^3

-304SS-1mm cladding

Article

This boiler is designed / manufacturer / inspection / assembly according to GB / T16508.1-16508.8-2013 - Shell boilers and NB / T47034-2013 - Technical specifications for industrial boilers, as well as TSG G0001-2012 –Regulation of the supervision of security technology for the boiler TSG G0002-2010 – Supervision and technology management procedures for boilers energy saving.

Structure:

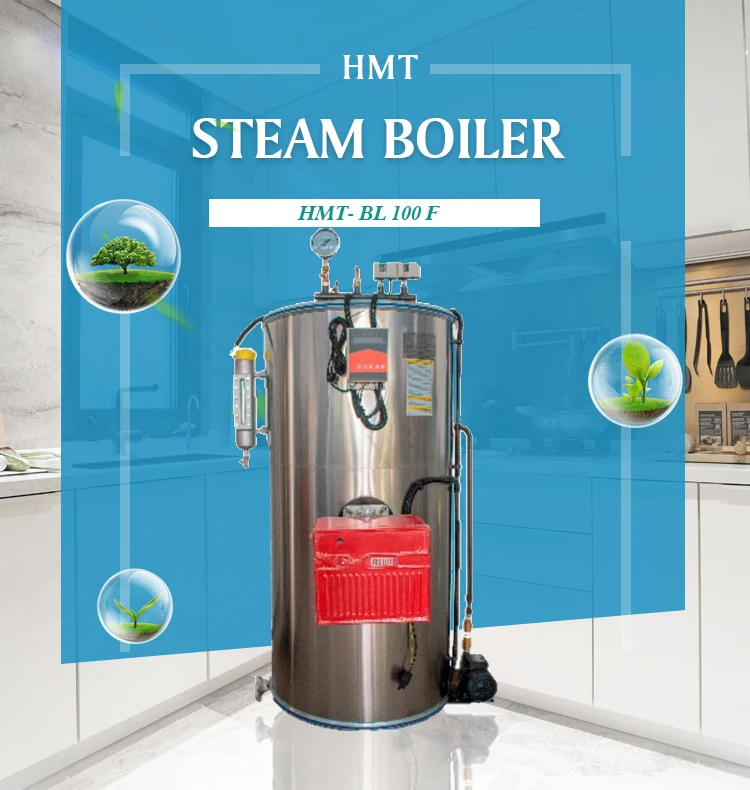

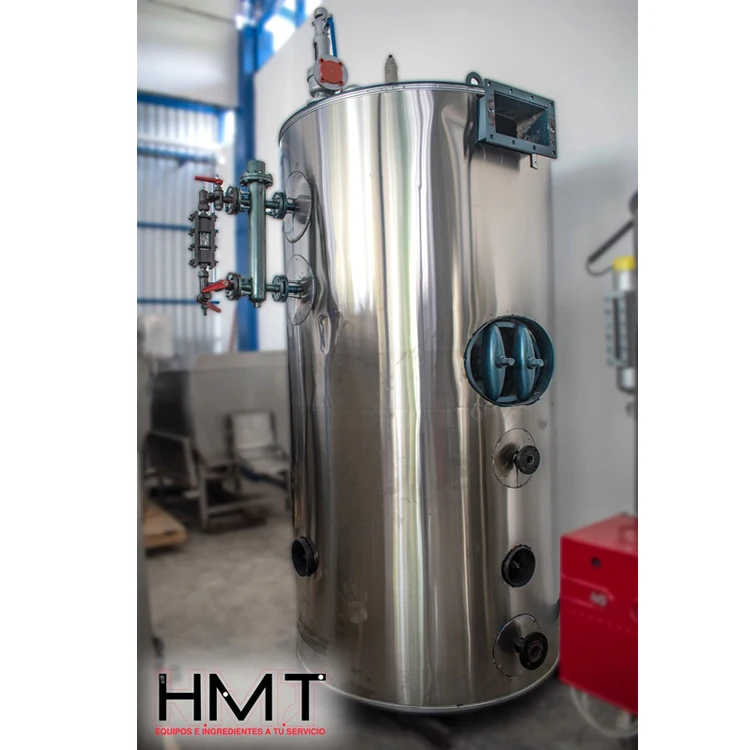

-Gas Steam Boiler
-Water feed bomb

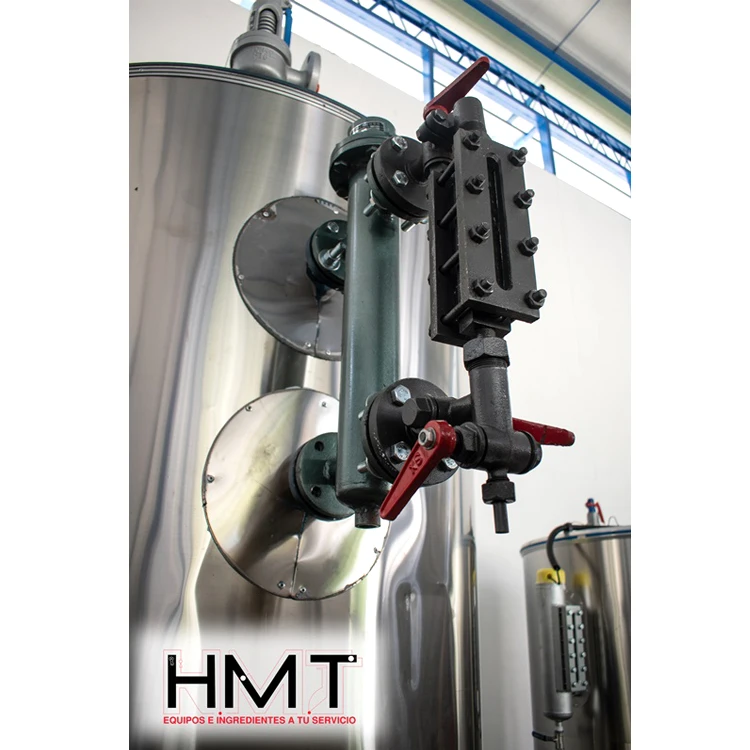

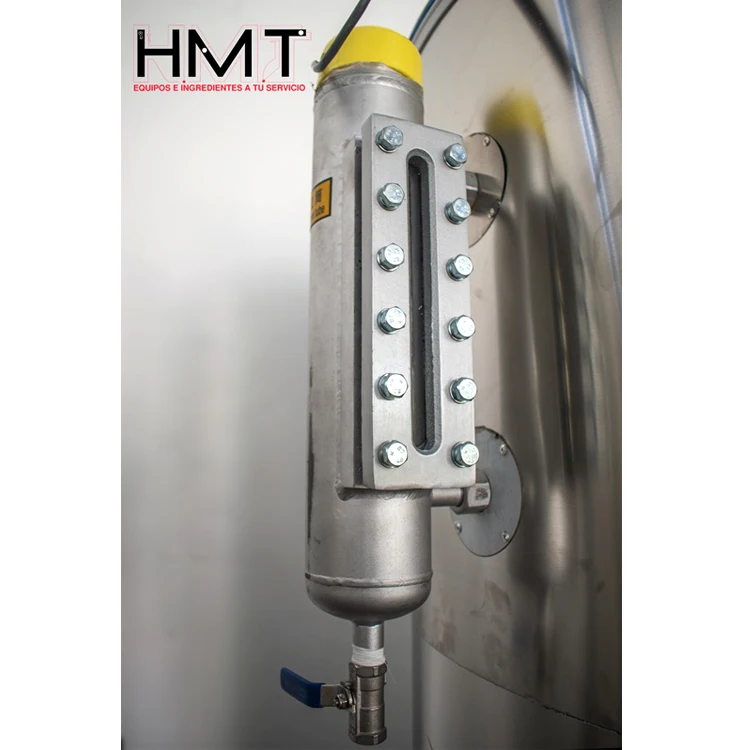

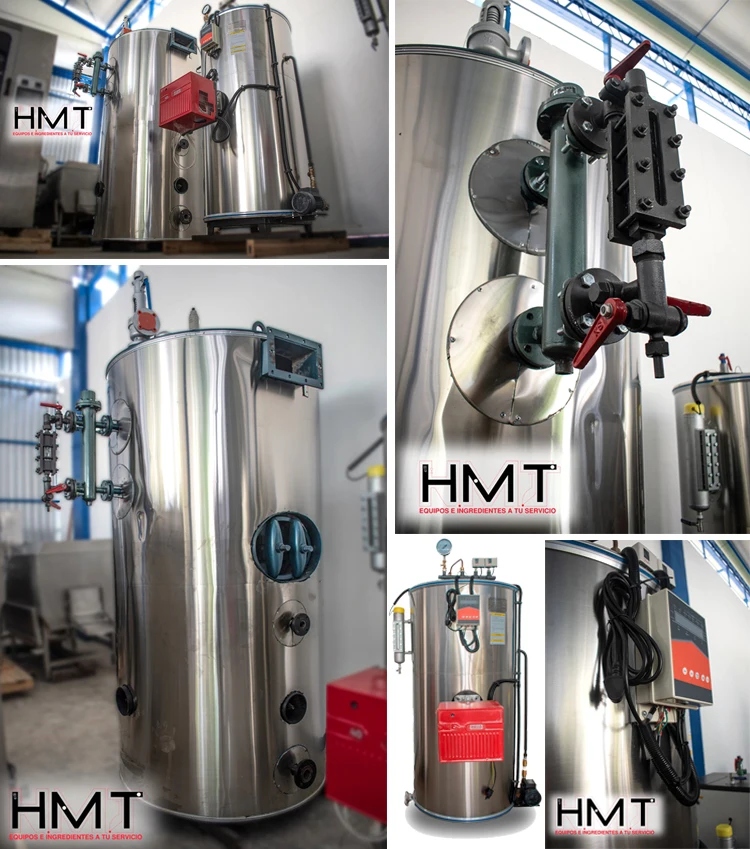

-2 units Liquid level indicator type
-2 units Security valve
-3 Sets Pressure control
-2 units Manometer
-1 unit Steam Valve
-Sewage water valve

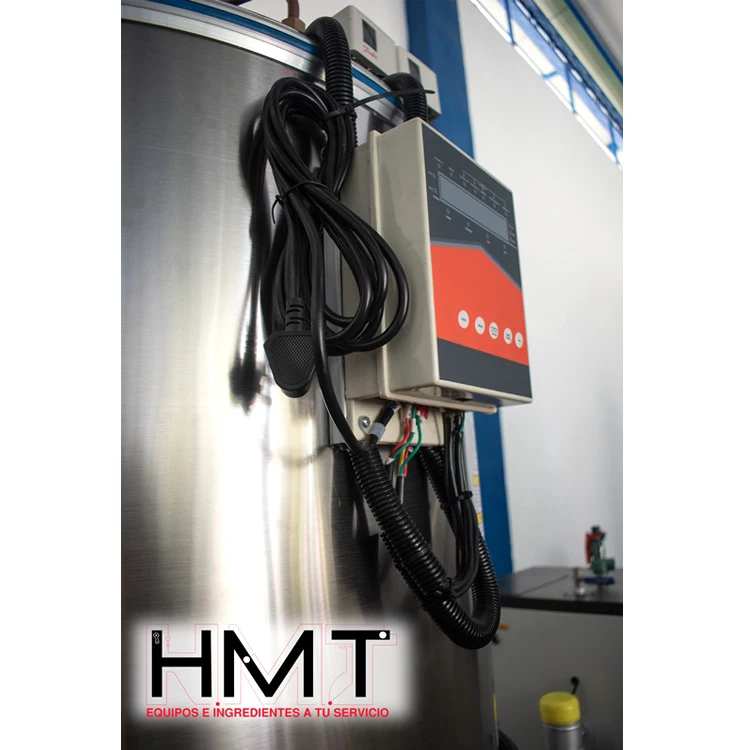

-1 Set Control panel cabinet
-1 Set Burner
-1 Set Economizer
-1 Set Platform
8M Fireplace

Main Features

1) Simple structure ,easy in installation and maintenance

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Double operation of pneumatic or manual valves in one and two stages

4) High efficiency motor with low energy consumption

5) Homogenization Block with high efficiency and low noise level
