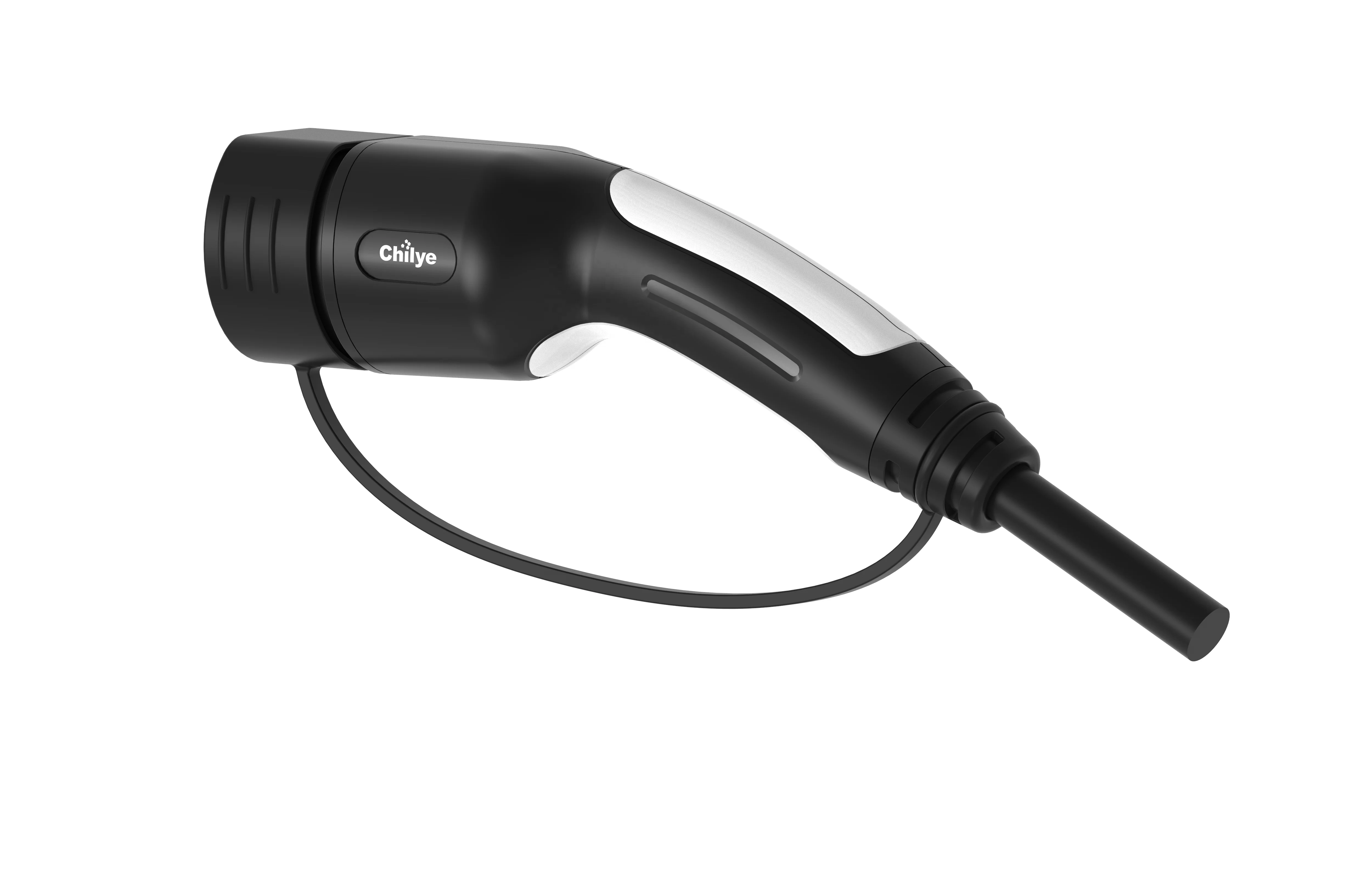

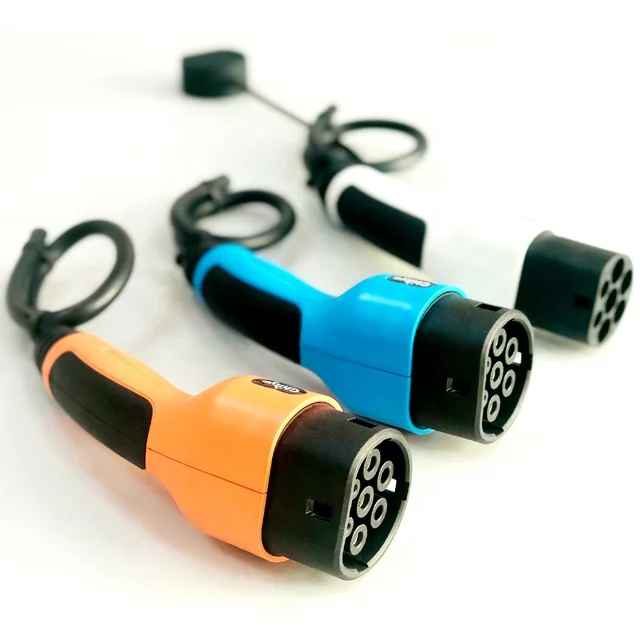

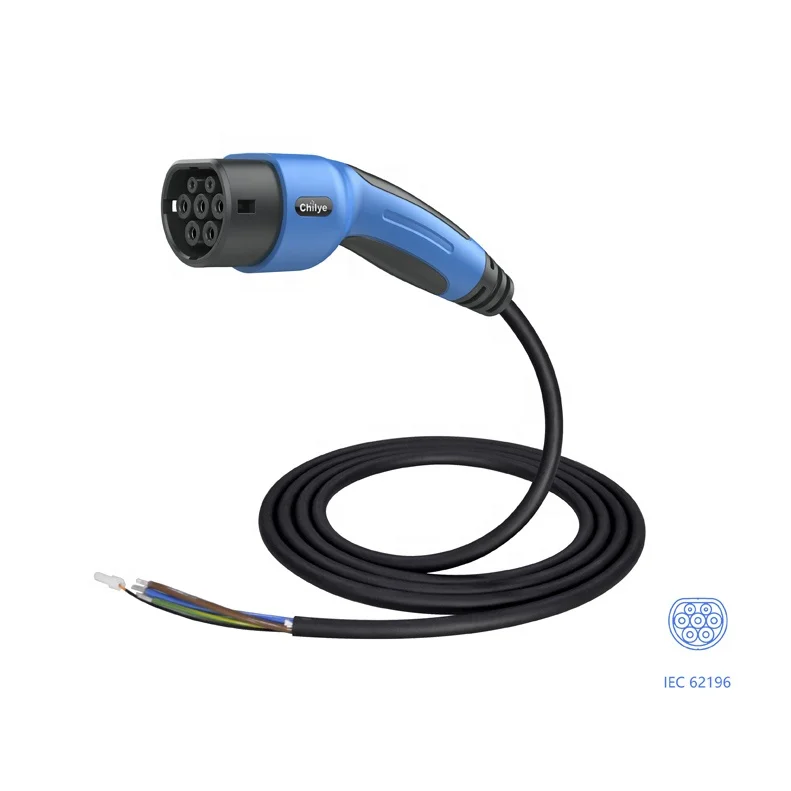

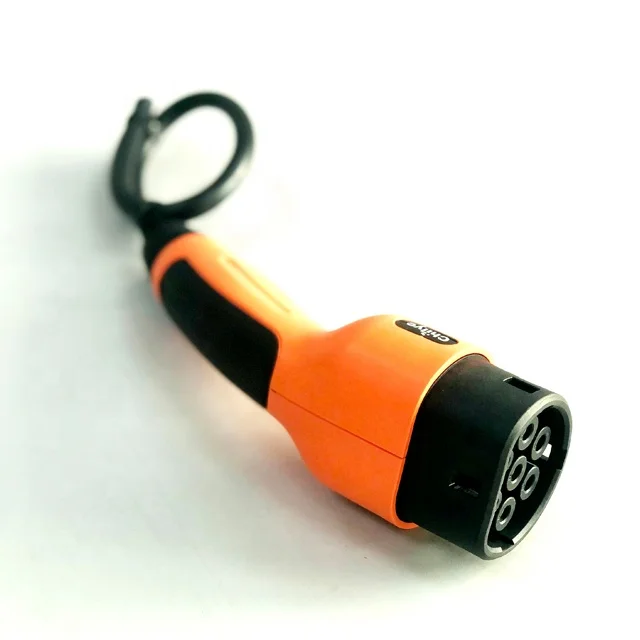

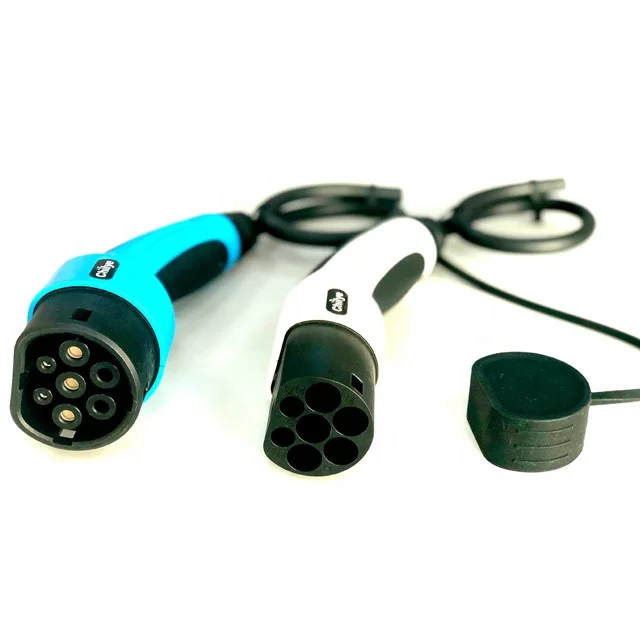

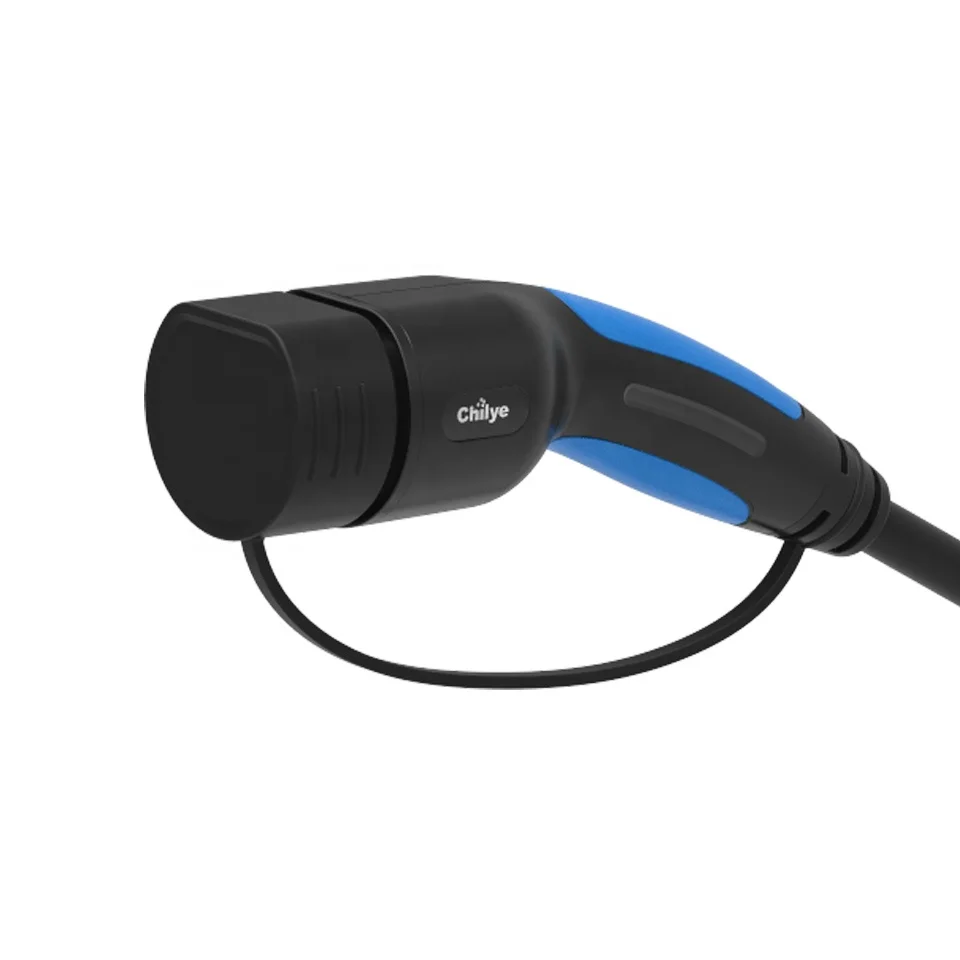

IEC Type 2 AC Charging Connector Single phase 32A Vehicle side

Product Overview

Description





Model Number	CL-C3ICA06	Application	Electric Vehicle
HV cable	16-50mm²	Interlock cable	0.5 mm²
Material	Plastic sealed connector	Rated voltage	250V AC
Rated current	16A/32A	Insulation resistance	100 Mohms min @500V DC
Temperature range	-40℃ to +125℃	Shielding range	360 degree shield
Electric protection level	IP2XB	Connecting protection level	IP55





EV Charging Plug/Connector

HV charging series connectors integrate touch-proof design, good EMC shielding performance,

high IP rating,high safety, unique design,
providing safe and reliable high voltage connection solutions to electric vehicles and hybrid electric vehicles.









Type 2 charging plug/connector for EV charging system



Application
Electric vehicle charging system



Description
• single/three phase
• 5 meters long cable
• IP55 protection level
• Customized color
• Finger proof/touch safe
• Shielding range: 360° shielded from the line to the connector
• Cable range: 2 mm² to 5 mm² power circuit;



Performance
• Current capacity: 16A/32A
• Voltage: 250V AC
• Temperature range: -35°C to +125°C
• Sealing protection: IP67, IP6K9K
• Electrical protection: IP2XB
