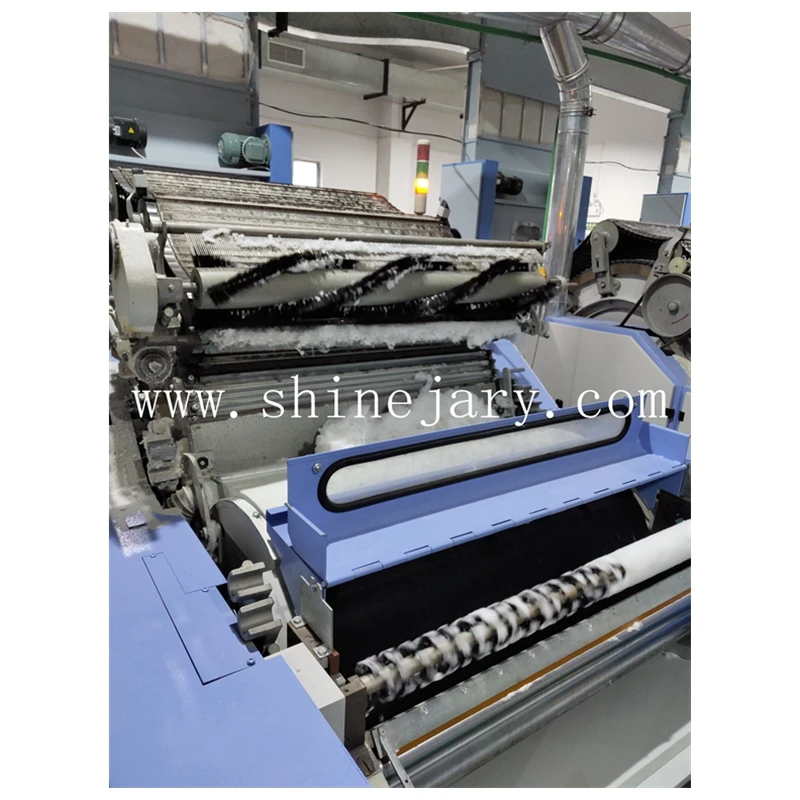

Application: The preceding process of the machine is blowing room and the following process is drawing frame.The machine is mainly used for the processing of cotton(chemical fibre)laps and cotton (chemical fibre) layers.The machine combs the curly cotton (chemical) lumps moving from the preceding process or feeding hopper to straight single fibers.Meanwhile the impurities will be removes.Then it spins them into standard slivers and stored in a sliver can next process.
MAIN ADVANTAGES:
Microcomputer control and digital display relevant parameters.Front and rear stationary flats and card segment under taker-in are fixed.Automatic stopping while Doffer returning flow of fibers,thick laps and sliver breakage.Testing the delivery speed and draft range,display the length.
Flat uses 0.56mm small heel-toe to improve the carding efficiency.Doffer motor is of stepless frequency control by inverter,piecing-up with low speed and high-speed motion.Continuous suction is adopted.
Main parameters
1. Model:right-handed(standing in front Width:1020mm Applicable lap: Width:980mm of the machine,facing to the Doffer)
2. max diameter：￠550mm
3. Cylinder working diameter: ￠1289mm
4. Cylinder speed(selective):330rpm(for chemical fibre);360rpm(for cotton)
5. Doffer working diameter: ￠707mm
6. Draft multiple:67.3-120.2
7. Motor:main motor 3.3kw
8. Overall size:3684*2009.5mm(LxW)
9. Output:30kg/h
10. Doffer motor 1.1kw
