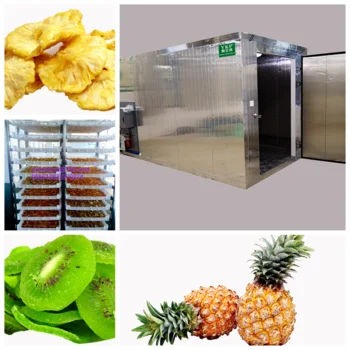

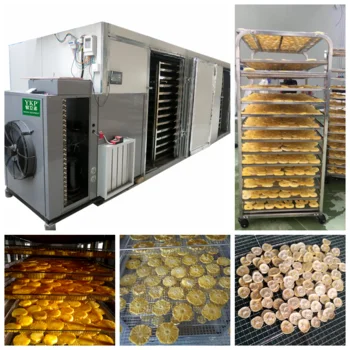

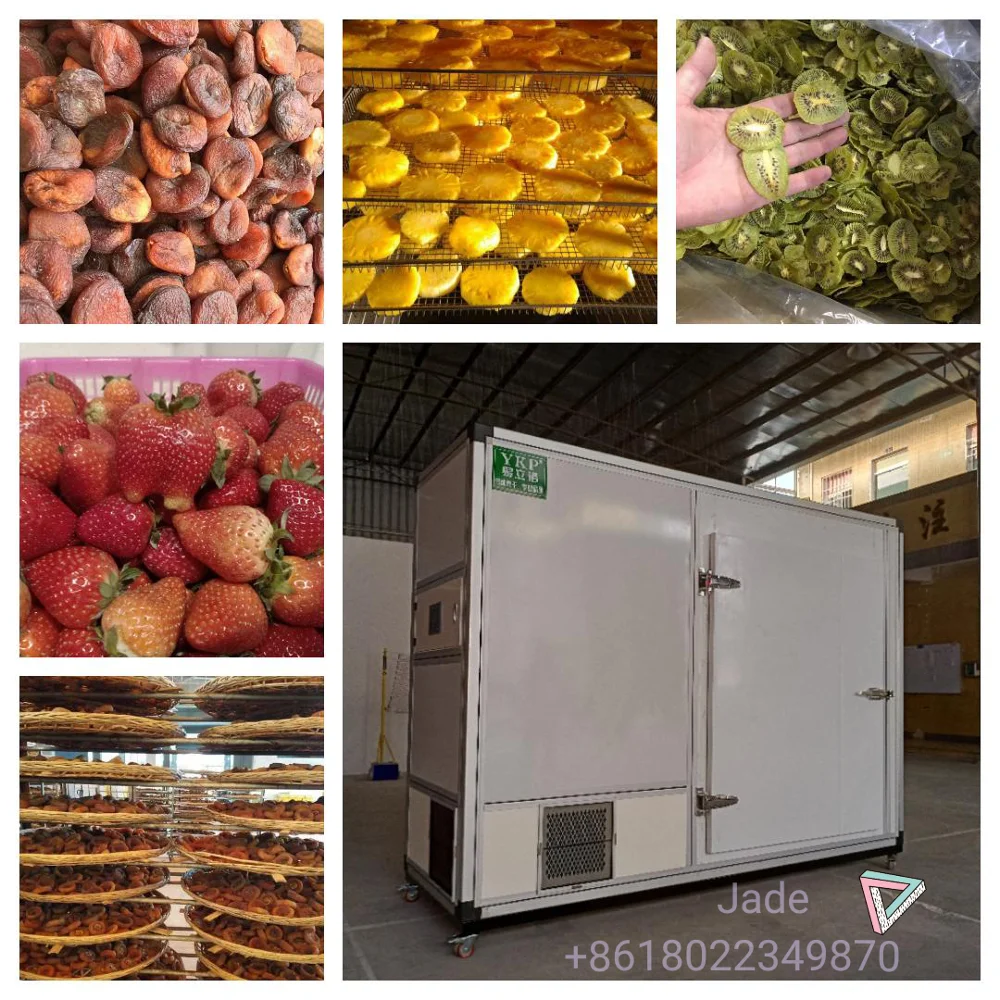

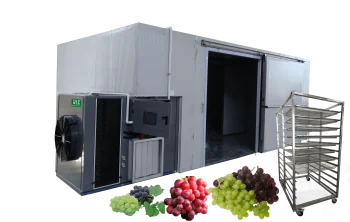

Coconut sugar drying oven fruit processing dryer machine
- Category: >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. Ltd.
Share on (62489537388):
Product Overview
Description
Coconut sugar drying oven fruit processing dryer machine
Product Description
Product Name: | Fruit drying equirpment |
Material: | Steel / Stainless Steel |
Power (KW): | 5.3kw |
Features: | Drying, Dehumidify, Fourth waste heat recovery technology, touch screen control, Programmable |

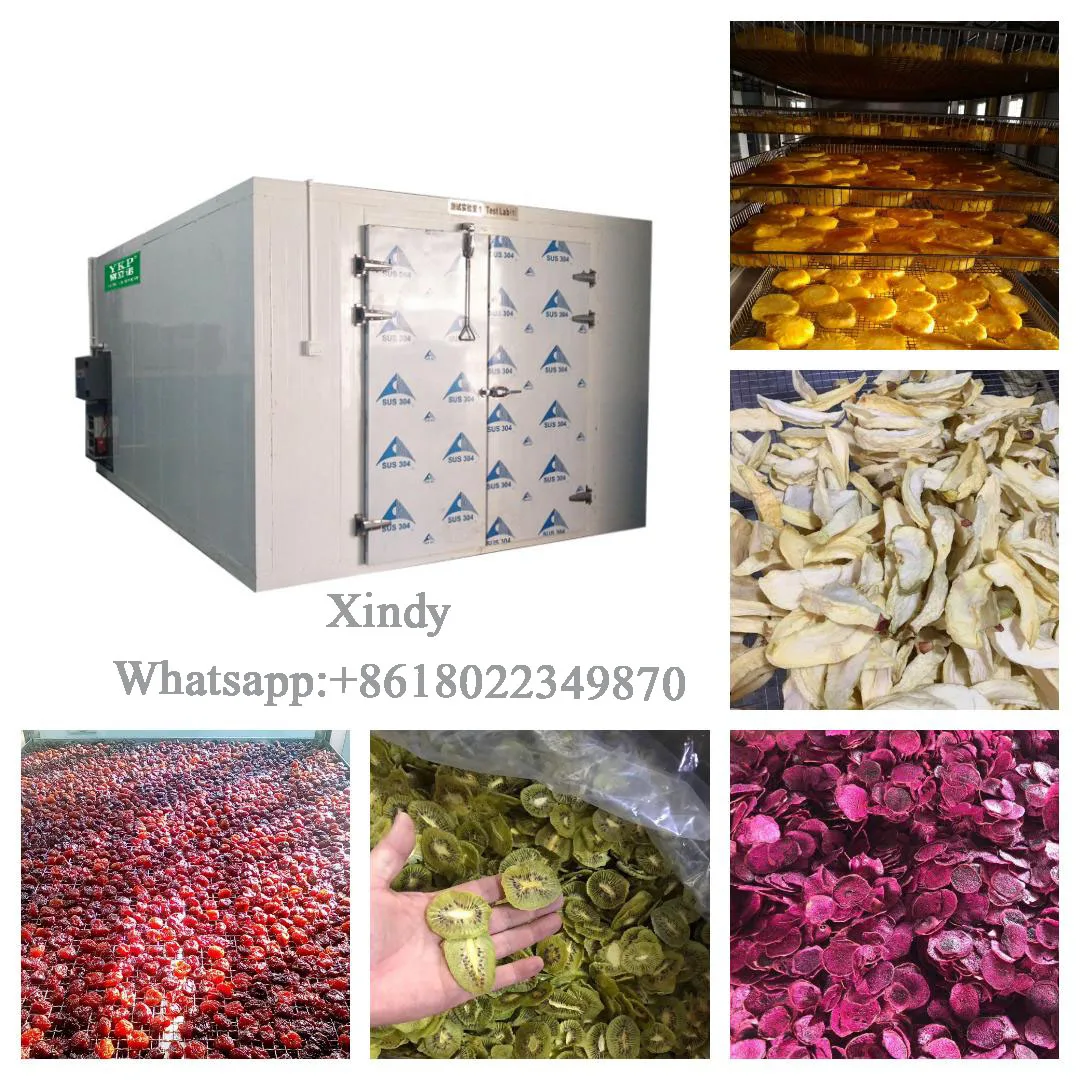

Fruit Drying Equipment
Drying process is an important process of dried fruit, which determines the quality of the finished dried fruit. Generally, the fruit drying process is divided into four important stages: preheating, drying, ripening, and shrinking.
We will seting different Temperture as different the water content of fruit.
What is it?

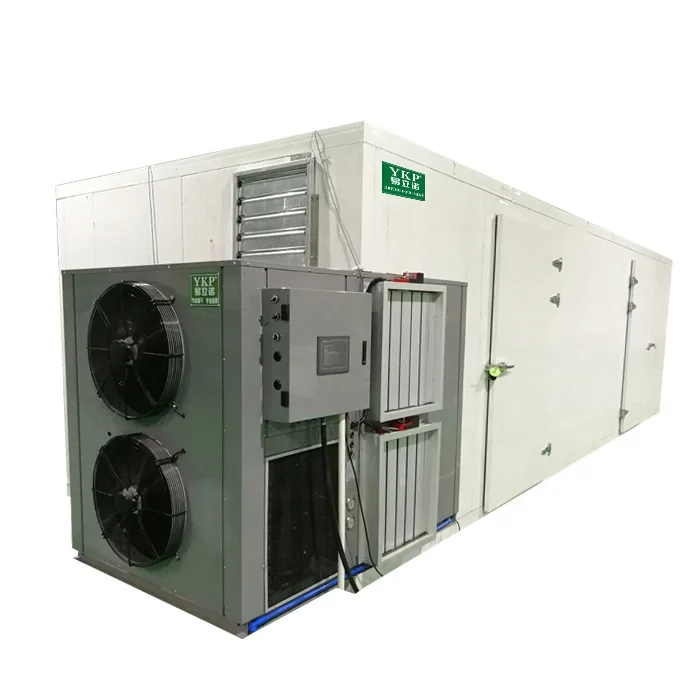

YKP Air Energy Heat pump Dryer uses the reverse Carnot principle to absorb the free heat from the air and transfer it to the
drying room (input of 1 degrees of electric energy can produce 4 degrees of electric energy).The temperture of the drying room is increase, and the corresponding dehumidification and moisture removal equipment is used to
achieve drying of the material.
The working principle of Heat pump drying machine
* YKP heat pump dryer operates according to a basic reverse Carnot cycle. The working fluid (refrigerant) at low pressure is vaporized in the evaporator by heat drawn from the dryer exhaust air. The compressor raises the enthalpy of the working fluid of the heat pump and discharges it as superheated vapor at high-pressure. Heat is removed from the working fluid is then throttled to the low-process line (using an expansion valve) and enters the evaporator to complete the cycle.
* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.
* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.
Wildely Application
Agricultural Products Dryer: Mushroom Dryer, Daily Dryer, Tee Tree Dryer, Dried Bamboo Shoot Dryer,etc
Spice Dryer: Pepper Dryer, Chilli Dryer, Turmeric Dryer, Ginger Power, Curry Power, etc
Tea Dryers: Black Tea Dryer, Moringa Tea Dryer, Green Tea Dryer, etc
Seafood Dryer: Squid Dryer, Shrimp Dryer, Abalone Dryer, Cuttlefish Dryer, etc
Fruit Dryer: Mango Dryer, Apple Dryer, Apricot Dryer, Strawberry Dryer, Fig Dryer, etc
Wood Dryer: Rosewood Dryer, Bamboo Stick Dryer, Cumaru Dryer, Veneer Dryer,etc
Industrial Dryer: Printing Dryer, Leather Dryer, Rubber Glove Dryer, Noodles Tunnel Dryer, etc

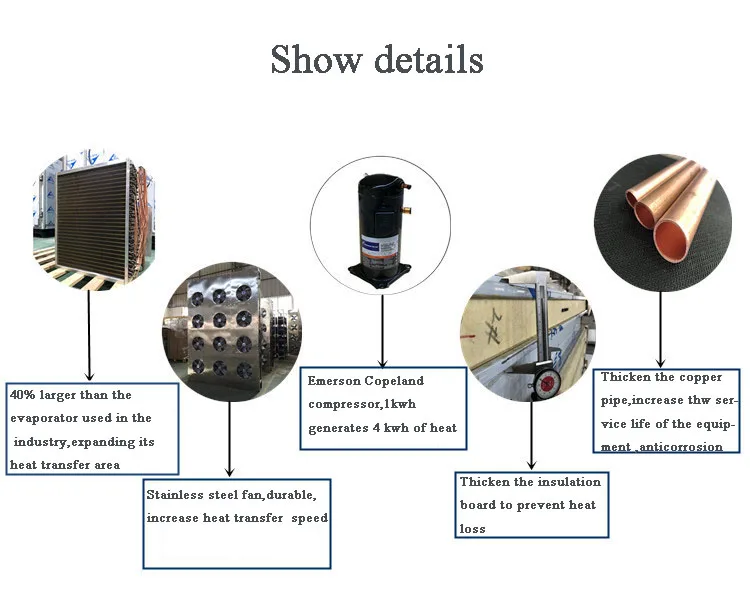

Details Images
Our Advantages
Size Information
Recommend Configuration
Model | Capacity | Drying room size | Trolley qty | |||
YK-72RD-15-L | 60KG/batch | 2500x1240x2200mm | / | |||
YK-72RD-30-L | 120KG/batch | 3300x1240x2200mm | / | |||
YK-72RD-60-L | 240KG/batch | 3810x1880x2200mm | / | |||
One unit YK-72RD | 300KG/batch | 4000x2400x2400mm | 4 | |||
Two units YK-72RD | 700KG/batch | 8000x2400x2400mm | 8 | |||
One unit YK-145RD | 800KG/batch | 5000x3000x2400mm | 8 | |||
Two units YK-145RD | 1500KG/batch | 8000x3000x2400mm | 12 | |||
One unit YK-290RD | 1200KG/batch | 8000x3000x2400mm | 12 | |||
Two units YK-290RD | 2000KG/batch | 12000x3000x2400mm | 20 | |||
One unit YK-360RD | 1500KG/batch | 8000x3000x2400mm | 12 | |||
Two units YK-360RD | 2400KG/batch | 12000x3000x2400mm | 20 | |||
Two unit YK-720RD | 4500KG/batch | 13000x4200x2400mm | 28 | |||
Drying room size can be customized under your requirements. | ||||||
Related Products
Model:YK-145RD
Click on me!
Model:YK-24E
Click on me!
Model:YK-240RD
Click on me!
Model:YK-290RD
Click on me!
Model: YK-72RD-ZTB-24
Click on me!
Model:YK-720RD
Click on me!
Packing&Shipping
Packing: Unit packed in plywood cases.
Company Introduction
Guangzhou Yike Heat Pump Drying Equipment Technology Co., Ltd. is committed to the research and development and application of heat pump dryer. We are specializing in R&D, manufacturing, sales and installation of “YKP” brand air energy energy-saving dryer (heat pump dryer). YKP company introduces advanced technology from Europe and the United States, combines traditional drying technology with modern drying technology, and adheres to the development strategy of independent research and development. At present, it has formed a all-in-one high-temperature heat pump dryer, split type high-temperature heat pump dryer, and high-efficiency industrial dehumidifier, sludge dehumidification and drying machine, automatic drying line and other products. The company insists on pioneering and innovating, is diligent and enterprising, continuously perfects and improves the quality of products, strives for perfection of products, and serves customers carefully, taking "integrity, focus, innovation, service, win-win and contribution" as the concept.
Certificate
After Sales Service
Before arrival of machines:
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support.
* View our Factory.
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
* Sample testing support.
* View our Factory.
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
